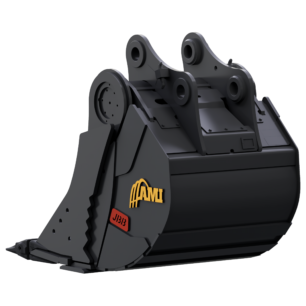

When multi-tasking is a must, the AMI Attachments Jawbone 4-in-1 Excavator Bucket responds with a multipurpose design that digs, grades, grips and clamshells. At first glance, the AMI Jawbone excavator bucket looks no different than a regular digging bucket, however inside the crossbar is a powerful hydraulic rotary actuator. This provides all the power of a hydraulic cylinder-style thumb but without custom installation. With as much holding power and gripping strength as a thumb, the AMI Jawbone 4-in-1 Excavator Bucket handles logs, rocks and scrap easily. You can also switch between digging and ditching with the ability of two different cutting edges on one bucket. Now you can dig and grade without costing you downtime changing buckets. For swampy material handling, the AMI Jawbone Excavator Bucket also works as a clamshell bucket for loading and dumping straight down.
Designed for strength and durability, the Jawbone is powered using a helical actuator fitted into the crossbar. With holding strength up to 54,000 ft.lbs of torque at 3,000 PSI, the actuator's tidy design eliminates the need for bulky hydraulic cylinders.
Confidently handle heavy and awkward loads with the superior grip of the Jawbone's integrated thumb. For demolition work requiring picking, sorting and transferring, the Jawbone strongly grips the load and holds it securely throughout the full rotation of the bucket, all the way to roll out. The Jawbone also takes out the guesswork of trying to control both thumb and bucket at the same time, providing a safer worksite and reducing hydraulic line failure from over-pressure.
Aggressive serrated side plates come standard for maximum grip. The Jawbone is built using Hardox 450 steel.
With no cylinders and no exposed hydraulics, you don't have to worry about rocks or debris causing damage.
|130||JBHD2433E24||24,000 - 33,000 lbs||24 "||0.455 yd³||4||1150 lbs|
|130||JBHD2433E30||24,000 - 33,000 lbs||30 "||0.590 yd³||4||1225 lbs|
|130||JBHD2433E36||24,000 - 33,000 lbs||36 "||0.720 yd³||5||1300 lbs|
|150||JBHD3340E30||33,000 - 45,000 lbs||30 "||0.650 yd³||4||1550 lbs|
|150||JBHD3340E36||33,000 - 45,000 lbs||36 "||0.875 yd³||5||1650 lbs|
|150||JBHD3340E42||33,000 - 45,000 lbs||42 "||0.950 yd³||5||1750 lbs|
|200||JBHD4045E36||45,000 - 55,000 lbs||36 "||0.875 yd³||5||2480 lbs|
|200||JBHD4045E42||45,000 - 55,000 lbs||42 "||1.000 yd³||5||2570 lbs|
|200||JBHD4045E48||45,000 - 55,000 lbs||48 "||1.250 yd³||6||2660 lbs|
|250||JBHD4560E42||55,000 - 65,000 lbs||42 "||1.190 yd³||5||WOR|
|250||JBHD4560E48||55,000 - 65,000 lbs||48 "||1.500 yd³||6||3540 lbs|
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
