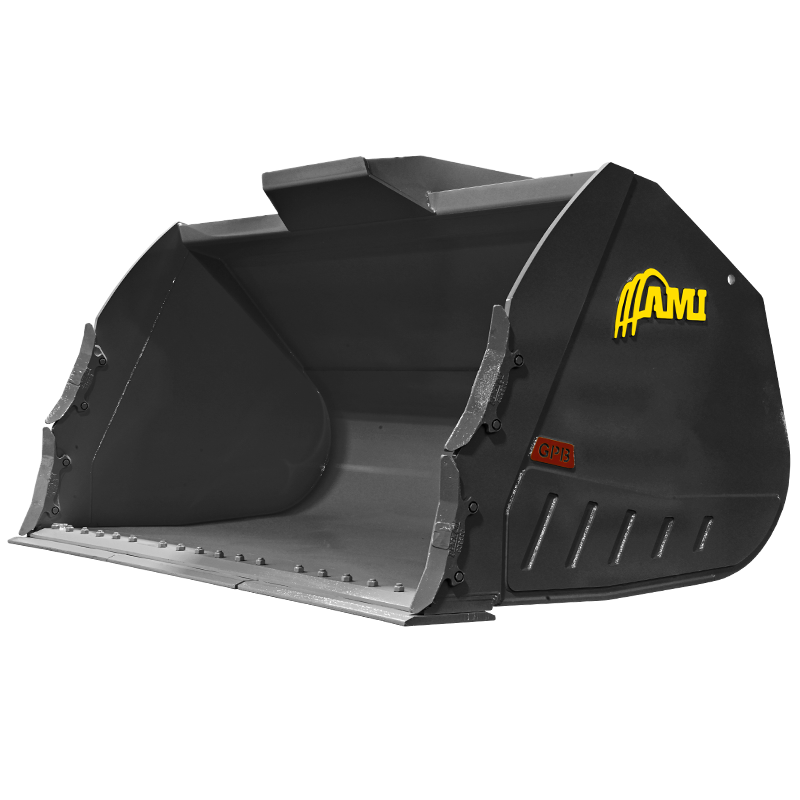

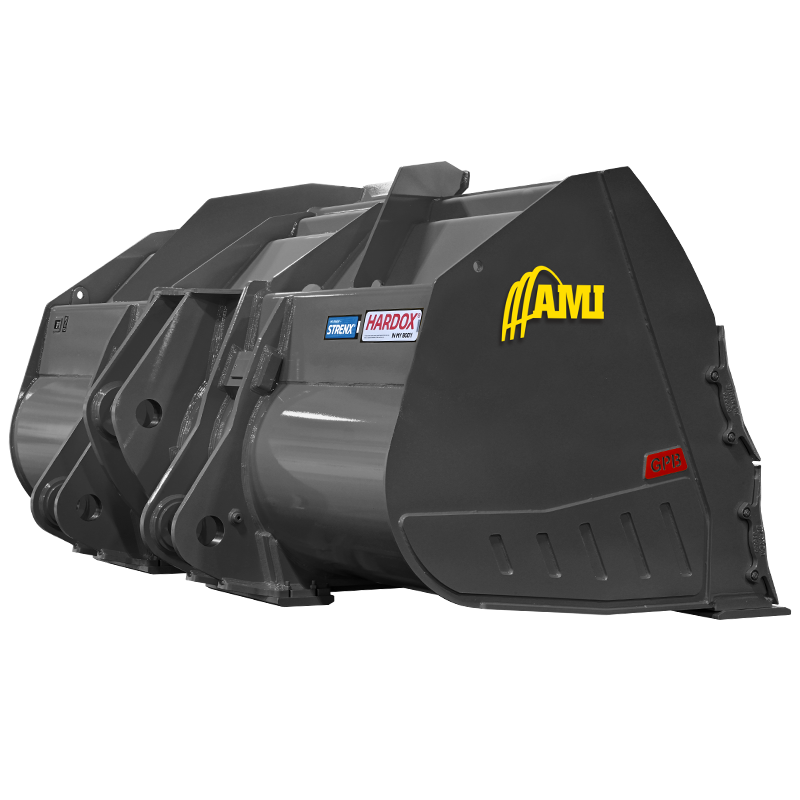

2-Pass Bucket

When every cycle counts, get the bucket that maximizes productivity without wasting payload, fuel or time. Designed to hold a true 10-yards heaped, this bucket reduces the passes needed to fill trucks to capacity. Material loads and stacks quickly due to the convex-shaped sidecut profile and deep floor for ideal rollback. Built using Hardox® Wear Plate and Strenx™ Performance Steel, you now have a 2-Pass Bucket without added weight that lasts longer and has a predictable wear life. A True 2-Pass bucket, made to last.

Product Features


True 2-Pass 10 Yd Bucket

Designed to hold a true 10-yards heaped, the 2-Pass Bucket reduces the passes needed to fill trucks to capacity.


Hardox® 500 Tuf

Made with Hardox® 500 Tuf - The new generation of Hardox® wearplate, the 2-Pass Bucket delivers reliable strength with longer life - without the added weight.

Structural Components

Shell Liner Hardox® 500 Tuf
Side Cutter Hardox® 450
Shell Liner Hardox® 500 Tuf
Side Cutter Hardox® 450
End Plate Hardox® 450
Cheek Plate Hardox® 500 Tuf
End Plate Hardox® 450
Cheek Plate Hardox® 500 Tuf
Lugging Strenx®
Shell Hardox® 500 Tuf
Lugging Strenx®
Shell Hardox® 500 Tuf

Specifications - Wheel Loader

FastTrack Category Model Machine Class Capacity Weight
300 WL300GPHD1000 6.50 - 7.50 yds 10.000 yd³ 9000 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

Ready to know more?

Find out which attachment works best for you and get a quote!
Call Toll free North America - 1.800.556.9452 or fill out the form below:
