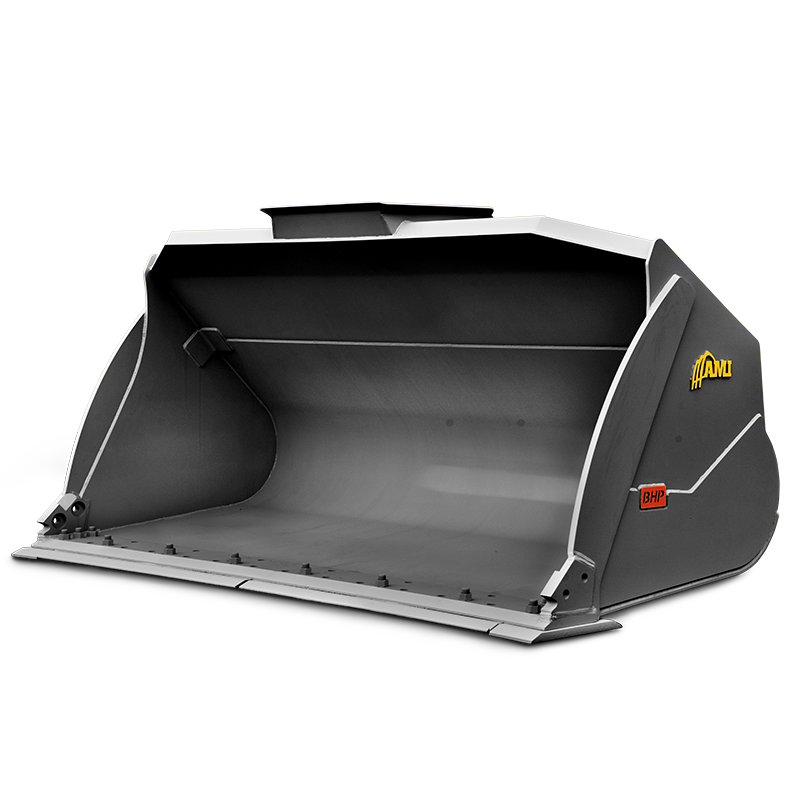

Heavy Duty General Purpose Bucket

AMI’s Heavy Duty General Purpose Bucket is made of 100% Hardox steel and is ideal for highly abrasive work in gravel pits or rock quarries.

SPECIFICATIONS - WHEEL LOADER

FastTrack Category Model Machine Class Capacity Struck Capacity Weight
FastTrack Icon 150 WL150GPHD250 2.75 - 3.00 yds 2.500 yd³ 2.005 yd³ 2200 lbs
FastTrack Icon 150 WL150GPHD275 2.75 - 3.00 yds 2.750 yd³ 2.285 yd³ 2375 lbs
FastTrack Icon 150 WL150GPHD300 2.75 - 3.00 yds 3.000 yd³ 2.430 yd³ 2530 lbs
FastTrack Icon 175 WL175GPHD300 3.25 - 3.50 yds 3.000 yd³ 2.395 yd³ 3000 lbs
FastTrack Icon 175 WL175GPHD325 3.25 - 3.50 yds 3.250 yd³ 2.690 yd³ 3080 lbs
FastTrack Icon 175 WL175GPHD350 3.25 - 3.50 yds 3.500 yd³ 2.875 yd³ 3160 lbs
FastTrack Icon 175 WL175GPHD400 3.25 - 3.50 yds 4.000 yd³ 3.385 yd³ 3465 lbs
FastTrack Icon 200 WL200GPHD350 3.75 - 4.50 yds 3.500 yd³ 2.885 yd³ 3805 lbs
FastTrack Icon 200 WL200GPHD400 3.75 - 4.50 yds 4.000 yd³ 3.280 yd³ 4075 lbs
FastTrack Icon 200 WL200GPHD425 3.75 - 4.50 yds 4.250 yd³ 3.490 yd³ 4210 lbs
FastTrack Icon 200 WL200GPHD450 3.75 - 4.50 yds 4.500 yd³ 3.765 yd³ 4240 lbs
FastTrack Icon 200 WL200GPHD475 3.75 - 4.50 yds 4.750 yd³ 3.930 yd³ 4450 lbs
FastTrack Icon 250 WL250GPHD500 5.00 - 6.25 yds 5.000 yd³ 3.875 yd³ 5895 lbs
FastTrack Icon 250 WL250GPHD525 5.00 - 6.25 yds 5.250 yd³ 4.125 yd³ 6000 lbs
FastTrack Icon 250 WL250GPHD550 5.00 - 6.25 yds 5.500 yd³ 4.000 yd³ 6105 lbs
FastTrack Icon 250 WL250GPHD600 5.00 - 6.25 yds 6.000 yd³ 4.875 yd³ 6205 lbs
FastTrack Icon 250 WL250GPHD625 5.00 - 6.25 yds 6.250 yd³ 5.125 yd³ 6310 lbs
FastTrack Icon 250 WL250GPHD650 5.00 - 6.25 yds 6.500 yd³ 5.375 yd³ 6410 lbs
FastTrack Icon 300 WL300GPHD600 6.50 - 7.50 yds 6.000 yd³ 4.875 yd³ 6820 lbs
FastTrack Icon 300 WL300GPHD650 6.50 - 7.50 yds 6.500 yd³ 5.375 yd³ 7075 lbs
FastTrack Icon 300 WL300GPHD700 6.50 - 7.50 yds 7.000 yd³ 5.875 yd³ 7590 lbs
FastTrack Icon 300 WL300GPHD750 6.50 - 7.50 yds 7.500 yd³ 6.375 yd³ 7895 lbs
FastTrack Icon 400 WL400GPHD1000 8.00 - 10.00 yds 10.000 yd³ 0 yd³ 10460 lbs
FastTrack Icon 400 WL400GPHD800 8.00 - 10.00 yds 8.000 yd³ 0 yd³ 9130 lbs
FastTrack Icon 400 WL400GPHD900 8.00 - 10.00 yds 9.000 yd³ 0 yd³ 9795 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

Hardox & Strenx
