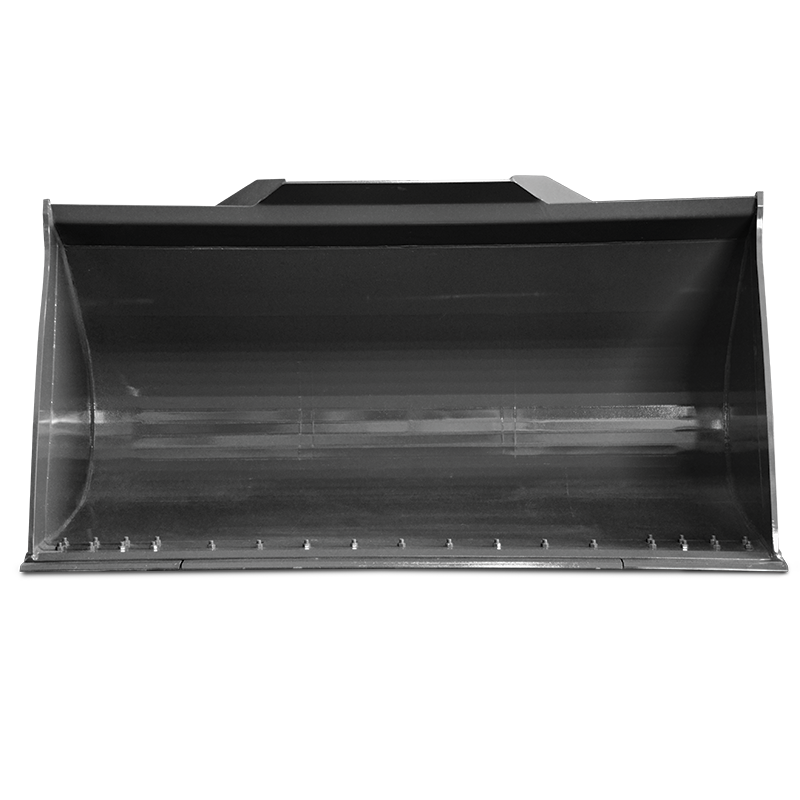

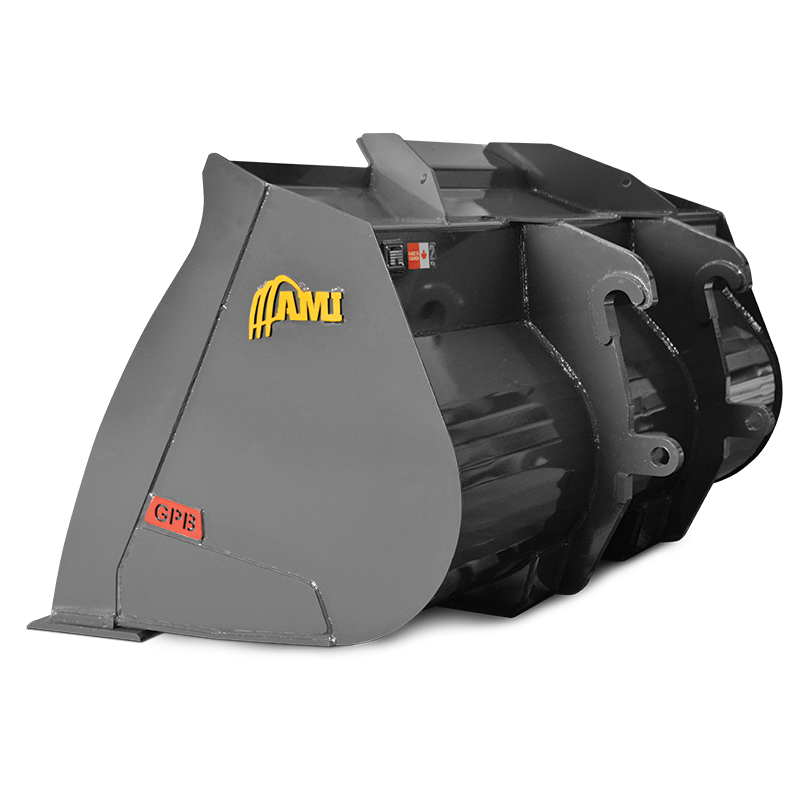

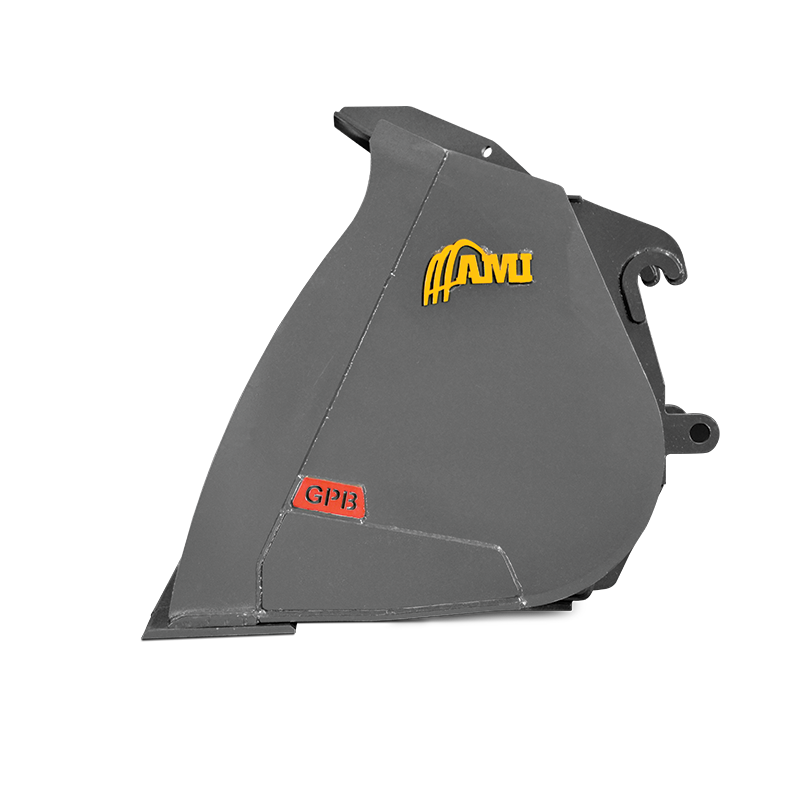

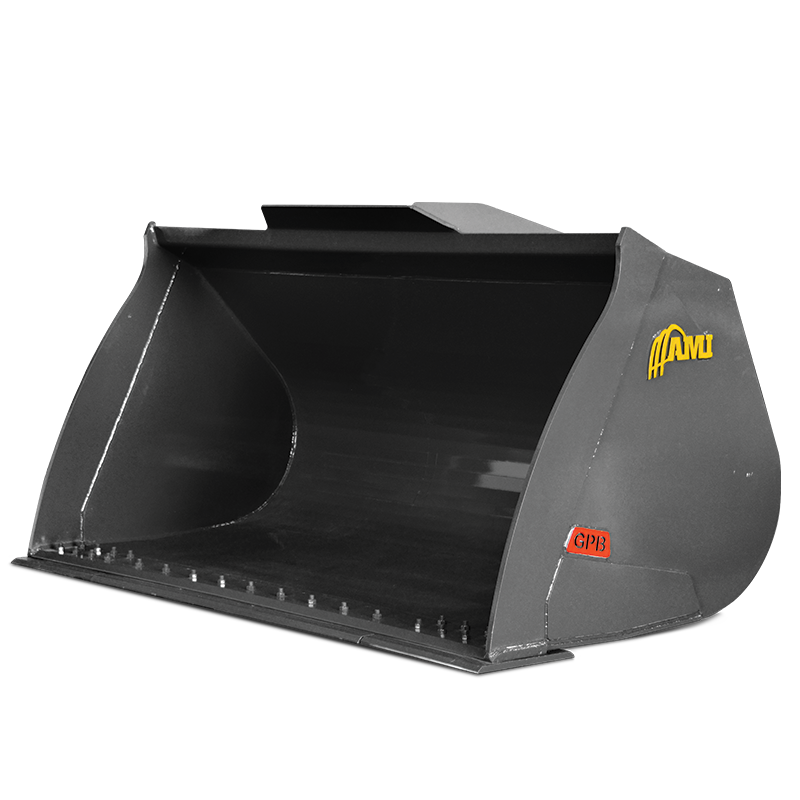

General Purpose Bucket
To fill quickly material needs to roll. AMI angles the bucket floor up slightly helping to lift material into the bucket. Smooth curves and open design makes the clean out easy without material packing into tight corners.
SPECIFICATIONS - WHEEL LOADER
| FastTrack | Category | Model | Machine Class | Capacity | Struck Capacity | Weight |
|---|---|---|---|---|---|---|
| 50 | WL50GP100 | 1.00 - 1.50 yds | 1.000 yd³ | 0.750 yd³ | 1045 lbs | |
| 50 | WL50GP125 | 1.00 - 1.50 yds | 1.250 yd³ | 1.000 yd³ | 1115 lbs | |
| 50 | WL50GP130 | 1.00 - 1.50 yds | 1.30 yd³ | 1.00 yd³ | WOR | |
| 50 | WL50GP150 | 1.00 - 1.50 yds | 1.500 yd³ | 1.250 yd³ | 1250 lbs | |
| 100 | WL100GP100 | 1.50 - 2.00 yds | 1.000 yd³ | 0.750 yd³ | 1105 lbs | |
| 100 | WL100GP125 | 1.50 - 2.00 yds | 1.250 yd³ | 1.000 yd³ | 1180 lbs | |
| 100 | WL100GP150 | 1.50 - 2.00 yds | 1.500 yd³ | 1.250 yd³ | 1250 lbs | |
| 100 | WL100GP175 | 1.50 - 2.00 yds | 1.750 yd³ | 1.500 yd³ | 1320 lbs | |
| 100 | WL100GP200 | 1.50 - 2.00 yds | 2.000 yd³ | 1.750 yd³ | 1500 lbs | |
| 125 | WL125GP100 | 2.00 - 2.50 yds | 1.000 yd³ | - | WOR | |
| 125 | WL125GP200 | 2.00 - 2.50 yds | 2.000 yd³ | 1.650 yd³ | 1860 lbs | |
| 125 | WL125GP225 | 2.00 - 2.50 yds | 2.250 yd³ | 1.845 yd³ | 1910 lbs | |
| 125 | WL125GP250 | 2.00 - 2.50 yds | 2.500 yd³ | 2.040 yd³ | 1960 lbs | |
| 125 | WL125GP275 | 2.00 - 2.50 yds | 2.750 yd³ | - | 2185 lbs | |
| 150 | WL150GP100 | 2.75 - 3.00 yds | 1.000 yd³ | - | WOR | |
| 150 | WL150GP250 | 2.75 - 3.00 yds | 2.500 yd³ | 2.065 yd³ | 2155 lbs | |
| 150 | WL150GP275 | 2.75 - 3.00 yds | 2.750 yd³ | 2.315 yd³ | 2305 lbs | |
| 150 | WL150GP300 | 2.75 - 3.00 yds | 3.000 yd³ | 2.430 yd³ | 2455 lbs | |
| 150 | WL150GP325 | 2.75 - 3.00 yds | 3.250 yd³ | 2.750 yd³ | 2590 lbs | |
| 150 | WL150GP350 | 2.75 - 3.00 yds | 3.500 yd³ | 3.000 yd³ | 2655 lbs | |
| 175 | WL175GP100 | 3.25 - 3.50 yds | 1.000 yd³ | 0 yd³ | WOR | |
| 175 | WL175GP300 | 3.25 - 3.50 yds | 3.000 yd³ | 2.563 yd³ | 2910 lbs | |
| 175 | WL175GP325 | 3.25 - 3.50 yds | 3.250 yd³ | 2.813 yd³ | 2990 lbs | |
| 175 | WL175GP350 | 3.25 - 3.50 yds | 3.500 yd³ | 3.063 yd³ | 3070 lbs | |
| 175 | WL175GP400 | 3.25 - 3.50 yds | 4.000 yd³ | 3.563 yd³ | 3365 lbs | |
| 200 | WL200GP100 | 3.75 - 4.50 yds | 1.000 yd³ | - | WOR | |
| 200 | WL200GP300 | 3.75 - 4.50 yds | 3.000 yd³ | 2.500 yd³ | 3580 lbs | |
| 200 | WL200GP350 | 3.75 - 4.50 yds | 3.500 yd³ | 2.750 yd³ | 3695 lbs | |
| 200 | WL200GP400 | 3.75 - 4.50 yds | 4.000 yd³ | 3.250 yd³ | 3955 lbs | |
| 200 | WL200GP425 | 3.75 - 4.50 yds | 4.250 yd³ | 3.500 yd³ | 4085 lbs | |
| 200 | WL200GP450 | 3.75 - 4.50 yds | 4.500 yd³ | 3.750 yd³ | 4115 lbs | |
| 200 | WL200GP475 | 3.75 - 4.50 yds | 4.750 yd³ | 4.000 yd³ | 4320 lbs | |
| 200 | WL200GP500 | 3.75 - 4.50 yds | 5.000 yd³ | 0 yd³ | WOR | |
| 200 | WL200GP550 | 3.75 - 4.50 yds | 5.500 yd³ | 4.750 yd³ | WOR | |
| 200 | WL200GP600 | 3.75 - 4.50 yds | 6.000 yd³ | 5.250 yd³ | 4865 lbs | |
| 250 | WL250GP500 | 5.00 - 6.25 yds | 5.000 yd³ | 3.875 yd³ | 5750 lbs | |
| 250 | WL250GP525 | 5.00 - 6.25 yds | 5.250 yd³ | 4.125 yd³ | 5850 lbs | |
| 250 | WL250GP550 | 5.00 - 6.25 yds | 5.500 yd³ | 4.375 yd³ | 6105 lbs | |
| 250 | WL250GP600 | 5.00 - 6.25 yds | 6.000 yd³ | 4.875 yd³ | 6050 lbs | |
| 250 | WL250GP625 | 5.00 - 6.25 yds | 6.250 yd³ | 5.125 yd³ | 6150 lbs | |
| 250 | WL250GP650 | 5.00 - 6.25 yds | 6.500 yd³ | 5.375 yd³ | 6250 lbs | |
| 250 | WL250GP700 | 5.00 - 6.25 yds | 7.000 yd³ | 6.000 yd³ | WOR | |
| 300 | WL300GP600 | 6.50 - 7.50 yds | 6.000 yd³ | 4.875 yd³ | 6650 lbs | |
| 300 | WL300GP650 | 6.50 - 7.50 yds | 6.500 yd³ | 5.375 yd³ | 6900 lbs | |
| 300 | WL300GP700 | 6.50 - 7.50 yds | 7.000 yd³ | 5.875 yd³ | 7400 lbs | |
| 300 | WL300GP750 | 6.50 - 7.50 yds | 7.500 yd³ | 6.375 yd³ | 7700 lbs | |
| 300 | WL300GP800 | 6.50 - 7.50 yds | 8.00 yd³ | 6.875 yd³ | 7980 lbs | |
| 400 | WL400GP1000 | 8.00 - 10.00 yds | 10.000 yd³ | 0 yd³ | 10200 lbs | |
| 400 | WL400GP800 | 8.00 - 10.00 yds | 8.000 yd³ | 0 yd³ | 8900 lbs | |
| 400 | WL400GP900 | 8.00 - 10.00 yds | 9.000 yd³ | 0 yd³ | 9550 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
