Grading Beam

Optimize your grading performance with the AMI Attachments excavator Grading Beam. Available in 72", 84” or 96” widths, the Grading Beam is ideal for levelling gravel and other material to a smooth, even surface. In one sweep, the sturdy steel beam with rake attachment passes across the plane to create a level surface, immediately followed by a smooth roller which compacts the gravel or dirt. When used in conjunction with the AMI AXXIS™ Tilt Rotator, you can achieve greater precision with less repositioning.

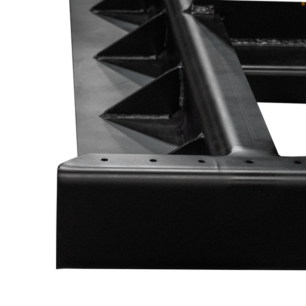

Replaceable Cutting Edge

The bolt-on cutting edge is easily replaceable and can be changed in the field if required.

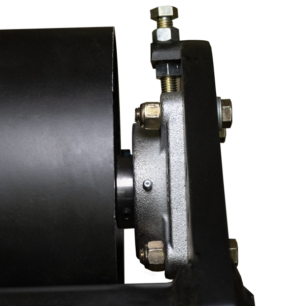

Adjustable Side Plates

Loosening two bolts provides height adjustment for precision grading

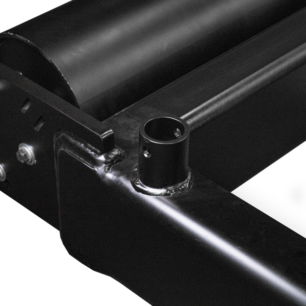

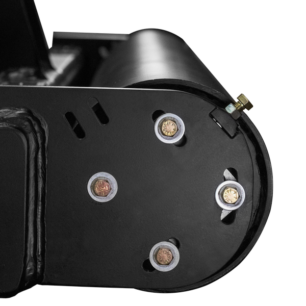

Roller Bearings with Grease Zerks

The roller is mounted with greaseable bearing on both ends.

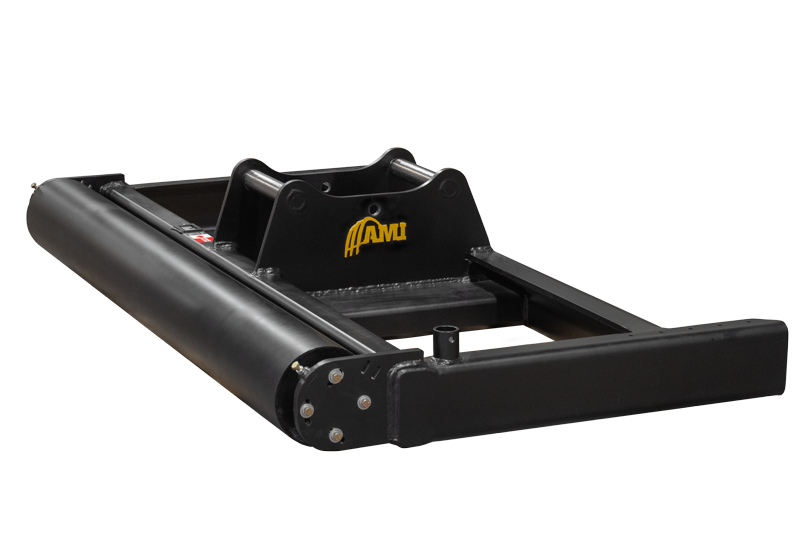

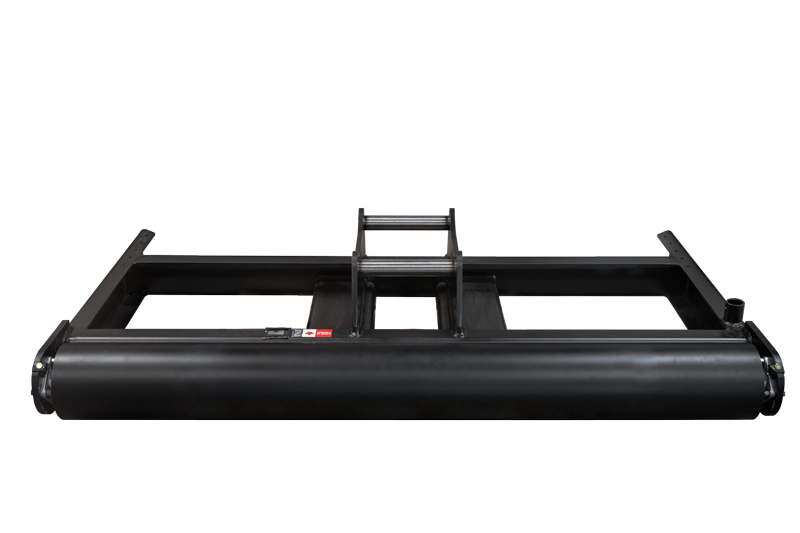

Smooth Roller - Smooth Edge

This option offers a smooth grader blade in the front with a smooth roller in the back


Smooth Roller - Notch Edge

This option offers a notched grader blade up front and a smooth roller

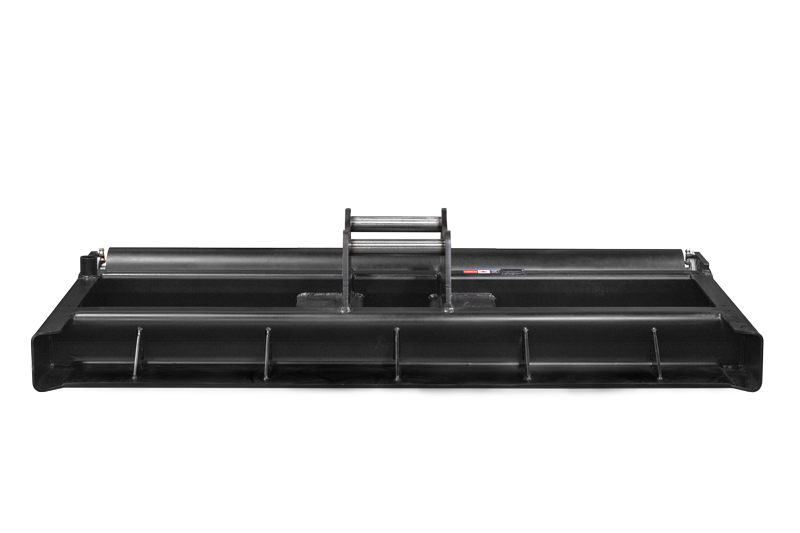

Bar Roller - Smooth Edge

This option offers a smooth grader blade up front with a bar roller

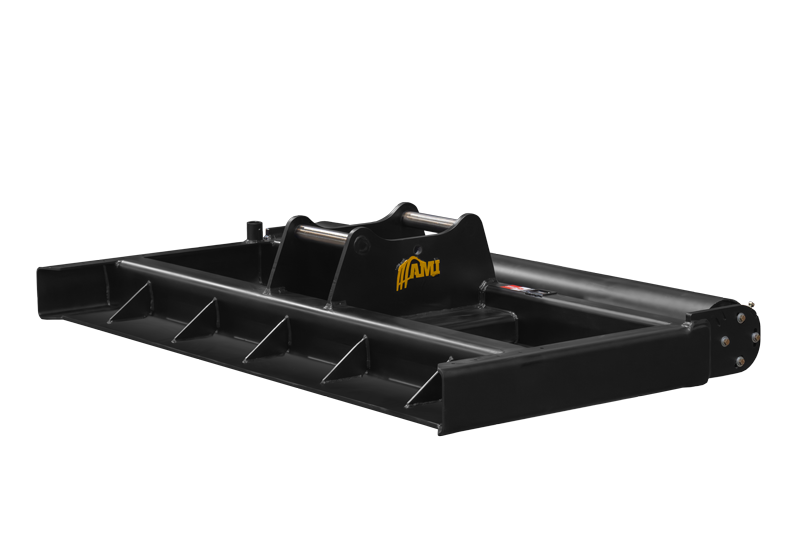

Bar Roller - Notch Edge

This option has a notched grader blade up front and a bar roller in the back


Specifications

FastTrack Category Model Machine Class Width Weight
130 GB72 24,000 - 33,000 lbs 72 700
130 GB84 24,000 - 33,000 lbs 84 745
150 GB84 33,000 - 45,000 lbs 84 745
150 GB96 33,000 - 45,000 lbs 96 845
200 GB84 45,000 - 55,000 lbs 84 745
200 GB96 45,000 - 55,000 lbs 96 845
250 GB84 55,000 - 65,000 lbs 84 745
250 GB96 55,000 - 65,000 lbs 96 845

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

FastTrack Category Model Machine Class Width Weight
50 GB60 10,000 - 12,000 lbs 60 700
60 GB60 12,000 - 14,000 lbs 60 700
75 GB60 14,000 - 24,000 lbs 60 700

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
