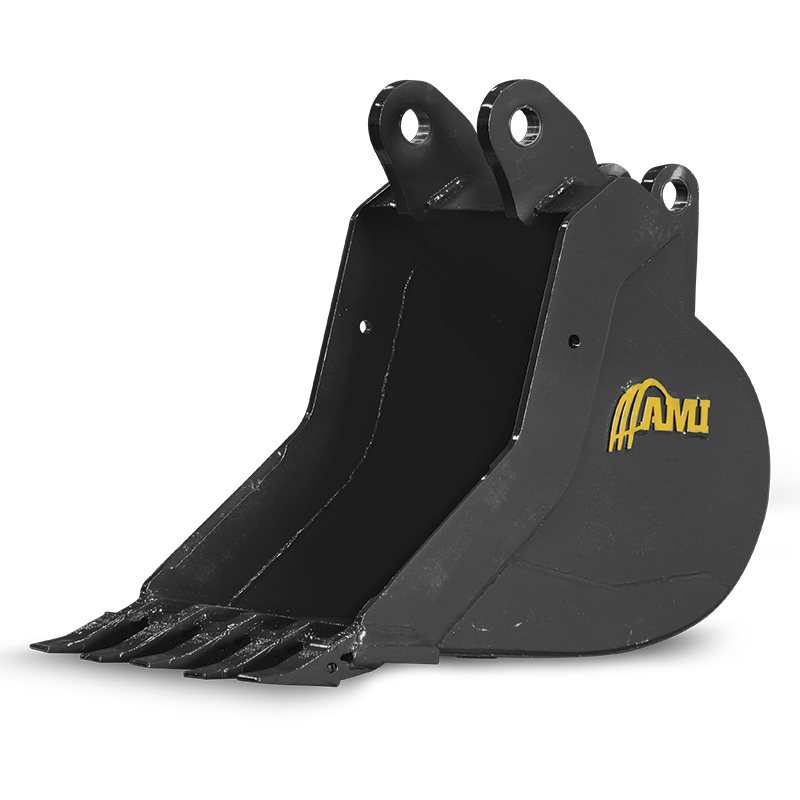

Heavy Duty Digging Bucket

With Hardox 450 wear steel in all wear areas including base edge, side cutter plates, cheek plates and horizontal wear bars, the AMI Heavy Duty Digging Bucket is built for heavy duty excavation. Featuring a standard dual radius profile in floor and heel of bucket for maximum wear and performance. Various ground engaging hardware available.

Specifications - Loader Backhoe

FastTrack Category Model Machine Class Width Capacity Teeth Weight
LBHD0610E10 10 " 1.375 ft³ 3 110 lbs
FastTrack Icon LBHD0610E12 12 " 1.750 ft³ 3 120 lbs
FastTrack Icon LBHD0610E16 16 " 2.000 ft³ 4 150 lbs
FastTrack Icon LBHD0610E18 18 " 2.750 ft³ 4 160 lbs
FastTrack Icon LBHD0610E20 20 " 3.125 ft³ 4 170 lbs
FastTrack Icon LBHD0610E24 24 " 3.750 ft³ 5 195 lbs
FastTrack Icon LBHD0610E30 30 " 4.875 ft³ 5 210 lbs
FastTrack Icon LBHD0610E36 36 " 5.875 ft³ 6 265 lbs
FastTrack Icon 50 LBHD1214E12 Class 50 12 " 3.000 ft³ 3 285 lbs
FastTrack Icon 50 LBHD1214E16 Class 50 16 " 4.375 ft³ 4 305 lbs
FastTrack Icon 50 LBHD1214E18 Class 50 18 " 5.125 ft³ 4 350 lbs
FastTrack Icon 50 LBHD1214E20 Class 50 20 " 6.000 ft³ 4 375 lbs
FastTrack Icon 50 LBHD1214E24 Class 50 24 " 7.500 ft³ 5 420 lbs
FastTrack Icon 50 LBHD1214E30 Class 50 30 " 10.000 ft³ 5 470 lbs
FastTrack Icon 50 LBHD1214E36 Class 50 36 " 12.375 ft³ 6 560 lbs
FastTrack Icon 70 LBHD1416E12 Class 70 12 " 3.375 ft³ 3 310 lbs
FastTrack Icon 70 LBHD1416E16 Class 70 16 " 6.750 ft³ 4 380 lbs
FastTrack Icon 70 LBHD1416E18 Class 70 18 " 6.750 ft³ 4 435 lbs
FastTrack Icon 70 LBHD1416E20 Class 70 20 " 6.750 ft³ 4 465 lbs
FastTrack Icon 70 LBHD1416E24 Class 70 24 " 10.125 ft³ 5 485 lbs
FastTrack Icon 70 LBHD1416E30 Class 70 30 " 10.125 ft³ 5 600 lbs
FastTrack Icon 70 LBHD1416E36 Class 70 36 " 13.500 ft³ 5 625 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
