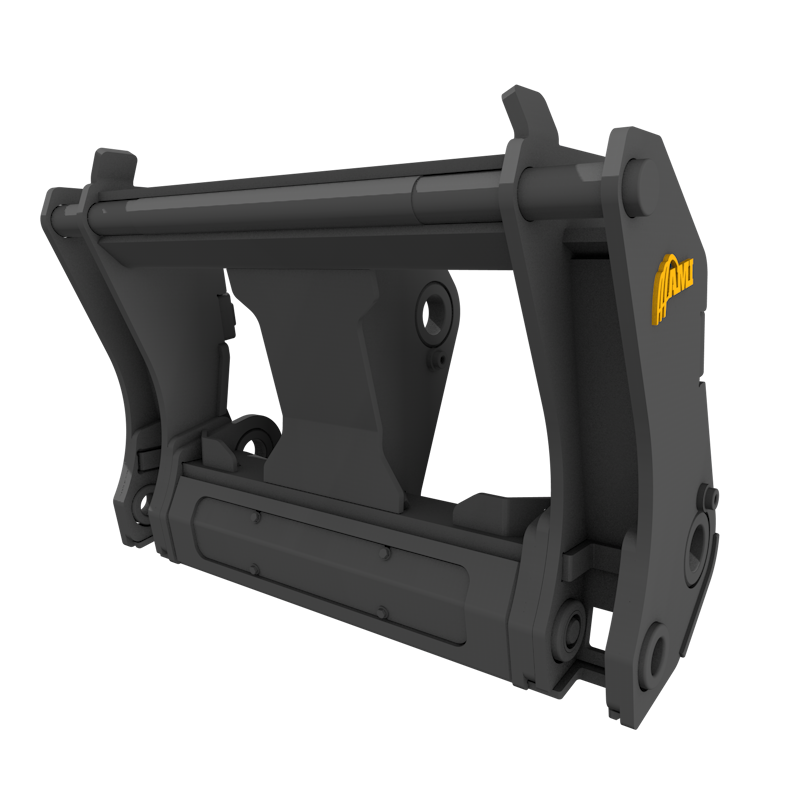

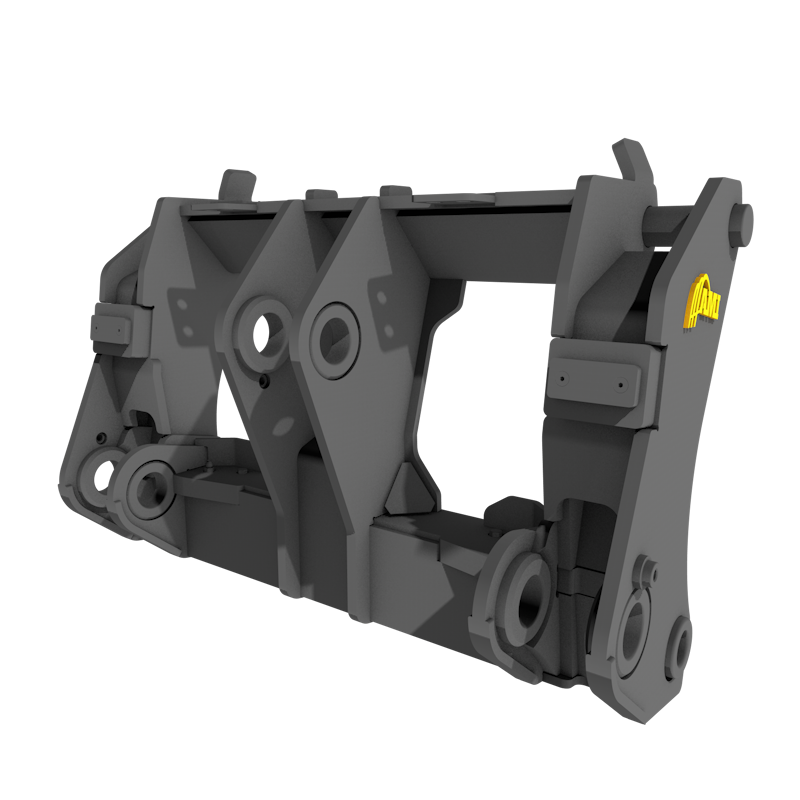

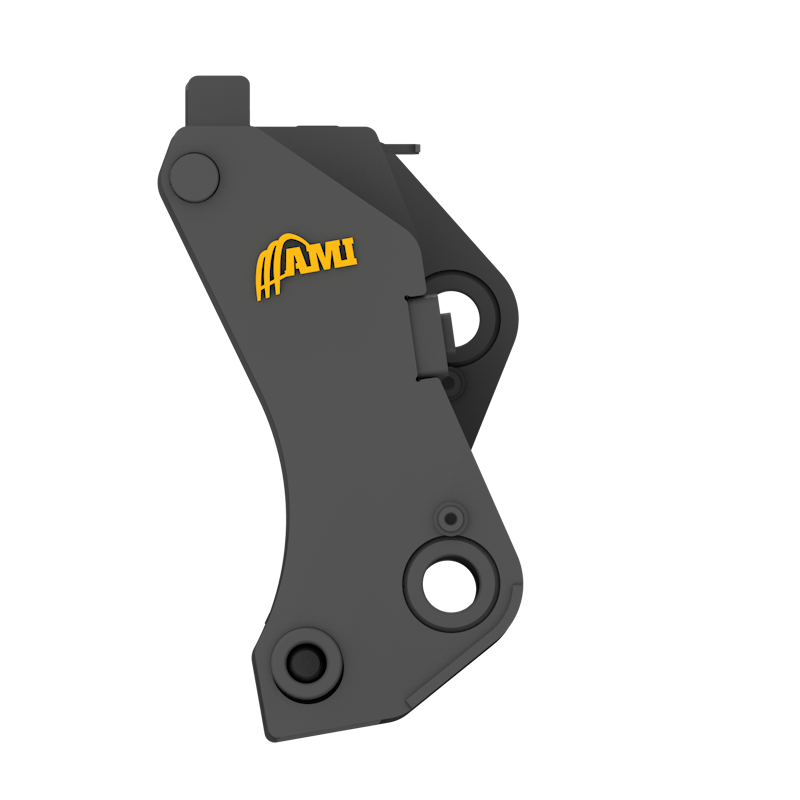

Hydraulic Coupler

Go ahead and get dirty because the new AMI Wheel Loader Hydraulic Coupler is ready to work in any mess. Designed to perform in real conditions, the locking cylinder is fully enclosed. Dirt and debris cannot touch the cylinder, protecting and prolonging the life of the coupler. Using grease-less bushings on the locking pins, AMI Attachments also reduces the risk of damage due to lack of maintenance or over-maintenance. The grease-less bushings self-lubricate each time the quick coupler is locked or unlocked. Self-greasing offers the right amount of lubrication for proper operation without the risk of using too much grease. When too much grease builds up around hydraulics, stones and dirt collect around the cylinder rod which is prone to scratches and premature wear. Available for all sizes of wheel loaders, compact loaders and loader backhoes, the AMI Hydraulic Coupler is ready to get to work no matter the conditions of your jobsite.

Structural Components


Specifications - Wheel Loader

FastTrack Category Model Machine Class Description Weight
50 WL50QCH 1.00 - 1.50 yds Hydraulic Quick Coupler 340 lbs
100 WL100QCH 1.50 - 2.00 yds Hydraulic Quick Coupler 690 lbs
125 WL125QCH 2.00 - 2.50 yds Hydraulic Quick Coupler 850 lbs
150 WL150QCH 2.75 - 3.00 yds Hydraulic Quick Coupler 995 lbs
175 WL175QCH 3.25 - 3.50 yds Hydraulic Quick Coupler 1050 lbs
200 WL200QCH 3.75 - 4.50 yds Hydraulic Quick Coupler 1300 lbs
250 WL250QCH 5.00 - 6.25 yds Hydraulic Quick Coupler 1980 lbs
300 WL300QCH 6.50 - 7.50 yds Hydraulic Quick Coupler 2350 lbs
400 WL400QCH 8.00 - 10.00 yds Hydraulic Quick Coupler 3500 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
