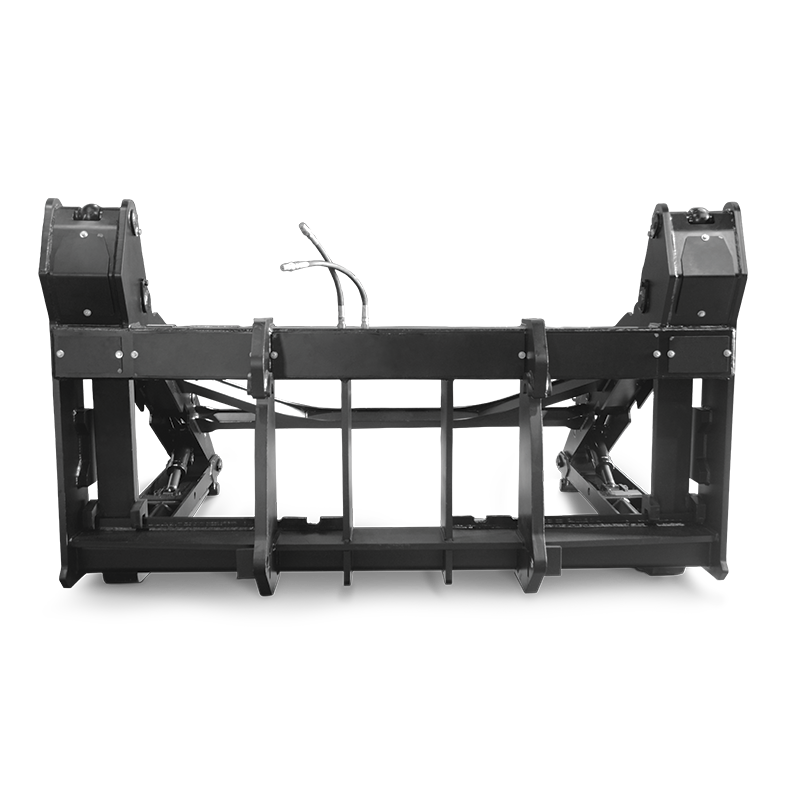

Pipe And Pole Grapple

Keep your load secure with the 2-stage hydraulic grapple, designed to pick the load and clamp down evenly on the entire row of pipe or poles for safe travel.

Specifications - Wheel Loader

FastTrack Category Model Machine Class Frame Width Tine Size Weight
50 WL50ST54PPG 1.00 - 1.50 yds 96 " 1.75'' x 5'' x 54'' 2200 lbs
100 WL100ST54PPG 1.50 - 2.00 yds 96 " 2'' x 6'' x 54'' WOR
125 WL125ST54PPG 2.00 - 2.50 yds 96 " 2''x 6'' x 54'' WOR
150 WLS50ST54PPG 2.75 - 3.00 yds 96 " 2.5'' x 8'' x 54'' 4050 lbs
FastTrack Icon 150 WLS50ST60PPG 2.75 - 3.00 yds 96 " 2.5'' x 8'' x 60'' 4100 lbs
150 WLS50ST72PPG 2.75 - 3.00 yds 96 " 2.5'' x 8'' x 72'' 4350 lbs
175 WLS50ST54PPG 3.25 - 3.50 yds 96 " 2.5'' x 8'' x 54'' 4050 lbs
FastTrack Icon 175 WLS50ST60PPG 3.25 - 3.50 yds 96 " 2.5'' x 8'' x 60'' 4100 lbs
175 WLS50ST72PPG 3.25 - 3.50 yds 96 " 2.5'' x 8'' x 72'' 4350 lbs
FastTrack Icon 200 WLS50ST60PPG 3.75 - 4.50 yds 96 " 2.5'' x 8'' x 60'' 4100 lbs
200 WLS50ST72PPG 3.75 - 4.50 yds 96 " 2.5'' x 8'' x 72'' 4350 lbs
200 WLS50ST72PPG120 3.75 - 4.50 yds 120 " 2.5'' x 8'' x 72'' 5100 lbs
250 WLS60ST72PPG 5.00 - 6.25 yds 120 " 2.5'' x 10'' x 72'' 7700 lbs
250 WLS60ST96PPG 5.00 - 6.25 yds 120 " 2.5''x10''x96'' 8100 lbs
300 WLS60ST72PPG 6.50 - 7.50 yds 120 " 2.5'' x 10'' x 72'' 7700 lbs
300 WLS60ST96PPG 6.50 - 7.50 yds 120 " 2.5''x10''x96'' 8100 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
