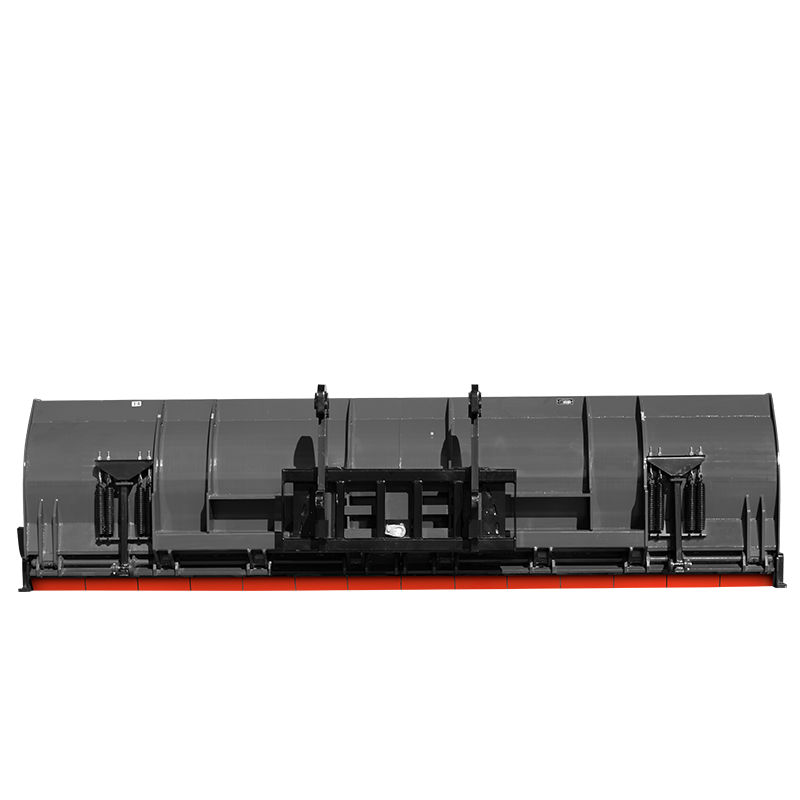

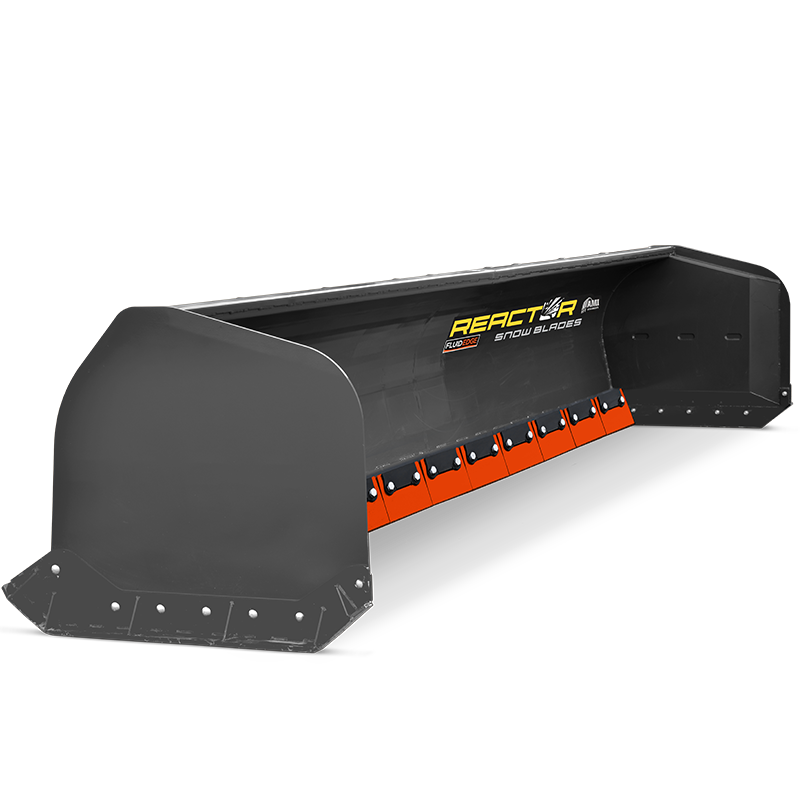

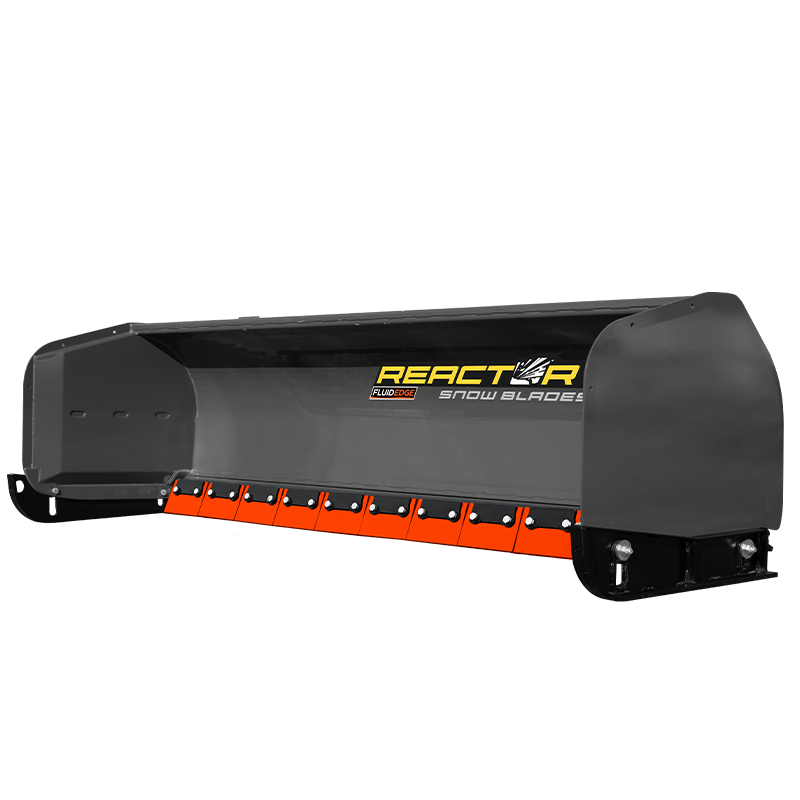

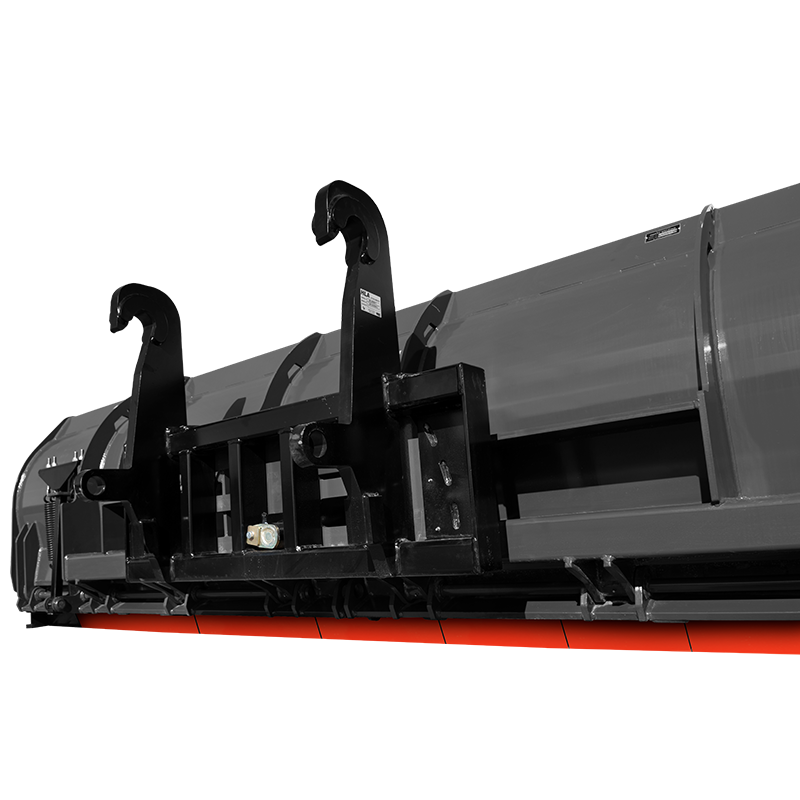

Pusher Blade (Fluid Edge)

Pile it fast and high with the AMI Reactor Pusher Blade. Simply connect the Pusher to your loader using a quick coupler and get ready to gather and push using the boxed endplates for maximum volume. With a spring-trip on the cutting edge, the AMI Reactor Pusher Blade is strong, tough and forgiving. Gain the upper edge and improve your snowplowing capabilities this winter with the all-new Fluid Edge Segmented Cutting Edge. Featuring individual 12” segments that respond and conform to uneven surfaces, Fluid Edge provides exceptional snow clearing no matter what conditions winter throws at you. With minimal moving parts - only an Hardox 450 cutting edge and a rubber suspension block - Fluid Edge boasts a simple design that is also easy to service and maintain. Requiring only two bolts and two nuts, replacing an Fluid Edge segment is an easy one-person job. Because you don’t need to replace the entire blade, Fluid Edge is also an economical solution to lowering costs for your snowplowing fleet.

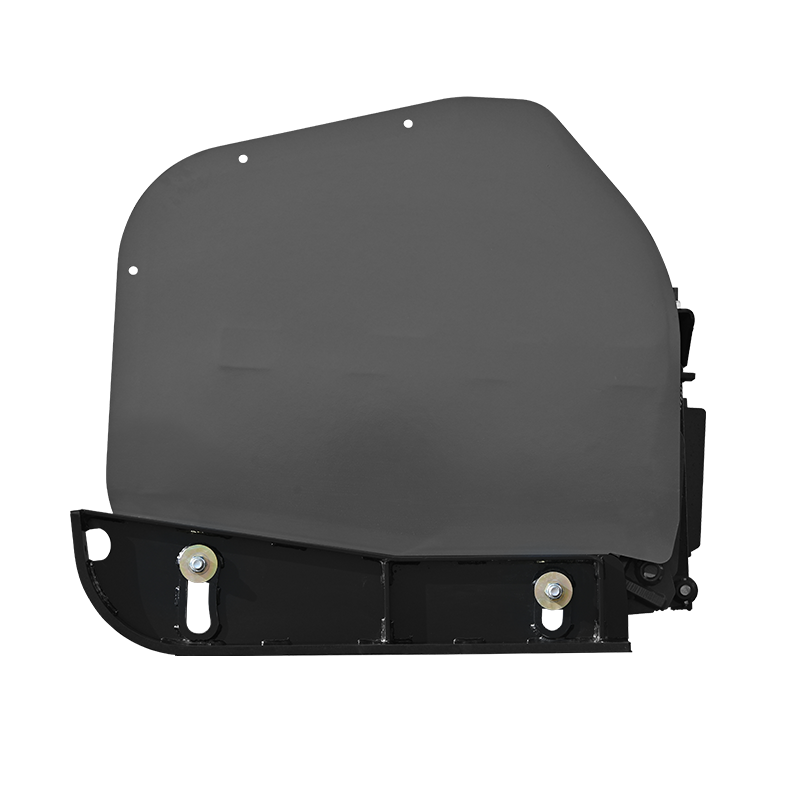

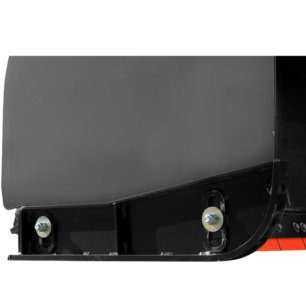

Floating Shoes on Endplate

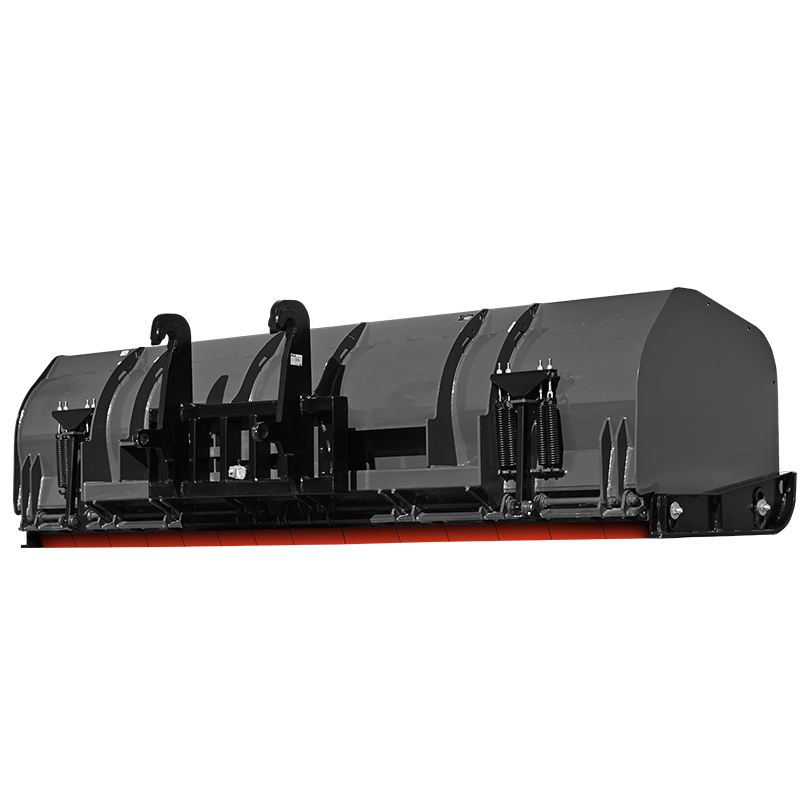

SPRING-TRIP CUTTING EDGE


12-INCH SEGMENTS


RUBBER SUSPENSION BLOCK


Hardox 450


FLEXIBLE CUTTING EDGE


5 DEGREE TILT


1.5" Vertical Travel

Specifications - Wheel Loader

FastTrack Category Model Machine Class Width Height Weight
50 SB307PFE 1.00 - 1.50 yds 7 ' 38 " 990 lbs
50 SB308PFE 1.00 - 1.50 yds 8 ' 38 " 1060 lbs
50 SB309PFE 1.00 - 1.50 yds 9 ' 38 " 1100 lbs
50 SB310PFE 1.00 - 1.50 yds 10 ' 38 " 1175 lbs
50 SB312PFE 1.00 - 1.50 yds 12 ' 38 " 1350 lbs
50 SB410PFE 1.00 - 1.50 yds 10 ' 34 " 2075 lbs
50 SB412PFE 1.00 - 1.50 yds 12 ' 34 " 2265 lbs
50 SB414PFE 1.00 - 1.50 yds 14 ' 34 " 2460 lbs
100 SB410PFE 1.50 - 2.00 yds 10 ' 34 " 2075 lbs
100 SB412PFE 1.50 - 2.00 yds 12 ' 34 " 2265 lbs
100 SB414PFE 1.50 - 2.00 yds 14 ' 34 " 2460 lbs
125 SB410PFE 2.00 - 2.50 yds 10 ' 34 " 2075 lbs
125 SB412PFE 2.00 - 2.50 yds 12 ' 34 " 2265 lbs
125 SB414PFE 2.00 - 2.50 yds 14 ' 34 " 2460 lbs
150 SB410PFE 2.75 - 3.00 yds 10 ' 34 " 2075 lbs
150 SB412PFE 2.75 - 3.00 yds 12 ' 34 " 2265 lbs
150 SB414PFE 2.75 - 3.00 yds 14 ' 34 " 2460 lbs
150 SB512PFE 2.75 - 3.00 yds 12 ' 42 " 2905 lbs
150 SB514PFE 2.75 - 3.00 yds 14 ' 42 " 3125 lbs
150 SB516PFE 2.75 - 3.00 yds 16 ' 42 " 3360 lbs
150 SB518PFE 2.75 - 3.00 yds 18 ' 42 " 3795 lbs
175 SB512PFE 3.25 - 3.50 yds 12 ' 42 " 2905 lbs
175 SB514PFE 3.25 - 3.50 yds 14 ' 42 " 3125 lbs
175 SB516PFE 3.25 - 3.50 yds 16 ' 42 " 3360 lbs
175 SB518PFE 3.25 - 3.50 yds 18 ' 42 " 3795 lbs
200 SB610PFE 3.75 - 4.50 yds 10 ' 53 " 2995 lbs
200 SB612PFE 3.75 - 4.50 yds 12 ' 53 " 3270 lbs
200 SB614PFE 3.75 - 4.50 yds 14 ' 53 " 3545 lbs
200 SB616PFE 3.75 - 4.50 yds 16 ' 53 " 3945 lbs
200 SB618PFE 3.75 - 4.50 yds 18 ' 53 " 4340 lbs
200 SB620PFE 3.75 - 4.50 yds 20 ' 53 " 4737 lbs
250 SB610PFE 5.00 - 6.25 yds 10 ' 53 " 2995 lbs
250 SB612PFE 5.00 - 6.25 yds 12 ' 53 " 3270 lbs
250 SB614PFE 5.00 - 6.25 yds 14 ' 53 " 3545 lbs
250 SB616PFE 5.00 - 6.25 yds 16 ' 53 " 3945 lbs
250 SB618PFE 5.00 - 6.25 yds 18 ' 53 " 4340 lbs
250 SB620PFE 5.00 - 6.25 yds 20 ' 53 " 4737 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
