Side Wing Blade

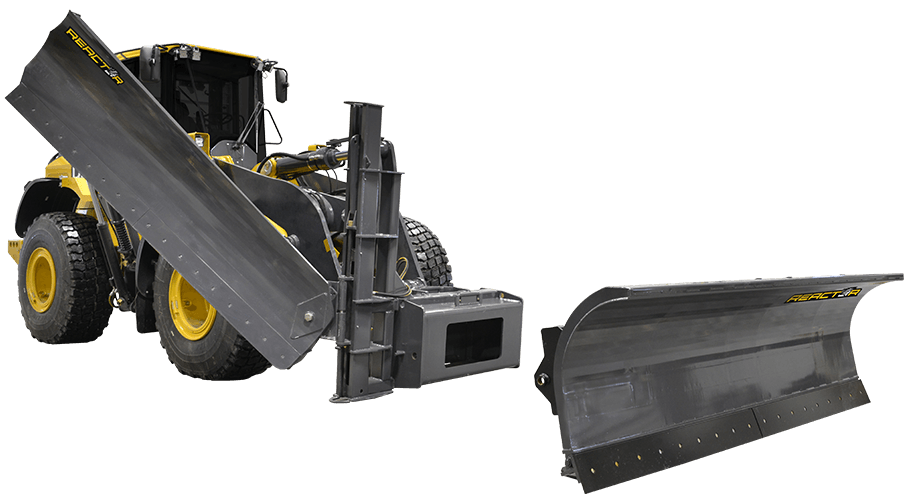

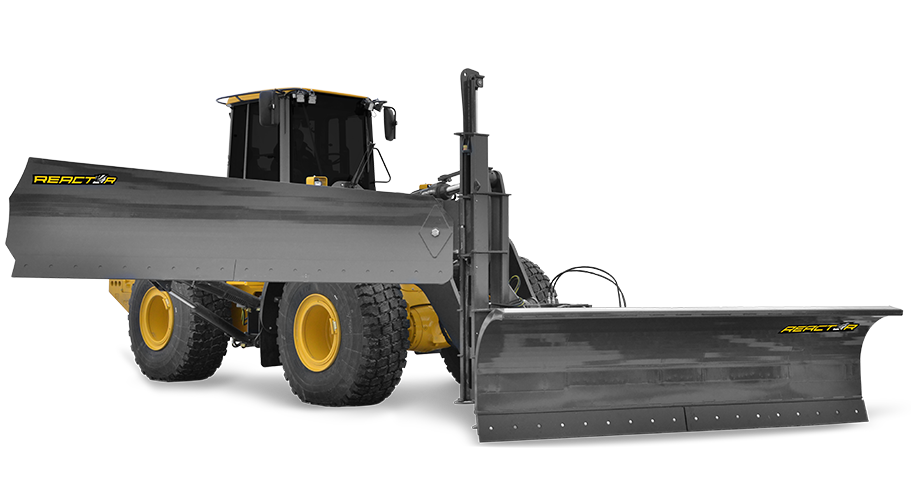

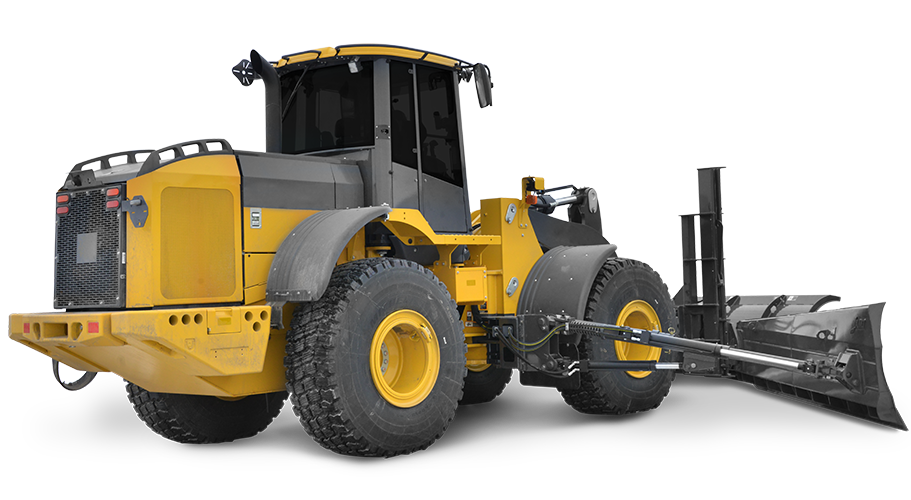

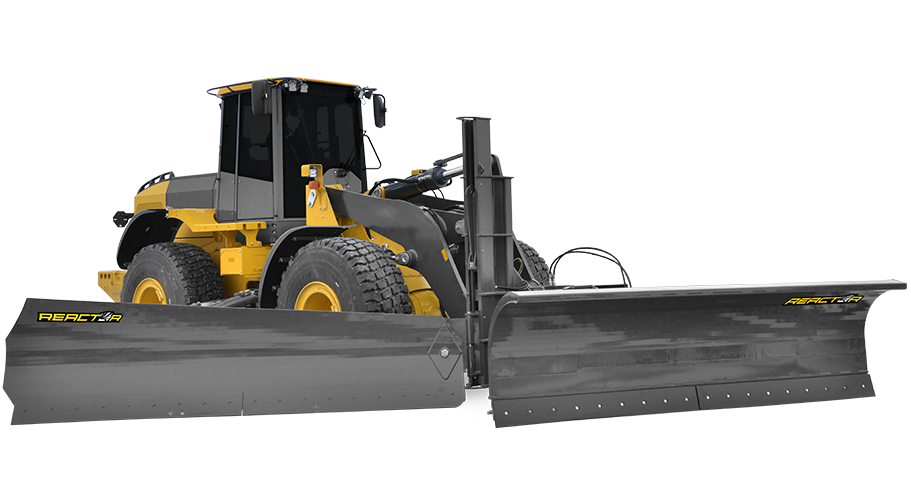

When it comes to leading-edge versatility during the harshest winter conditions, look no further than the AMI Snowblades’ Wheel Loader Hydraulic Wing Blade. Offering exceptional flexibility is the Wing Blade’s quick coupler feature for independent coupling of the front angle blade. As an industry first, the quick attach on both the front angle blade and wing blade gives operators the ability to use each attachment together or individually. With up to a 12 ft. wide mouldboard, extendible push pole with 25" extension, and a control valve with in-cab joystick controls, this blade assembly is designed for efficient snow removal and user-friendly setup. The Wing Blade provides an impressive 48" of level bench height and comes equipped with a reversible bolt-on edge.
SPECIFICATIONS - WHEEL LOADER
| FastTrack | Category | Model | Machine Class | Width | Bench Height | Push Pole Length | Weight |
|---|---|---|---|---|---|---|---|
| 150 | SW5103SV | 2.75 - 3.00 yds | 10 ' | 48 " | 24 " | WOR | |
| 150 | SW5113SV | 2.75 - 3.00 yds | 11 ' | 48 " | 24 " | WOR | |
| 150 | SW5123SV | 2.75 - 3.00 yds | 12 ' | 48 " | 24 " | WOR | |
| 175 | SW5103SV | 3.25 - 3.50 yds | 10 ' | 48 " | 24 " | WOR | |
| 175 | SW5113SV | 3.25 - 3.50 yds | 11 ' | 48 " | 24 " | WOR | |
| 175 | SW5123SV | 3.25 - 3.50 yds | 12 ' | 48 " | 24 " | WOR | |
| 200 | SW6103SW | 3.75 - 4.50 yds | 10 ' | 48 " | 24 " | WOR | |
| 200 | SW6123SV | 3.75 - 4.50 yds | 12 ' | 48 " | 24 " | WOR | |
| 250 | SW6103SW | 5.00 - 6.25 yds | 10 ' | 48 " | 24 " | WOR | |
| 250 | SW6123SV | 5.00 - 6.25 yds | 12 ' | 48 " | 24 " | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
