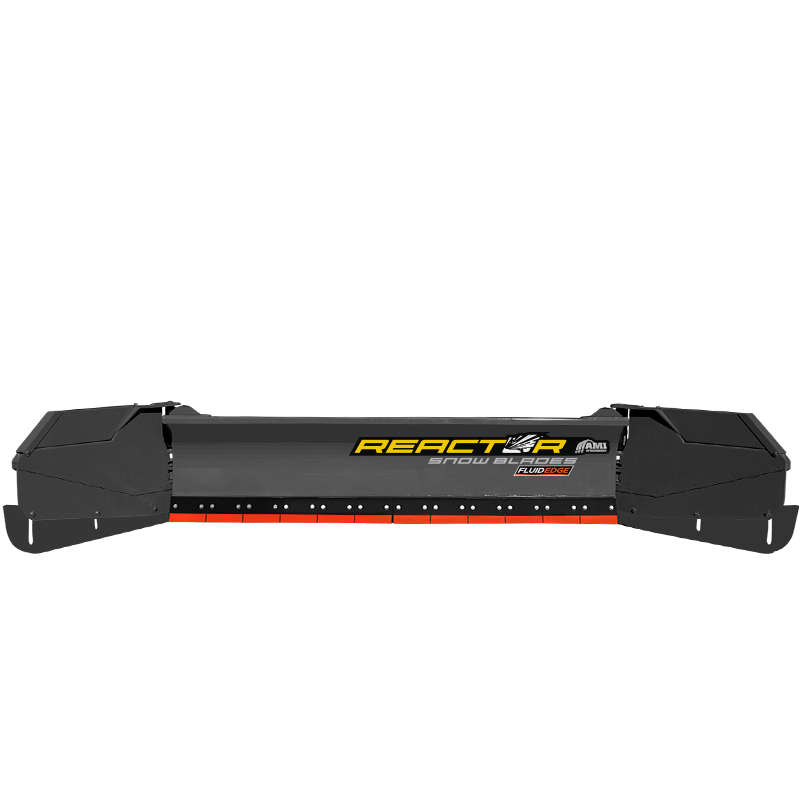

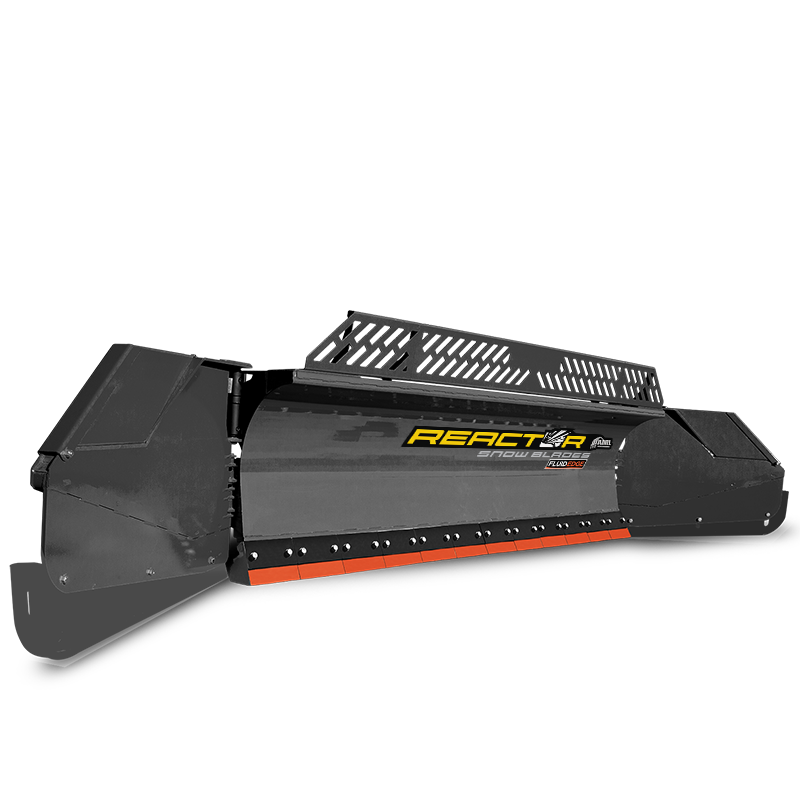

4-in-1 Angle Blade (5′ Wing with Fluid Edge)

For maximum plowing versatility, the 4205, 5205 and 6205 4-in-1 models allow for greater clearing capacity at large sites with a five foot wing, with the flexibility to handle a smaller plowing area by narrowing down the blades. The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving you rugged and limitless control within the massive 180 degree rotation. Getting close to buildings and other objects is easy with the limitless on-the-fly in-cab adjustability. Gain the upper edge and improve your snowplowing capabilities this winter with the all-new Fluid Edge Segmented Cutting Edge. Featuring individual 12” segments that respond and conform to uneven surfaces, Fluid Edge provides exceptional snow clearing no matter what conditions winter throws at you. With minimal moving parts - only an Hardox 500 cutting edge and a rubber suspension block - Fluid Edge boasts a simple design that is also easy to service and maintain. Requiring only two bolts and two nuts, replacing an Fluid Edge segment is an easy one-person job. Because you don’t need to replace the entire blade, Fluid Edge is also an economical solution to lowering costs for your snowplowing fleet.


BOX BLADE


REVERSE BOX BLADE


ANGLE BLADE


STRAIGHT BLADE


FORWARD FLOAT


LATERAL FLOAT


CROSSOVER RELIEF VALVE


SPRING-TRIP CUTTING EDGE


180 DEGREE PIVOT RANGE ROTARY ACTUATOR


TIRE PROTECTION SYSTEM


12-INCH SEGMENTS


RUBBER SUSPENSION BLOCK


Hardox 500


FLEXIBLE CUTTING EDGE


5 DEGREE TILT


1.5" Vertical Travel

Specifications - Loader Backhoe

FastTrack Category Model Machine Class Retracted Width Extended Width Height Weight
50 SB4250818FE2LB Class 50 8 ' 18 ' 34 " 3290 lbs
50 SB4250919FE2LB Class 50 9 ' 19 ' 34 " 3435 lbs
50 SB4251020FE2LB Class 50 10 ' 20 ' 34 " 3550 lbs
50 SB4251222FE2LB Class 50 12 ' 22 ' 34 " 3745 lbs
50 SB4251424FE2LB Class 50 14 ' 24 ' 34 " 4035 lbs
70 SB4250818FE2LB Class 70 8 ' 18 ' 34 " 3290 lbs
70 SB4250919FE2LB Class 70 9 ' 19 ' 34 " 3435 lbs
70 SB4251020FE2LB Class 70 10 ' 20 ' 34 " 3550 lbs
70 SB4251222FE2LB Class 70 12 ' 22 ' 34 " 3745 lbs
70 SB4251424FE2LB Class 70 14 ' 24 ' 34 " 4035 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
