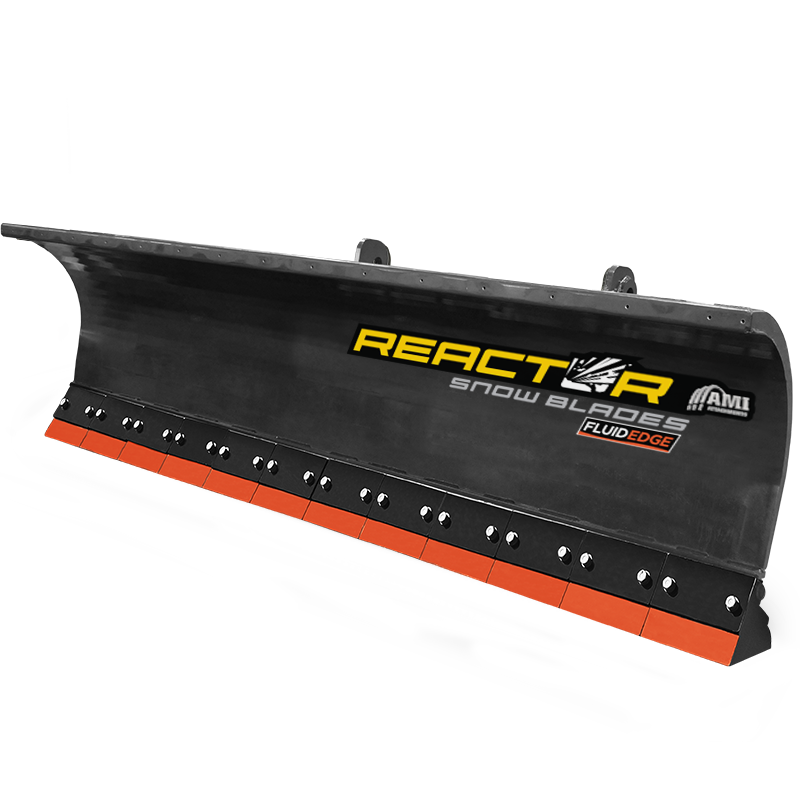

Angle Blade (Fluid Edge)

Clear the lot in record time with the high volume capacity of the AMI Reactor Angle Blade, offering over double the plowing width of a truck blade. That's efficiency and profitability in half the time. Gain the upper edge and improve your snowplowing capabilities this winter with the all-new Fluid Edge Segmented Cutting Edge. Featuring individual 12” segments that respond and conform to uneven surfaces, Fluid Edge provides exceptional snow clearing no matter what conditions winter throws at you. With minimal moving parts - only an Hardox 500 cutting edge and a rubber suspension block - Fluid Edge boasts a simple design that is also easy to service and maintain. Requiring only two bolts and two nuts, replacing an Fluid Edge segment is an easy one-person job. Because you don’t need to replace the entire blade, Fluid Edge is also an economical solution to lowering costs for your snowplowing fleet.


Forward Float


Lateral Float


CROSS-OVER RELIEF VALVE


SPRING-TRIP CUTTING EDGE


12-Inch Segments


RuBber Suspension Block


Flexible Cutting Edge


HARDOX 500


5 Degree Tilt


1.5" Vertical Travel

Specifications - Loader Backhoe

FastTrack Category Model Machine Class Width Height Weight
30 SB306FELB Class 30 6 ' 30 " 950 lbs
30 SB307FELB Class 30 7 ' 30 " 1010 lbs
30 SB308FELB Class 30 8 ' 30 " 1060 lbs
30 SB309FELB Class 30 9 ' 30 " 1110 lbs
30 SB310FELB Class 30 10 ' 30 " 1160 lbs
50 SB409FELB Class 50 9 ' 34 " 1935 lbs
50 SB410FELB Class 50 10 ' 34 " 2035 lbs
50 SB412FELB Class 50 12 ' 34 " 2225 lbs
50 SB414FELB Class 50 14 ' 34 " 2505 lbs
70 SB409FELB Class 70 9 ' 34 " 1935 lbs
70 SB410FELB Class 70 10 ' 34 " 2035 lbs
70 SB412FELB Class 70 12 ' 34 " 2225 lbs
70 SB414FELB Class 70 14 ' 34 " 2505 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
