Angle Blade

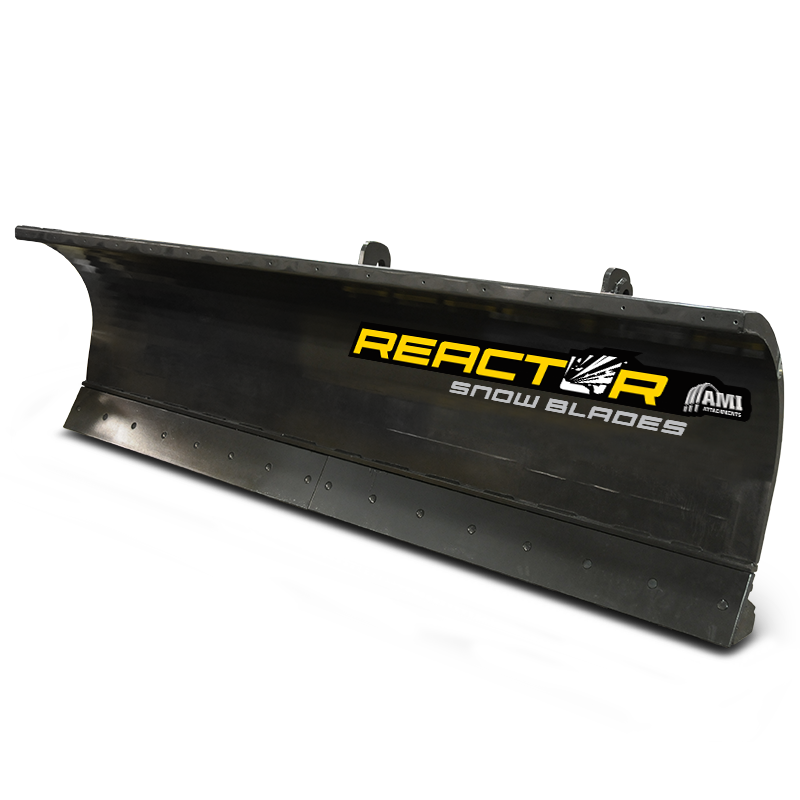

Clear the lot in record time with the high volume capacity of the AMI Reactor Angle Blade, offering over double the plowing width of a truck blade. That's efficiency and profitability in half the time.

Product Features


FORWARD FLOAT


LATERAL FLOAT


CROSS-OVER RELIEF VALVE


SPRING-TRIP CUTTING EDGE

Specifications - Wheel Loader

FastTrack Category Model Machine Class Width Height Weight
50 SB308 1.00 - 1.50 yds 8 ' 30 " 1060 lbs
50 SB309 1.00 - 1.50 yds 9 ' 30 " 1110 lbs
50 SB310 1.00 - 1.50 yds 10 ' 30 " 1160 lbs
50 SB409 1.00 - 1.50 yds 9 ' 34 " 1935 lbs
50 SB410 1.00 - 1.50 yds 10 ' 34 " 2035 lbs
50 SB412 1.00 - 1.50 yds 12 ' 34 " 2225 lbs
50 SB414 1.00 - 1.50 yds 14 ' 34 " 2505 lbs
100 SB409 1.50 - 2.00 yds 9 ' 34 " 1935 lbs
100 SB410 1.50 - 2.00 yds 10 ' 34 " 2035 lbs
100 SB412 1.50 - 2.00 yds 12 ' 34 " 2225 lbs
100 SB414 1.50 - 2.00 yds 14 ' 34 " 2505 lbs
125 SB409 2.00 - 2.50 yds 9 ' 34 " 1935 lbs
125 SB410 2.00 - 2.50 yds 10 ' 34 " 2035 lbs
125 SB412 2.00 - 2.50 yds 12 ' 34 " 2225 lbs
125 SB414 2.00 - 2.50 yds 14 ' 34 " 2505 lbs
150 SB509 2.75 - 3.00 yds 9 ' 42 " 2445 lbs
150 SB510 2.75 - 3.00 yds 10 ' 42 " 2550 lbs
150 SB512 2.75 - 3.00 yds 12 ' 42 " 2815 lbs
150 SB514 2.75 - 3.00 yds 14 ' 42 " 3095 lbs
150 SB516 2.75 - 3.00 yds 16 ' 42 " 3405 lbs
150 SB518 2.75 - 3.00 yds 18 ' 42 " 3700 lbs
175 SB509 3.25 - 3.50 yds 9 ' 42 " 2445 lbs
175 SB510 3.25 - 3.50 yds 10 ' 42 " 2550 lbs
175 SB512 3.25 - 3.50 yds 12 ' 42 " 2815 lbs
175 SB514 3.25 - 3.50 yds 14 ' 42 " 3095 lbs
175 SB516 3.25 - 3.50 yds 16 ' 42 " 3405 lbs
175 SB518 3.25 - 3.50 yds 18 ' 42 " 3700 lbs
200 SB610 3.75 - 4.50 yds 10 ' 53 " 3350 lbs
200 SB612 3.75 - 4.50 yds 12 ' 53 " 3675 lbs
200 SB614 3.75 - 4.50 yds 14 ' 53 " 3950 lbs
200 SB616 3.75 - 4.50 yds 16 ' 53 " 4400 lbs
200 SB618 3.75 - 4.50 yds 18 ' 53 " 4705 lbs
200 SB620 3.75 - 4.50 yds 20 ' 53 " 5060 lbs
250 SB610 5.00 - 6.25 yds 10 ' 53 " 3350 lbs
250 SB612 5.00 - 6.25 yds 12 ' 53 " 3675 lbs
250 SB614 5.00 - 6.25 yds 14 ' 53 " 3950 lbs
250 SB616 5.00 - 6.25 yds 16 ' 53 " 4400 lbs
250 SB618 5.00 - 6.25 yds 18 ' 53 " 4705 lbs
250 SB620 5.00 - 6.25 yds 20 ' 53 " 5060 lbs
50 SB306 1.00 - 1.50 yds 6 ' 30 " 950 lbs
50 SB307 1.00 - 1.50 yds 7 ' 30 " 1010 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
