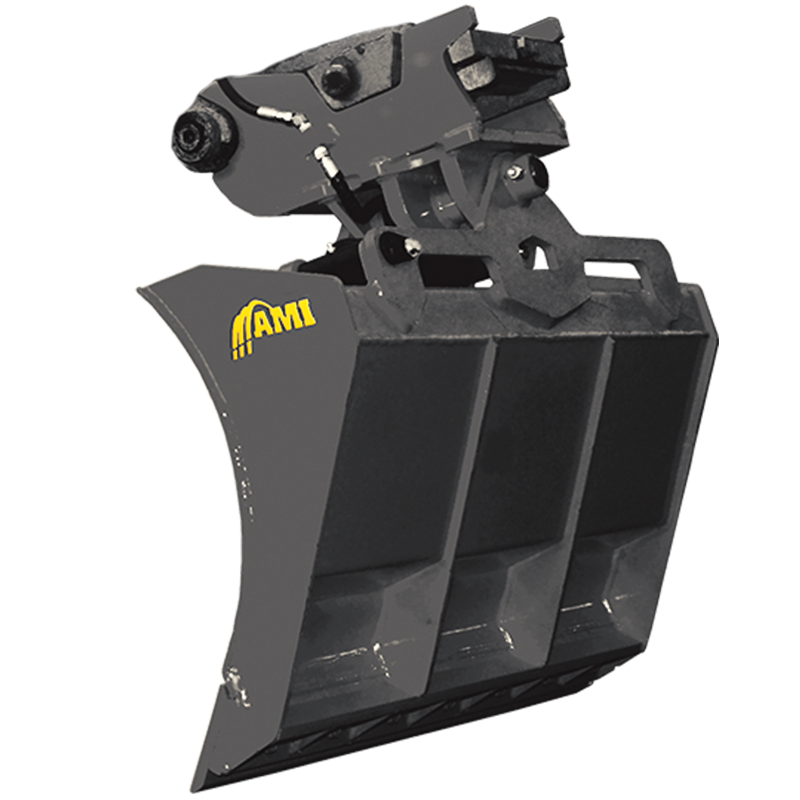

Chuck Blade

For wet, sticky soil that wants to pack tight rather than dump clean, the AMI Chuck Blade is the tool that keeps you productive. The wide edge and side wall design easily handles clumping soil and empties instantly. The tilting feature also gives you 90 degree precision grading on steep slopes.

Specifications - Compact Excavator

FastTrack Category Model Machine Class Description Width Height Weight
25 CB0306E36 3,000 - 6,000 lbs. No Tilt 36 " 20 " 300 lbs
25 HTCB0306E36 3,000 - 6,000 lbs. Hydraulic Tilt 36 " 20 " 340 lbs
35 CB0610E36 6,000 - 10,000 lbs. No Tilt 36 " 20 " 310 lbs
35 HTCB0610E36 6,000 - 10,000 lbs. Hydraulic Tilt 36 " 20 " 355 lbs
50 CB1012E42 10,000 - 12,000 lbs No Tilt 42 " 25 " 480 lbs
50 HTCB1012E42 10,000 - 12,000 lbs Hydraulic Tilt 42 " 25 " 520 lbs
60 CB1214E42 12,000 - 14,000 lbs No Tilt 42 " 25 " 525 lbs
60 HTCB1214E42 12,000 - 14,000 lbs Hydraulic Tilt 42 " 25 " 570 lbs
75 CB1416E60 14,000 - 24,000 lbs No Tilt 60 " 30 " 730 lbs
75 HTCB1416E60 14,000 - 24,000 lbs Hydraulic Tilt 60 " 30 " 775 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
