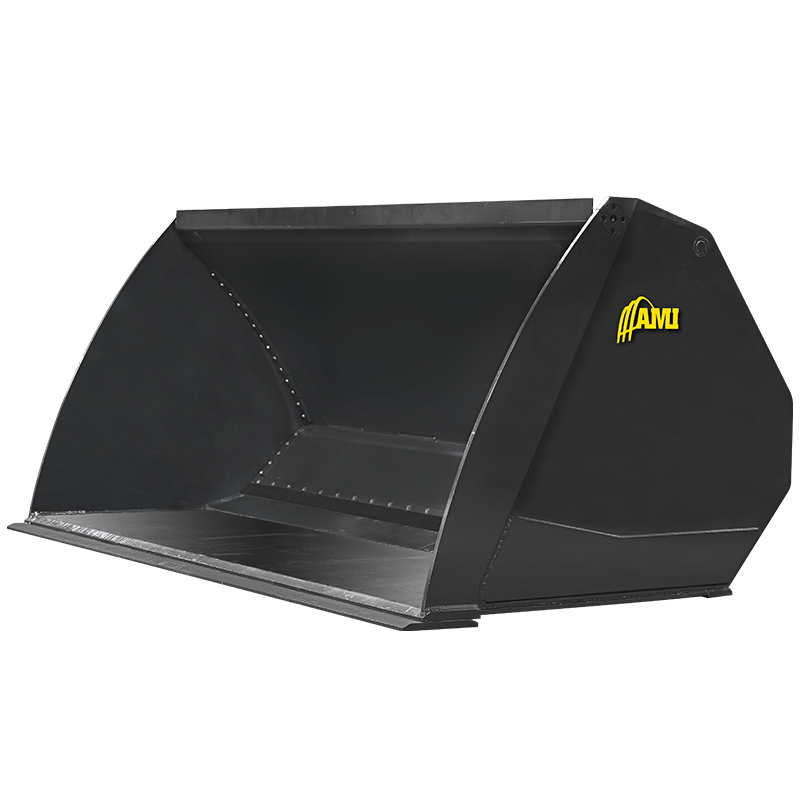

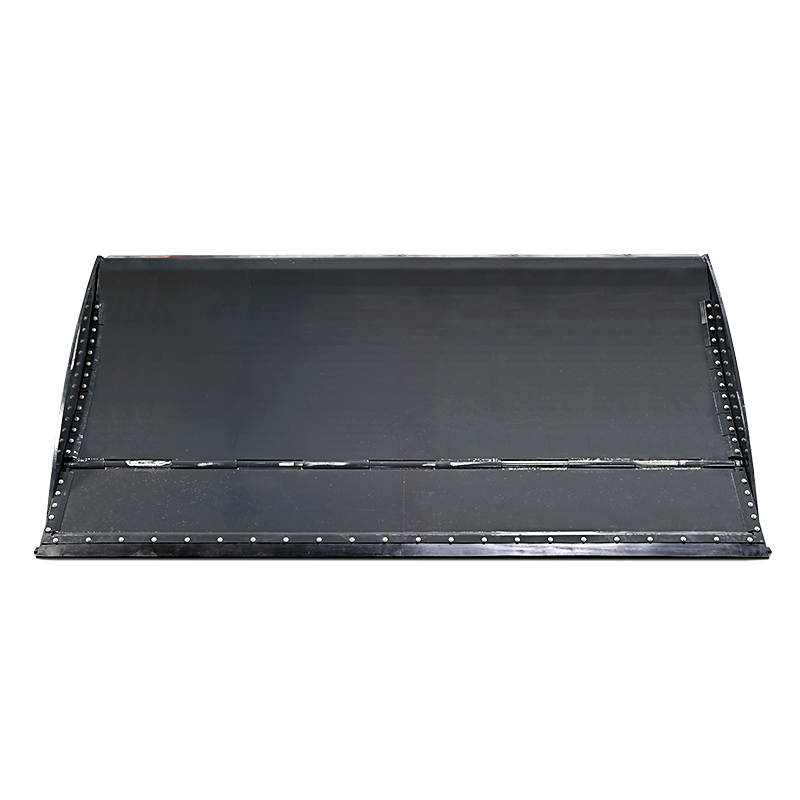

KickBox Ejector Bucket

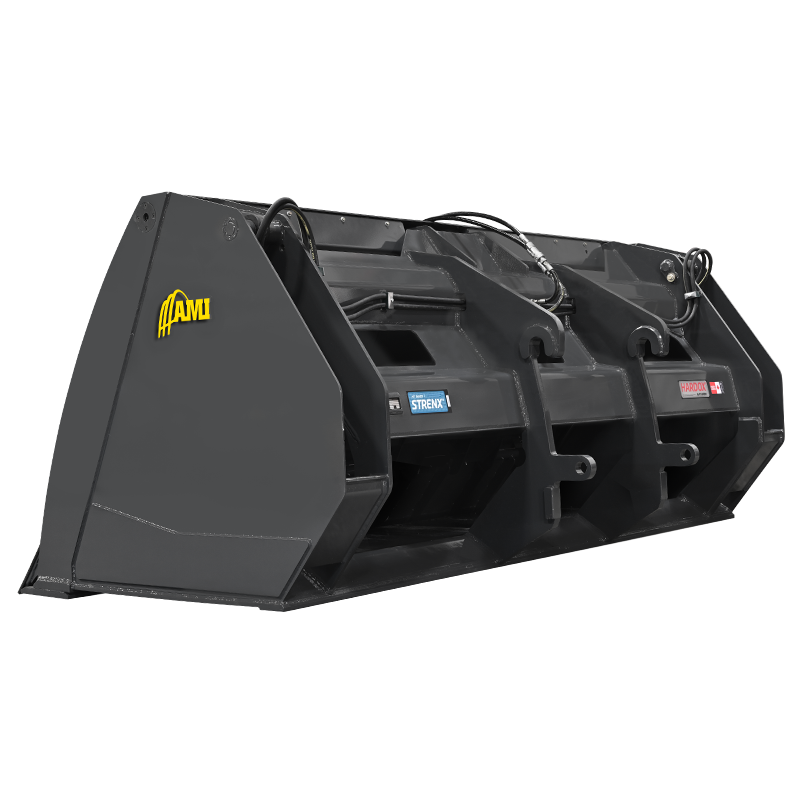

Take your productivity up a notch and move material faster with the all-new KickBox – the most efficient ejector bucket for wheel loaders by AMI Attachments. For a wide variety of applications, including grain handling, recycling, top soil, mulch and manure, the AMI Kick-Box is a top performer for moving high volumes of material quickly and safely. Delivering higher unloading capabilities, along with exceptionally fast cycle times, the AMI KickBox is designed with dual hydraulic cylinders that operate the pivoting push gate. In the extended position, the push gate discharges the load out of the bucket quickly. KickBox gives you the high reach you need without dumping the bucket or shifting the centre of gravity. Made with Strenx performance steel and Hardox wear plate, the AMI KickBox also features grease fittings on all pivot points and protected cylinders outside the ejecting gates. As a self-cleaning bucket, your load empties completely cycle after cycle – without risk of material getting trapped in the back of the bucket and without needing to shake the bucket clean.

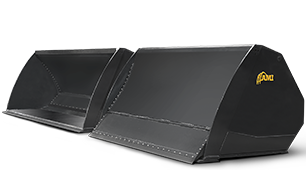

FAST CYCLE TIMES
An effective ejector bucket delivering higher unloading capabilities, along with exceptionally fast cycle times.

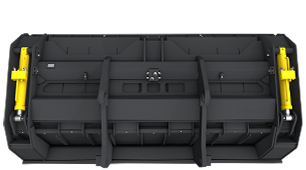

DUAL HYDRAULIC CYLINDERS
Delivering higher unloading capabilities, along with exceptionally fast cycle times, the AMI KickBox is designed with dual hydraulic cylinders that operate the pivoting push gate. In the extended position, the push gate discharges the load out of the bucket quickly.

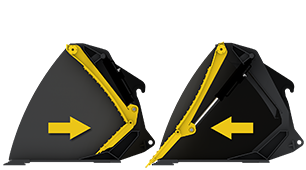

PIVOTING PUSH GATE
The pivoting push gate ensures that no product is left behind. Whether it's grain handling, recycling, top soil, mulch, fertilizer or manure applications, this bucket offers precision unloading while maintaining absolute control.

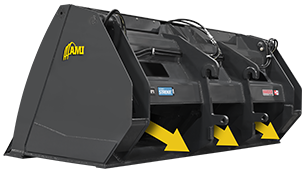

OPEN REAR DESIGN
As a self-cleaning bucket, the load empties completely cycle after cycle – without risk of material getting trapped in the back of the bucket and without needing to shake the bucket clean.
SPECIFICATIONS - WHEEL LOADER
| FastTrack | Category | Model | Machine Class | Capacity | Weight | Width | Teeth |
|---|---|---|---|---|---|---|---|
| 50 | WL50EB100 | 1.00 - 1.50 yds | 1.000 yd³ | WOR | 0 " | 0 | |
| 50 | WL50EB150 | 1.00 - 1.50 yds | 1.500 yd³ | 2150 lbs | 0 " | 0 | |
| 50 | WL50EB200 | 1.00 - 1.50 yds | 2.000 yd³ | WOR | 0 " | 0 | |
| 50 | WL50EB250 | 1.00 - 1.50 yds | 2.500 yd³ | 2700 lbs | 0 " | 0 | |
| 100 | WL100EB200 | 1.50 - 2.00 yds | 2.000 yd³ | WOR | 0 " | 0 | |
| 100 | WL100EB250 | 1.50 - 2.00 yds | 2.500 yd³ | WOR | 0 " | 0 | |
| 100 | WL100EB300 | 1.50 - 2.00 yds | 3.000 yd³ | WOR | 0 " | 0 | |
| 125 | WL125EB300 | 2.00 - 2.50 yds | 3.000 yd³ | WOR | 0 " | 0 | |
| 125 | WL125EB350 | 2.00 - 2.50 yds | 3.500 yd³ | WOR | 0 " | 0 | |
| 125 | WL125EB400 | 2.00 - 2.50 yds | 4.000 yd³ | WOR | 0 " | 0 | |
| 125 | WL125EB500 | 2.00 - 2.50 yds | 5.000 yd³ | WOR | 0 " | 0 | |
| 150 | WL150EB350 | 2.75 - 3.00 yds | 3.500 yd³ | 5250 lbs | 0 " | 0 | |
| 150 | WL150EB400 | 2.75 - 3.00 yds | 4.000 yd³ | 5530 lbs | 0 " | 0 | |
| 150 | WL150EB500 | 2.75 - 3.00 yds | 5.000 yd³ | 5700 lbs | 0 " | 0 | |
| 150 | WL150EB550 | 2.75 - 3.00 yds | 5.500 yd³ | WOR | 0 " | 0 | |
| 150 | WL150EB600 | 2.75 - 3.00 yds | 6.000 yd³ | WOR | 0 " | 0 | |
| 175 | WL175EB400 | 3.25 - 3.50 yds | 4.000 yd³ | WOR | 0 " | 0 | |
| 175 | WL175EB450 | 3.25 - 3.50 yds | 4.500 yd³ | WOR | 0 " | 0 | |
| 175 | WL175EB500 | 3.25 - 3.50 yds | 5.000 yd³ | WOR | 0 " | 0 | |
| 175 | WL175EB550 | 3.25 - 3.50 yds | 5.500 yd³ | 6500 lbs | 0 " | 0 | |
| 175 | WL175EB600 | 3.25 - 3.50 yds | 6.000 yd³ | 6500 lbs | 0 " | 0 | |
| 175 | WL175EB700 | 3.25 - 3.50 yds | 7.000 yd³ | 6550 lbs | 0 " | 0 | |
| 200 | WL200EB1000 | 3.75 - 4.50 yds | 10.000 yd³ | 8300 lbs | 0 " | 0 | |
| 200 | WL200EB1200 | 3.75 - 4.50 yds | 12.000 yd³ | WOR | 0 " | 0 | |
| 200 | WL200EB500 | 3.75 - 4.50 yds | 5.000 yd³ | WOR | 0 " | 0 | |
| 200 | WL200EB550 | 3.75 - 4.50 yds | 5.5 yd³ | WOR | 0 " | 0 | |
| 200 | WL200EB600 | 3.75 - 4.50 yds | 6.000 yd³ | 6900 lbs | 0 " | 0 | |
| 200 | WL200EB700 | 3.75 - 4.50 yds | 7.000 yd³ | 7100 lbs | 0 " | 0 | |
| 200 | WL200EB800 | 3.75 - 4.50 yds | 8.000 yd³ | WOR | 0 " | 0 | |
| 200 | WL200EB900 | 3.75 - 4.50 yds | 9.000 yd³ | 7900 lbs | 0 " | 0 | |
| 250 | WL250EB1000 | 5.00 - 6.25 yds | 10.000 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1200 | 5.00 - 6.25 yds | 12.000 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1350 | 5.00 - 6.25 yds | 13.5 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1400 | 5.00 - 6.25 yds | 14 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1450 | 5.00 - 6.25 yds | 14.500 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1500 | 5.00 - 6.25 yds | 15.000 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB1600 | 5.00 - 6.25 yds | 16 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB700 | 5.00 - 6.25 yds | 7.000 yd³ | WOR | 0 " | 0 | |
| 250 | WL250EB800 | 5.00 - 6.25 yds | 8.000 yd³ | WOR | 0 " | 0 | |
| 300 | WL300EB1000 | 6.50 - 7.50 yds | 10.000 yd³ | WOR | 0 " | 0 | |
| 300 | WL300EB1100 | 6.50 - 7.50 yds | 11 yd³ | WOR | 0 " | 0 |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
