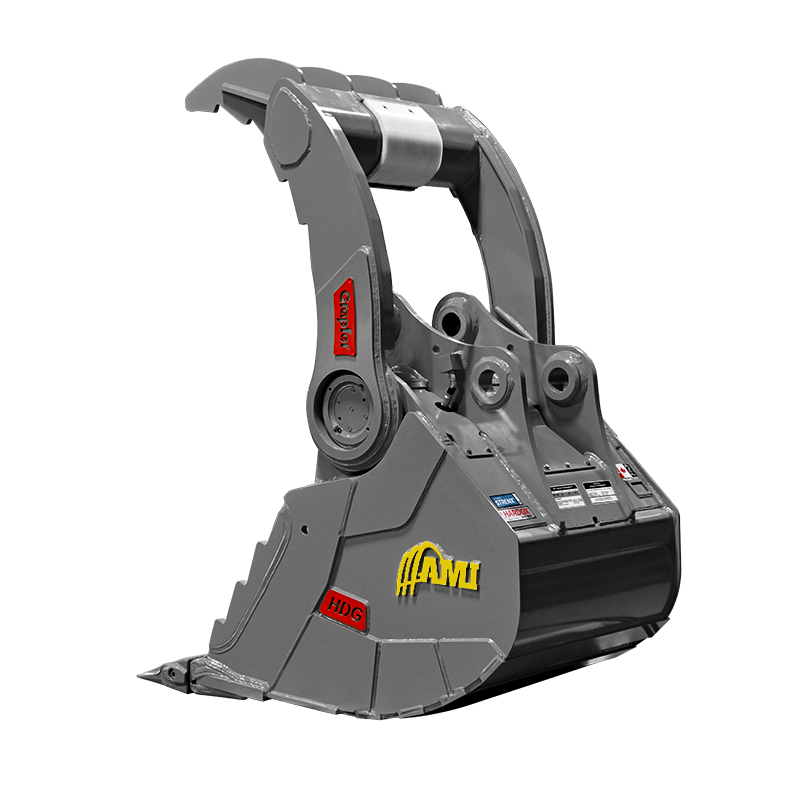

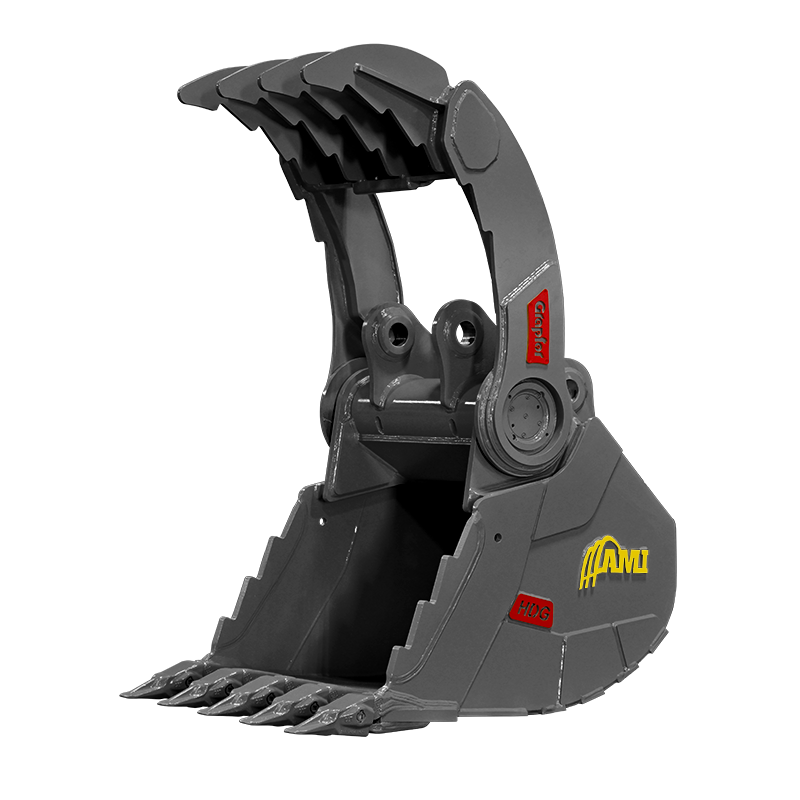

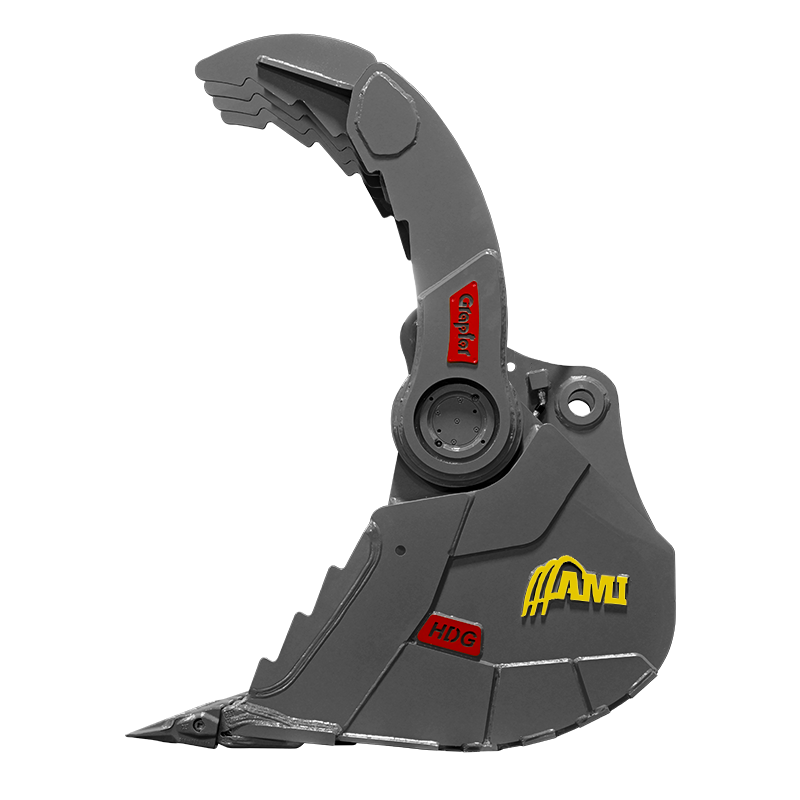

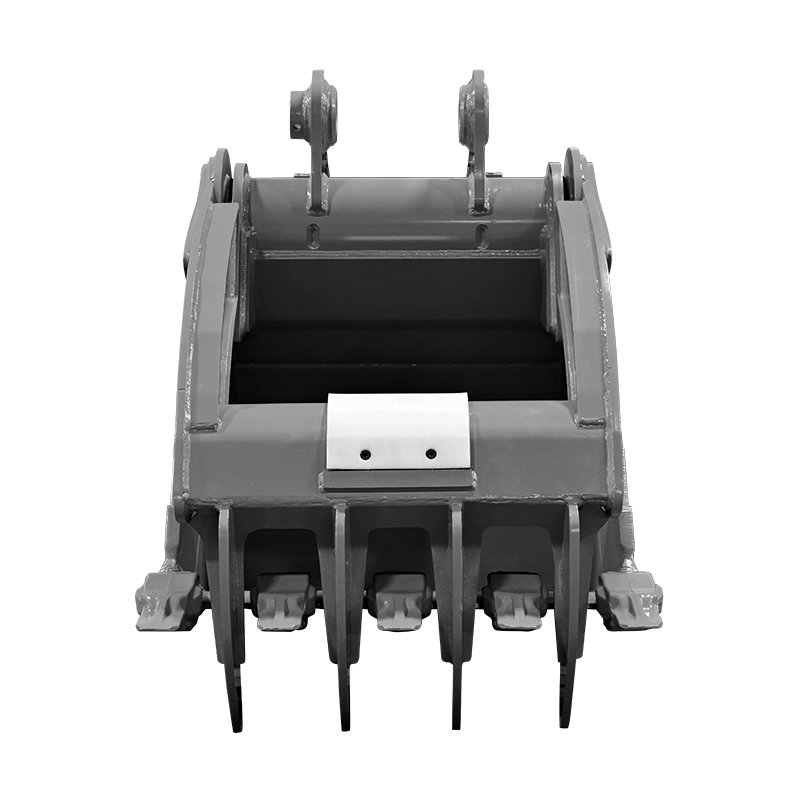

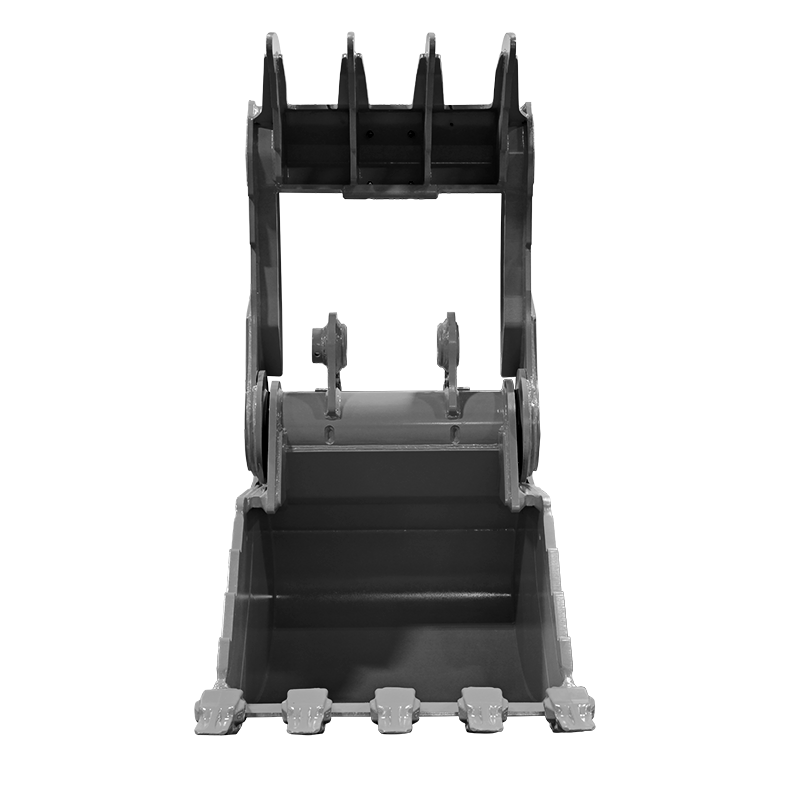

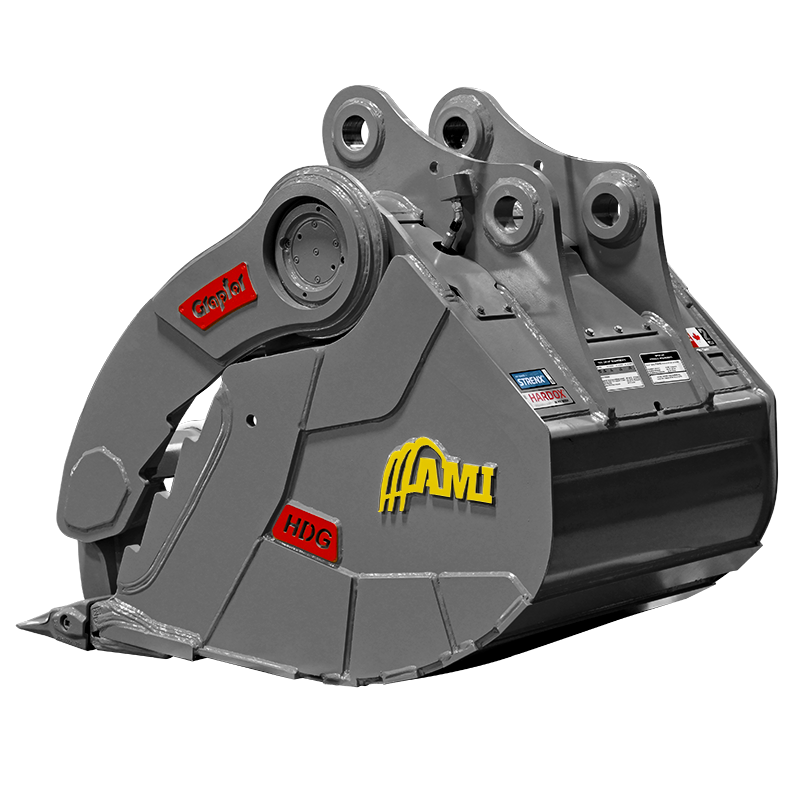

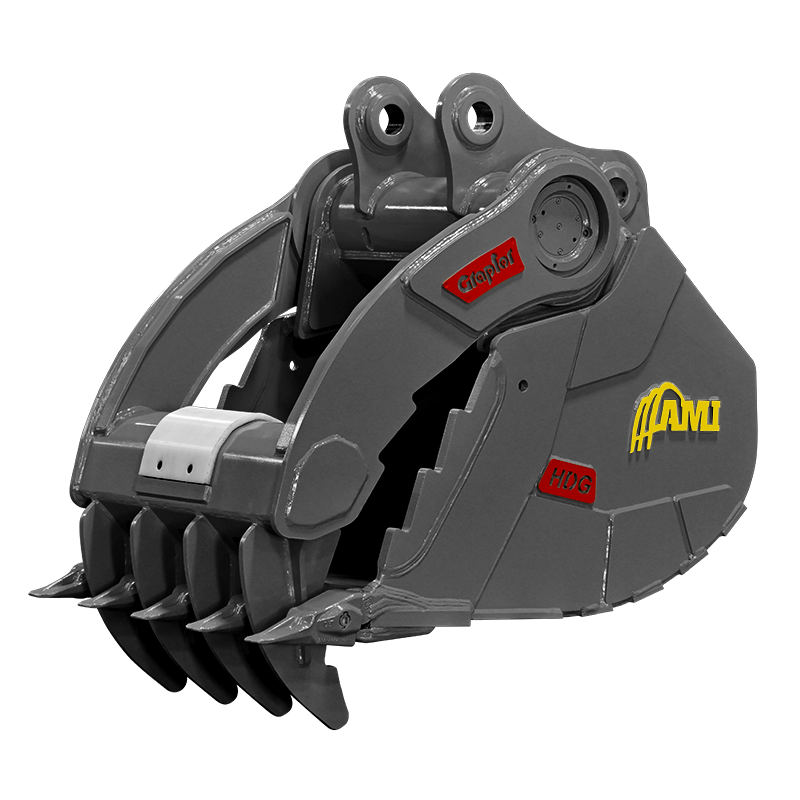

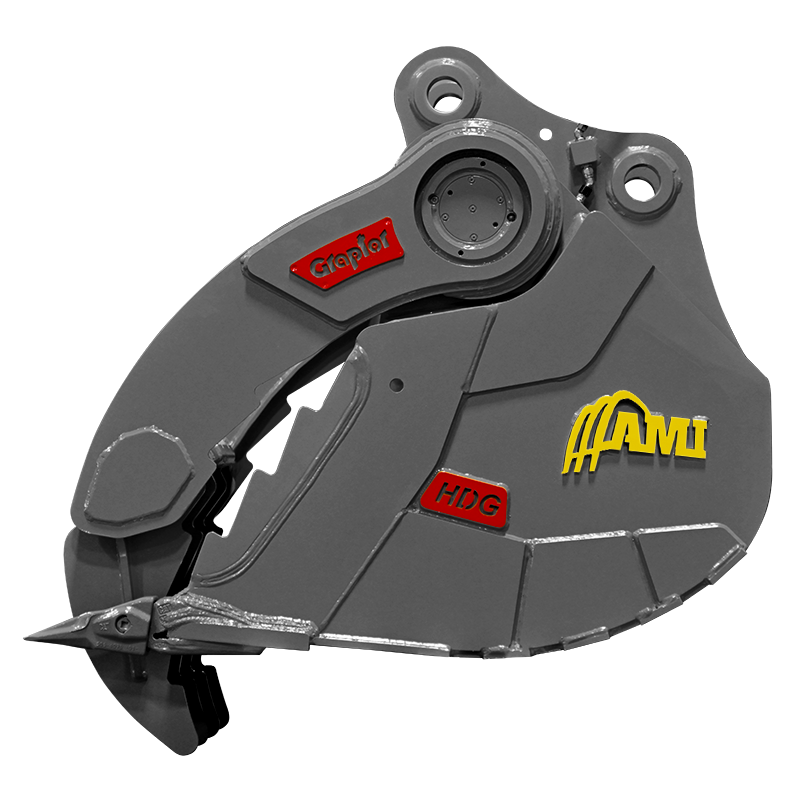

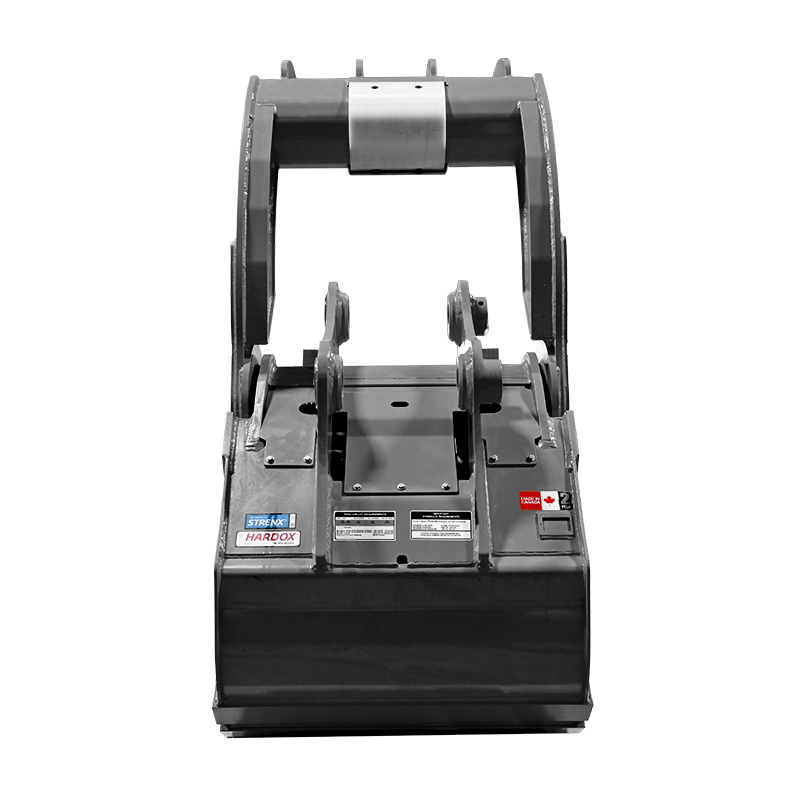

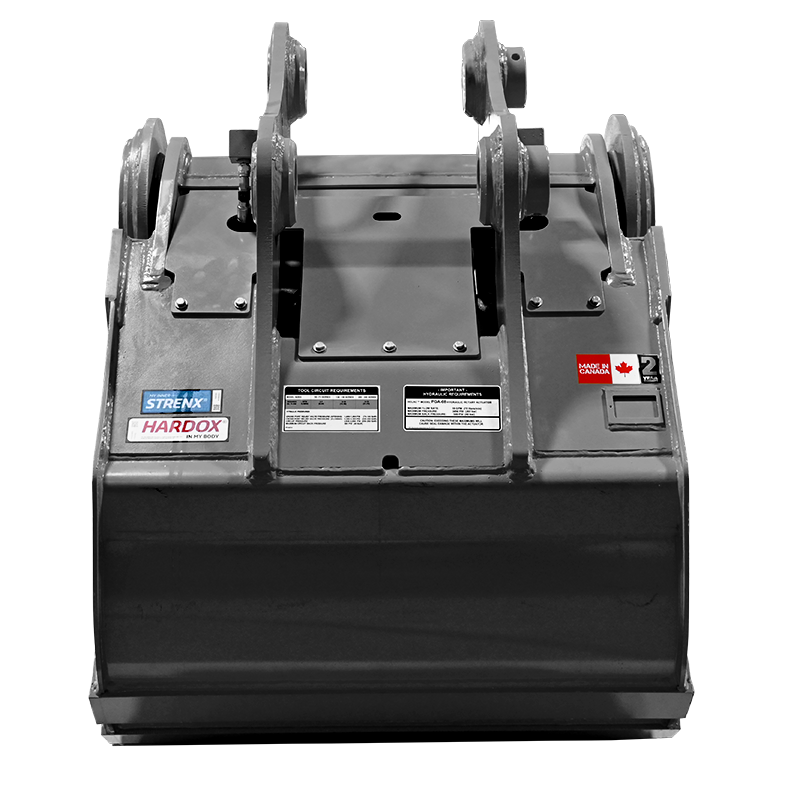

Graptor® Bucket

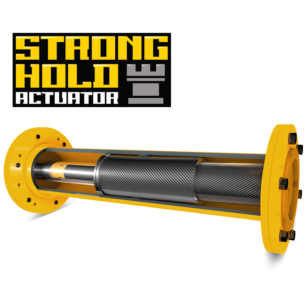

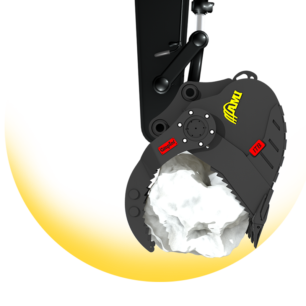

When you need to pick up large, heavy objects, grab bucketfuls of debris or demolish a building, get a tighter grip on productivity with AMI’s Graptor® Bucket. Powered by a helical actuator, the Graptor® Bucket features incredible holding strength. The built-in rotary actuated thumb gives operators improved flexibility and precision by maintaining constant grip on the load throughout the bucket’s entire rotation. Neatly integrated into the top crossbar of the Graptor®, the actuator produces up to 54,000 foot-pounds of holding strength at 3,000 psi – putting out the most torque in the most compact design - making the Graptor® a powerful tool that keeps a tight handle on heavy, bulky loads. US patents 10,774,498 and 10,774,501.
Specifications - Loader Backhoe
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Grapple Tines | Weight |
|---|---|---|---|---|---|---|---|---|
| 30 | LBGRHD0610E24 | Class 30 | 24 " | 3.500 ft³ | 4 | 2 | 450 lbs | |
| 50 | LBGRHD1214E24 | Class 50 | 24 " | 7.500 ft³ | 4 | 3 | 570 lbs | |
| 50 | LBGRHD1214E30 | Class 50 | 30 " | 10.650 ft³ | 5 | 4 | 670 lbs | |
| 70 | LBGRHD1416E24 | Class 70 | 24 " | 10.125 ft³ | 4 | 3 | 960 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
