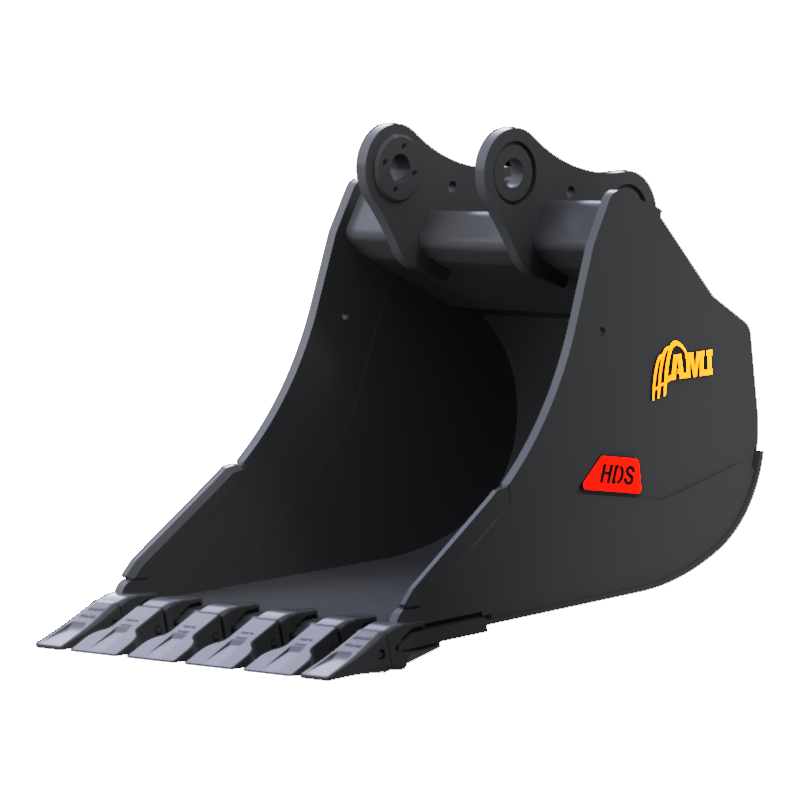

Heavy Duty Sewer Bucket – Spade Tooth
Designed for smooth and easy maneuvering around water, sewer lines and channels, AMI's Heavy Duty Sewer Bucket attachment for excavators features a long and flat bucket floor for efficient loading and unloading of wet materials. The flat floor also improves backfilling and packing for a productive day on the job site. The long and flat bucket floor profile provides easy maneuvering around water and sewer lines.
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 130 | HDS2433E24ST | 24,000 - 33,000 lbs | 24 " | 0.435 yd³ | 4 | WOR | |
| 130 | HDS2433E30ST | 24,000 - 33,000 lbs | 30 " | 0.560 yd³ | 5 | WOR | |
| 150 | HDS3340E24ST | 33,000 - 45,000 lbs | 24 " | 0.550 yd³ | 4 | WOR | |
| 150 | HDS3340E30ST | 33,000 - 45,000 lbs | 30 " | 0.715 yd³ | 5 | WOR | |
| 150 | HDS3340E36ST | 33,000 - 45,000 lbs | 36 " | 0.880 yd³ | 6 | WOR | |
| 200 | HDS4045E24ST | 45,000 - 55,000 lbs | 24 " | 0.625 yd³ | 4 | 1695 lbs | |
| 200 | HDS4045E30ST | 45,000 - 55,000 lbs | 30 " | 0.815 yd³ | 4 | WOR | |
| 200 | HDS4045E36ST | 45,000 - 55,000 lbs | 36 " | 0.995 yd³ | 5 | WOR | |
| 250 | HDS4560E24ST | 55,000 - 65,000 lbs | 24 " | 0.715 yd³ | 3 | WOR | |
| 250 | HDS4560E30ST | 55,000 - 65,000 lbs | 30 " | 0.930 yd³ | 4 | WOR | |
| 250 | HDS4560E36ST | 55,000 - 65,000 lbs | 36 " | 1.150 yd³ | 5 | WOR | |
| 250 | HDS4560E42ST | 55,000 - 65,000 lbs | 42 " | 1.365 yd³ | 6 | WOR | |
| 300 | HDS6080E30ST | 65,000 - 90,000 lbs | 30 " | 1.130 yd³ | 4 | WOR | |
| 300 | HDS6080E36ST | 65,000 - 90,000 lbs | 36 " | 1.410 yd³ | 4 | 2860 lbs | |
| 300 | HDS6080E42ST | 65,000 - 90,000 lbs | 42 " | 1.690 yd³ | 5 | 3150 lbs | |
| 300 | HDS6080E48ST | 65,000 - 90,000 lbs | 48 " | 1.970 yd³ | 6 | 3280 lbs | |
| 400 | HDS80100E36ST | 90,000 - 115,000 lbs | 36 " | 1.720 yd³ | 4 | WOR | |
| 400 | HDS80100E42ST | 90,000 - 115,000 lbs | 42 " | 2.060 yd³ | 4 | WOR | |
| 400 | HDS80100E48ST | 90,000 - 115,000 lbs | 48 " | 2.405 yd³ | 5 | WOR | |
| 400 | HDS80100E54ST | 90,000 - 115,000 lbs | 54 " | 2.745 yd³ | 6 | WOR | |
| 650 | HDS120140E48ST | 120,000 - 140,000 lbs. | 48 " | 3.110 yd³ | 5 | WOR | |
| 650 | HDS120140E54ST | 120,000 - 140,000 lbs. | 54 " | 3.500 yd³ | 5 | WOR | |
| 650 | HDS120140E60ST | 120,000 - 140,000 lbs. | 60 " | 4.000 yd³ | 6 | WOR | |
| 750 | HDS140160E48ST | 140,000 - 160,000 lbs. | 48 " | 0 yd³ | 4 | WOR | |
| 750 | HDS140160E54ST | 140,000 - 160,000 lbs. | 54 " | 3.870 yd³ | 5 | WOR | |
| 750 | HDS140160E60ST | 140,000 - 160,000 lbs. | 60 " | 4.300 yd³ | 5 | WOR | |
| 750 | HDS140160E66ST | 140,000 - 160,000 lbs. | 66 " | 4.750 yd³ | 6 | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
