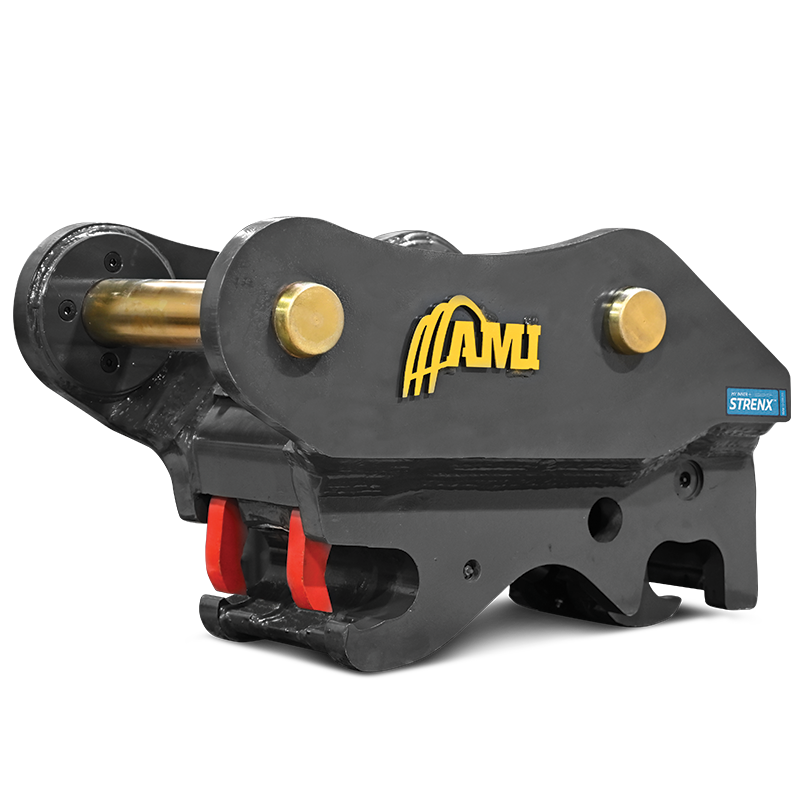

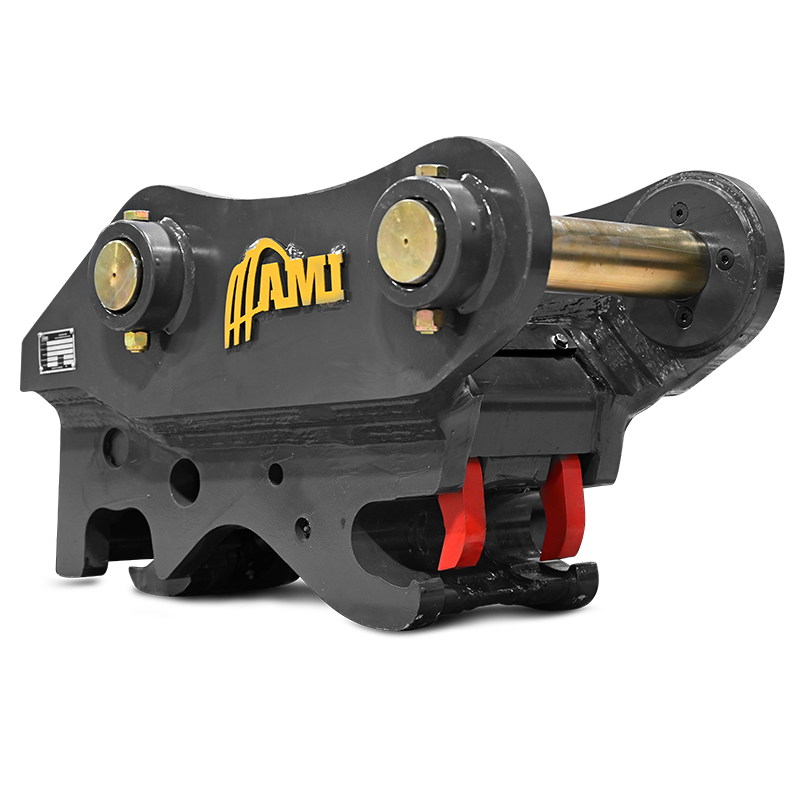

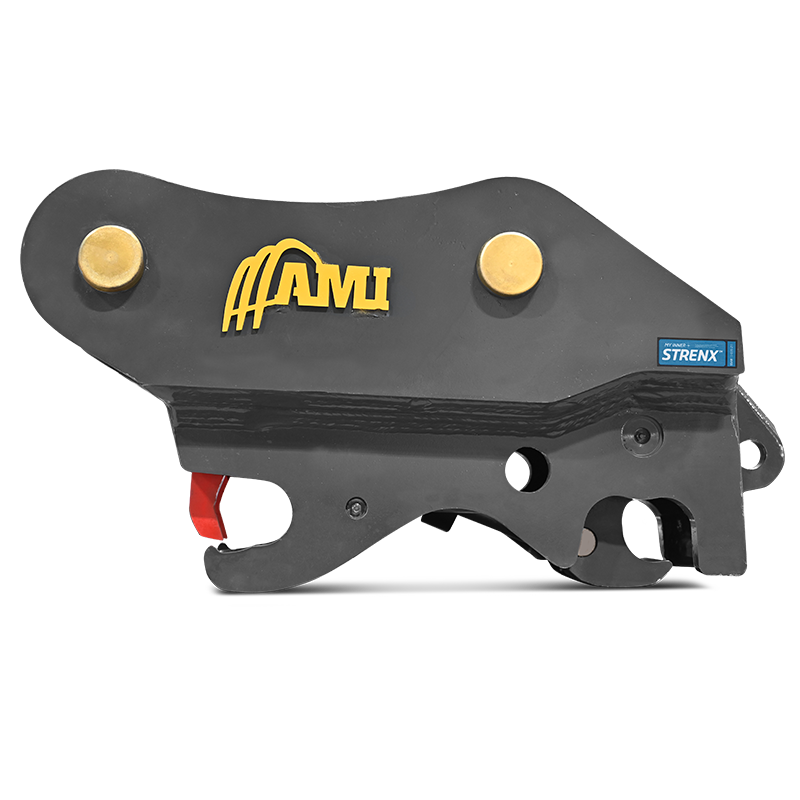

Hydraulic Pin Grab Coupler

Connecting ease-of-use with jobsite safety is the AMI Hydraulic Pin Grab Excavator Coupler with five integrated safety features. From inside the cab, the operator can switch attachments quickly, easily and most importantly know it's locked on tightly. Safety starts on the AMI Hydraulic Pin Grab Excavator Coupler with clearly visible locks on both the front and rear pins and a cylinder lock which prevents movement. Before the operator is able to disconnect, the AMI Hydraulic Pin Grab Coupler requires 80 percent of full system pressure against the integrated lock-valve. This feature reduces the likelihood of releasing your attachment unexpectedly because of the full system pressure requirement before hydraulic oil flows to the coupler's cylinder. Protecting the operator from unexpectedly bumping the wrong switch in the cab is the upgraded two-stage control. The in-cab control features two buttons: the first requires the operator to press and hold for two seconds and then press the second button at the same time to reverse the hydraulic flow in order to release the attachment.

SPECIFICATIONS - EXCAVATOR

FastTrack Category Model Machine Class Description
FastTrack Icon 130 QT2433PGH 24,000 - 33,000 lbs Hydraulic Pin Grab Coupler
FastTrack Icon 150 QT3340PGH 33,000 - 45,000 lbs Hydraulic Pin Grab Coupler
FastTrack Icon 200 QT4045PGH 45,000 - 55,000 lbs Hydraulic Pin Grab Coupler
FastTrack Icon 250 QT4560PGH 55,000 - 65,000 lbs Hydraulic Pin Grab Coupler
FastTrack Icon 300 QT6080PGH 65,000 - 90,000 lbs Hydraulic Pin Grab Coupler
FastTrack Icon 400 QT80100PGH 90,000 - 115,000 lbs Hydraulic Pin Grab Coupler
650 QT120140PGH 120,000 - 140,000 lbs. Hydraulic Pin Grab Coupler
750 QT140160PGH 140,000 - 160,000 lbs. Hydraulic Pin Grab Coupler

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
