Connecting ease-of-use with jobsite safety and versatile operation is the AMI Axxis PowerTilt Hydraulic Pin Grab Coupler. With five integrated safety features, you receive all the safety benefits of our Hydraulic Pin Grab Coupler while gaining the added capability of 180 degree rotation on 25-70 series excavators and 120-degrees on 130-400 series excavators.
Compact and minimal hydraulic flow design protect the few hoses required for both tilt and coupling functions. Steel lines and internal routing eliminate exposed external hoses.
Thrust and radial bearing surfaces for the PowerTilt Coupler are hardened steel on hardened steel, eliminating the need for bearing replacement. This also leads to longer coupler life and reduced cost of ownership.
Instead of moving your entire machine, the PowerTilt allows bucket or attachment tilting up to 180°.

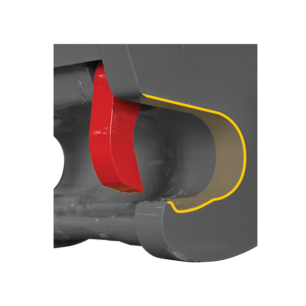

A sharp talon and secondary socket profile allows continued handling of attachment during connecting and disconnecting.

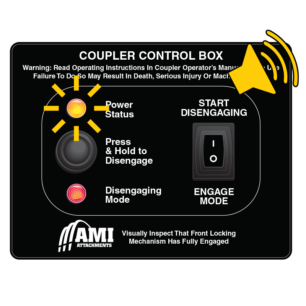

Easy to use and designed to prevent unintentional release, the in-cab controls require two unique actions to activate the hydraulic coupler’s unlocking sequence.

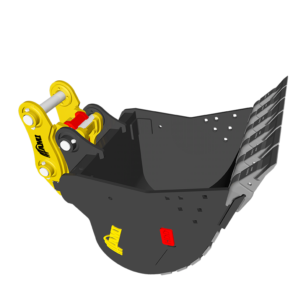

At full curl, the bucket is now safely resting in the coupler’s front clip without risk of falling off unexpectedly.

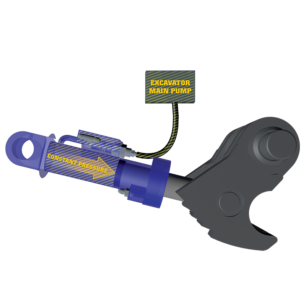

Dedicated lines provide constant pressure directly to the coupler’s locking cylinder. Integrated into the locking cylinder is a load holding valve that keeps the attachment locked tightly to the coupler.

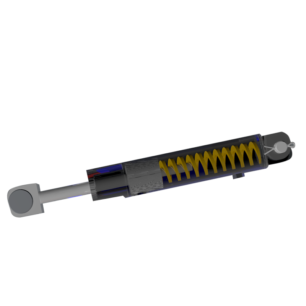

Using a spring-loaded hydraulic cylinder, the safety naturally stays in the locked position and requires hydraulic pressure to deactivate.
|130||PT2433PGH||24,000 - 33,000 lbs||PowerTilt Hydraulic Pin Grab Coupler||890 lbs|
|150||PT3340PGH||33,000 - 45,000 lbs||PowerTilt Hydraulic Pin Grab Coupler||980 lbs|
|200||PT4045PGH||45,000 - 55,000 lbs||PowerTilt Hydraulic Pin Grab Coupler||1400 lbs|
|250||PT4560PGH||55,000 - 65,000 lbs||PowerTilt Hydraulic Pin Grab Coupler||1805 lbs|
|300||PT6080PGH||65,000 - 90,000 lbs||PowerTilt Hydraulic Pin Grab Coupler||2345 lbs|
