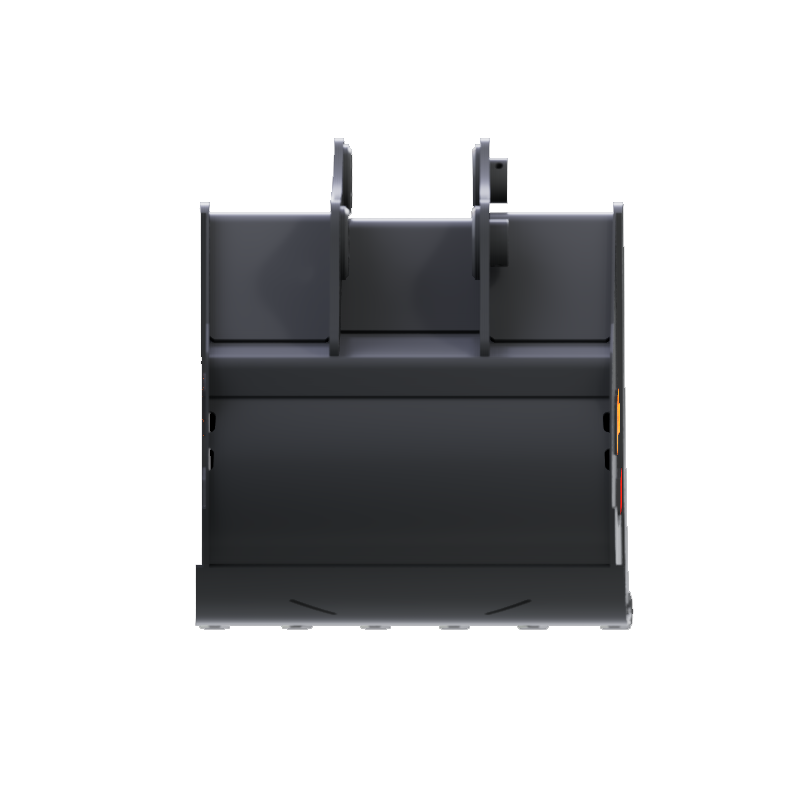

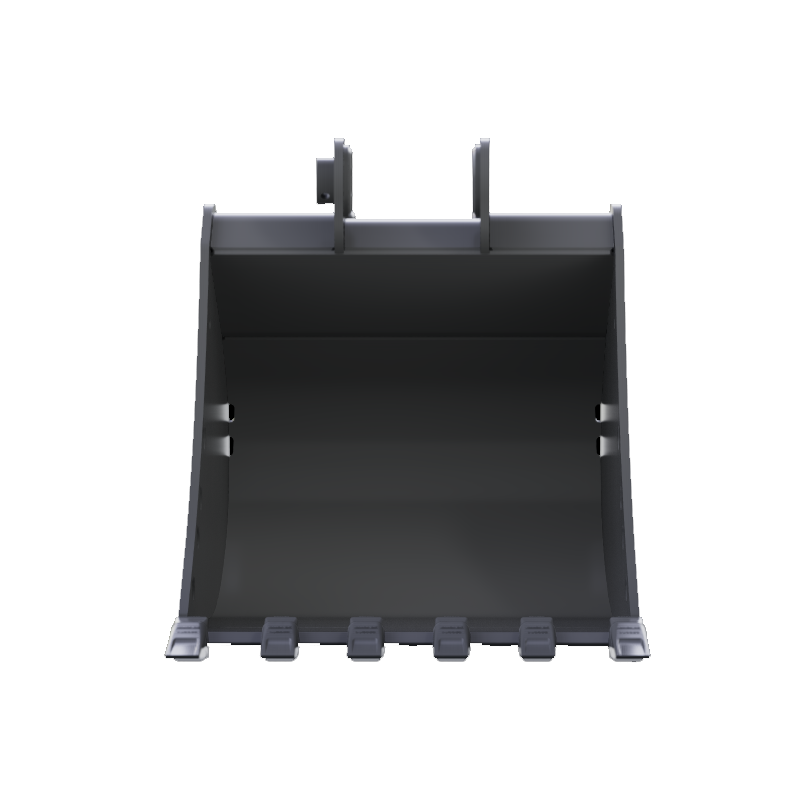

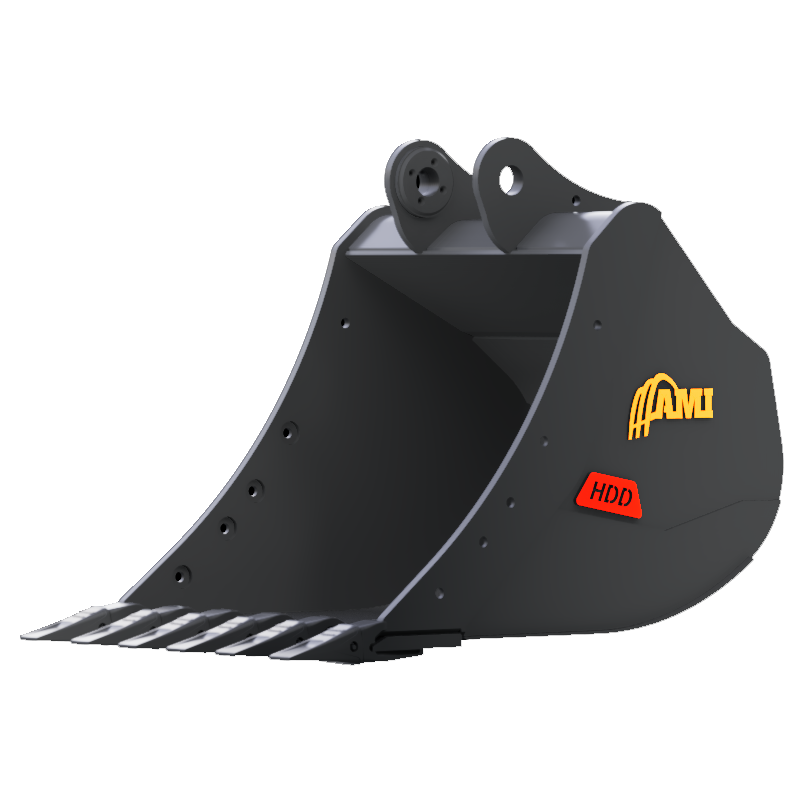

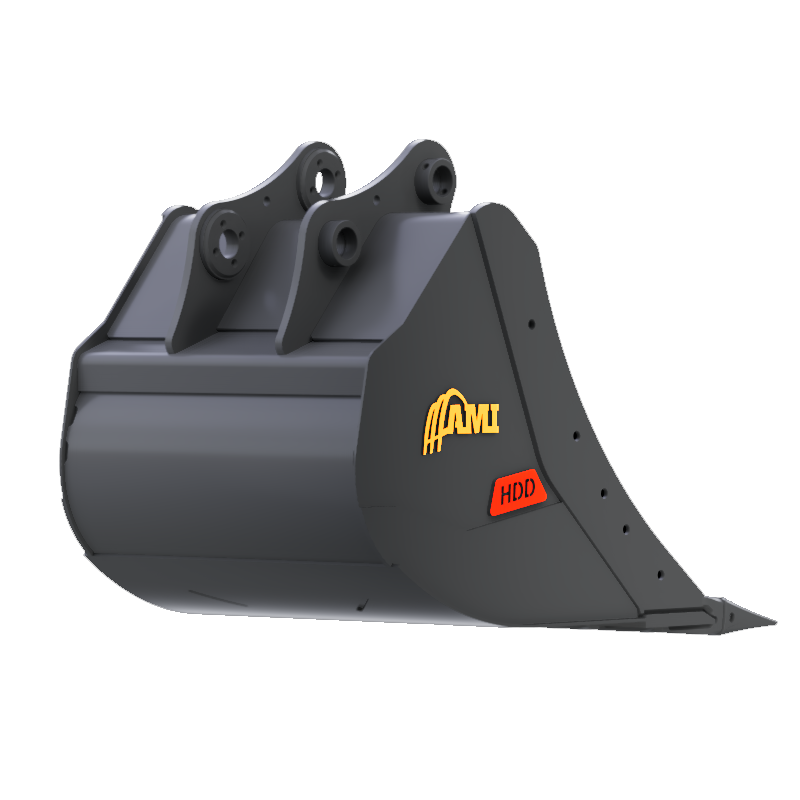

High Capacity Heavy Duty Digging Bucket

Improve your productivity with the versatile AMI High Capacity Heavy Duty Digging Bucket. The new design allows for easier filling and releasing of material. The longer lip and floor, combined with the open heel and bigger radius, ensures smooth and efficient loading and unloading cycle after cycle, without material getting packed in and trapped at the back of the bucket. With less curling and scooping action required when digging, you can roll greater quantities of material toward your machine with minimal wear and tear. Ideal for precision excavating on any type of terrain, the High Capacity Heavy Duty Digging Bucket also features replaceable teeth, tapered end walls and dual radius design for outstanding digging performance.

SPECIFICATIONS - EXCAVATOR

Category	Model	Machine Class	Width	Capacity	Teeth	Weight
130	HDHC2433E18	24,000 - 33,000 lbs	18 "	0.404 yd³	3	850 lbs
130	HDHC2433E24	24,000 - 33,000 lbs	24 "	0.575 yd³	4	990 lbs
130	HDHC2433E30	24,000 - 33,000 lbs	30 "	0.745 yd³	4	1095 lbs
130	HDHC2433E36	24,000 - 33,000 lbs	36 "	0.920 yd³	5	1235 lbs
130	HDHC2433E42	24,000 - 33,000 lbs	42 "	1.095 yd³	5	1340 lbs
130	HDHC2433E48	24,000 - 33,000 lbs	48 "	1.265 yd³	6	1480 lbs
150	HDHC3340E18	33,000 - 45,000 lbs	18 "	0.485 yd³	3	940 lbs
150	HDHC3340E20	33,000 - 45,000 lbs	20 "	0.560 yd³	3	980 lbs
150	HDHC3340E24	33,000 - 45,000 lbs	24 "	0.690 yd³	4	1075 lbs
150	HDHC3340E30	33,000 - 45,000 lbs	30 "	0.900 yd³	4	1180 lbs
150	HDHC3340E36	33,000 - 45,000 lbs	36 "	1.105 yd³	5	1375 lbs
150	HDHC3340E42	33,000 - 45,000 lbs	42 "	1.315 yd³	5	1420 lbs
150	HDHC3340E48	33,000 - 45,000 lbs	48 "	1.520 yd³	6	1560 lbs
200	HDHC4045E20	45,000 - 55,000 lbs	20 "	0.610 yd³	3	1375 lbs
200	HDHC4045E24	45,000 - 55,000 lbs	24 "	0.780 yd³	3	1465 lbs
200	HDHC4045E30	45,000 - 55,000 lbs	30 "	1.015 yd³	4	1600 lbs
200	HDHC4045E36	45,000 - 55,000 lbs	36 "	1.250 yd³	5	1775 lbs
200	HDHC4045E42	45,000 - 55,000 lbs	42 "	1.485 yd³	5	1910 lbs
200	HDHC4045E48	45,000 - 55,000 lbs	48 "	1.720 yd³	6	2085 lbs
250	HDHC4560E24	55,000 - 65,000 lbs	24 "	0.850 yd³	3	1625 lbs
250	HDHC4560E30	55,000 - 65,000 lbs	30 "	1.135 yd³	4	1855 lbs
250	HDHC4560E36	55,000 - 65,000 lbs	36 "	1.400 yd³	4	2100 lbs
250	HDHC4560E42	55,000 - 65,000 lbs	42 "	1.670 yd³	5	2325 lbs
250	HDHC4560E48	55,000 - 65,000 lbs	48 "	1.940 yd³	6	2470 lbs
250	HDHC4560E54	55,000 - 65,000 lbs	54 "	2.205 yd³	6	2590 lbs
300	HDHC6080E24	65,000 - 90,000 lbs	24 "	1.060 yd³	3	2510 lbs
300	HDHC6080E30	65,000 - 90,000 lbs	30 "	1.410 yd³	3	2695 lbs
300	HDHC6080E36	65,000 - 90,000 lbs	36 "	1.755 yd³	4	2940 lbs
300	HDHC6080E42	65,000 - 90,000 lbs	42 "	2.100 yd³	4	3145 lbs
300	HDHC6080E48	65,000 - 90,000 lbs	48 "	2.445 yd³	5	3340 lbs
300	HDHC6080E54	65,000 - 90,000 lbs	54 "	2.790 yd³	5	3615 lbs
300	HDHC6080E60	65,000 - 90,000 lbs	60 "	3.135 yd³	6	3830 lbs
300	HDHC6080E66	65,000 - 90,000 lbs	66 "	3.42 yd³	7	WOR
400	HDHC80100E30	90,000 - 115,000 lbs	30 "	1.625 yd³	3	3345 lbs
400	HDHC80100E36	90,000 - 115,000 lbs	36 "	2.030 yd³	4	3645 lbs
400	HDHC80100E42	90,000 - 115,000 lbs	42 "	2.430 yd³	4	3875 lbs
400	HDHC80100E48	90,000 - 115,000 lbs	48 "	2.6 yd³	5	4180 lbs
400	HDHC80100E54	90,000 - 115,000 lbs	54 "	3.240 yd³	5	4410 lbs
400	HDHC80100E60	90,000 - 115,000 lbs	60 "	3.640 yd³	6	4715 lbs
400	HDHC80100E66	90,000 - 115,000 lbs	66 "	4.045 yd³	6	4945 lbs
400	HDHC80100E72	90,000 - 115,000 lbs	72 "	4.450 yd³	7	5255 lbs
400	HDHC80100E84	90,000 - 115,000 lbs	84 "	5.126 yd³	7	6250 lbs
400	HDHC80100E8455CY	90,000 - 115,000 lbs	84 "	5.50 yd³	7	6375 lbs
650	HDHC120140E84	120,000 - 140,000 lbs.	84 "	6.350 yd³	5	WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
