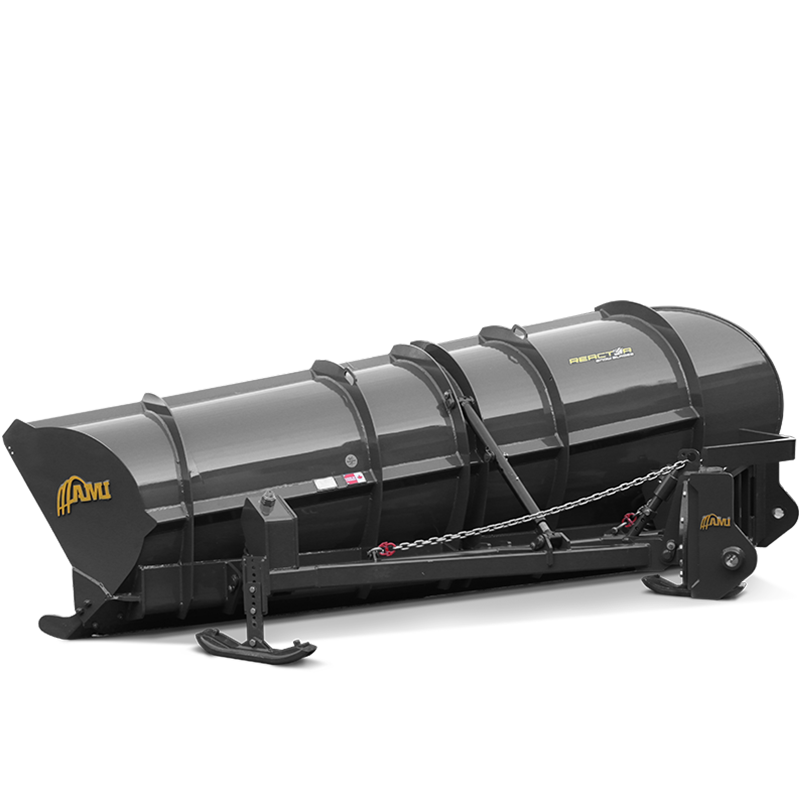

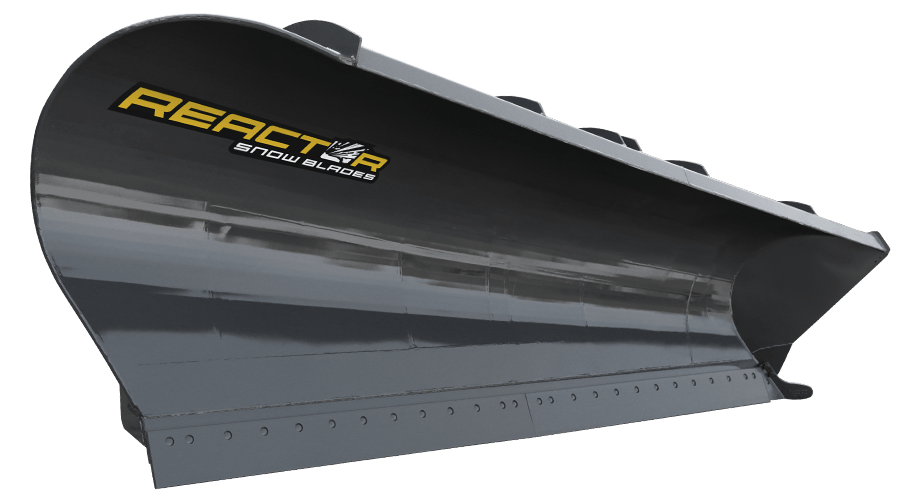

One Way Blade

With a 10 ft. clearing path and 35-degree fixed angle, this One Way Blade is built for high speed operation, clearing snow quickly and thoroughly. Features include adjustable and replaceable skid shoe, replaceable nose and bolt-on edge, right side discharge, and adjustable spring trip moldboard. For easy adjustment for uneven roads this blade offers a 20-degree oscillation on plow frame and 14-degree manual moldboard pitch adjustment. Optional hydraulic moldboard pitch adjustment is also available.

SPECIFICATIONS - WHEEL LOADER

FastTrack Category Model Machine Class Description
150 SB5121W 2.75 - 3.00 yds 12' 500 Series One Way Blade Spring-Trip Mouldboard 10' Clearing Path 35 Degree Fixed Angle
175 SB5121W 3.25 - 3.50 yds 12' 500 Series One Way Blade Spring-Trip Mouldboard 10' Clearing Path 35 Degree Fixed Angle
200 SB6121W 3.75 - 4.50 yds 12 Foot 600 Series One Way Blade Spring-Trip Mouldboard 10' Clearing Path 35 Degree Fixed Angle
250 SB6121W 5.00 - 6.25 yds 12 Foot 600 Series One Way Blade Spring-Trip Mouldboard 10' Clearing Path 35 Degree Fixed Angle

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
