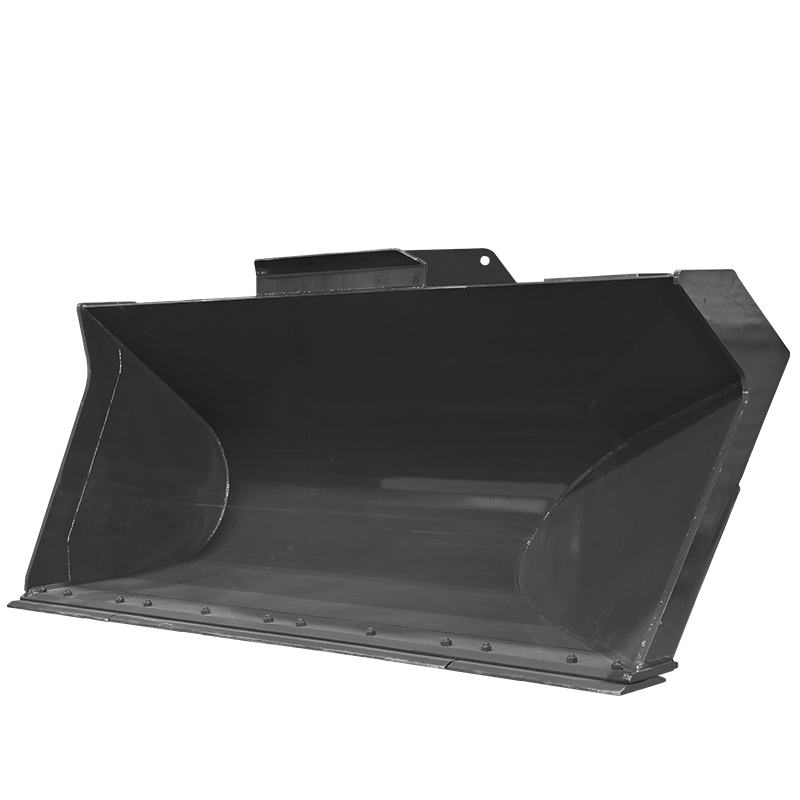

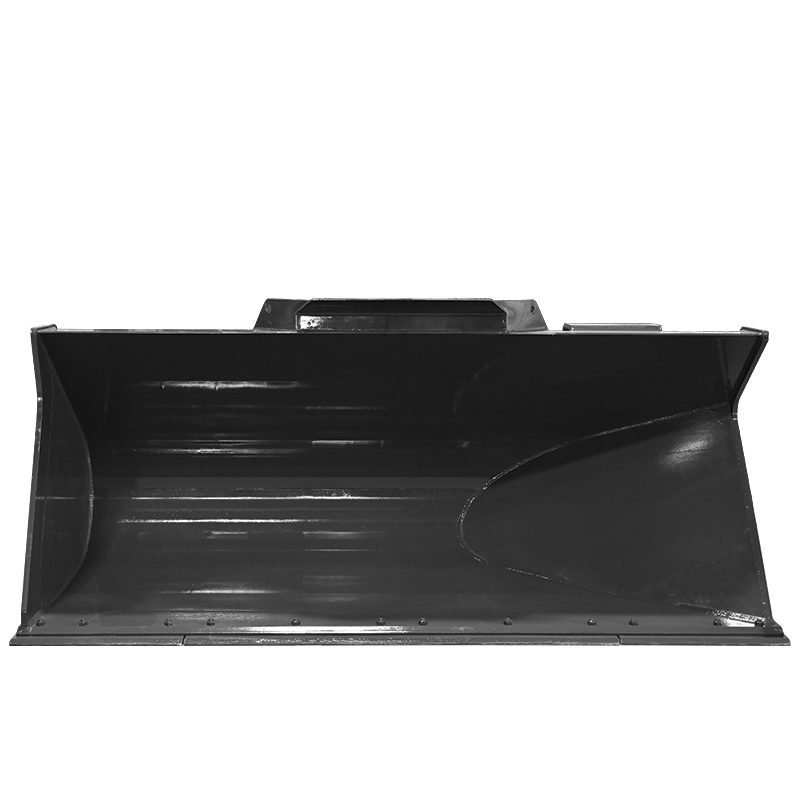

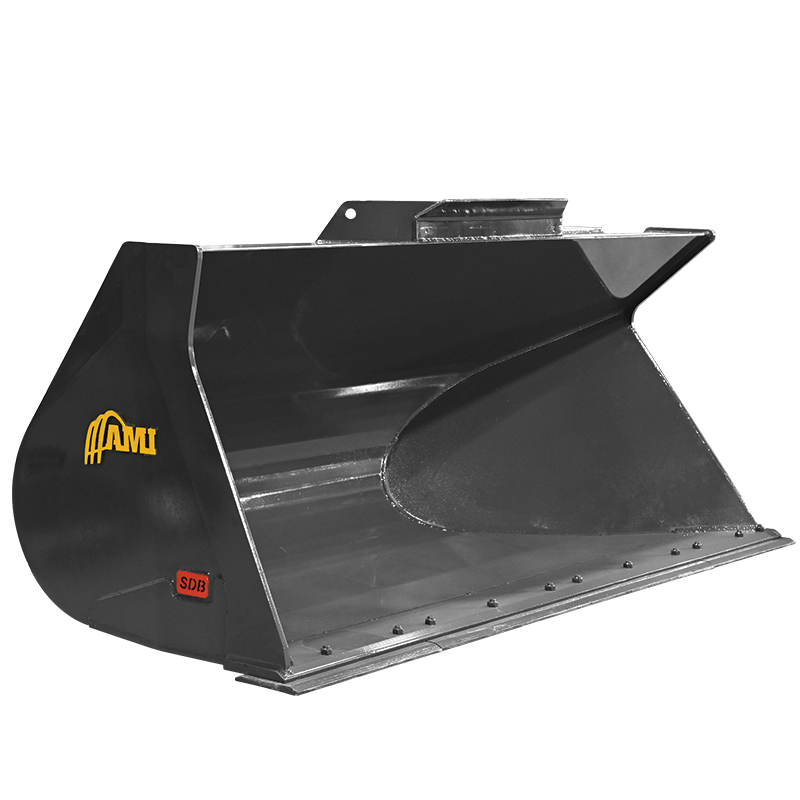

Side Dump Bucket

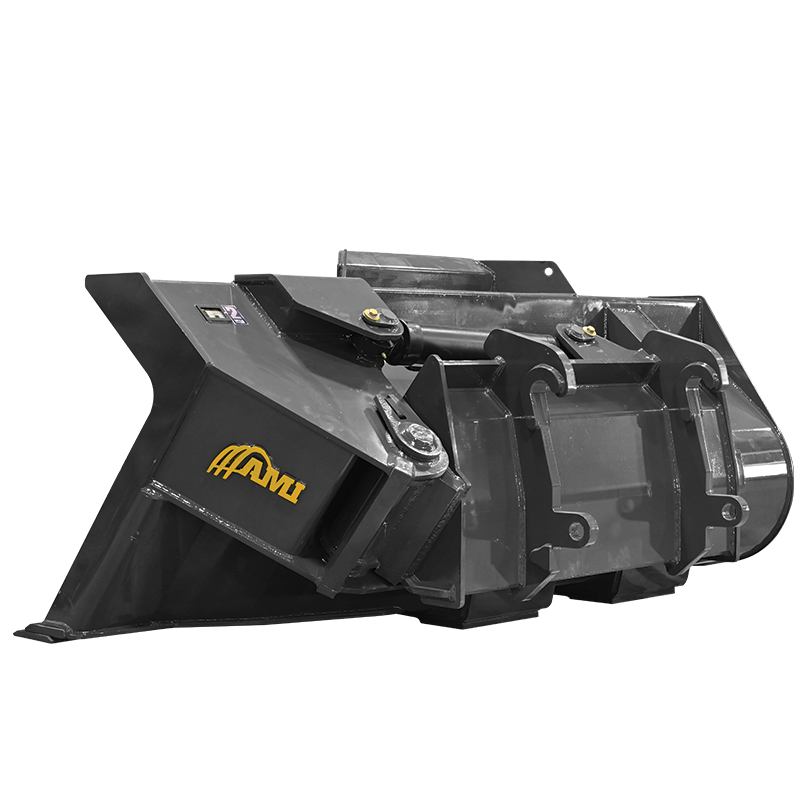

Easily handle material on highway construction sites, trenches and roadways without obstructing traffic. The Side Dump pivots smoothly using a cushioning cylinder, slowing the movement at both ends of the stroke. For normal dumping, the auto-lock secures the non-pivot end, preventing the bucket from side pivoting during dumping and filling.

Specifications - Wheel Loader

FastTrack Category Model Machine Class Capacity Struck Capacity Description Weight
50 WL50SD075 1.00 - 1.50 yds 0.750 yd³ 0.615 yd³ Left or Right Side Dump 1425 lbs
100 WL100SD100 1.50 - 2.00 yds 1.000 yd³ 0.800 yd³ Left or Right Side Dump 1580 lbs
125 WL125SD150 2.00 - 2.50 yds 1.500 yd³ 1.200 yd³ Left or Right Side Dump 2700 lbs
125 WL125SD175 2.00 - 2.50 yds 1.750 yd³ 1.415 yd³ Left or Right Side Dump 2900 lbs
150 WL150SD175 2.75 - 3.00 yds 1.750 yd³ 1.415 yd³ Left or Right Side Dump 3110 lbs
150 WL150SD200 2.75 - 3.00 yds 2.000 yd³ 1.660 yd³ Left or Right Side Dump 3455 lbs
175 WL175SD200 3.25 - 3.50 yds 2.000 yd³ 1.660 yd³ Left or Right Side Dump 4090 lbs
175 WL175SD250 3.25 - 3.50 yds 2.500 yd³ 2.075 yd³ Left or Right Side Dump 4310 lbs
175 WL175SD275 3.25 - 3.50 yds 2.750 yd³ 2.245 yd³ Left or Right Side Dump 4420 lbs
200 WL200SD250 3.75 - 4.50 yds 2.500 yd³ 2.075 yd³ Left or Right Side Dump 5340 lbs
200 WL200SD325 3.75 - 4.50 yds 3.250 yd³ 2.700 yd³ Left or Right Side Dump 5820 lbs
250 WL250SD350 5.00 - 6.25 yds 3.500 yd³ - Left or Right Side Dump WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

Hardox & Strenx
