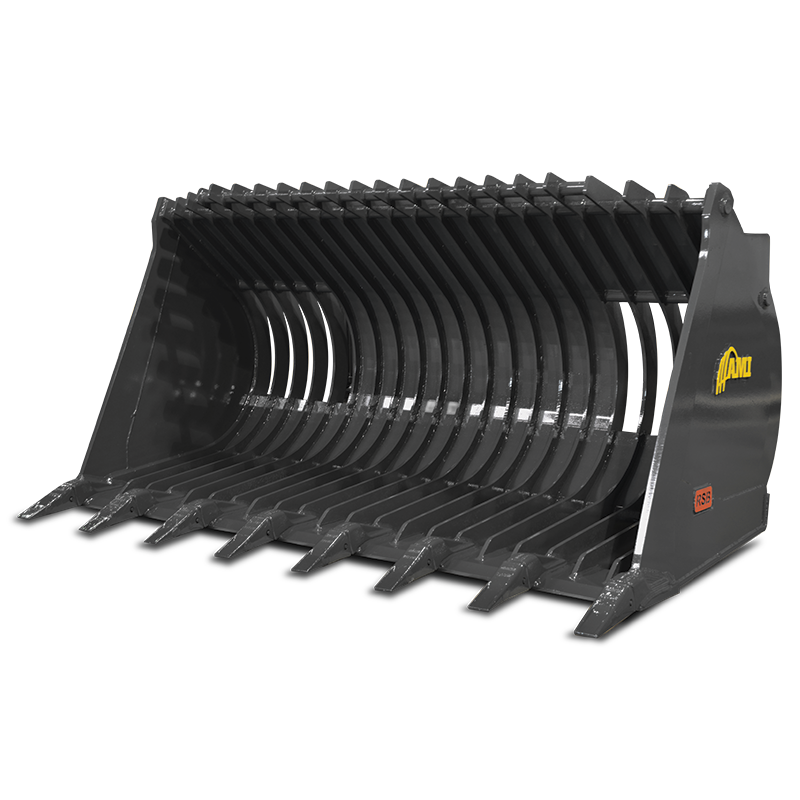

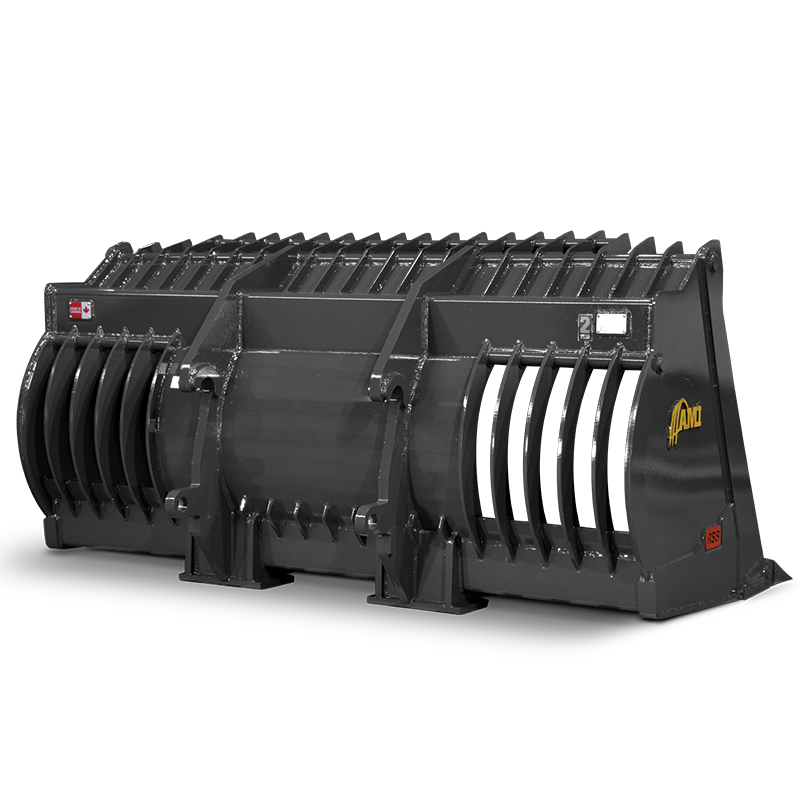

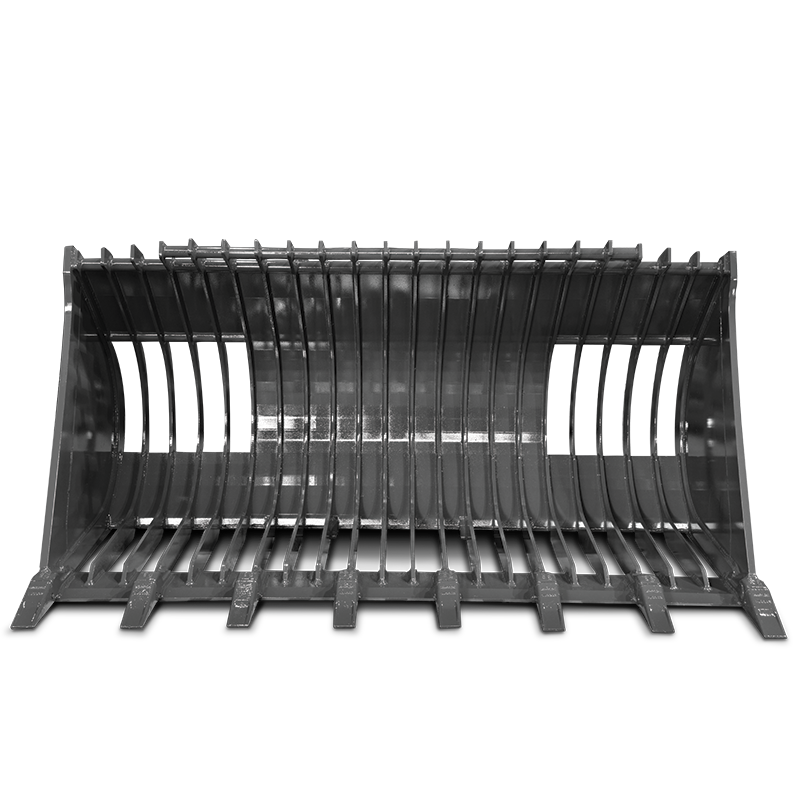

Skeleton Bucket

Built with Hardox Wear Plate and Strenx Performance Steel, the AMI Skeleton Bucket is the ideal attachment for sorting large rocks and debris from sand and soil. The Skeleton Bucket comes with Weld-on Teeth (brand specific available) and a lugging protection plate. Custom tine spacing is an available option.

Specifications - Wheel Loader

FastTrack Category Model Machine Class Capacity Struck Capacity Weight Tine Spacing Width Teeth
50 WL50SB1250 1.00 - 1.50 yds 1.250 yd³ - 1425 lbs 4 " 0 " 0
100 WL100SB150 1.50 - 2.00 yds 1.500 yd³ 1.250 yd³ WOR 4 " 0 " 0
100 WL100SB175 1.50 - 2.00 yds 1.750 yd³ 1.500 yd³ 1915 lbs 4 " 0 " 0
125 WL125SB200 2.00 - 2.50 yds 2.000 yd³ 1.750 yd³ WOR 4.50 " 0 " 0
150 WL150SB250 2.75 - 3.00 yds 2.500 yd³ 2.075 yd³ 3435 lbs 5 " 0 " 0
150 WL150SB300 2.75 - 3.00 yds 3.000 yd³ 2.490 yd³ 3645 lbs 5 " 0 " 0
175 WL175SB300 3.25 - 3.50 yds 3.000 yd³ 2.490 yd³ 3520 lbs 5.625 " 0 " 0
175 WL175SB350 3.25 - 3.50 yds 3.500 yd³ 2.905 yd³ 3600 lbs 5.625 " 0 " 0
200 WL200SB400 3.75 - 4.50 yds 4.000 yd³ 3.320 yd³ 4420 lbs 5.625 " 0 " 0
200 WL200SB450 3.75 - 4.50 yds 4.500 yd³ 3.735 yd³ 4640 lbs 5.625 " 0 " 0
250 WL250SB500 5.00 - 6.25 yds 5.000 yd³ 0 yd³ WOR 6 " 0 " 0
250 WL250SB600 5.00 - 6.25 yds 6.000 yd³ 0 yd³ WOR 6 " 0 " 0
300 WL300SB600 6.50 - 7.50 yds 6.000 yd³ 0 yd³ WOR 6 " 0 " 0
300 WL300SB700 6.50 - 7.50 yds 7.000 yd³ 0 yd³ WOR 6 " 0 " 0

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
