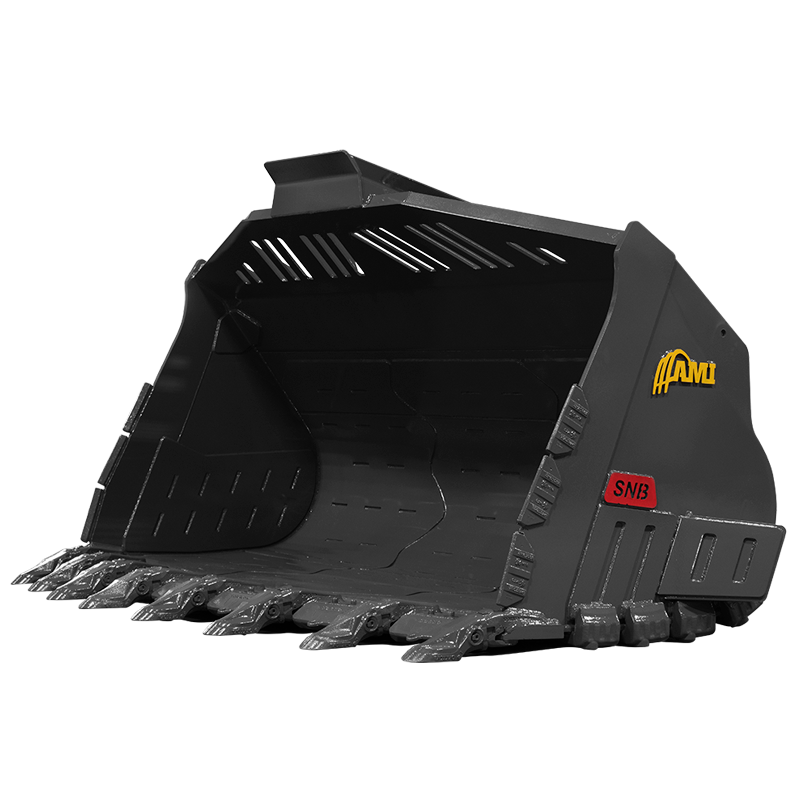

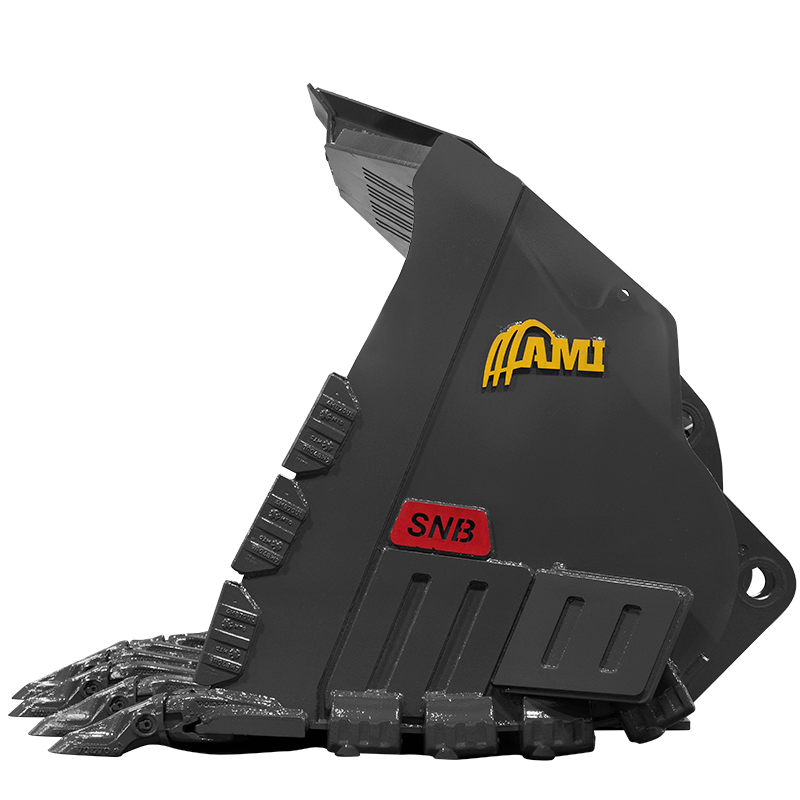

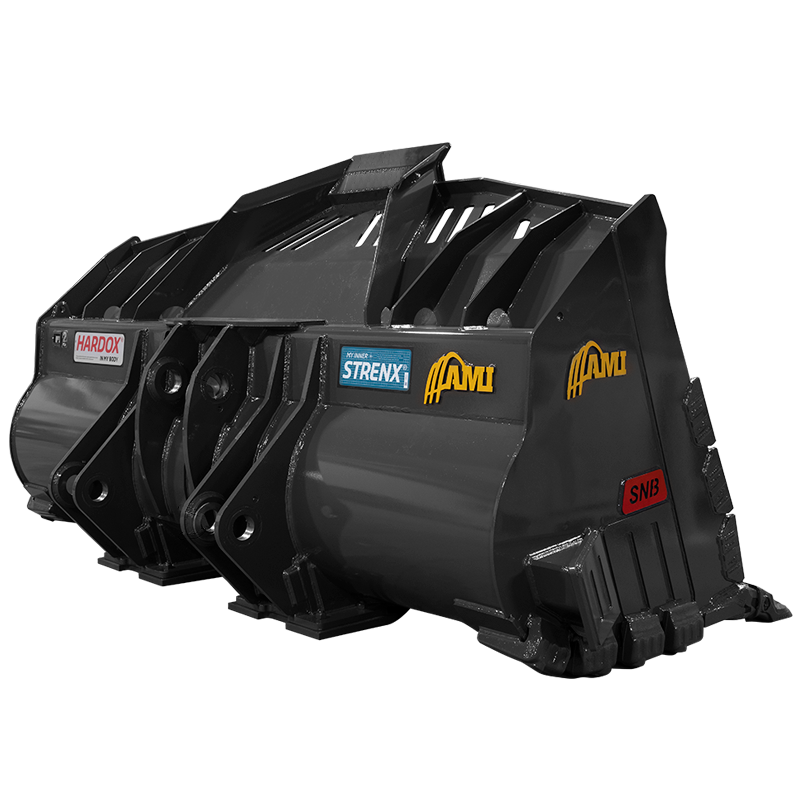

Extreme Service Spade Nose Rock Bucket

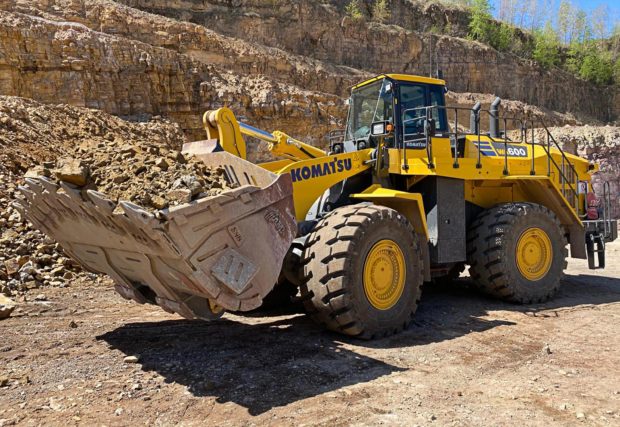

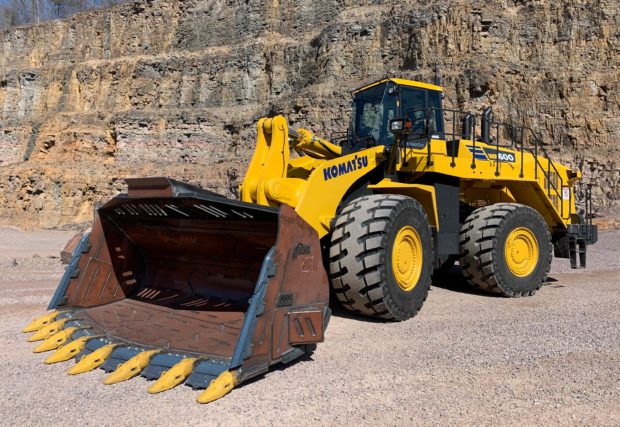

Make your point with the AMI Spade Nose Rock Bucket for Extreme Service. Built for handling rock in mining and quarry applications, the AMI Spade Nose Rock Bucket loads easily with minimal wear. Reinforced plating on the bottom and Hardox wear plate all around make this bucket rock solid.

Structural Components

Base Edge Hardox® 450
Shell Liner Hardox® 500
End Plate Liner Hardox® 500
Base Edge Hardox® 450
Shell Liner Hardox® 500
End Plate Liner Hardox® 500
Side Cutter Hardox® 450
Cheek Plate Hardox® 450
Kicker Hardox® 450
Side Cutter Hardox® 450
Cheek Plate Hardox® 450
Kicker Hardox® 450
Shell Hardox® 450
Wear Plate Hardox® 450
Lugging Strenx®
Weld-On Heel Shrouds Hardox® 500
End Wear Plate Hardox® 450
Shell Hardox® 450
Wear Plate Hardox® 450
Lugging Strenx®
Weld-On Heel Shrouds Hardox® 500
End Wear Plate Hardox® 450

SPECIFICATIONS - WHEEL LOADER

FastTrack Category Model Machine Class Capacity Weight
200 WL200RBXS350SN 3.75 - 4.50 yds 3.500 yd³ WOR
200 WL200RBXS400SN 3.75 - 4.50 yds 4.000 yd³ WOR
250 WL250RBXS450SN 5.00 - 6.25 yds 4.500 yd³ WOR
250 WL250RBXS475SN 5.00 - 6.25 yds 4.750 yd³ WOR
250 WL250RBXS500SN 5.00 - 6.25 yds 5.000 yd³ WOR
250 WL250RBXS550SN 5.00 - 6.25 yds 5.500 yd³ WOR
250 WL250RBXS575SN 5.00 - 6.25 yds 5.750 yd³ WOR
300 WL300RBXS600SN 6.50 - 7.50 yds 6.000 yd³ WOR
300 WL300RBXS625SN 6.50 - 7.50 yds 6.250 yd³ WOR
300 WL300RBXS650SN 6.50 - 7.50 yds 6.500 yd³ WOR
300 WL300RBXS675SN 6.50 - 7.50 yds 6.750 yd³ WOR
300 WL300RBXS700SN 6.50 - 7.50 yds 7.000 yd³ WOR
300 WL300RBXS725SN 6.50 - 7.50 yds 7.250 yd³ WOR
300 WL300RBXS750SN 6.50 - 7.50 yds 7.500 yd³ WOR
400 WL400RBXS1000SN 8.00 - 10.00 yds 10.000 yd³ WOR
400 WL400RBXS700SN 8.00 - 10.00 yds 7.000 yd³ WOR
400 WL400RBXS800SN 8.00 - 10.00 yds 8.000 yd³ WOR
400 WL400RBXS900SN 8.00 - 10.00 yds 9.000 yd³ WOR
800 WL800RBXS1500SN 13.00 - 16.00 yds 15 yd³ WOR
800 WL800RBXS1600SN 13.00 - 16.00 yds 16 yd³ WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
