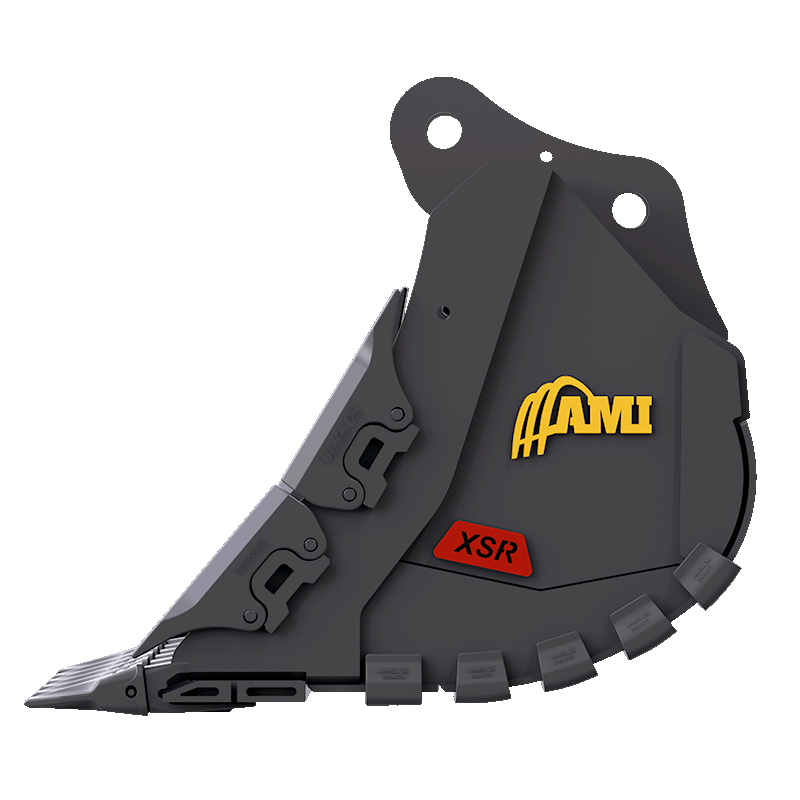

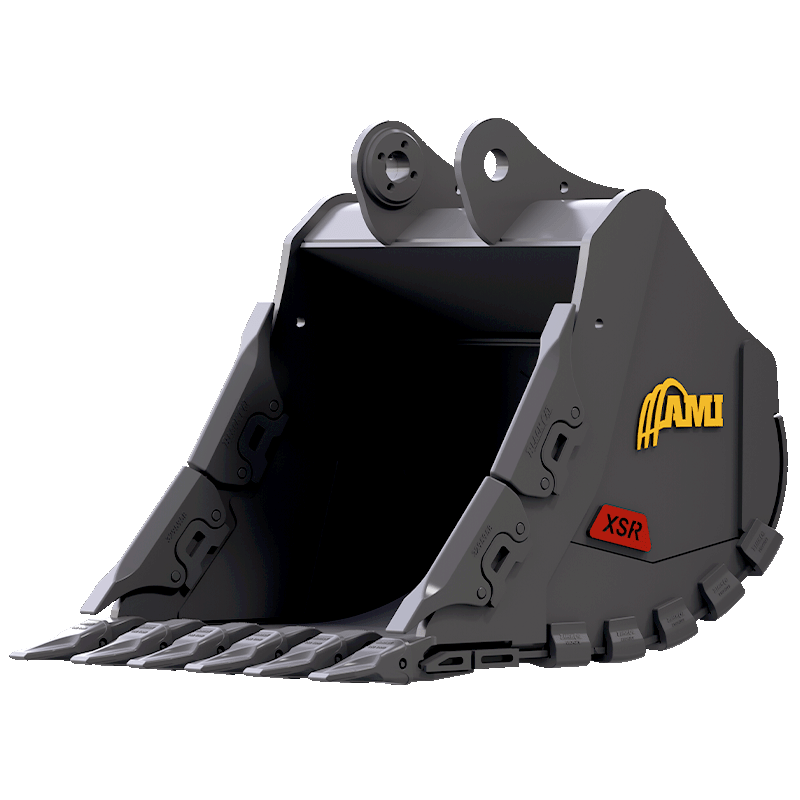

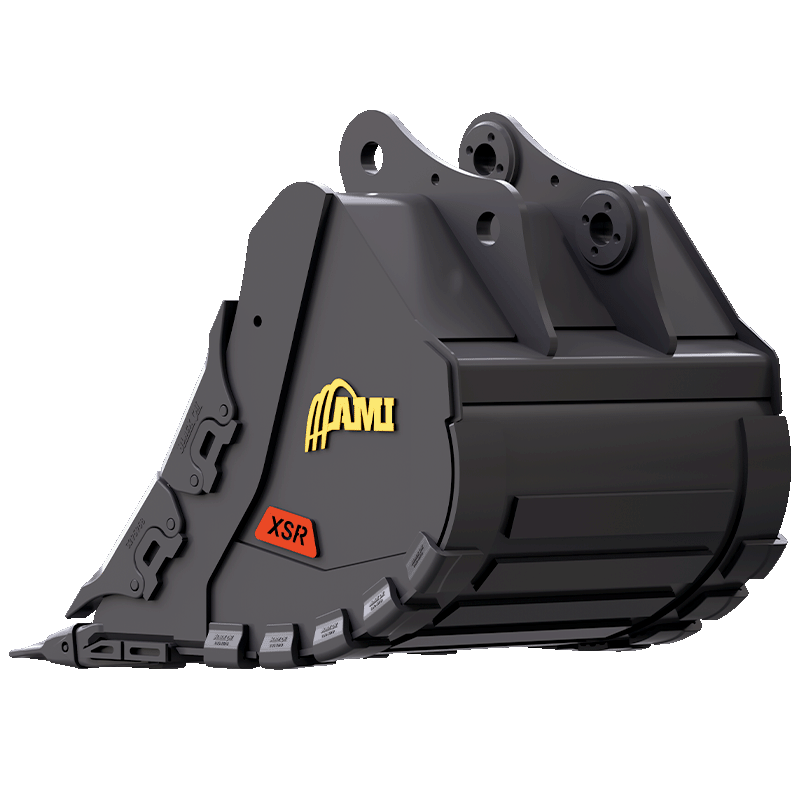

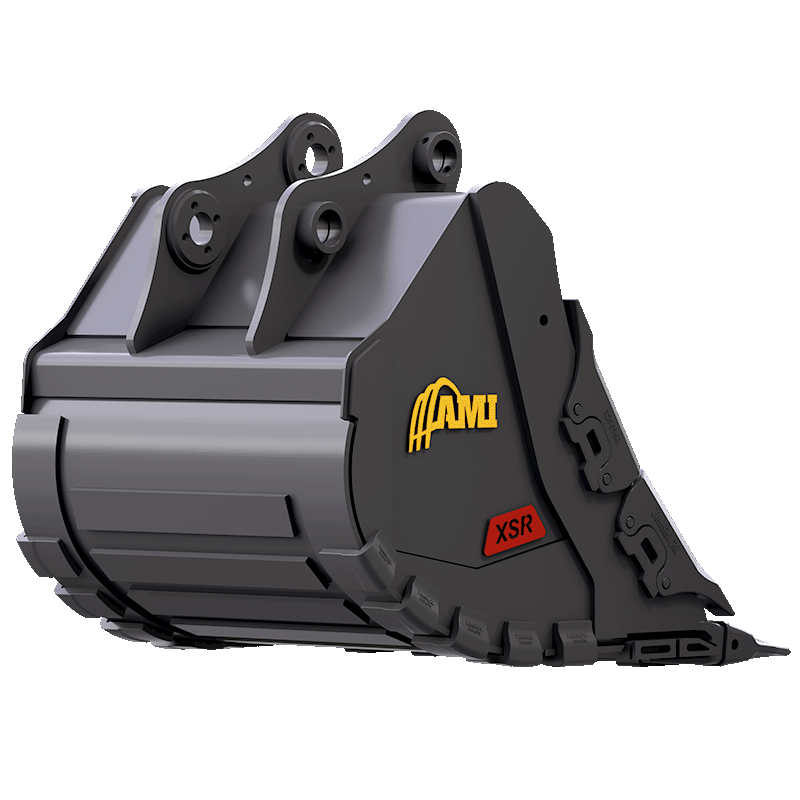

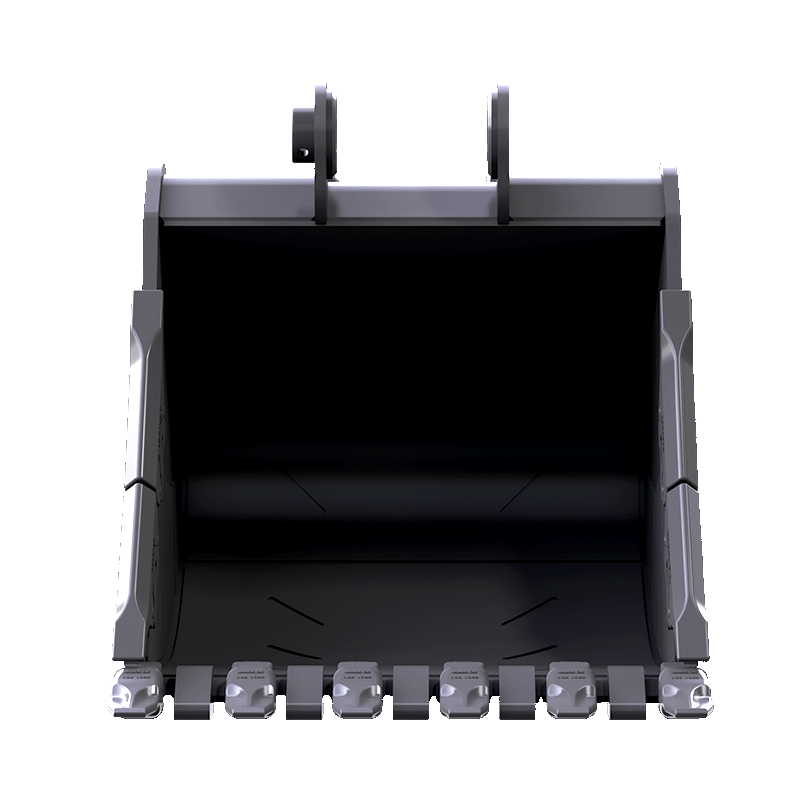

Extreme Service Rock Bucket
Push performance to the limits with the AMI Extreme Service Rock Bucket. Designed for Extreme Service applications such as road building, mining, quarry applications. Built with 100% Hardox material throughout the complete bucket. Comes standard with base edge weld on segments and pin on side bar protectors. the Extreme Service Duty Rock Bucket adds extra armor along the heel edges for longer life in high abrasive applications.
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 150 | XSR3340E30 | 33,000 - 45,000 lbs | 30 " | 0.740 yd³ | 4 | WOR | |
| 150 | XSR3340E36 | 33,000 - 45,000 lbs | 36 " | 0.910 yd³ | 5 | WOR | |
| 150 | XSR3340E42 | 33,000 - 45,000 lbs | 42 " | 1.080 yd³ | 5 | WOR | |
| 200 | XSR4045E36 | 45,000 - 55,000 lbs | 36 " | 1.030 yd³ | 4 | 2525 lbs | |
| 200 | XSR4045E42 | 45,000 - 55,000 lbs | 42 " | 1.230 yd³ | 5 | 2675 lbs | |
| 200 | XSR4045E48 | 45,000 - 55,000 lbs | 48 " | 1.420 yd³ | 5 | 2810 lbs | |
| 250 | XSR4560E36 | 55,000 - 65,000 lbs | 36 " | 1.190 yd³ | 4 | 2885 lbs | |
| 250 | XSR4560E42 | 55,000 - 65,000 lbs | 42 " | 1.415 yd³ | 5 | 3060 lbs | |
| 250 | XSR4560E48 | 55,000 - 65,000 lbs | 48 " | 1.645 yd³ | 5 | 3240 lbs | |
| 250 | XSR4560E54 | 55,000 - 65,000 lbs | 54 " | 1.870 yd³ | 6 | 3400 lbs | |
| 300 | XSR6080E36 | 65,000 - 90,000 lbs | 36 " | 1.490 yd³ | 4 | 4030 lbs | |
| 300 | XSR6080E42 | 65,000 - 90,000 lbs | 42 " | 1.780 yd³ | 4 | 4300 lbs | |
| 300 | XSR6080E48 | 65,000 - 90,000 lbs | 48 " | 2.070 yd³ | 5 | 4455 lbs | |
| 300 | XSR6080E54 | 65,000 - 90,000 lbs | 54 " | 2.360 yd³ | 5 | 4640 lbs | |
| 400 | XSR80100E48 | 90,000 - 115,000 lbs | 48 " | 2.400 yd³ | 5 | 5625 lbs | |
| 400 | XSR80100E54 | 90,000 - 115,000 lbs | 54 " | 2.740 yd³ | 5 | 5890 lbs | |
| 400 | XSR80100E60 | 90,000 - 115,000 lbs | 60 " | 3.070 yd³ | 5 | 6235 lbs | |
| 400 | XSR80100E72 | 90,000 - 115,000 lbs | 72 " | 3.740 yd³ | 6 | 6845 lbs | |
| 650 | XSR120140E54 | 120,000 - 140,000 lbs. | 54 " | 3.500 yd³ | 4 | 9845 lbs | |
| 650 | XSR120140E60 | 120,000 - 140,000 lbs. | 60 " | 4.000 yd³ | 4 | 10460 lbs | |
| 650 | XSR120140E72 | 120,000 - 140,000 lbs. | 72 " | 4.750 yd³ | 5 | 11690 lbs | |
| 750 | XSR140160E60 | 140,000 - 160,000 lbs. | 60 " | 4.300 yd³ | 4 | 11160 lbs | |
| 750 | XSR140160E66 | 140,000 - 160,000 lbs. | 66 " | 4.750 yd³ | 4 | 11775 lbs | |
| 750 | XSR140160E72 | 140,000 - 160,000 lbs. | 72 " | 5.250 yd³ | 5 | 12390 lbs | |
| 750 | XSR140160E84 | 140,000 - 160,000 lbs. | 84 " | 6.500 yd³ | 5 | 13615 lbs | |
| 750 | XSR140160E96 | 140,000 - 160,000 lbs. | 96 " | 8.000 yd³ | 5 | 14250 lbs | |
| XSR200300E60 | 60 " | 6.890 yd³ | 4 | WOR | |||
| XSR200300E72 | 72 " | 7.5000 yd³ | 5 | WOR | |||
| XSR200300E84 | 84 " | 9.650 yd³ | 5 | WOR | |||
| XSR200300E96 | 96 " | 10.95 yd³ | 6 | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
