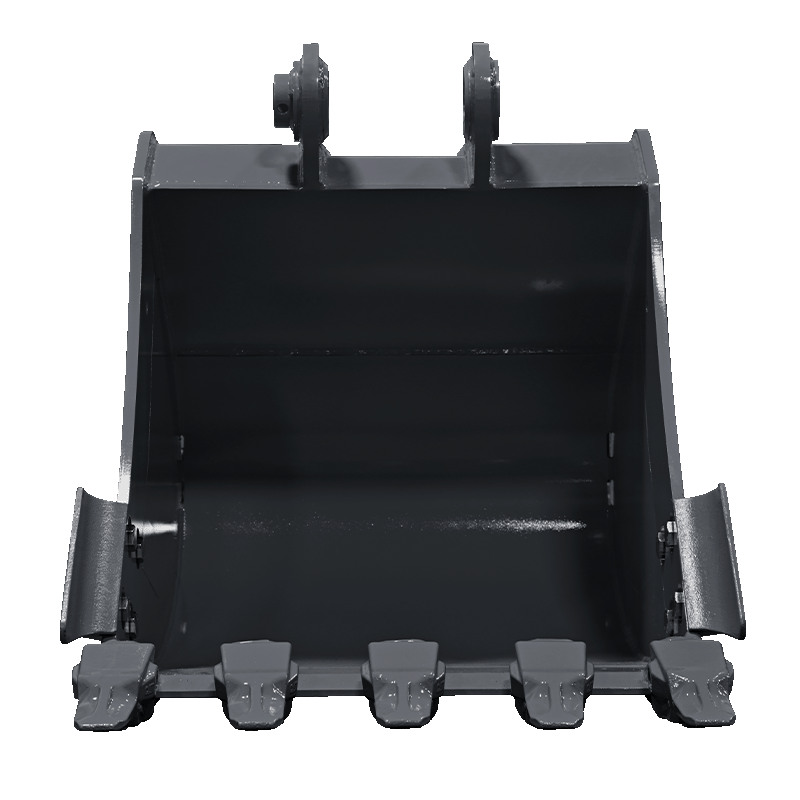

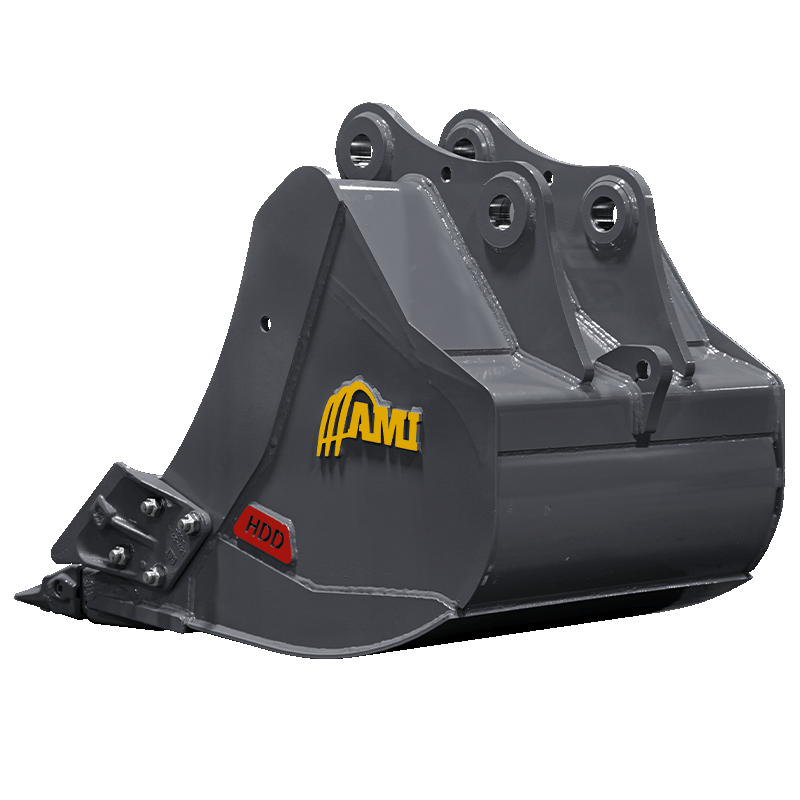

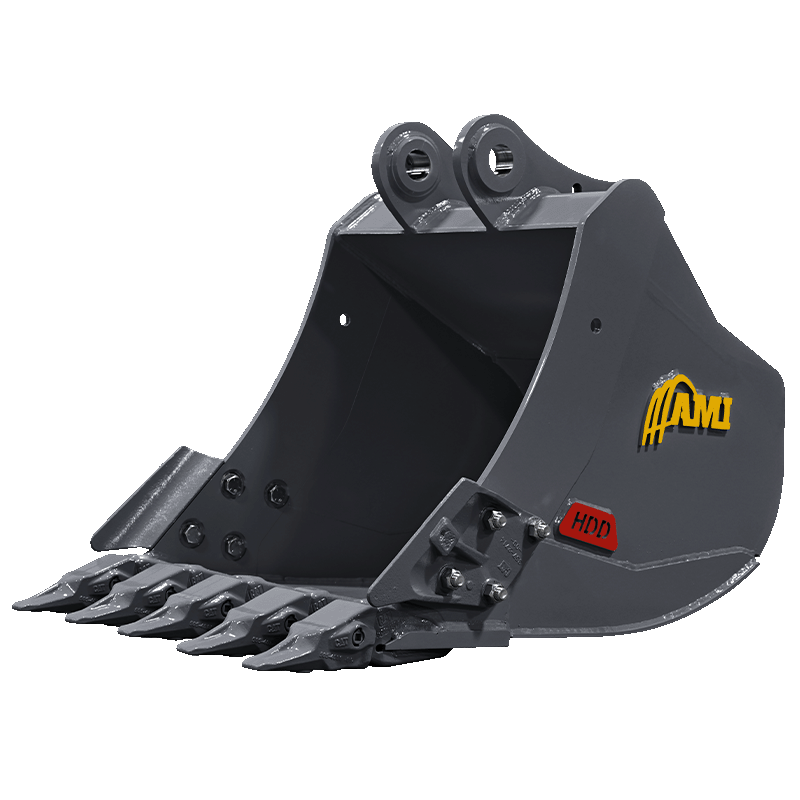

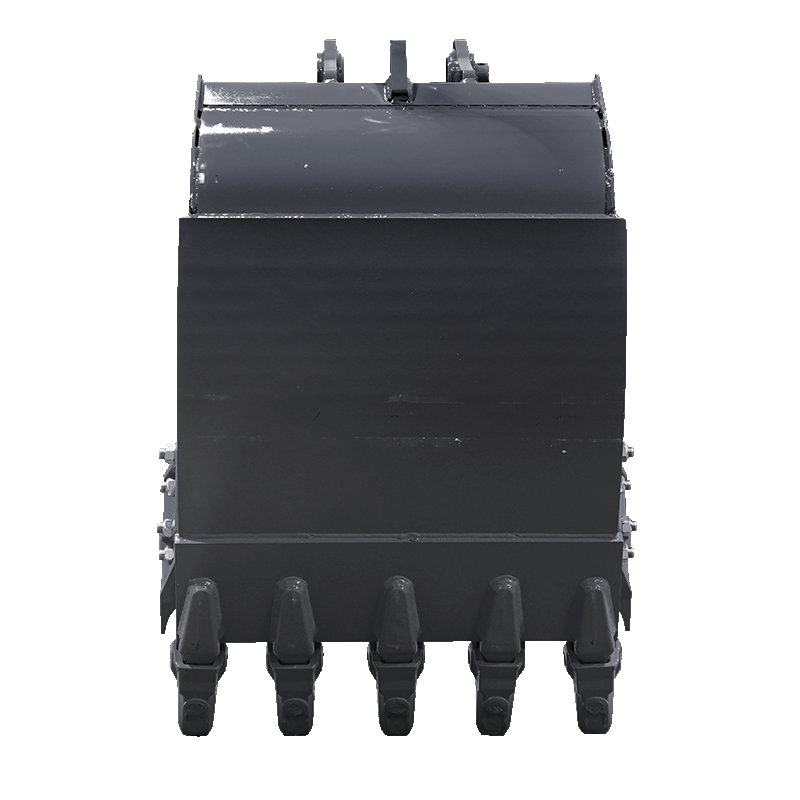

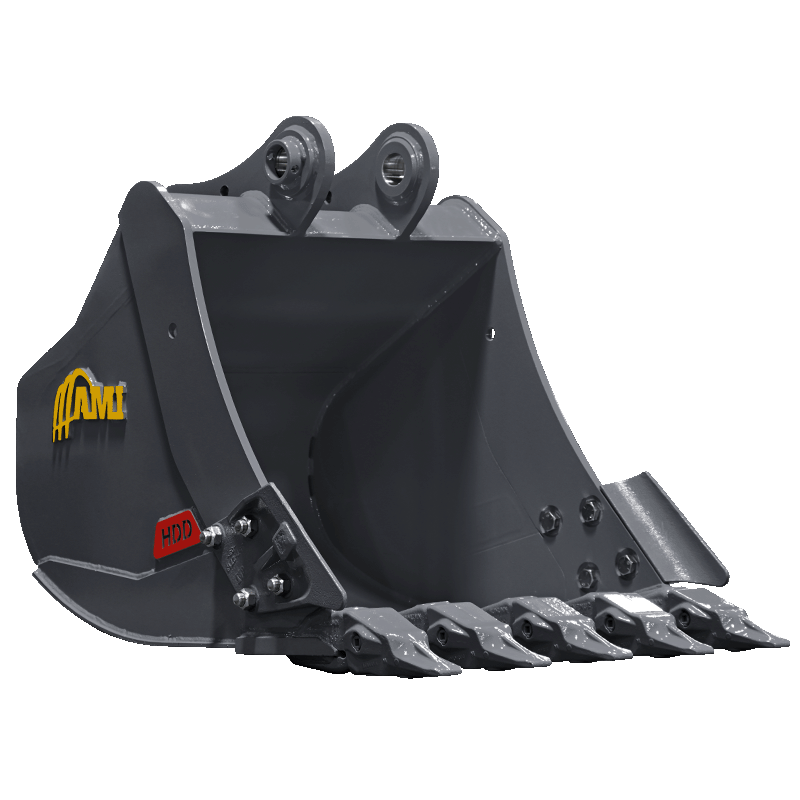

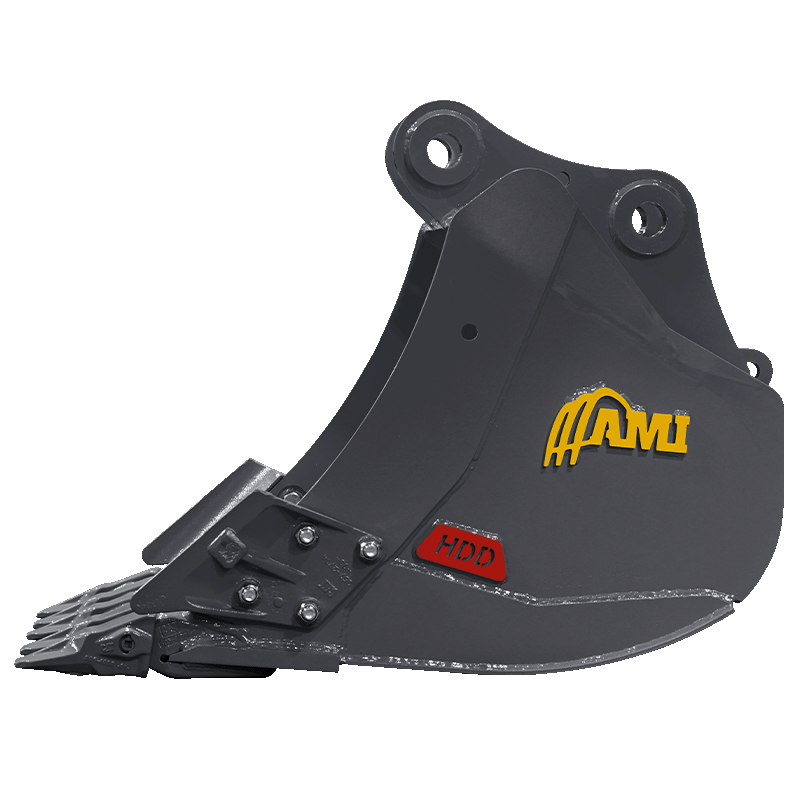

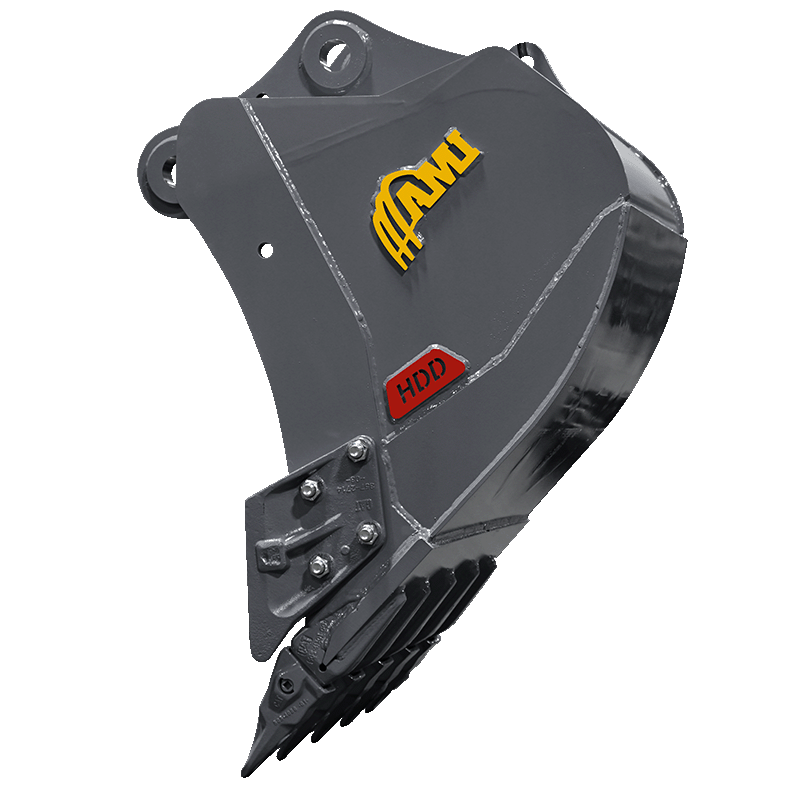

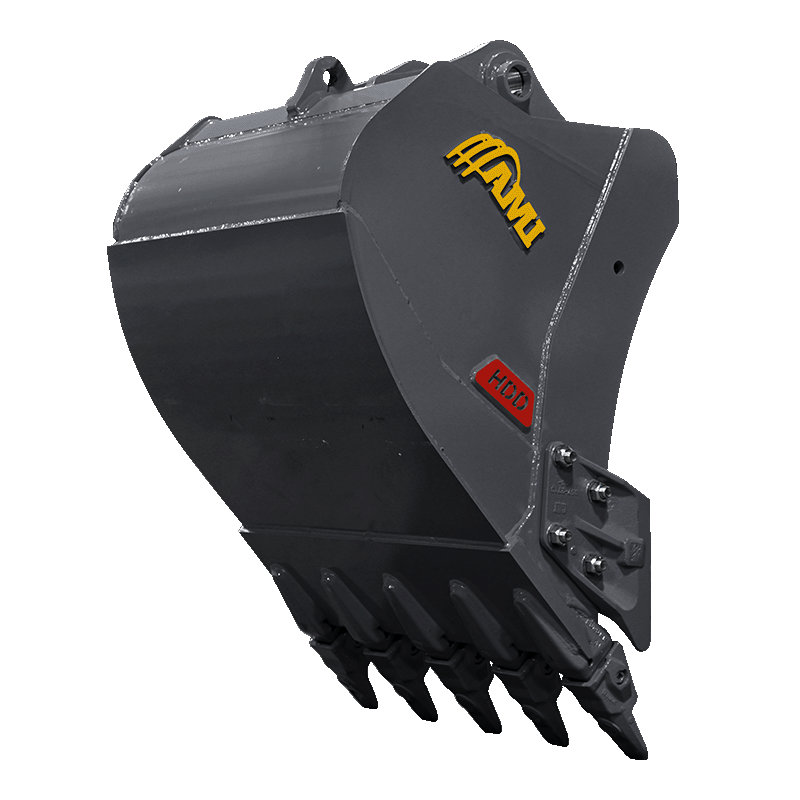

Heavy Duty Digging Bucket
With Hardox 450 wear steel in all wear areas including base edge, side cutter plates, cheek plates and horizontal wear bars, the AMI Heavy Duty Digging Bucket is built for heavy duty excavation. Featuring a standard dual radius profile in floor and heel of bucket for maximum wear and performance. Various ground engaging hardware available.
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 130 | HD2433E18 | 24,000 - 33,000 lbs | 18 " | 0.320 yd³ | 3 | 730 lbs | |
|
130 | HD2433E24 | 24,000 - 33,000 lbs | 24 " | 0.450 yd³ | 4 | 825 lbs |
|
|
130 | HD2433E30 | 24,000 - 33,000 lbs | 30 " | 0.580 yd³ | 4 | 985 lbs |
|
|
130 | HD2433E36 | 24,000 - 33,000 lbs | 36 " | 0.720 yd³ | 5 | 1135 lbs |
|
|
130 | HD2433E42 | 24,000 - 33,000 lbs | 42 " | 0.850 yd³ | 5 | 1250 lbs |
| 130 | HD2433E48 | 24,000 - 33,000 lbs | 48 " | 0.980 yd³ | 6 | 1340 lbs | |
| 150 | HD3340E18 | 33,000 - 45,000 lbs | 18 " | 0.400 yd³ | 3 | 945 lbs | |
| 150 | HD3340E20 | 33,000 - 45,000 lbs | 20 " | 0.420 yd³ | 3 | 980 lbs | |
|
|
150 | HD3340E24 | 33,000 - 45,000 lbs | 24 " | 0.570 yd³ | 4 | 1040 lbs |
| 150 | HD3340E30 | 33,000 - 45,000 lbs | 30 " | 0.740 yd³ | 4 | 1140 lbs | |
|
|
150 | HD3340E36 | 33,000 - 45,000 lbs | 36 " | 0.910 yd³ | 5 | 1235 lbs |
|
|
150 | HD3340E42 | 33,000 - 45,000 lbs | 42 " | 1.080 yd³ | 5 | 1385 lbs |
| 150 | HD3340E48 | 33,000 - 45,000 lbs | 48 " | 1.230 yd³ | 6 | 1485 lbs | |
| 200 | HD4045E20 | 45,000 - 55,000 lbs | 20 " | 0.520 yd³ | 3 | 1310 lbs | |
|
|
200 | HD4045E24 | 45,000 - 55,000 lbs | 24 " | 0.650 yd³ | 3 | 1425 lbs |
|
|
200 | HD4045E30 | 45,000 - 55,000 lbs | 30 " | 0.845 yd³ | 4 | 1570 lbs |
|
|
200 | HD4045E36 | 45,000 - 55,000 lbs | 36 " | 1.030 yd³ | 5 | 1685 lbs |
|
|
200 | HD4045E42 | 45,000 - 55,000 lbs | 42 " | 1.225 yd³ | 5 | 1835 lbs |
|
|
200 | HD4045E48 | 45,000 - 55,000 lbs | 48 " | 1.420 yd³ | 6 | 1950 lbs |
| 200 | HD4045E54 | 45,000 - 55,000 lbs | 54 " | 1.625 yd³ | 6 | 2150 lbs | |
| 250 | HD4560E24 | 55,000 - 65,000 lbs | 24 " | 0.740 yd³ | 3 | 1680 lbs | |
|
|
250 | HD4560E30 | 55,000 - 65,000 lbs | 30 " | 0.965 yd³ | 3 | 1825 lbs |
|
|
250 | HD4560E36 | 55,000 - 65,000 lbs | 36 " | 1.190 yd³ | 4 | 1945 lbs |
|
|
250 | HD4560E42 | 55,000 - 65,000 lbs | 42 " | 1.415 yd³ | 5 | 2210 lbs |
|
|
250 | HD4560E48 | 55,000 - 65,000 lbs | 48 " | 1.645 yd³ | 6 | 2385 lbs |
|
|
250 | HD4560E54 | 55,000 - 65,000 lbs | 54 " | 1.870 yd³ | 6 | 2405 lbs |
| 250 | HD4560E60 | 55,000 - 65,000 lbs | 60 " | 2.000 yd³ | 6 | 2605 lbs | |
| 300 | HD6080E24 | 65,000 - 90,000 lbs | 24 " | 0.910 yd³ | 3 | 2585 lbs | |
| 300 | HD6080E30 | 65,000 - 90,000 lbs | 30 " | 1.200 yd³ | 3 | 2765 lbs | |
|
|
300 | HD6080E36 | 65,000 - 90,000 lbs | 36 " | 1.490 yd³ | 4 | 2990 lbs |
| 300 | HD6080E42 | 65,000 - 90,000 lbs | 42 " | 1.780 yd³ | 4 | 3170 lbs | |
|
|
300 | HD6080E48 | 65,000 - 90,000 lbs | 48 " | 2.070 yd³ | 5 | 3475 lbs |
|
|
300 | HD6080E54 | 65,000 - 90,000 lbs | 54 " | 2.360 yd³ | 5 | 3630 lbs |
| 300 | HD6080E60 | 65,000 - 90,000 lbs | 60 " | 2.650 yd³ | 6 | 3850 lbs | |
| 300 | HD6080E66 | 65,000 - 90,000 lbs | 66 " | 3.000 yd³ | 6 | 4175 lbs | |
| 300 | HD6080E72 | 65,000 - 90,000 lbs | 72 " | 3.250 yd³ | 6 | 4475 lbs | |
| 400 | HD80100E30 | 90,000 - 115,000 lbs | 30 " | 1.390 yd³ | 3 | 2915 lbs | |
| 400 | HD80100E36 | 90,000 - 115,000 lbs | 36 " | 1.725 yd³ | 4 | 3300 lbs | |
| 400 | HD80100E42 | 90,000 - 115,000 lbs | 42 " | 2.065 yd³ | 4 | 3510 lbs | |
| 400 | HD80100E48 | 90,000 - 115,000 lbs | 48 " | 2.400 yd³ | 5 | 3850 lbs | |
| 400 | HD80100E54 | 90,000 - 115,000 lbs | 54 " | 2.740 yd³ | 5 | 4110 lbs | |
|
|
400 | HD80100E60 | 90,000 - 115,000 lbs | 60 " | 3.070 yd³ | 5 | 4320 lbs |
| 400 | HD80100E66 | 90,000 - 115,000 lbs | 66 " | 3.415 yd³ | 6 | 4655 lbs | |
| 400 | HD80100E72 | 90,000 - 115,000 lbs | 72 " | 3.755 yd³ | 7 | 5040 lbs | |
| 400 | HD80100E84 | 90,000 - 115,000 lbs | 84 " | 4.200 yd³ | 8 | WOR | |
| 650 | HD120140E36 | 120,000 - 140,000 lbs. | 36 " | 0 yd³ | 3 | WOR | |
| 650 | HD120140E48 | 120,000 - 140,000 lbs. | 48 " | 0 yd³ | 4 | WOR | |
| 650 | HD120140E54 | 120,000 - 140,000 lbs. | 54 " | 3.500 yd³ | 4 | 6405 lbs | |
| 650 | HD120140E60 | 120,000 - 140,000 lbs. | 60 " | 4.000 yd³ | 4 | 6990 lbs | |
| 650 | HD120140E72 | 120,000 - 140,000 lbs. | 72 " | 4.750 yd³ | 5 | 7985 lbs | |
| 650 | HD120140E84 | 120,000 - 140,000 lbs. | 84 " | 5.630 yd³ | 5 | WOR | |
| 650 | HD120140E90 | 120,000 - 140,000 lbs. | 90 " | 5.750 yd³ | 6 | WOR | |
| 750 | HD140160E48 | 140,000 - 160,000 lbs. | 48 " | 3.100 yd³ | 3 | WOR | |
| 750 | HD140160E54 | 140,000 - 160,000 lbs. | 54 " | 3.660 yd³ | 4 | WOR | |
| 750 | HD140160E60 | 140,000 - 160,000 lbs. | 60 " | 4.170 yd³ | 4 | 8330 lbs | |
| 750 | HD140160E66 | 140,000 - 160,000 lbs. | 66 " | 4.750 yd³ | 4 | 8785 lbs | |
| 750 | HD140160E72 | 140,000 - 160,000 lbs. | 72 " | 5.250 yd³ | 5 | WOR | |
| 750 | HD140160E78 | 140,000 - 160,000 lbs. | 78 " | 5.750 yd³ | 5 | 9190 lbs | |
| 750 | HD140160E84 | 140,000 - 160,000 lbs. | 84 " | 6.250 yd³ | 5 | 10050 lbs | |
| 750 | HD140160E96 | 140,000 - 160,000 lbs. | 96 " | 7.425 yd³ | 6 | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
| FastTrack | Category | Model | Machine Class | Width | Capacity (Cu. Ft.) | Teeth |
|---|---|---|---|---|---|---|
|
|
50 | LBHD1214E16 | Class 50 | 16'' | 4.500 | 4 |
|
|
50 | LBHD1214E12 | Class 50 | 12'' | 3.000 | 3 |
|
|
50 | LBHD1214E18 | Class 50 | 18'' | 5.125 | 4 |
|
|
50 | LBHD1214E20 | Class 50 | 20'' | 6.000 | 4 |
|
|
50 | LBHD1214E24 | Class 50 | 24'' | 7.500 | 5 |
|
|
50 | LBHD1214E30 | Class 50 | 30'' | 10.000 | 5 |
|
|
50 | LBHD1214E36 | Class 50 | 36'' | 12.500 | 6 |
|
|
70 | LBHD1416E12 | Class 70 | 12'' | 3 | 3.375 |
|
|
70 | LBHD1416E16 | Class 70 | 16'' | 4 | 6.750 |
|
|
70 | LBHD1416E18 | Class 70 | 18'' | 4 | 6.750 |
|
|
70 | LBHD1416E20 | Class 70 | 20'' | 4 | 6.750 |
|
|
70 | LBHD1416E24 | Class 70 | 24'' | 5 | 10.125 |
|
|
70 | LBHD1416E30 | Class 70 | 30'' | 5 | 10.125 |
|
|
70 | LBHD1416E36 | Class 70 | 36'' | 5 | 13.500 |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
