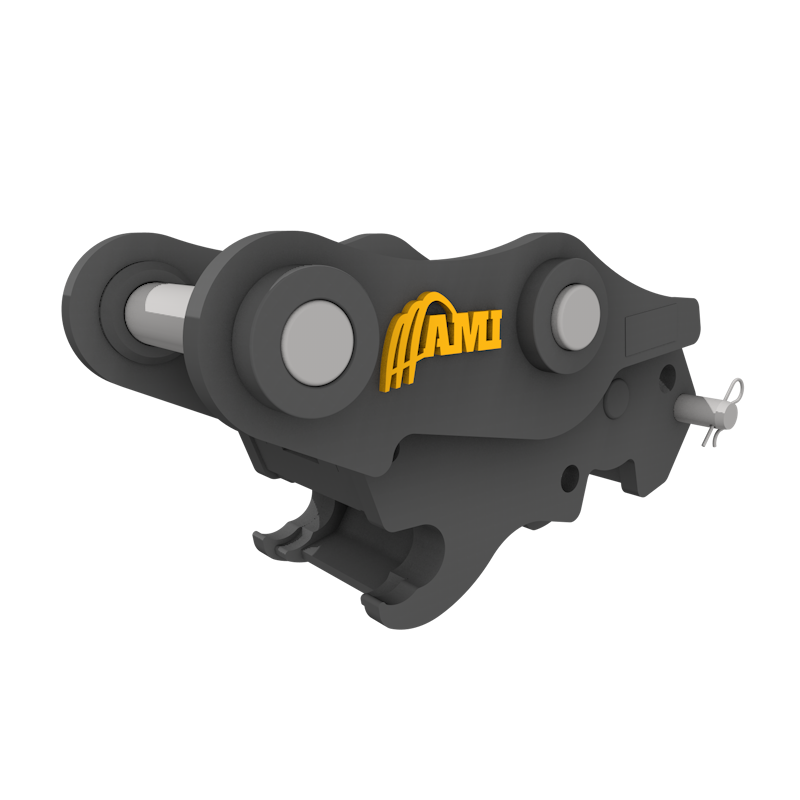

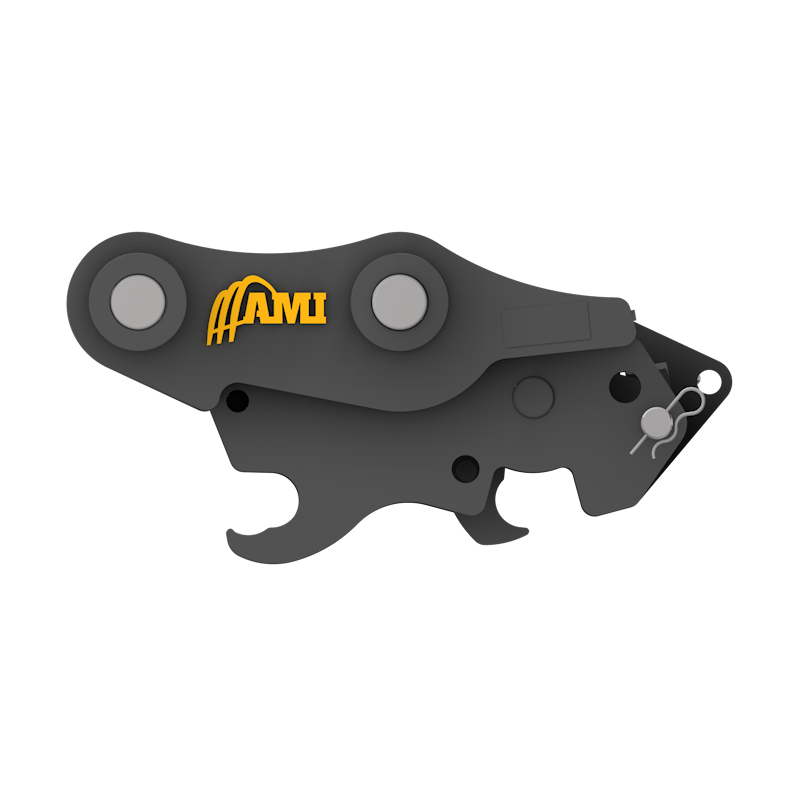

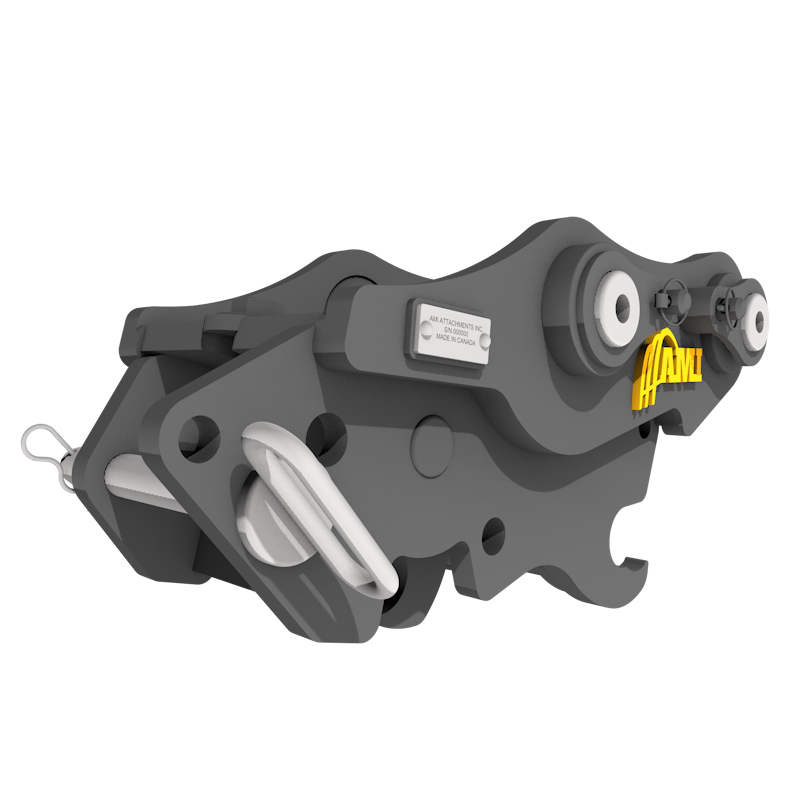

Hydraulic Pin Grab Coupler
Connecting ease-of-use with jobsite safety is the AMI Hydraulic Pin Grab Coupler for Compact Excavators with five integrated safety features. From inside the cab, the operator can switch attachments quickly, easily and most importantly know it's locked on tightly. Protecting the operator from unexpectedly bumping the wrong switch in the cab is the upgraded two-stage control. The in-cab control features two buttons: the first requires the operator to press and hold for two seconds and then press the second button at the same time to reverse the hydraulic flow in order to release the attachment.
Specifications - Compact Excavator
| FastTrack | Category | Model | Machine Class | Description | Weight |
|---|---|---|---|---|---|
| 35 | QT0610PGH | 6,000 - 10,000 lbs. | Hydraulic Pin Grab Coupler | 70 lbs | |
| 50 | QT1012PGH | 10,000 - 12,000 lbs | Hydraulic Pin Grab Coupler | 135 lbs | |
| 60 | QT1214PGH | 12,000 - 14,000 lbs | Hydraulic Pin Grab Coupler | 200 lbs | |
| 75 | QT1416PGH | 14,000 - 24,000 lbs | Hydraulic Pin Grab Coupler | 270 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
