Inside Extendible Dipper Stick Hydraulic Thumb

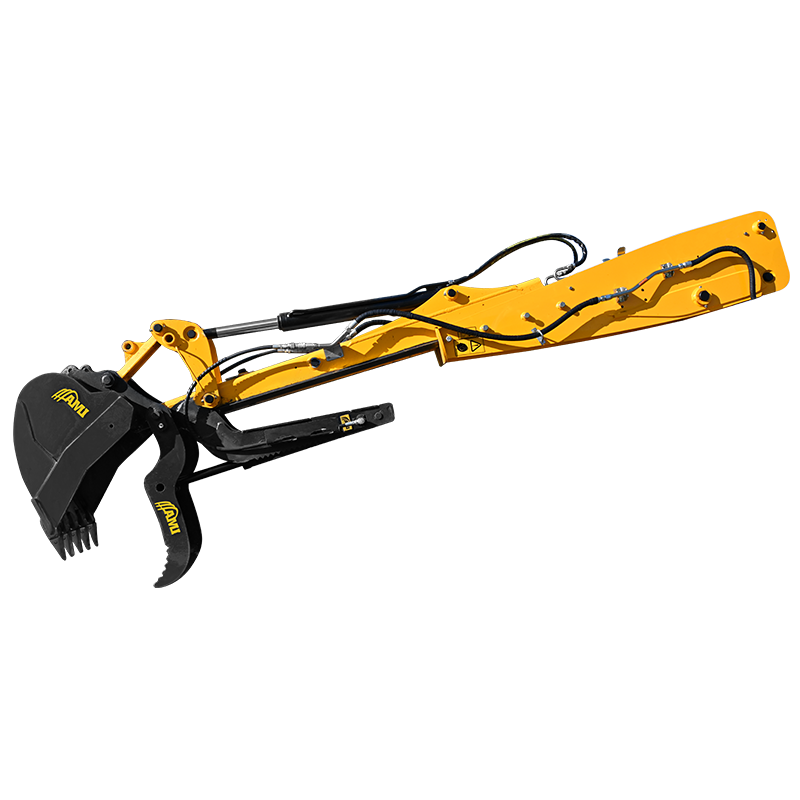

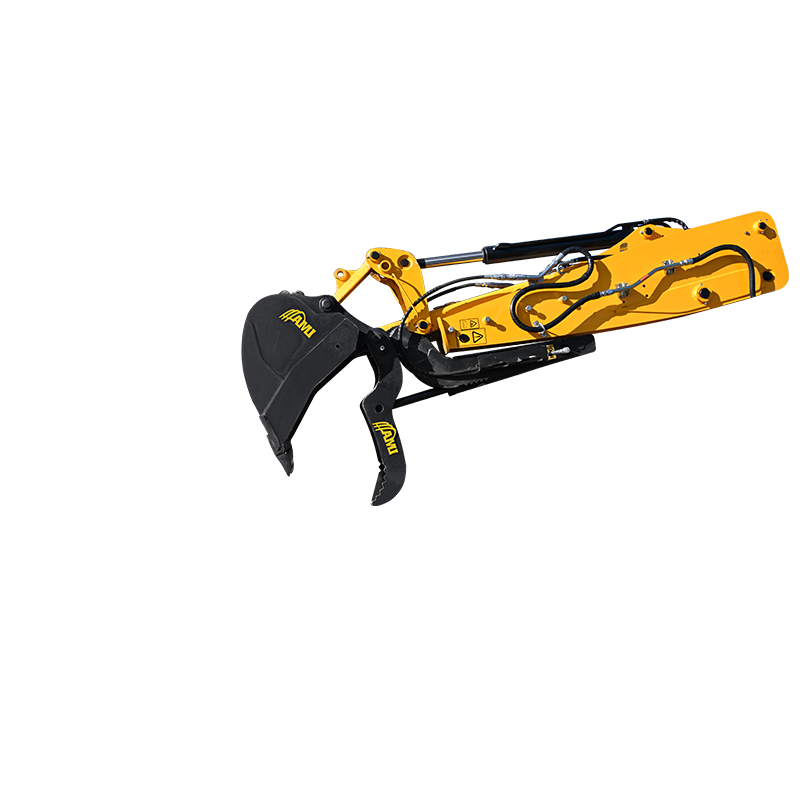

Exclusively from AMI, this extendible dipper stick thumb is specially designed for backhoes that have an inside extendible stick, giving you the power and versatility of a stick-pivot thumb without compromising added reach. AMI’s extendible stick thumb is welded to the end of the sliding arm. The hydraulic cylinder is then braced against a bracket that counteracts pushing force and allows the thumb to grab hold of the load through the entire range of extension. The thumb slides along the outside of the stick and is designed to rotate on the same axis as the bucket pin, ensuring a solid grip throughout bucket rotation. When retracted, it tucks neatly out of the way under the dipper stick, keeping a clear line of sight for the operator.

Specifications - Loader Backhoe

FastTrack Category Model Machine Class Tines Weight Width
FastTrack Icon 30 LBTH0610HEH2T11 Class 30 2 250 lbs 11 "
FastTrack Icon 30 LBTH0610HEH2T12.875 Class 30 2 250 lbs 12.875 "
FastTrack Icon 30 LBTH0610HEH2T13.75 Class 30 2 250 lbs 13.75 "
FastTrack Icon 30 LBTH0610HEH2T18 Class 30 2 250 lbs 18 "
FastTrack Icon 30 LBTH0610HEH2T9.5 Class 30 2 WOR 9.5 "
FastTrack Icon 50 LBTH1214HEH2T12 Class 50 2 380 lbs 12 "
FastTrack Icon 50 LBTH1214HEH2T16 Class 50 2 380 lbs 16 "
FastTrack Icon 50 LBTH1214HEH2T17.5 Class 50 2 380 lbs 17.5 "
FastTrack Icon 50 LBTH1214HEH2T22 Class 50 2 380 lbs 22 "
FastTrack Icon 50 LBTH1214HEHCRB9 Class 50 2 380 lbs 9 "

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
