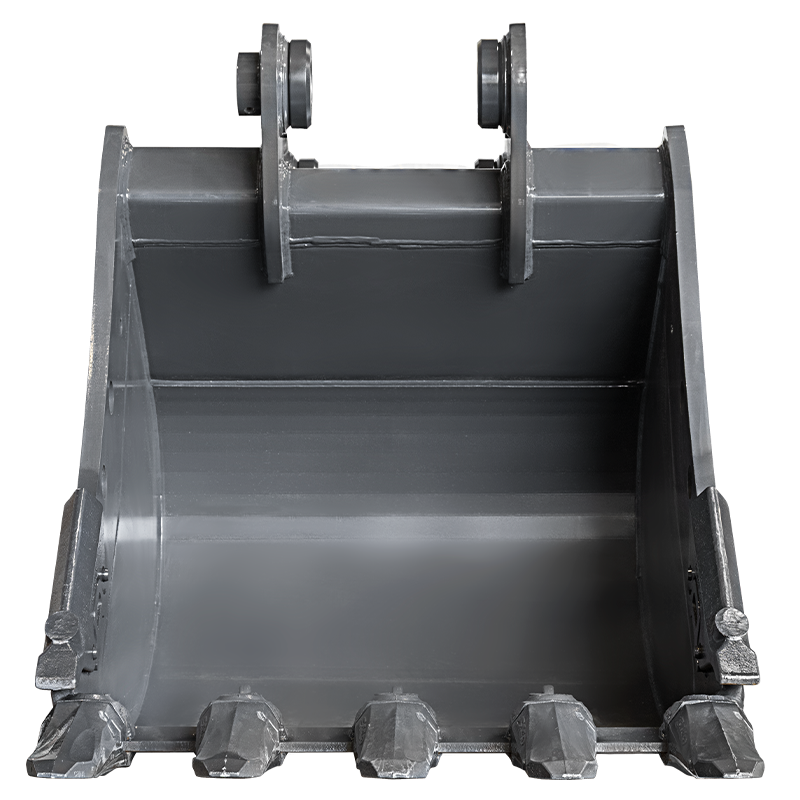

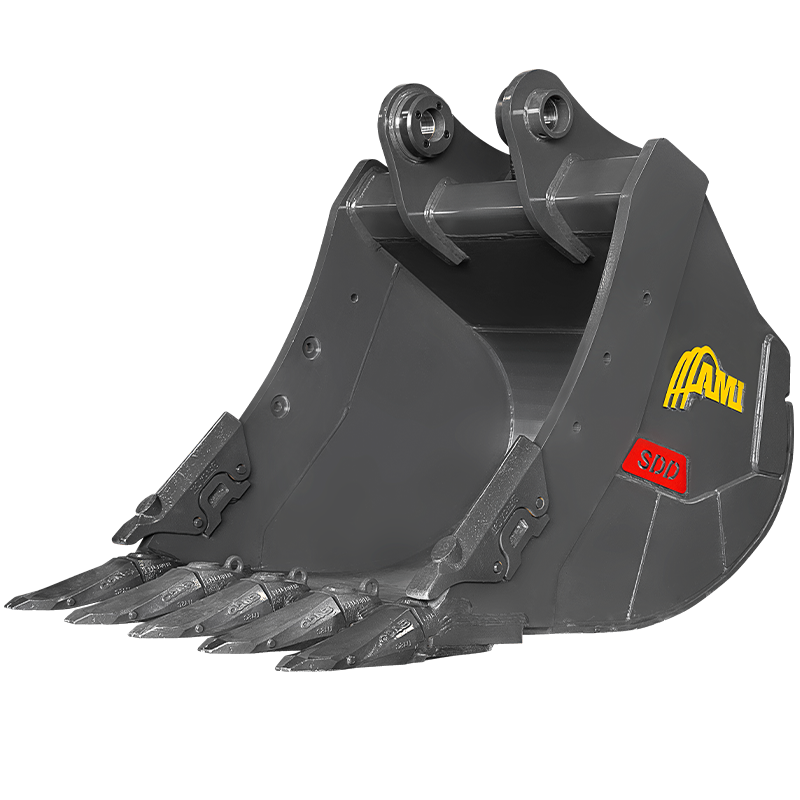

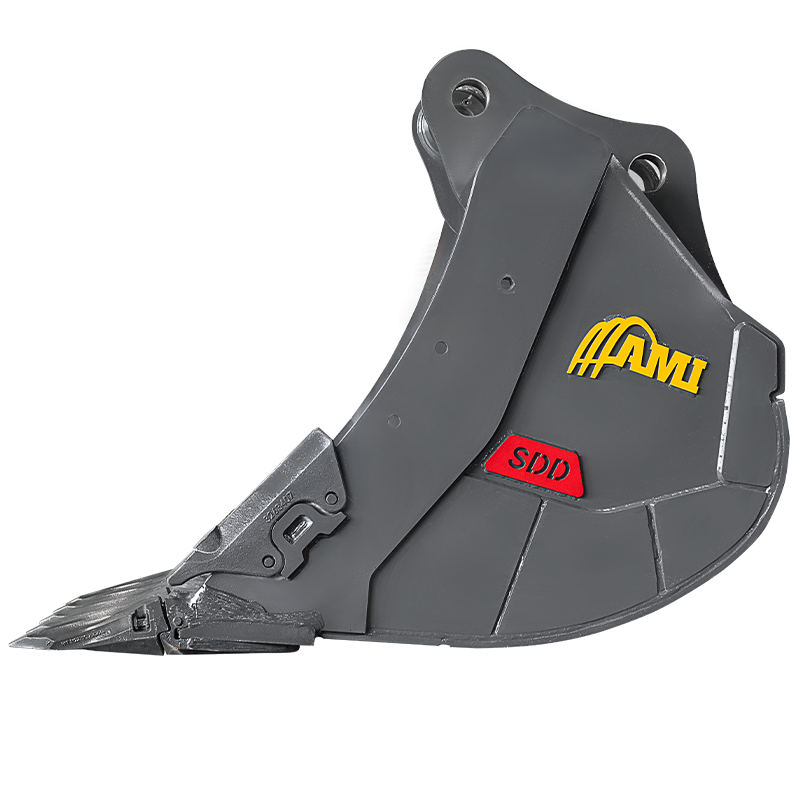

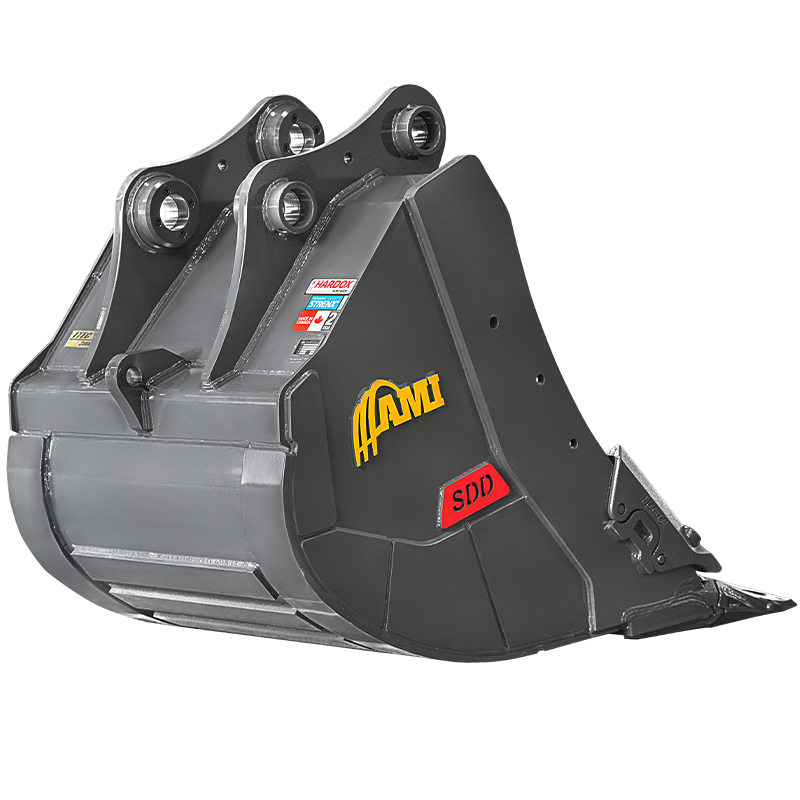

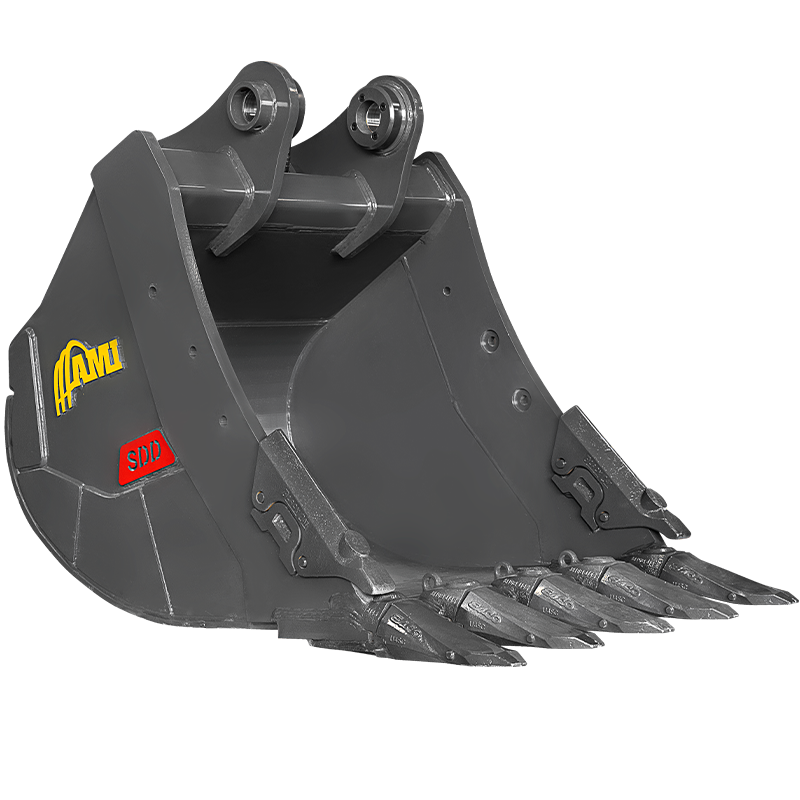

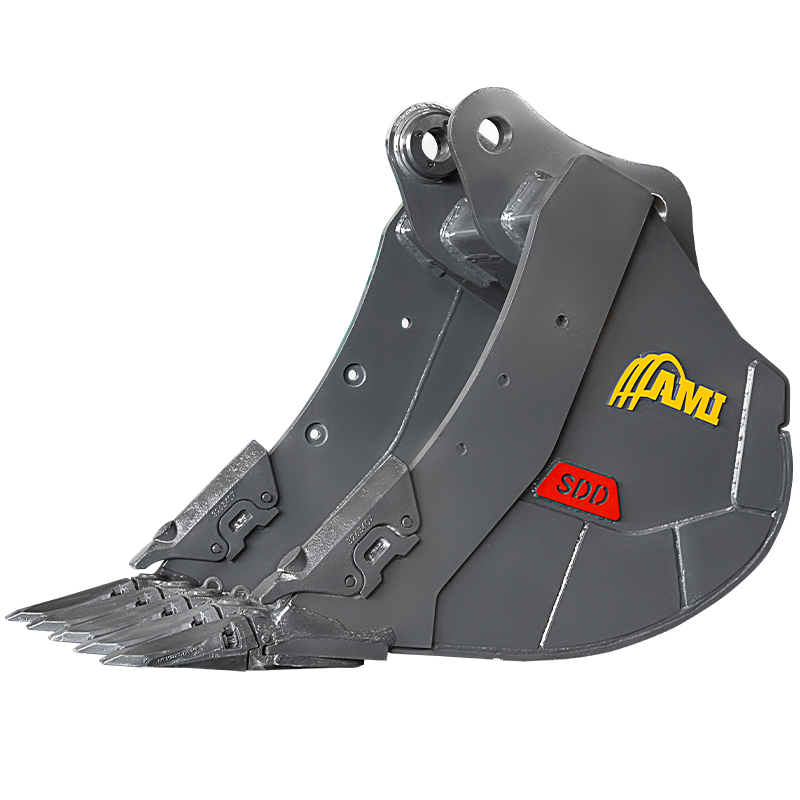

Severe Duty Digging Bucket
With Hardox 450 wear steel in all wear areas including base edge, side cutter plates, larger cheek plates, horizontal wear bars this bucket is built for severe duty, higher abrasion conditions. Featuring a standard dual radius profile in floor and heel of bucket for maximum wear and performance. Various ground engaging hardware available.
SPECIFICATIONS - EXCAVATOR
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 130 | SD2433E18 | 24,000 - 33,000 lbs | 18 " | 0.320 yd³ | 3 | 910 lbs | |
| 130 | SD2433E24 | 24,000 - 33,000 lbs | 24 " | 0.450 yd³ | 4 | 1020 lbs | |
| 130 | SD2433E30 | 24,000 - 33,000 lbs | 30 " | 0.580 yd³ | 4 | 1100 lbs | |
| 130 | SD2433E36 | 24,000 - 33,000 lbs | 36 " | 0.720 yd³ | 5 | 1165 lbs | |
| 130 | SD2433E42 | 24,000 - 33,000 lbs | 42 " | 0.850 yd³ | 5 | 1355 lbs | |
| 130 | SD2433E48 | 24,000 - 33,000 lbs | 48 " | 0.980 yd³ | 6 | 1455 lbs | |
| 150 | SD3340E18 | 33,000 - 45,000 lbs | 18 " | 0.400 yd³ | 3 | 1140 lbs | |
| 150 | SD3340E20 | 33,000 - 45,000 lbs | 20 " | 0.420 yd³ | 3 | 1175 lbs | |
| 150 | SD3340E24 | 33,000 - 45,000 lbs | 24 " | 0.570 yd³ | 4 | 1265 lbs | |
| 150 | SD3340E30 | 33,000 - 45,000 lbs | 30 " | 0.740 yd³ | 4 | 1365 lbs | |
| 150 | SD3340E36 | 33,000 - 45,000 lbs | 36 " | 0.910 yd³ | 5 | 1490 lbs | |
| 150 | SD3340E42 | 33,000 - 45,000 lbs | 42 " | 1.080 yd³ | 5 | 1585 lbs | |
| 150 | SD3340E48 | 33,000 - 45,000 lbs | 48 " | 1.230 yd³ | 6 | 1745 lbs | |
| 200 | SD4045E20 | 45,000 - 55,000 lbs | 20 " | 0.520 yd³ | 3 | 1365 lbs | |
| 200 | SD4045E24 | 45,000 - 55,000 lbs | 24 " | 0.650 yd³ | 3 | 1720 lbs | |
| 200 | SD4045E30 | 45,000 - 55,000 lbs | 30 " | 0.845 yd³ | 4 | 1845 lbs | |
|
200 | SD4045E36 | 45,000 - 55,000 lbs | 36 " | 1.030 yd³ | 5 | 2005 lbs |
|
|
200 | SD4045E42 | 45,000 - 55,000 lbs | 42 " | 1.230 yd³ | 5 | 2215 lbs |
|
|
200 | SD4045E48 | 45,000 - 55,000 lbs | 48 " | 1.420 yd³ | 6 | 2375 lbs |
| 250 | SD4560E24 | 55,000 - 65,000 lbs | 24 " | 0.740 yd³ | 3 | 2065 lbs | |
| 250 | SD4560E30 | 55,000 - 65,000 lbs | 30 " | 0.965 yd³ | 4 | 2200 lbs | |
| 250 | SD4560E36 | 55,000 - 65,000 lbs | 36 " | 1.190 yd³ | 4 | 2455 lbs | |
|
|
250 | SD4560E42 | 55,000 - 65,000 lbs | 42 " | 1.415 yd³ | 5 | 2540 lbs |
|
|
250 | SD4560E48 | 55,000 - 65,000 lbs | 48 " | 1.645 yd³ | 5 | 2670 lbs |
|
|
250 | SD4560E54 | 55,000 - 65,000 lbs | 54 " | 1.870 yd³ | 5 | 2870 lbs |
| 300 | SD6080E24 | 65,000 - 90,000 lbs | 24 " | 0.910 yd³ | 3 | 2690 lbs | |
| 300 | SD6080E30 | 65,000 - 90,000 lbs | 30 " | 1.200 yd³ | 3 | 2875 lbs | |
| 300 | SD6080E36 | 65,000 - 90,000 lbs | 36 " | 1.490 yd³ | 4 | 3095 lbs | |
| 300 | SD6080E42 | 65,000 - 90,000 lbs | 42 " | 1.780 yd³ | 4 | 3275 lbs | |
|
|
300 | SD6080E48 | 65,000 - 90,000 lbs | 48 " | 2.070 yd³ | 5 | 3580 lbs |
|
|
300 | SD6080E54 | 65,000 - 90,000 lbs | 54 " | 2.360 yd³ | 5 | 3775 lbs |
|
|
300 | SD6080E60 | 65,000 - 90,000 lbs | 60 " | 2.650 yd³ | 6 | 4035 lbs |
| 400 | SD80100E30 | 90,000 - 115,000 lbs | 30 " | 1.390 yd³ | 3 | 3510 lbs | |
| 400 | SD80100E36 | 90,000 - 115,000 lbs | 36 " | 1.725 yd³ | 4 | 3710 lbs | |
| 400 | SD80100E42 | 90,000 - 115,000 lbs | 42 " | 2.065 yd³ | 4 | 3870 lbs | |
| 400 | SD80100E48 | 90,000 - 115,000 lbs | 48 " | 2.400 yd³ | 5 | 4865 lbs | |
| 400 | SD80100E54 | 90,000 - 115,000 lbs | 54 " | 2.740 yd³ | 5 | 4780 lbs | |
| 400 | SD80100E60 | 90,000 - 115,000 lbs | 60 " | 3.070 yd³ | 6 | 5135 lbs | |
| 650 | SD120140E48 | 120,000 - 140,000 lbs. | 48 " | 0 yd³ | 4 | WOR | |
| 650 | SD120140E54 | 120,000 - 140,000 lbs. | 54 " | 3.500 yd³ | 4 | WOR | |
| 650 | SD120140E60 | 120,000 - 140,000 lbs. | 60 " | 4.000 yd³ | 4 | WOR | |
| 650 | SD120140E72 | 120,000 - 140,000 lbs. | 72 " | 4.750 yd³ | 5 | WOR | |
| 750 | SD140160E60 | 140,000 - 160,000 lbs. | 60 " | 4.000 yd³ | 4 | 8885 lbs | |
| 750 | SD140160E66 | 140,000 - 160,000 lbs. | 66 " | 4.750 yd³ | 4 | 9400 lbs | |
| 750 | SD140160E72 | 140,000 - 160,000 lbs. | 72 " | 5.250 yd³ | 5 | 9805 lbs | |
| 750 | SD140160E84 | 140,000 - 160,000 lbs. | 84 " | 6.250 yd³ | 5 | 10725 lbs | |
| 750 | SD140160E96 | 140,000 - 160,000 lbs. | 96 " | 8.000 yd³ | 5 | 11725 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
