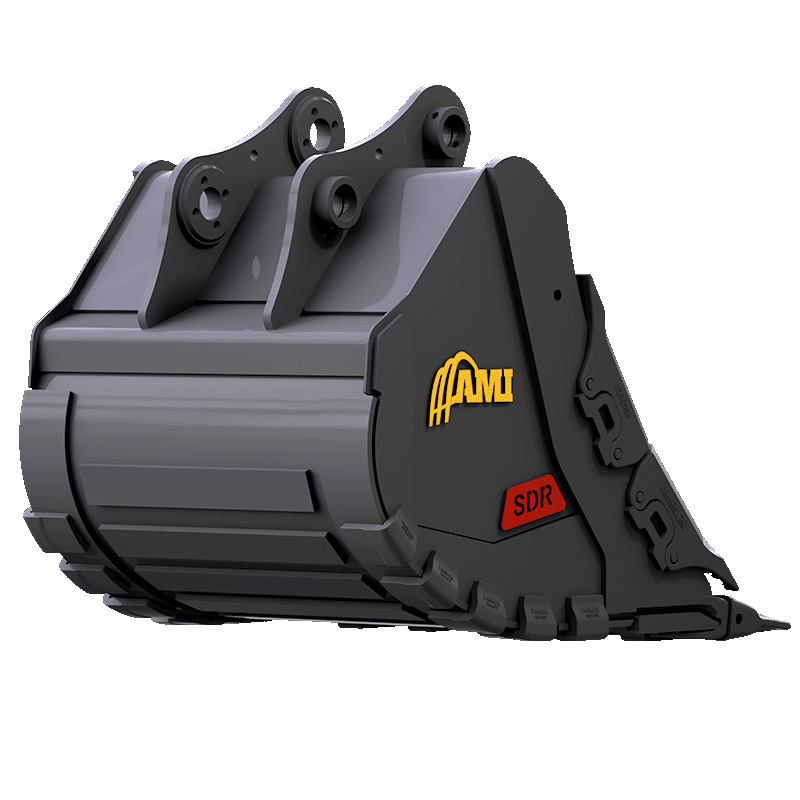

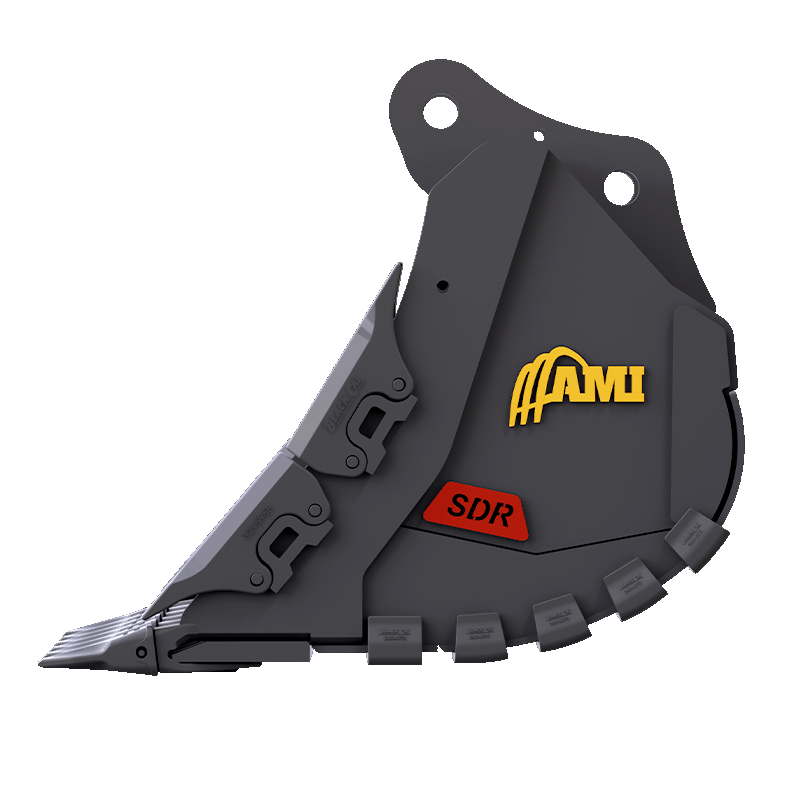

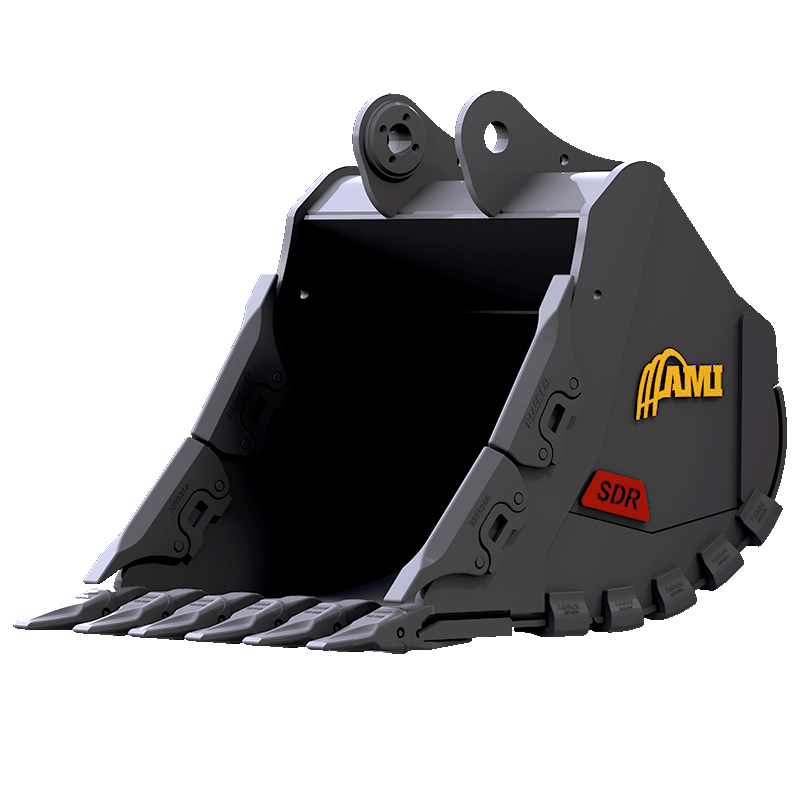

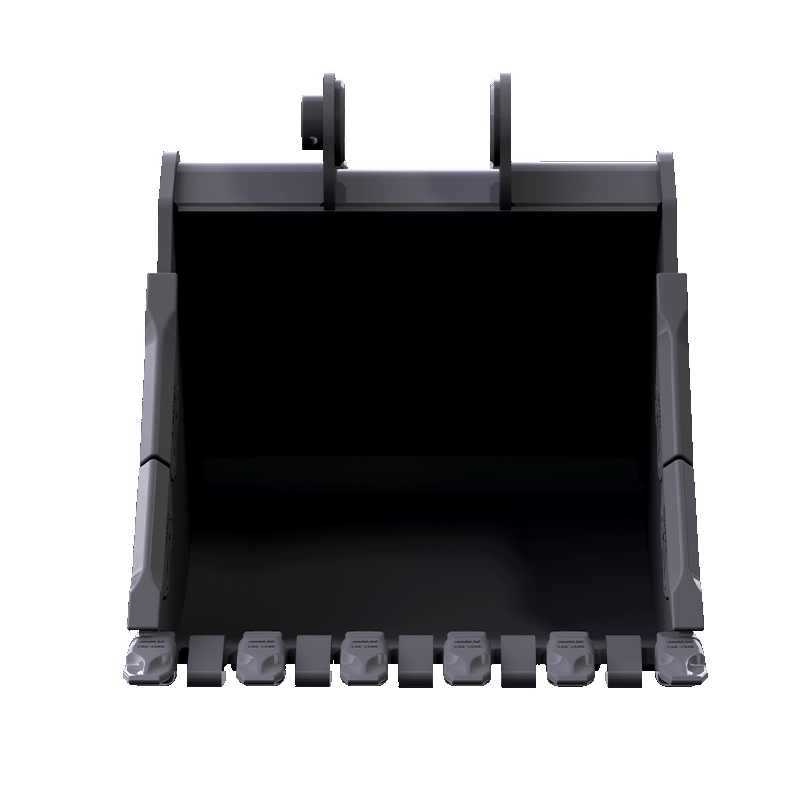

Take on harsh digging conditions with the AMI Severe Duty Rock Bucket. Built with Hardox Wear Plate and Strenx Performance Steel, the Severe Duty Rock Bucket is ideal for high silica sand and shot granite. This bucket features tapered end walls, dual radius, weld-on heel shrouds, and replaceable teeth. Pin-on side shrouds come standard and various ground engaging hardware is available.
FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
---|---|---|---|---|---|---|---|
130 | SDR2433E18 | 24,000 - 33,000 lbs | 18 " | 0.320 yd³ | 3 | 1180 lbs | |
130 | SDR2433E24 | 24,000 - 33,000 lbs | 24 " | 0.450 yd³ | 4 | 1290 lbs | |
130 | SDR2433E30 | 24,000 - 33,000 lbs | 30 " | 0.580 yd³ | 4 | 1370 lbs | |
130 | SDR2433E36 | 24,000 - 33,000 lbs | 36 " | 0.720 yd³ | 5 | 1480 lbs | |
130 | SDR2433E42 | 24,000 - 33,000 lbs | 42 " | 0.850 yd³ | 5 | 1560 lbs | |
130 | SDR2433E48 | 24,000 - 33,000 lbs | 48 " | 0.980 yd³ | 6 | 1670 lbs | |
150 | SDR3340E18 | 33,000 - 45,000 lbs | 18 " | 0.400 yd³ | 3 | 1295 lbs | |
150 | SDR3340E20 | 33,000 - 45,000 lbs | 20 " | 0.420 yd³ | 3 | 1330 lbs | |
150 | SDR3340E24 | 33,000 - 45,000 lbs | 24 " | 0.570 yd³ | 4 | 1420 lbs | |
150 | SDR3340E30 | 33,000 - 45,000 lbs | 30 " | 0.740 yd³ | 4 | 1520 lbs | |
150 | SDR3340E36 | 33,000 - 45,000 lbs | 36 " | 0.910 yd³ | 5 | 1645 lbs | |
150 | SDR3340E42 | 33,000 - 45,000 lbs | 42 " | 1.080 yd³ | 5 | 1740 lbs | |
150 | SDR3340E48 | 33,000 - 45,000 lbs | 48 " | 1.230 yd³ | 6 | 1900 lbs | |
200 | SDR4045E20 | 45,000 - 55,000 lbs | 20 " | 0.520 yd³ | 3 | 1800 lbs | |
200 | SDR4045E24 | 45,000 - 55,000 lbs | 24 " | 0.650 yd³ | 3 | 1890 lbs | |
200 | SDR4045E30 | 45,000 - 55,000 lbs | 30 " | 0.845 yd³ | 4 | 2090 lbs | |
200 | SDR4045E36 | 45,000 - 55,000 lbs | 36 " | 1.030 yd³ | 5 | 2265 lbs | |
200 | SDR4045E42 | 45,000 - 55,000 lbs | 42 " | 1.230 yd³ | 5 | 2500 lbs | |
200 | SDR4045E48 | 45,000 - 55,000 lbs | 48 " | 1.420 yd³ | 6 | 2590 lbs | |
250 | SDR4560E24 | 55,000 - 65,000 lbs | 24 " | 0.740 yd³ | 3 | 2240 lbs | |
250 | SDR4560E30 | 55,000 - 65,000 lbs | 30 " | 0.965 yd³ | 4 | 2455 lbs | |
250 | SDR4560E36 | 55,000 - 65,000 lbs | 36 " | 1.190 yd³ | 4 | 2680 lbs | |
250 | SDR4560E42 | 55,000 - 65,000 lbs | 42 " | 1.415 yd³ | 5 | 2945 lbs | |
250 | SDR4560E48 | 55,000 - 65,000 lbs | 48 " | 1.645 yd³ | 5 | 3005 lbs | |
250 | SDR4560E54 | 55,000 - 65,000 lbs | 54 " | 1.870 yd³ | 6 | 3150 lbs | |
300 | SDR6080E24 | 65,000 - 90,000 lbs | 24 " | 0.910 yd³ | 3 | 3215 lbs | |
300 | SDR6080E30 | 65,000 - 90,000 lbs | 30 " | 1.200 yd³ | 3 | 3415 lbs | |
300 | SDR6080E36 | 65,000 - 90,000 lbs | 36 " | 1.490 yd³ | 4 | 3685 lbs | |
300 | SDR6080E42 | 65,000 - 90,000 lbs | 42 " | 1.780 yd³ | 4 | 3885 lbs | |
300 | SDR6080E48 | 65,000 - 90,000 lbs | 48 " | 2.070 yd³ | 5 | 4155 lbs | |
300 | SDR6080E54 | 65,000 - 90,000 lbs | 54 " | 2.360 yd³ | 5 | 4345 lbs | |
400 | SDR80100E30 | 90,000 - 115,000 lbs | 30 " | 1.650 yd³ | 3 | 3975 lbs | |
400 | SDR80100E36 | 90,000 - 115,000 lbs | 36 " | 1.725 yd³ | 4 | 4295 lbs | |
400 | SDR80100E42 | 90,000 - 115,000 lbs | 42 " | 2.065 yd³ | 4 | 4545 lbs | |
400 | SDR80100E48 | 90,000 - 115,000 lbs | 48 " | 2.400 yd³ | 5 | 4865 lbs | |
400 | SDR80100E54 | 90,000 - 115,000 lbs | 54 " | 2.740 yd³ | 5 | 5125 lbs | |
400 | SDR80100E60 | 90,000 - 115,000 lbs | 60 " | 3.070 yd³ | 6 | 5445 lbs | |
400 | SDR80100E72 | 90,000 - 115,000 lbs | 72 " | 3.740 yd³ | 6 | WOR |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
