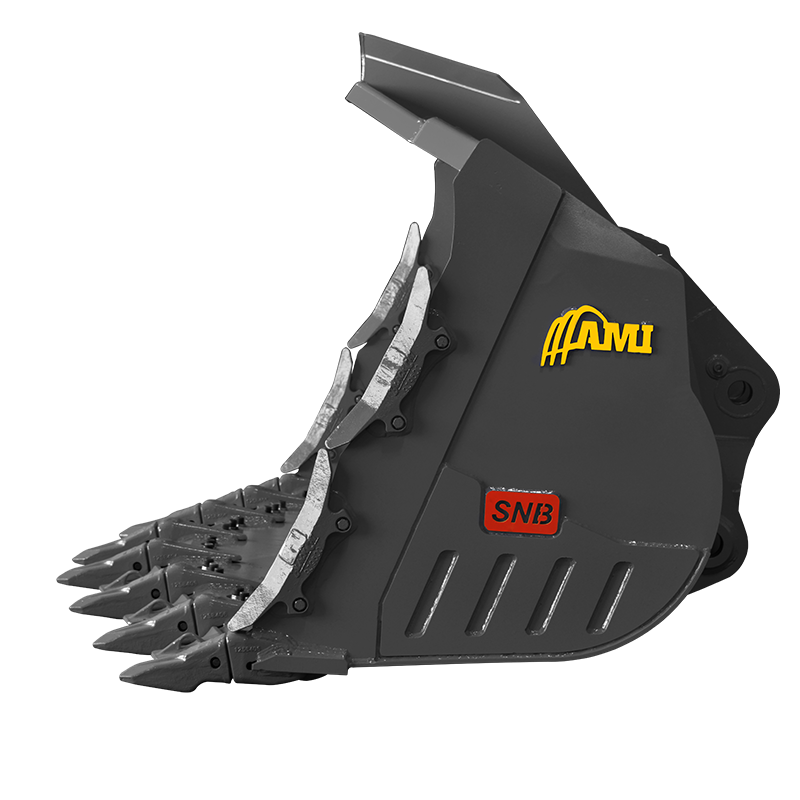

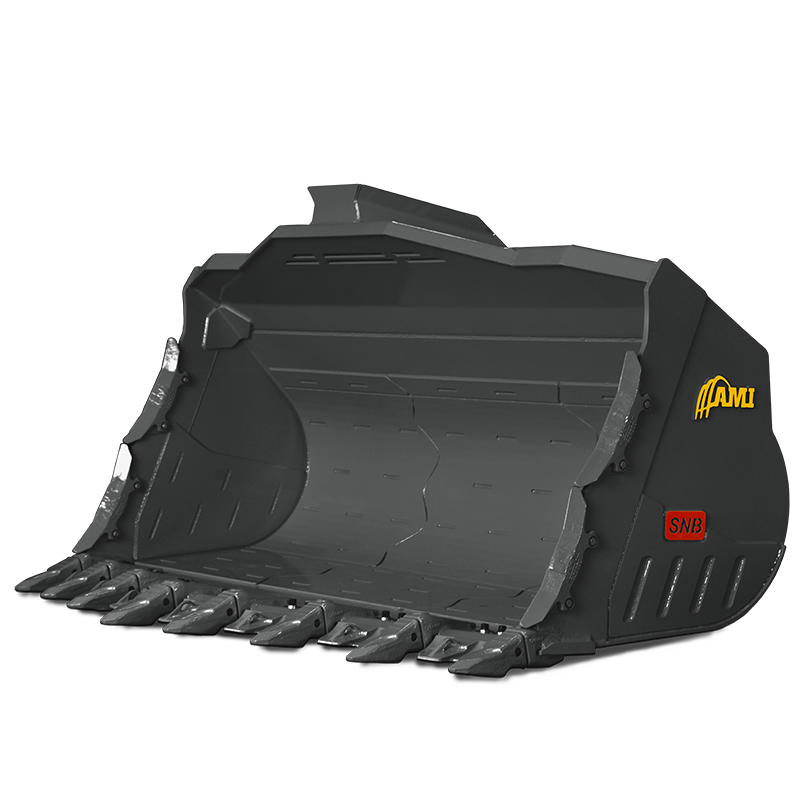

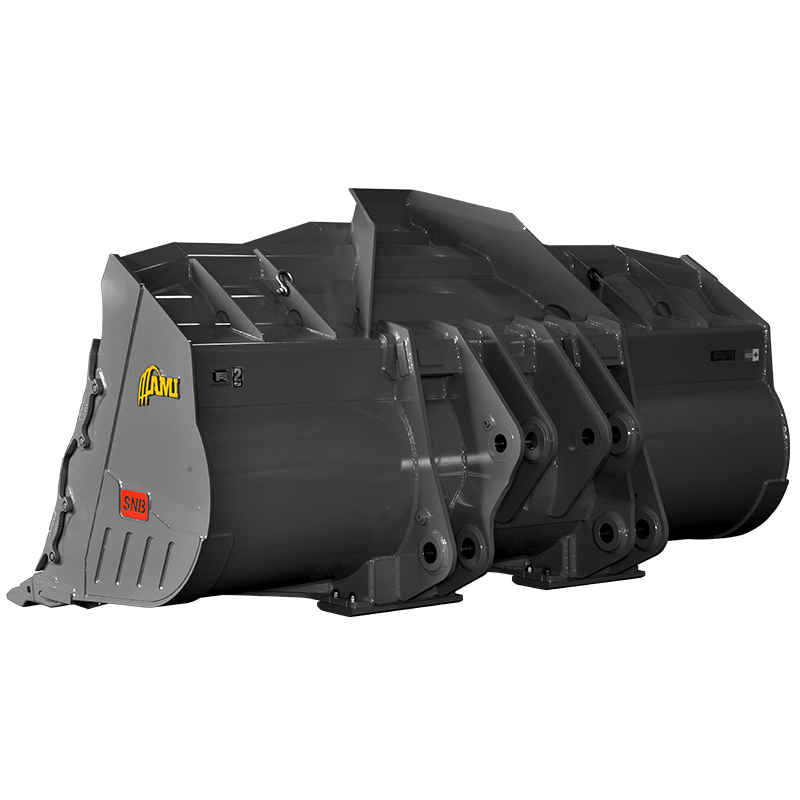

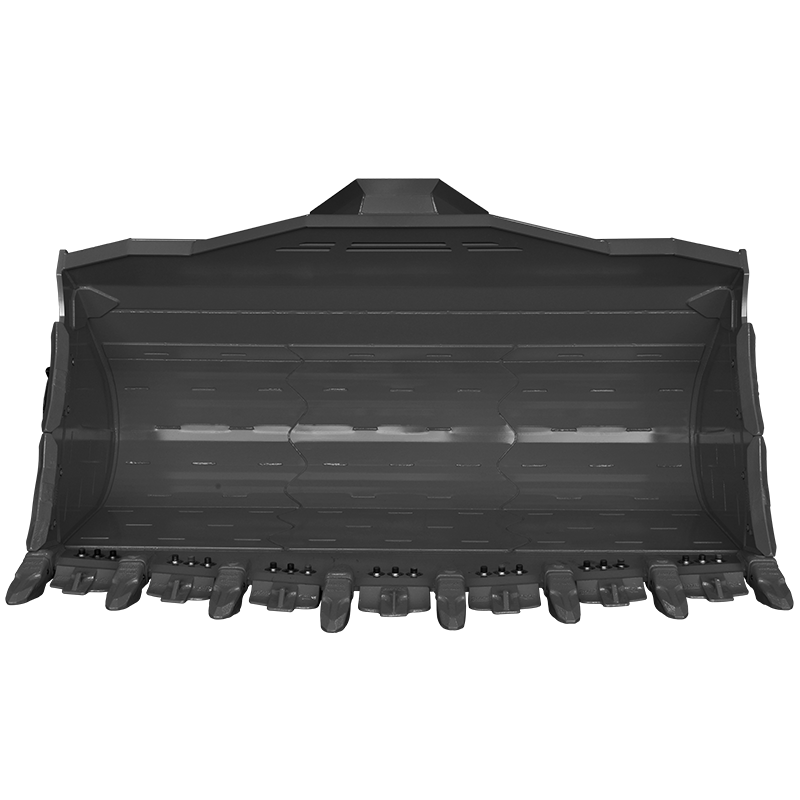

Severe Duty Spade Nose Rock Bucket

Make your point with the AMI Severe Duty Spade Nose Rock Bucket for harsh working conditions. Built for handling rock in mining and quarry applications, the AMI Spade Nose Rock Bucket loads easily with minimal wear. Reinforced plating on the bottom and Hardox wear plate all around make this bucket rock solid.

Structural Components

Base Edge Hardox® 450
Shell Liner Hardox® 500
End Plate Liner Hardox® 500
Base Edge Hardox® 450
Shell Liner Hardox® 500
End Plate Liner Hardox® 500
Side Cutter Hardox® 450
Cheek Plate Hardox® 450
Side Cutter Hardox® 450
Cheek Plate Hardox® 450
Shell Hardox® 450
Wear Plate Hardox® 450
Lugging Strenx®
End Wear Plate Hardox® 450
Shell Hardox® 450
Wear Plate Hardox® 450
Lugging Strenx®
End Wear Plate Hardox® 450

Specifications - Wheel Loader

FastTrack Category Model Machine Class Capacity Weight
200 WL200RBSD350SN 3.75 - 4.50 yds 3.500 yd³ WOR
200 WL200RBSD400SN 3.75 - 4.50 yds 4.000 yd³ WOR
250 WL250RBSD450SN 5.00 - 6.25 yds 4.500 yd³ WOR
250 WL250RBSD475SN 5.00 - 6.25 yds 4.750 yd³ WOR
250 WL250RBSD500SN 5.00 - 6.25 yds 5.000 yd³ WOR
250 WL250RBSD550SN 5.00 - 6.25 yds 5.500 yd³ WOR
250 WL250RBSD575SN 5.00 - 6.25 yds 5.750 yd³ WOR
300 WL300RBSD600SN 6.50 - 7.50 yds 6.000 yd³ WOR
300 WL300RBSD625SN 6.50 - 7.50 yds 6.250 yd³ WOR
300 WL300RBSD650SN 6.50 - 7.50 yds 6.500 yd³ WOR
300 WL300RBSD675SN 6.50 - 7.50 yds 6.750 yd³ WOR
300 WL300RBSD700SN 6.50 - 7.50 yds 7.000 yd³ WOR
300 WL300RBSD725SN 6.50 - 7.50 yds 7.250 yd³ WOR
300 WL300RBSD750SN 6.50 - 7.50 yds 7.500 yd³ WOR
400 WL400RBSD1000SN 8.00 - 10.00 yds 10.000 yd³ WOR
400 WL400RBSD700SN 8.00 - 10.00 yds 7.000 yd³ WOR
400 WL400RBSD800SN 8.00 - 10.00 yds 8.000 yd³ WOR
400 WL400RBSD900SN 8.00 - 10.00 yds 9.000 yd³ WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

Ready to know more?

Find out which attachment works best for you and get a quote!
Call Toll free North America - 1.800.556.9452 or fill out the form below:
