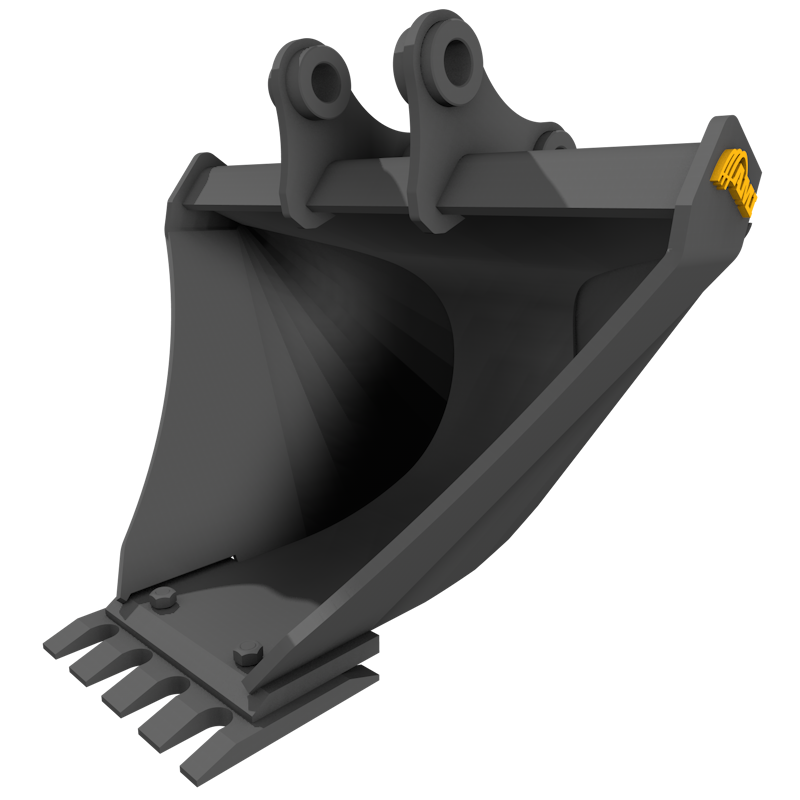

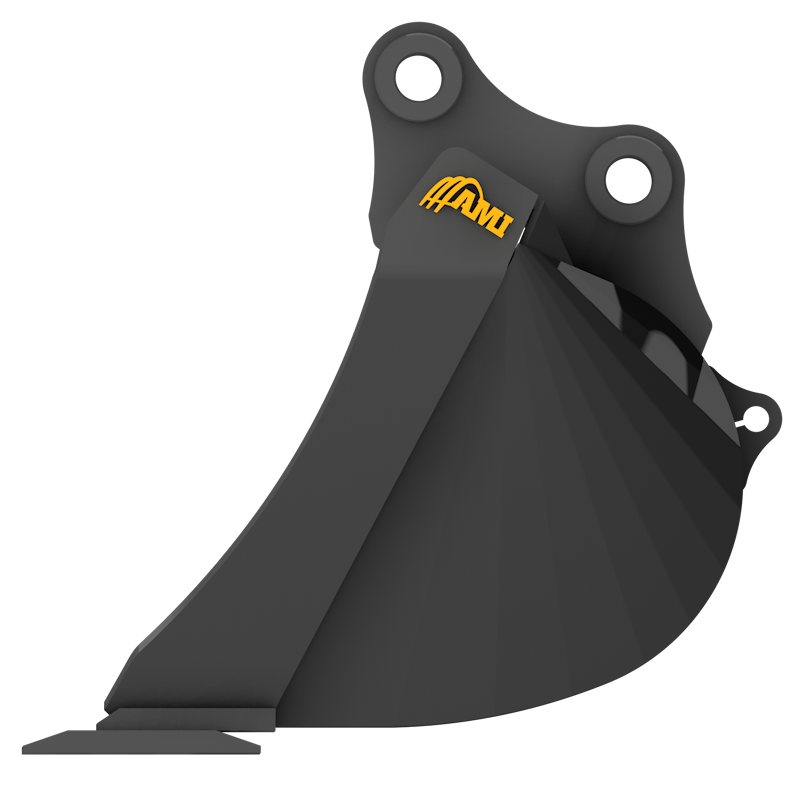

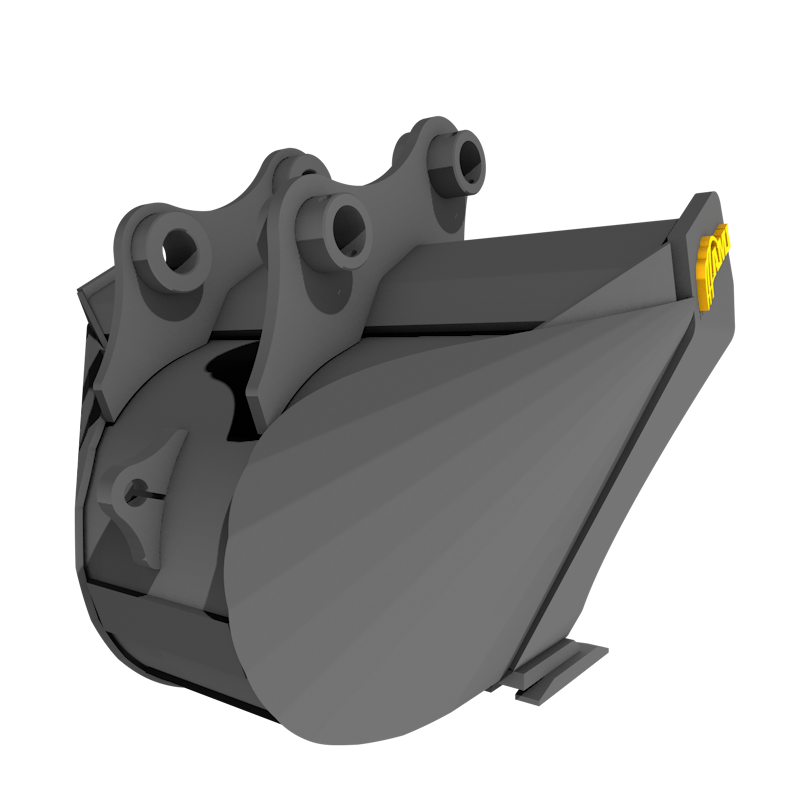

Trapezoid Bucket
Cut corners on your bucket, not the job. With the AMI Trapezoid Bucket, you can lower your project costs by reducing the amount of backfill required. Ideal for pipeline and trenching, the Trapezoid eliminates the costs of transportation and backfill material, making you more efficient and profitable.
Specifications - Compact Excavator
| FastTrack | Category | Model | Machine Class | Bottom Width | Top Width | Weight | Capacity | Teeth |
|---|---|---|---|---|---|---|---|---|
| 35 | TR0610E1024 | 6,000 - 10,000 lbs. | 10 " | 24 " | 150 lbs | 0 yd³ | 0 | |
| 35 | TR0610E1030 | 6,000 - 10,000 lbs. | 10 " | 30 " | 170 lbs | 0 yd³ | 0 | |
| 50 | TR1012E1030 | 10,000 - 12,000 lbs | 10 " | 30 " | 270 lbs | 0 yd³ | 0 | |
| 50 | TR1012E1636 | 10,000 - 12,000 lbs | 16 " | 36 " | 310 lbs | 0 yd³ | 0 | |
| 60 | TR1214E1030 | 12,000 - 14,000 lbs | 10 " | 30 " | 440 lbs | 0 yd³ | 0 | |
| 60 | TR1214E1636 | 12,000 - 14,000 lbs | 16 " | 36 " | 460 lbs | 0 yd³ | 0 | |
| 60 | TR1214E1848 | 12,000 - 14,000 lbs | 18 " | 48 " | 500 lbs | 0 yd³ | 0 | |
| 75 | TR1416E1636 | 14,000 - 24,000 lbs | 16 " | 36 " | 460 lbs | 0 yd³ | 0 | |
| 75 | TR1416E1848 | 14,000 - 24,000 lbs | 18 " | 48 " | 500 lbs | 0 yd³ | 0 |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
