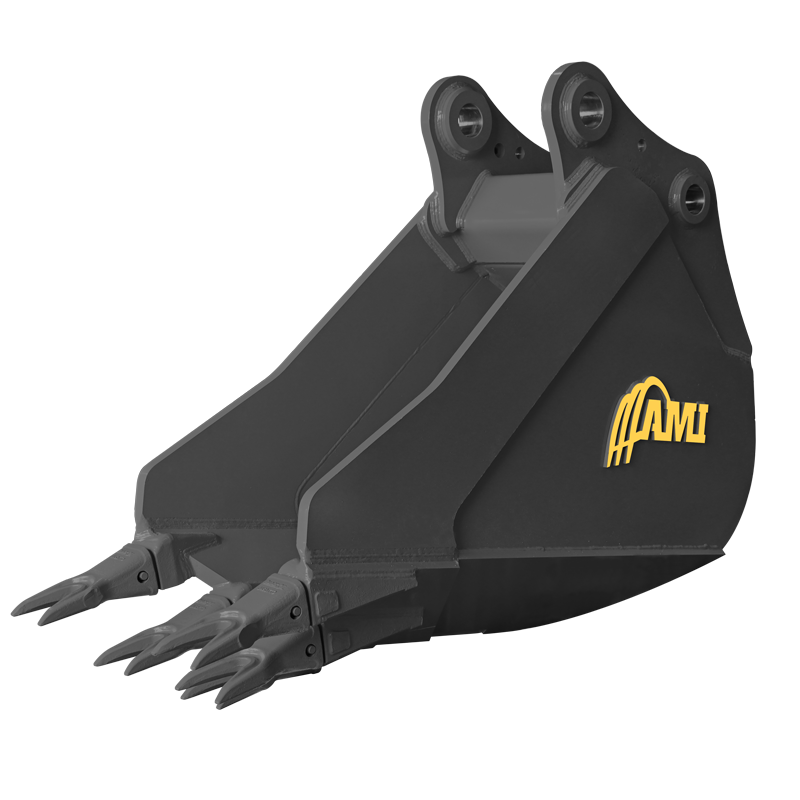

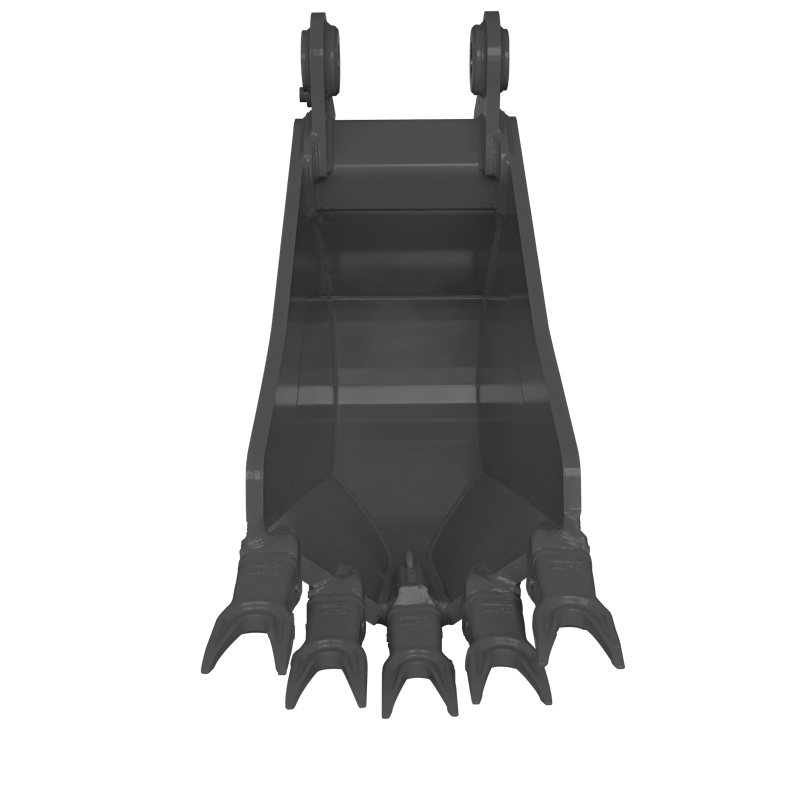

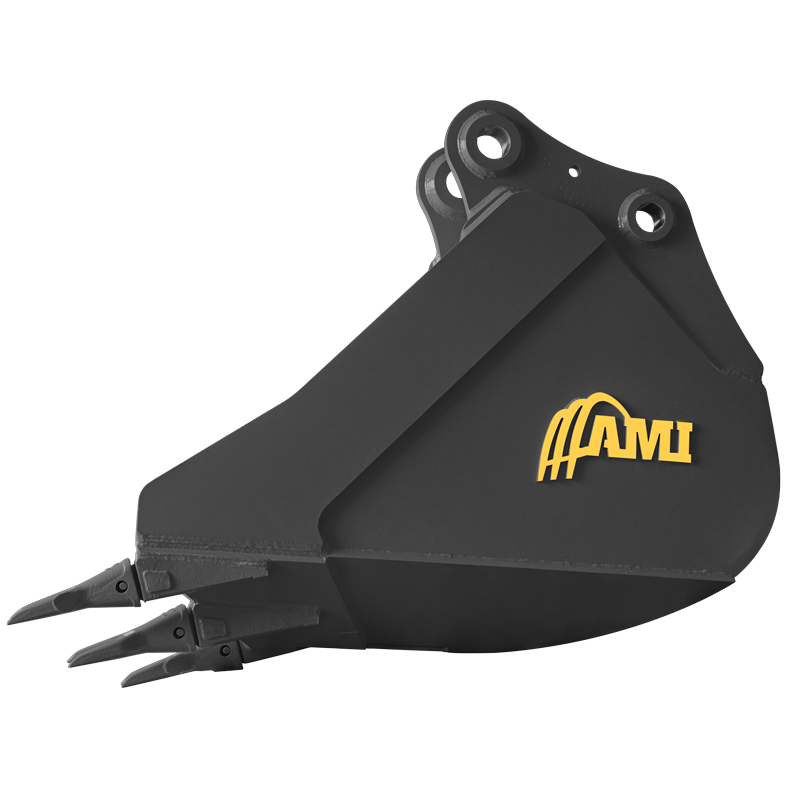

V-Bottom Bucket

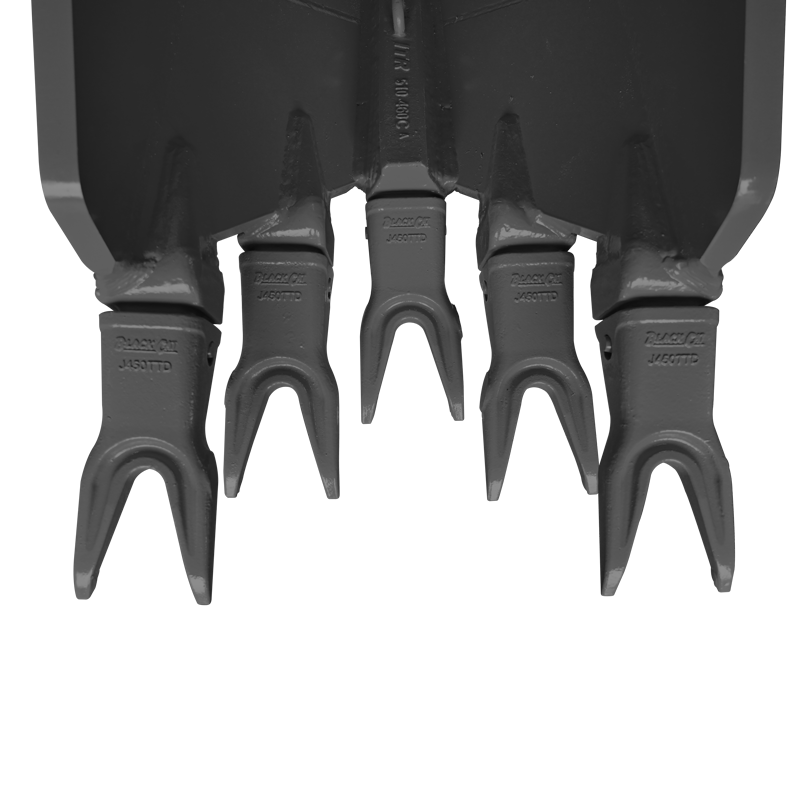

Don`t let below freezing temperatures or tough terrain keep you above the surface. Break through frozen ground or hard-packed soil with the AMI V-Bottom Bucket. The breakout force of your excavator is fully applied to the specially designed teeth, powering through the frost line and ground. Strong and durable, the AMI V-Bottom Bucket keeps you going.
Specifications - Compact Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 35 | FB0610E12 | 6,000 - 10,000 lbs. | 12 " | 1.485 ft³ | 3 | 165 lbs | |
| 35 | FB0610E16 | 6,000 - 10,000 lbs. | 16 " | 1.700 ft³ | 5 | 200 lbs | |
| 50 | FB1012E12 | 10,000 - 12,000 lbs | 12 " | 2.262 ft³ | 3 | 250 lbs | |
| 50 | FB1012E16 | 10,000 - 12,000 lbs | 16 " | 3.407 ft³ | 5 | 300 lbs | |
| 50 | FB1012E18 | 10,000 - 12,000 lbs | 18 " | 3.938 ft³ | 5 | 320 lbs | |
| 60 | FB1214E12 | 12,000 - 14,000 lbs | 12 " | 3.000 ft³ | 3 | 320 lbs | |
| 60 | FB1214E16 | 12,000 - 14,000 lbs | 16 " | 4.625 ft³ | 5 | 355 lbs | |
| 60 | FB1214E18 | 12,000 - 14,000 lbs | 18 " | 5.500 ft³ | 5 | 375 lbs | |
| 60 | FB1214E24 | 12,000 - 14,000 lbs | 24 " | 8.125 ft³ | 5 | 430 lbs | |
| 75 | FB1416E18 | 14,000 - 24,000 lbs | 18 " | 5.500 ft³ | 5 | WOR | |
| 75 | FB1416E24 | 14,000 - 24,000 lbs | 24 " | 8.125 ft³ | 5 | 550 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
