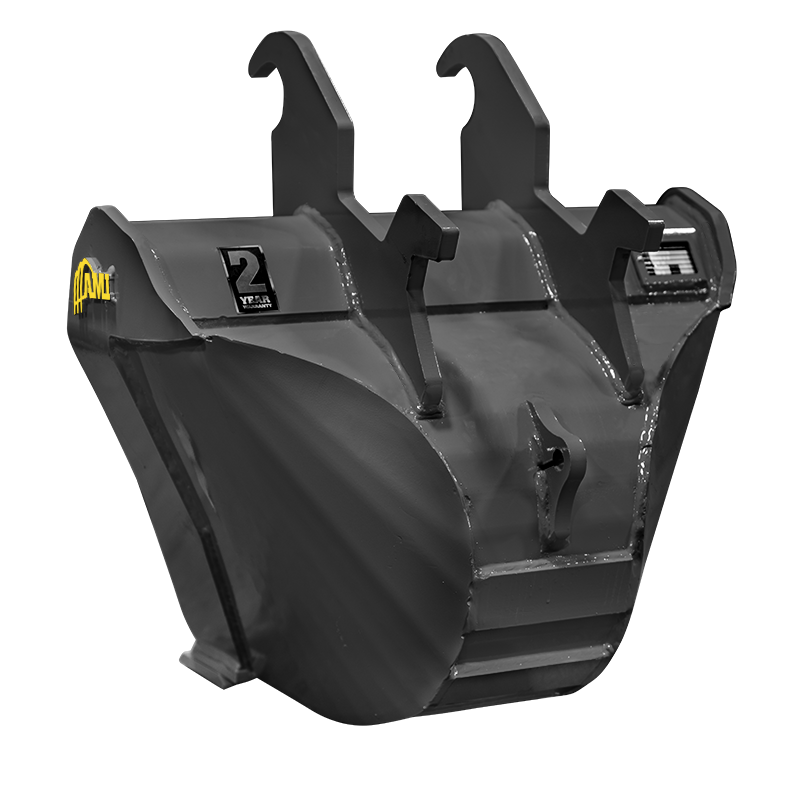

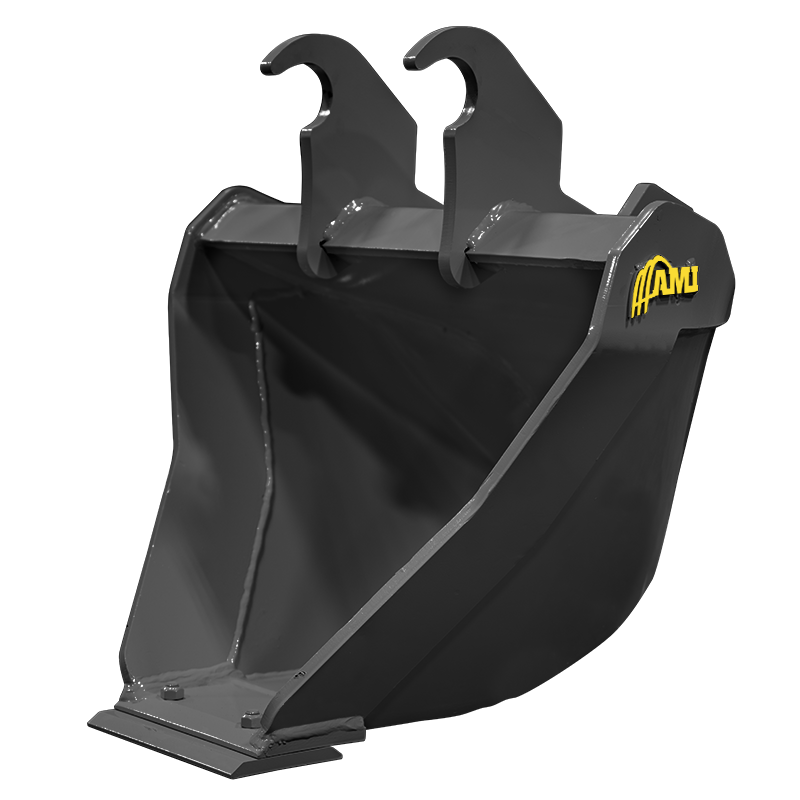

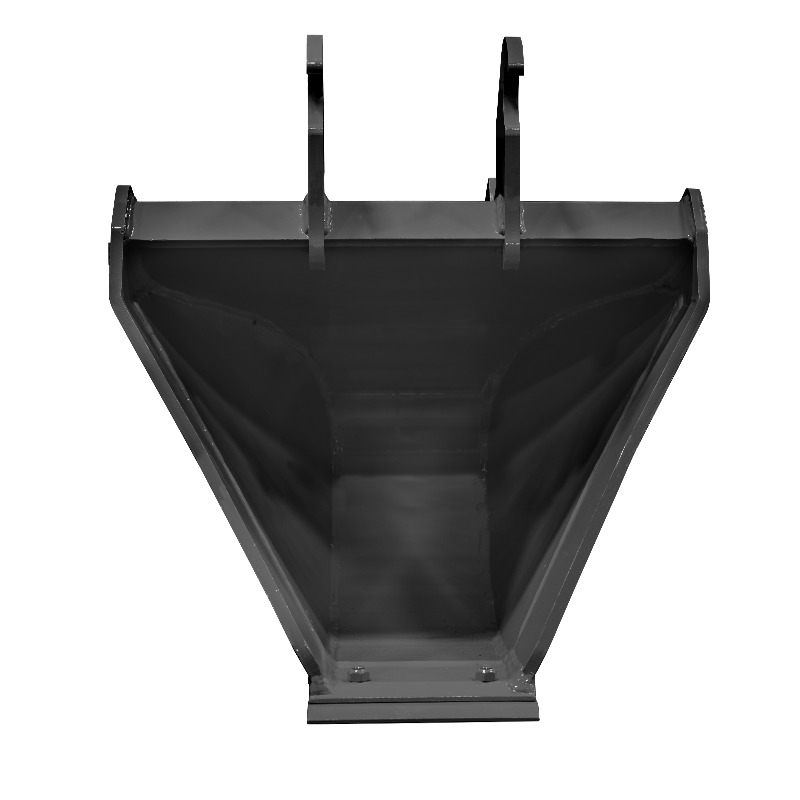

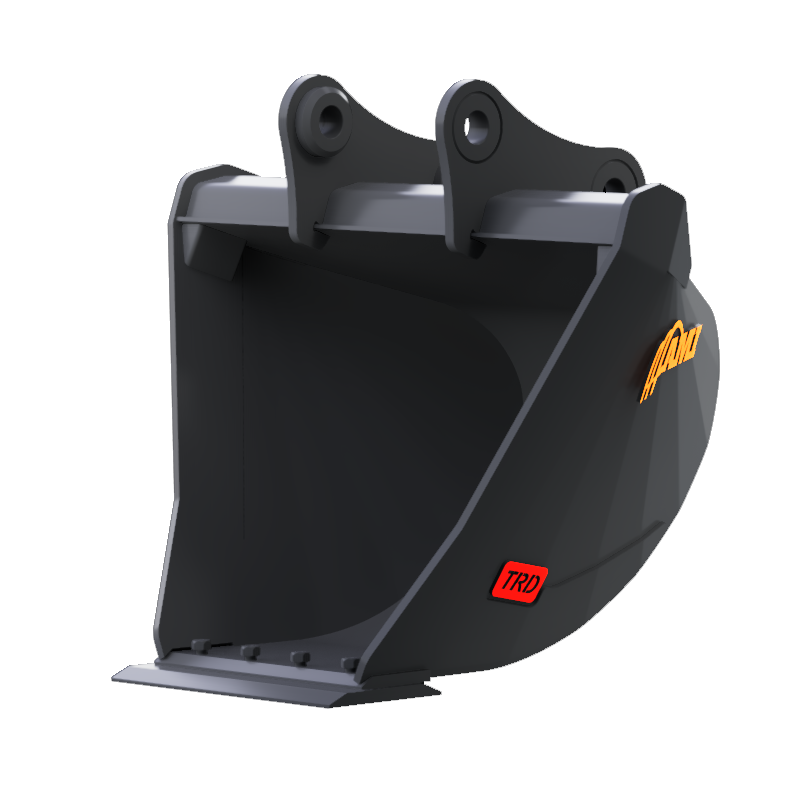

Trapezoid Bucket – BOE
Cut corners on your bucket, not the job. With the AMI Trapezoid Bucket, you can lower your project costs by reducing the amount of backfill required. Ideal for pipeline and trenching, the Trapezoid eliminates the costs of transportation and backfill material, making you more efficient and profitable. Comes with BOE.
SPECIFICATIONS - EXCAVATOR
| FastTrack | Category | Model | Machine Class | Bottom Width | Top Width | Weight | Capacity | Teeth |
|---|---|---|---|---|---|---|---|---|
| 130 | TR2433E1848 | 24,000 - 33,000 lbs | 18 " | 48 " | 880 lbs | 0 yd³ | 0 | |
| 130 | TR2433E2454 | 24,000 - 33,000 lbs | 24 " | 54 " | 970 lbs | 0 yd³ | 0 | |
| 150 | TR3340E2460 | 33,000 - 45,000 lbs | 24 " | 60 " | 1280 lbs | 0 yd³ | 0 | |
| 200 | TR4045E2466 | 45,000 - 55,000 lbs | 24 " | 66 " | 1615 lbs | 0 yd³ | 0 | |
| 250 | TR4560E2472 | 55,000 - 65,000 lbs | 24 " | 72 " | 2300 lbs | 0 yd³ | 0 | |
| 250 | TR4560E3072 | 55,000 - 65,000 lbs | 30 " | 72 " | 2350 lbs | 0 yd³ | 0 | |
| 300 | TR6080E2484 | 65,000 - 90,000 lbs | 24 " | 84 " | 3150 lbs | 0 yd³ | 0 | |
| 300 | TR6080E3284 | 65,000 - 90,000 lbs | 32 " | 84 " | 3250 lbs | 0 yd³ | 0 | |
| 400 | TR80100E3284 | 90,000 - 115,000 lbs | 32 " | 84 " | 3150 lbs | 0 yd³ | 0 |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
