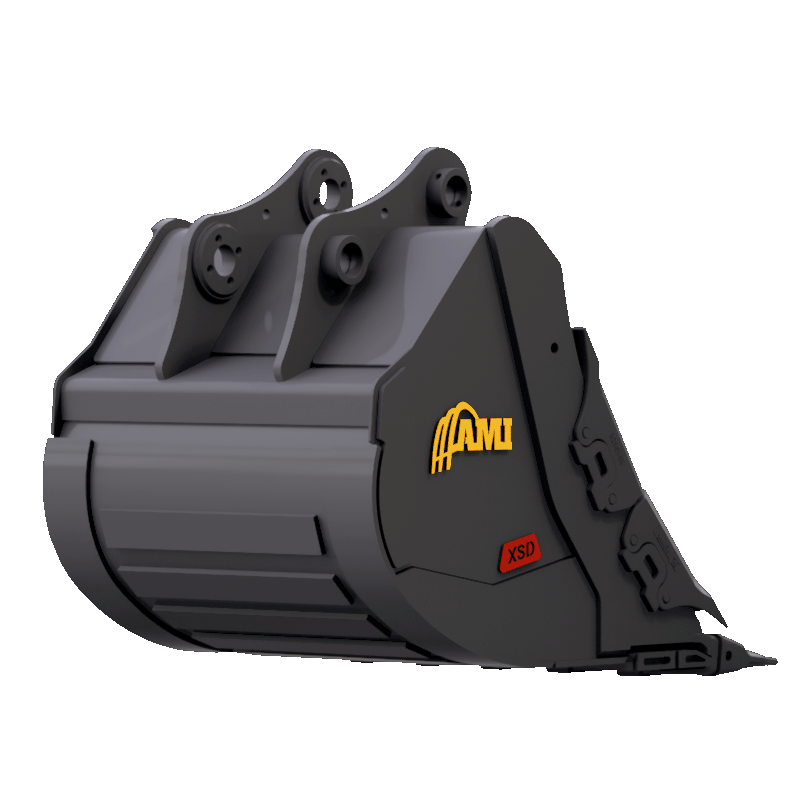

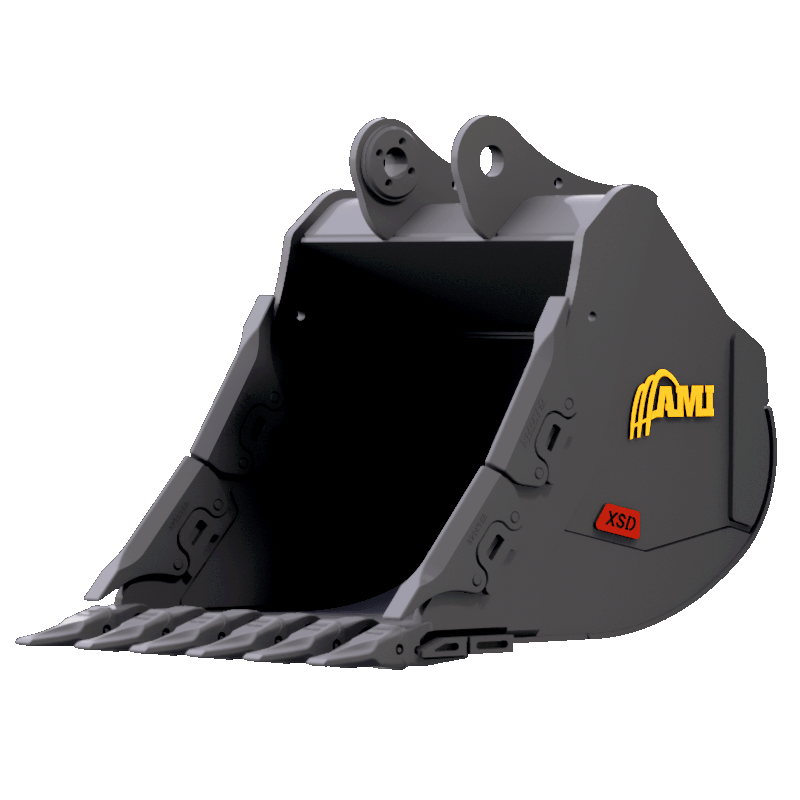

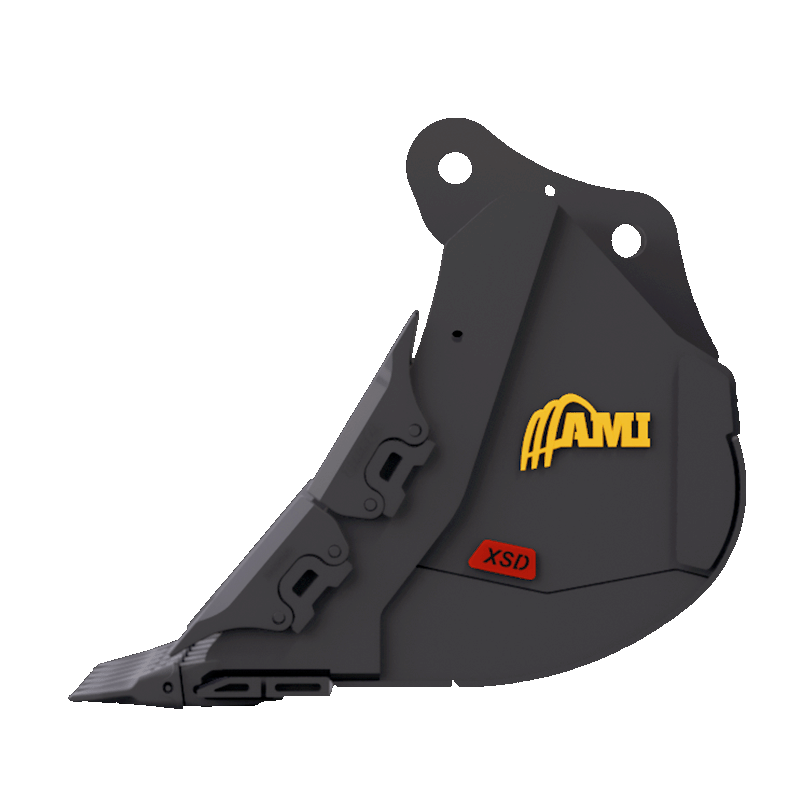

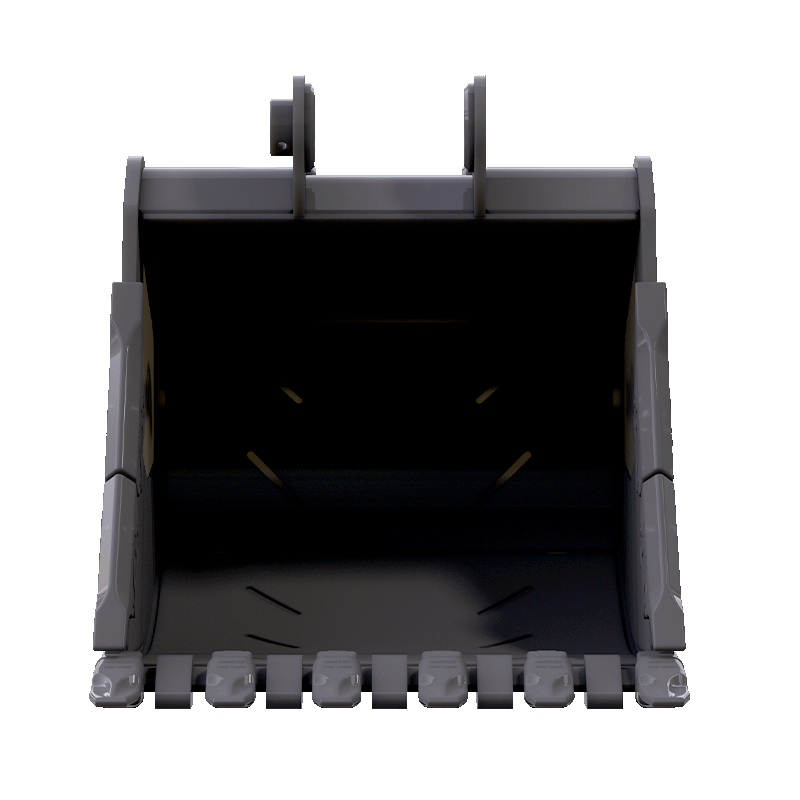

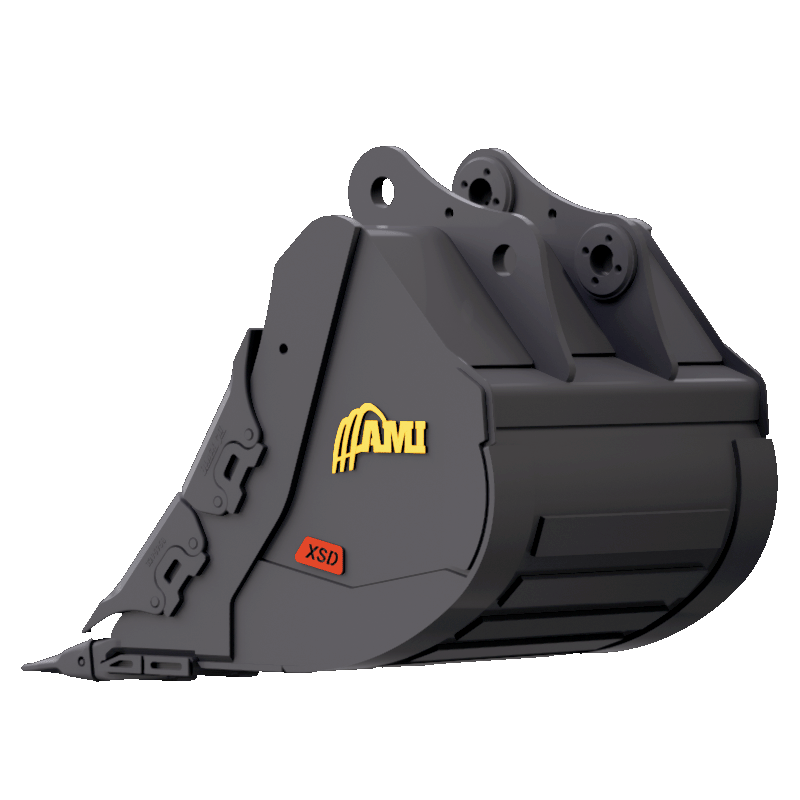

Extreme Service Digging Bucket

Designed for Extreme Service applications such as road building, and all other extreme digging conditions. Built with 100% Hardox material throughout the complete bucket. Comes standard with base edge weld on segments and pin on side bar protectors.

Specifications - Excavator

FastTrack Category Model Machine Class Width Capacity Teeth Weight
150 XSD3340E30 33,000 - 45,000 lbs 30 " 0.740 yd³ 4 WOR
150 XSD3340E36 33,000 - 45,000 lbs 36 " 0.910 yd³ 5 WOR
150 XSD3340E42 33,000 - 45,000 lbs 42 " 1.080 yd³ 5 WOR
200 XSD4045E36 45,000 - 55,000 lbs 36 " 1.030 yd³ 4 2225 lbs
200 XSD4045E42 45,000 - 55,000 lbs 42 " 1.230 yd³ 5 2375 lbs
200 XSD4045E48 45,000 - 55,000 lbs 48 " 1.420 yd³ 5 2510 lbs
250 XSD4560E36 55,000 - 65,000 lbs 36 " 1.190 yd³ 4 2525 lbs
250 XSD4560E42 55,000 - 65,000 lbs 42 " 1.415 yd³ 5 2700 lbs
250 XSD4560E48 55,000 - 65,000 lbs 48 " 1.645 yd³ 5 2880 lbs
250 XSD4560E54 55,000 - 65,000 lbs 54 " 1.870 yd³ 6 3040 lbs
300 XSD6080E36 65,000 - 90,000 lbs 36 " 1.490 yd³ 4 3730 lbs
300 XSD6080E42 65,000 - 90,000 lbs 42 " 1.780 yd³ 4 4000 lbs
300 XSD6080E48 65,000 - 90,000 lbs 48 " 2.070 yd³ 5 4155 lbs
300 XSD6080E54 65,000 - 90,000 lbs 54 " 2.360 yd³ 5 4340 lbs
400 XSD80100E48 90,000 - 115,000 lbs 48 " 2.400 yd³ 5 5265 lbs
400 XSD80100E54 90,000 - 115,000 lbs 54 " 2.740 yd³ 5 5530 lbs
400 XSD80100E60 90,000 - 115,000 lbs 60 " 3.070 yd³ 6 5875 lbs
650 XSD120140E54 120,000 - 140,000 lbs. 54 " 3.500 yd³ 4 9145 lbs
650 XSD120140E60 120,000 - 140,000 lbs. 60 " 4.000 yd³ 4 9760 lbs
650 XSD120140E72 120,000 - 140,000 lbs. 72 " 4.750 yd³ 5 10990 lbs
750 XSD140160E60 140,000 - 160,000 lbs. 60 " 4.300 yd³ 4 10460 lbs
750 XSD140160E66 140,000 - 160,000 lbs. 66 " 4.750 yd³ 4 11075 lbs
750 XSD140160E72 140,000 - 160,000 lbs. 72 " 5.250 yd³ 5 11690 lbs
750 XSD140160E84 140,000 - 160,000 lbs. 84 " 6.250 yd³ 5 12915 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.

Hardox & Strenx
