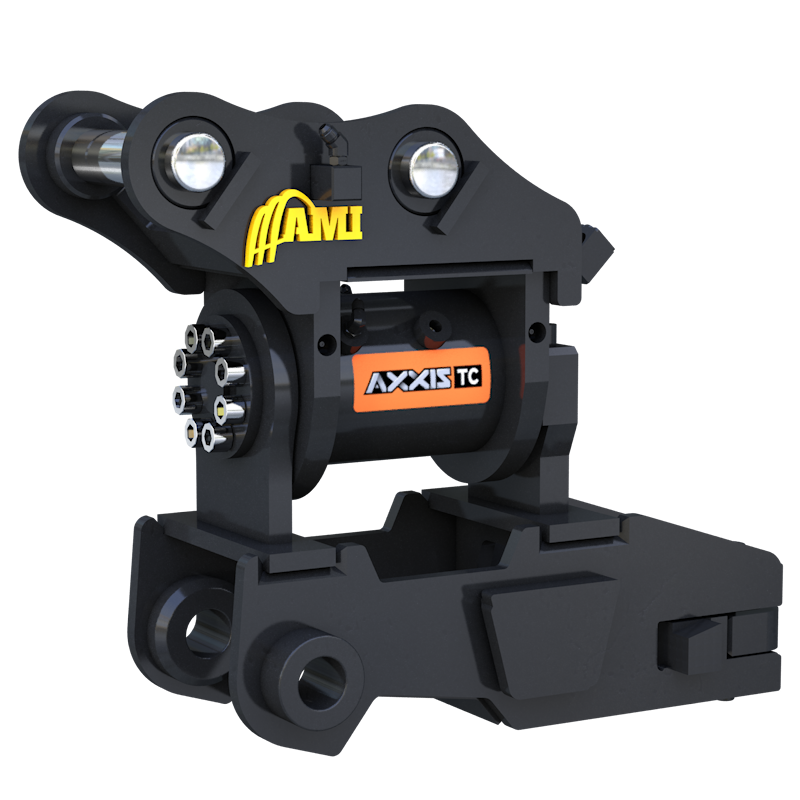

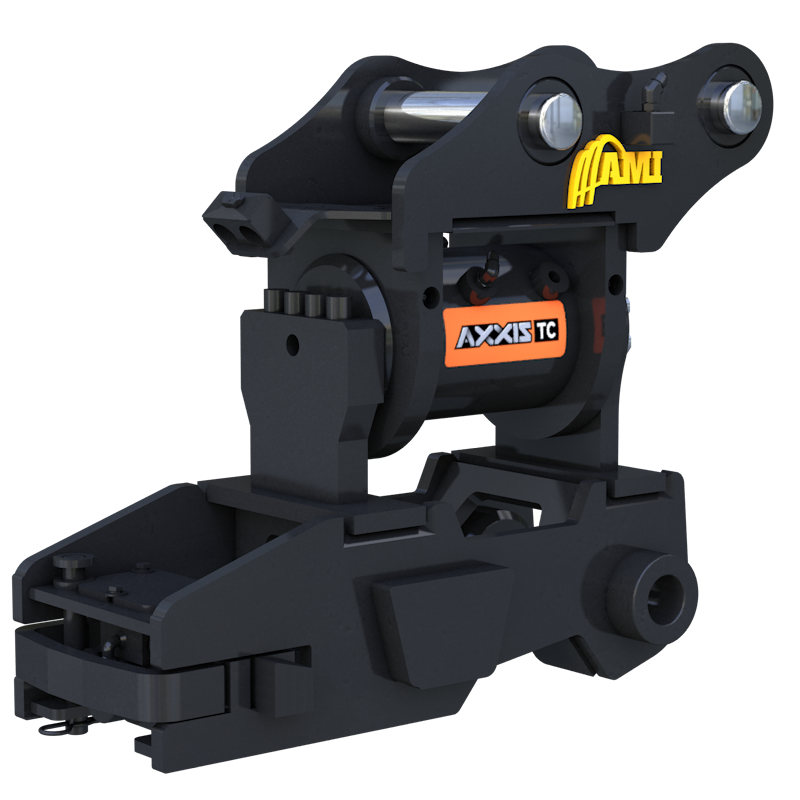

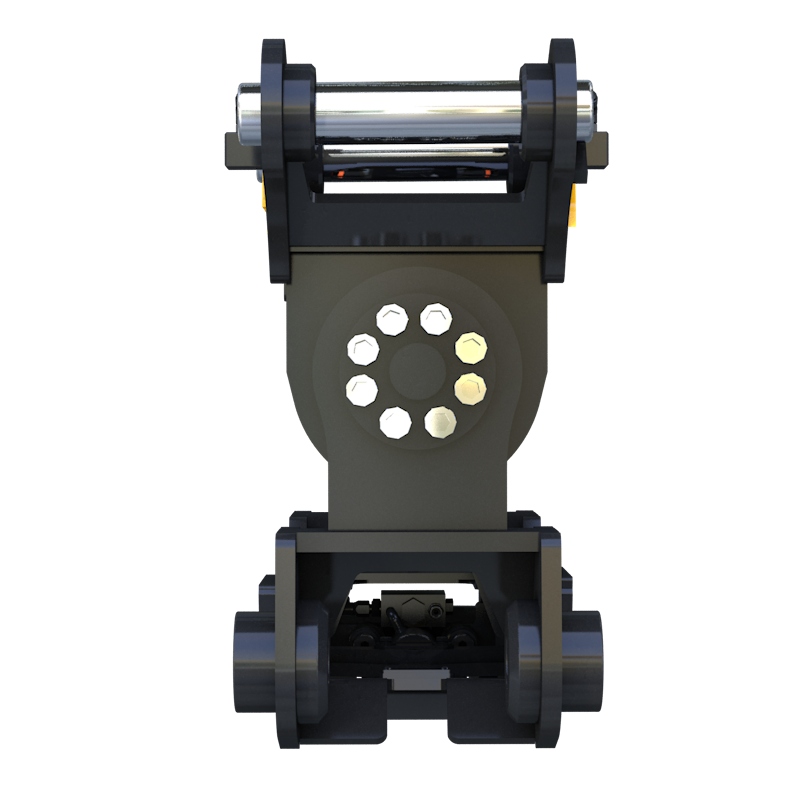

PowerTilt Hydraulic Wedge Coupler
Full tilt! The AMI Axxis PowerTilt Hydraulic Wedge Coupler provides greater versatility with 180 degrees of rotation on 25-70 series excavators, and 120-degrees on 130-400 series excavators. The Axxis PowerTilt is ideal for sloped trenching, excavating around foundations and sidewalks, as well as ditch cleaning. This coupler requires one set of bi-directional auxiliary hydraulics to operate the tilt function and requires the Coupler Control Kit for the Hydraulic Pin Grab Coupler.
Up to 180° Tilt Range
Instead of moving your entire machine, the PowerTilt allows bucket or attachment tilting up to 180°.

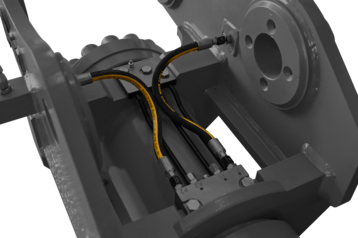

Simplified Coupler Hose Routing
Compact and minimal hydraulic flow design protect the few hoses required for both tilt and coupling functions. Steel lines and internal routing eliminate exposed external hoses.

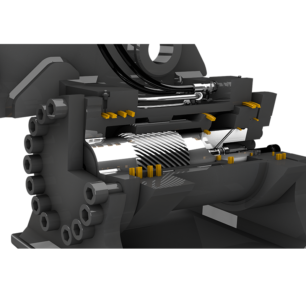

HARDENED STEEL SEALS AND BEARING SURFACES
Thrust and radial bearing surfaces for the PowerTilt Coupler are hardened steel on hardened steel, eliminating the need for bearing replacement. This also leads to longer coupler life and reduced cost of ownership.
2 Stage In-Cab Controls
Easy to use and designed to prevent unintentional release, the in-cab controls require two unique actions to activate the hydraulic coupler’s unlocking sequence.
Mechanical Safety lock
Using a spring-loaded hydraulic cylinder, the safety naturally stays in the locked position and requires hydraulic pressure to deactivate.
SPECIFICATIONS - EXCAVATOR
| FastTrack | Category | Model | Machine Class | Description | Weight |
|---|---|---|---|---|---|
| 130 | PT2433WH | 24,000 - 33,000 lbs | PowerTilt Hydraulic Wedge Coupler | 810 lbs | |
| 150 | PT3340WH | 33,000 - 45,000 lbs | PowerTilt Hydraulic Wedge Coupler | 855 lbs | |
| 200 | PT4045WH | 45,000 - 55,000 lbs | PowerTilt Hydraulic Wedge Coupler | 1235 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
