Hydraulic Tilt Ditch Cleaning Bucket
The new design of the Hydraulic Tilt Ditch Cleaning Bucket features a flatter profile, open heel and bigger radius for level grading on uneven terrain. With the versatility of a 45 degree tilt range on each side, you achieve smooth tilting action for an easy, clean finish. Designed specifically to reach those awkward spots with less repositioning of your excavator, the AMI Hydraulic Tilt Ditch Cleaning Bucket allows for level grading on uneven ground, provides a smooth tilting action and is designed to fit tightly when curled up. The bottom reversible cutting edge adds longevity and provides easy in-field maintenance.

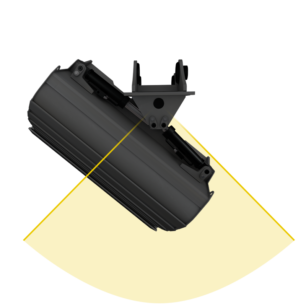

90 Degree Rotation

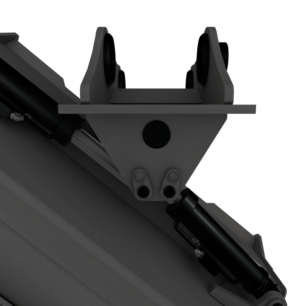

Crossover Plumbing

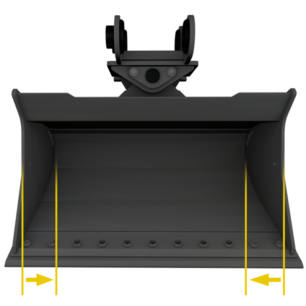

Tapered Design

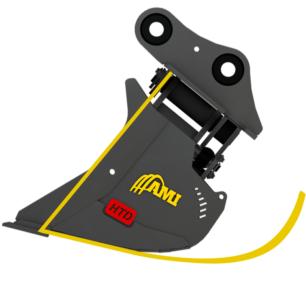

Dual Radius Design
Serrated Edge Available
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Weight |
|---|---|---|---|---|---|---|
|
130 | HTD2433E54 | 24,000 - 33,000 lbs | 54 " | 0.542 yd³ | 1410 lbs |
|
|
130 | HTD2433E60 | 24,000 - 33,000 lbs | 60 " | 0.625 yd³ | 1505 lbs |
| 150 | HTD3340E54 | 33,000 - 45,000 lbs | 54 " | 0.688 yd³ | 1690 lbs | |
|
|
150 | HTD3340E60 | 33,000 - 45,000 lbs | 60 " | 0.750 yd³ | 1790 lbs |
|
|
200 | HTD4045E60 | 45,000 - 55,000 lbs | 60 " | 1.095 yd³ | 2445 lbs |
|
|
200 | HTD4045E66 | 45,000 - 55,000 lbs | 66 " | 1.220 yd³ | 2570 lbs |
|
|
200 | HTD4045E72 | 45,000 - 55,000 lbs | 72 " | 1.345 yd³ | 2710 lbs |
| 250 | HTD4560E60 | 55,000 - 65,000 lbs | 60 " | 1.413 yd³ | 2975 lbs | |
|
|
250 | HTD4560E66 | 55,000 - 65,000 lbs | 66 " | 1.575 yd³ | 3090 lbs |
|
|
250 | HTD4560E72 | 55,000 - 65,000 lbs | 72 " | 1.735 yd³ | 3340 lbs |
| 300 | HTD6080E66 | 65,000 - 90,000 lbs | 66 " | 1.825 yd³ | 4075 lbs | |
|
|
300 | HTD6080E72 | 65,000 - 90,000 lbs | 72 " | 2.015 yd³ | 4430 lbs |
| 300 | HTD6080E84 | 65,000 - 90,000 lbs | 84 " | 2.390 yd³ | 4880 lbs | |
| 400 | HTD80100E72 | 90,000 - 115,000 lbs | 72 " | 2.445 yd³ | 5700 lbs | |
| 400 | HTD80100E78 | 90,000 - 115,000 lbs | 78 " | 2.660 yd³ | 5935 lbs | |
| 400 | HTD80100E84 | 90,000 - 115,000 lbs | 84 " | 2.880 yd³ | 6170 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
