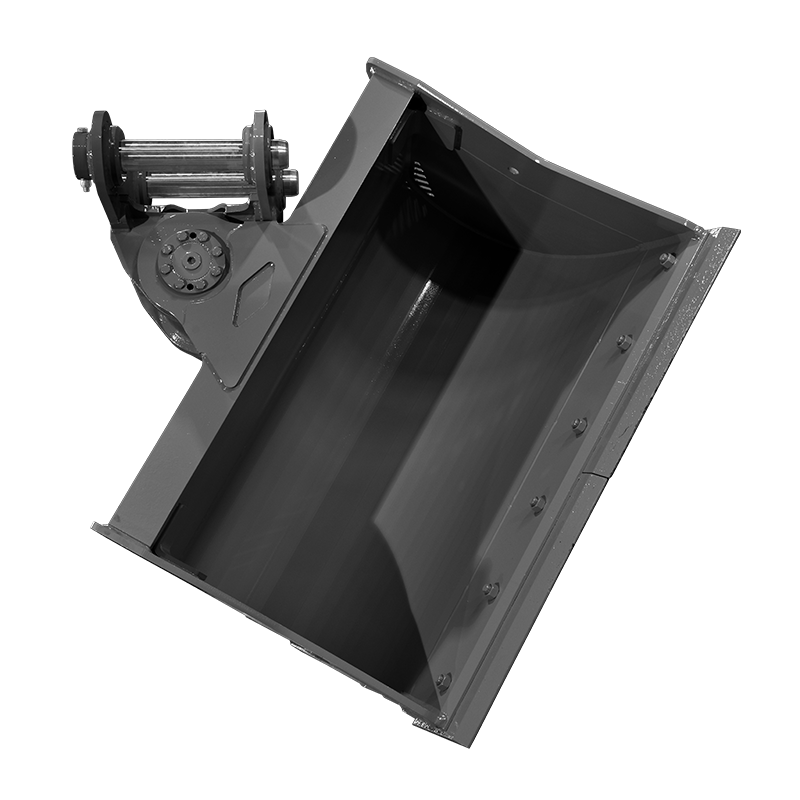

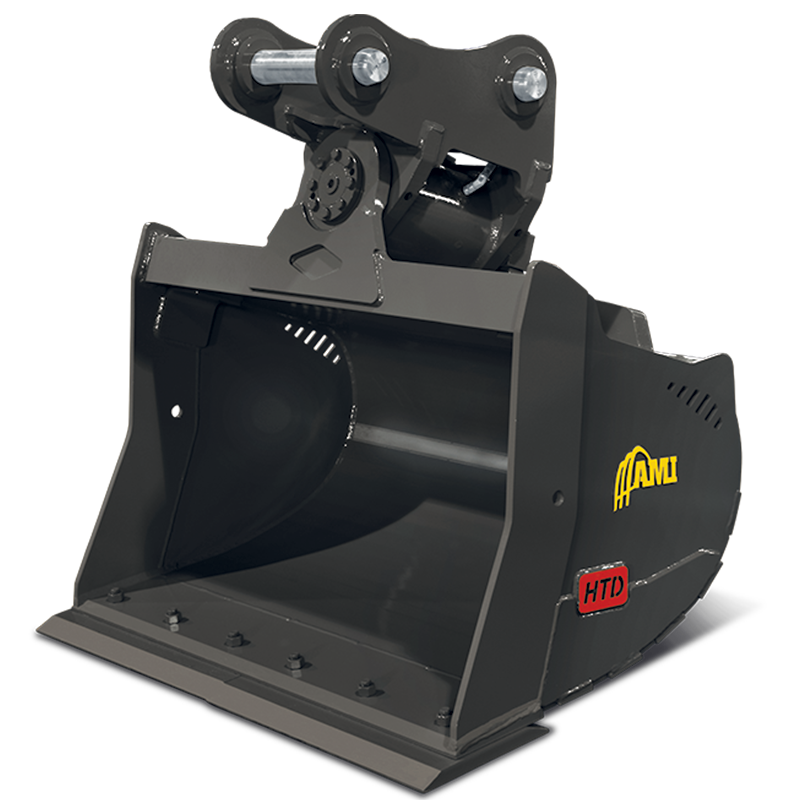

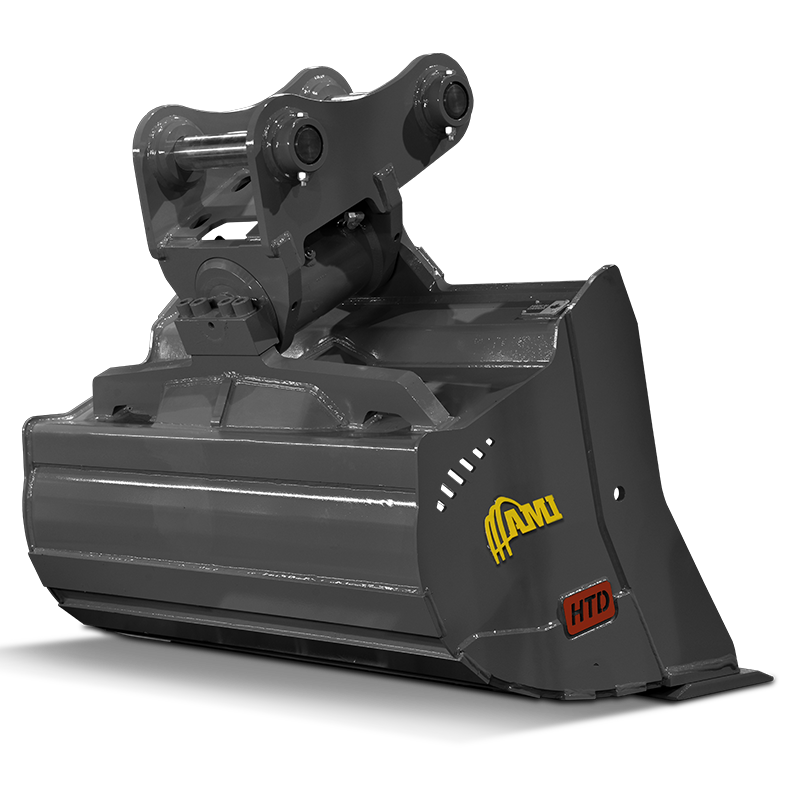

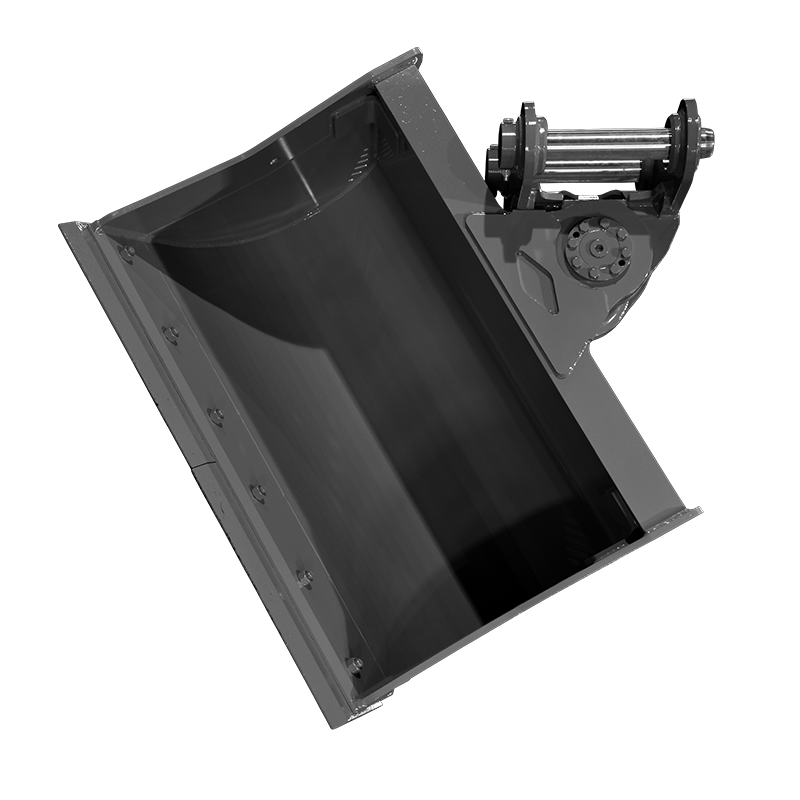

Rotary Tilt Ditch Cleaning Bucket
Achieve greater flexibility with AMI Attachments' Rotary Tilt Ditch Cleaning Bucket. Designed specifically to reach those awkward spots with less repositioning, AMI Rotary Tilt Ditch Cleaning Buckets allow for level grading on uneven terrain, provide a smooth tilting action and are designed with no exposed cylinders or hoses. On 25-75 series excavators, the tilting range is 180-degrees. For excavator series 130-400, the tilt range is 120-degrees.
Serrated Edge Available
SPECIFICATIONS - EXCAVATOR
| FastTrack | Category | Model | Machine Class | Width | Capacity | Weight |
|---|---|---|---|---|---|---|
| 130 | RTD2433E54 | 24,000 - 33,000 lbs | 54 " | 0.555 yd³ | 1445 lbs | |
| 130 | RTD2433E60 | 24,000 - 33,000 lbs | 60 " | 0.625 yd³ | 1530 lbs | |
| 150 | RTD3340E54 | 33,000 - 45,000 lbs | 54 " | 0.690 yd³ | 1700 lbs | |
| 150 | RTD3340E60 | 33,000 - 45,000 lbs | 60 " | 0.750 yd³ | 1800 lbs | |
| 200 | RTD4045E60 | 45,000 - 55,000 lbs | 60 " | 1.105 yd³ | 2615 lbs | |
| 200 | RTD4045E66 | 45,000 - 55,000 lbs | 66 " | 1.230 yd³ | 2755 lbs | |
| 200 | RTD4045E72 | 45,000 - 55,000 lbs | 72 " | 1.355 yd³ | 2895 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
