Hydraulic Weld On Thumb

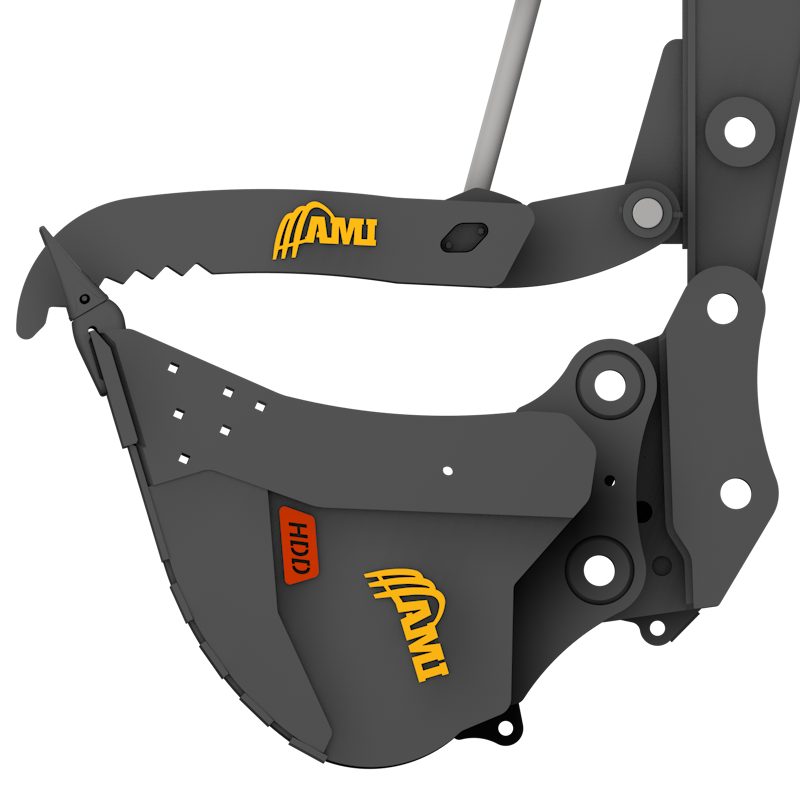

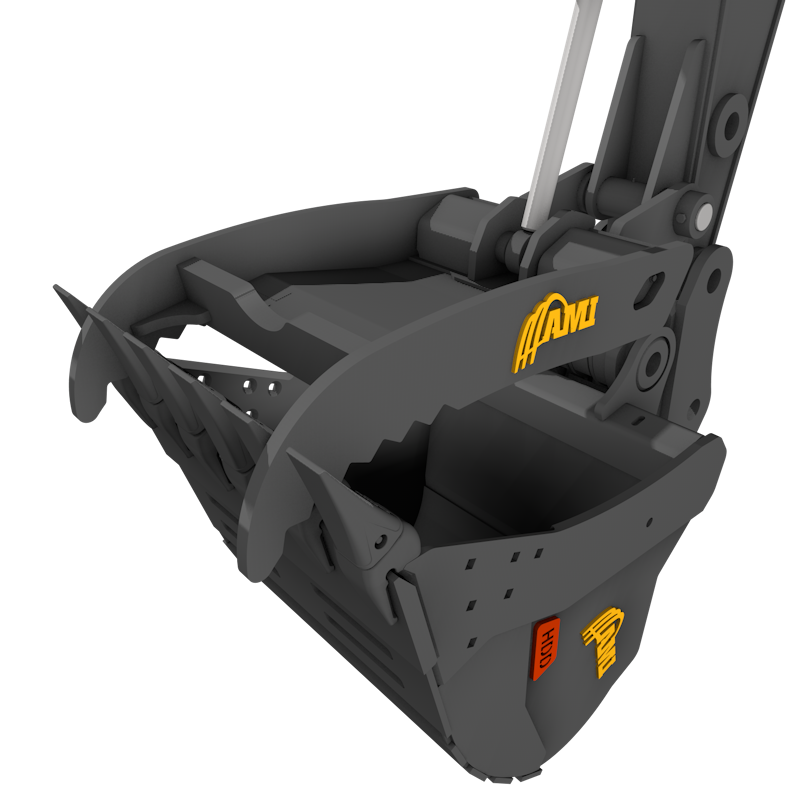

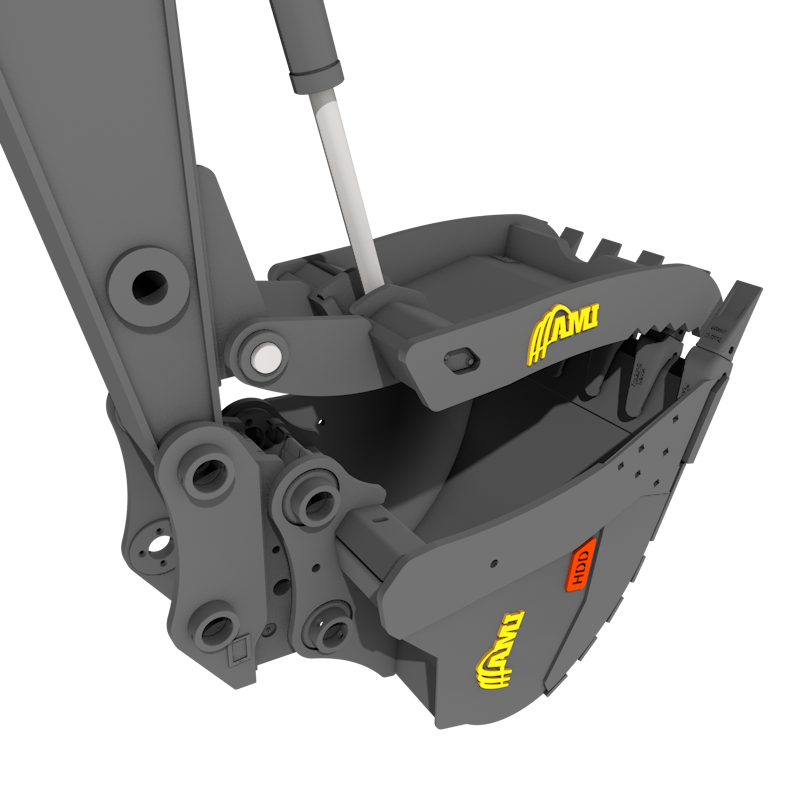

Thumbs up! The AMI Hydraulic Weld On Thumb for excavators offers a practical option for operators who are looking for durability, impressive holding strength and flexible thumb positioning. Ideal for clamping and moving a variety of materials, including brush, boulders, logs and poles, the thumb folds tight to the stick when not in use and features serrated tines for better gripping. Available in multiple widths and lengths to match various coupler and bucket configurations.

Specifications - Excavator

FastTrack Category Model Machine Class Tines Weight Width
FastTrack Icon 130 TH2433HWO2T11 24,000 - 33,000 lbs 2 500 lbs 11 "
FastTrack Icon 130 TH2433HWO2T16 24,000 - 33,000 lbs 2 540 lbs 16 "
FastTrack Icon 130 TH2433HWO2T21.5 24,000 - 33,000 lbs 2 500 lbs 21.5 "
FastTrack Icon 130 TH2433HWO2T26 24,000 - 33,000 lbs 2 500 lbs 26 "
FastTrack Icon 130 TH2433HWO3T16 24,000 - 33,000 lbs 2 540 lbs 16 "
FastTrack Icon 130 TH2433HWO3T21.5 24,000 - 33,000 lbs 3 540 lbs 21.5 "
FastTrack Icon 130 TH2433HWO4T21.5 24,000 - 33,000 lbs 4 560 lbs 32 "
FastTrack Icon 130 TH2433HWO4T26 24,000 - 33,000 lbs 4 540 lbs 26 "
FastTrack Icon 130 TH2433HWO4T32 24,000 - 33,000 lbs 4 560 lbs 31 "
FastTrack Icon 150 TH3340HWO2T11 33,000 - 45,000 lbs 2 680 lbs 10 "
FastTrack Icon 150 TH3340HWO2T16 33,000 - 45,000 lbs 2 680 lbs 15 "
FastTrack Icon 150 TH3340HWO2T23.5 33,000 - 45,000 lbs 2 680 lbs 23.5 "
FastTrack Icon 150 TH3340HWO2T26.5 33,000 - 45,000 lbs 2 680 lbs 26.5 "
FastTrack Icon 150 TH3340HWO3T16 33,000 - 45,000 lbs 3 710 lbs 16 "
FastTrack Icon 150 TH3340HWO3T23.5 33,000 - 45,000 lbs 3 710 lbs 23.5 "
FastTrack Icon 150 TH3340HWO3T26.5 33,000 - 45,000 lbs 3 710 lbs 26.5 "
FastTrack Icon 150 TH3340HWO4T23.5 33,000 - 45,000 lbs 4 740 lbs 23 "
FastTrack Icon 150 TH3340HWO4T26.5 33,000 - 45,000 lbs 4 740 lbs 26 "
FastTrack Icon 150 TH3340HWO4T32 33,000 - 45,000 lbs 4 740 lbs 32 "
FastTrack Icon 200 TH4045HWO2T14 45,000 - 55,000 lbs 2 1000 lbs 14 "
FastTrack Icon 200 TH4045HWO2T20 45,000 - 55,000 lbs 2 1000 lbs 20 "
FastTrack Icon 200 TH4045HWO2T24 45,000 - 55,000 lbs 2 1000 lbs 24 "
FastTrack Icon 200 TH4045HWO2T26.5 45,000 - 55,000 lbs 2 1000 lbs 26.5 "
FastTrack Icon 200 TH4045HWO2T30 45,000 - 55,000 lbs 2 1000 lbs 30 "
FastTrack Icon 200 TH4045HWO2T34 45,000 - 55,000 lbs 2 1000 lbs 34 "
FastTrack Icon 200 TH4045HWO3T20 45,000 - 55,000 lbs 3 1050 lbs 20 "
FastTrack Icon 200 TH4045HWO3T26.5 45,000 - 55,000 lbs 3 1050 lbs 26.5 "
FastTrack Icon 200 TH4045HWO3T30 45,000 - 55,000 lbs 3 1050 lbs 29 "
FastTrack Icon 200 TH4045HWO4T26.5 45,000 - 55,000 lbs 4 1100 lbs 26.5 "
FastTrack Icon 200 TH4045HWO4T30 45,000 - 55,000 lbs 4 1100 lbs 30 "
FastTrack Icon 200 TH4045HWO4T38 45,000 - 55,000 lbs 4 1100 lbs 38 "
FastTrack Icon 200 TH4045HWO5T34 45,000 - 55,000 lbs 5 1150 lbs 34 "
FastTrack Icon 200 TH4045HWO5T38 45,000 - 55,000 lbs 5 1150 lbs 38 "
FastTrack Icon 250 TH4560HWO2T20 55,000 - 65,000 lbs 2 1100 lbs 20 "
FastTrack Icon 250 TH4560HWO2T24 55,000 - 65,000 lbs 2 1100 lbs 24 "
FastTrack Icon 250 TH4560HWO2T30 55,000 - 65,000 lbs 2 1100 lbs 30 "
FastTrack Icon 250 TH4560HWO3T20 55,000 - 65,000 lbs 3 1150 lbs 20 "
FastTrack Icon 250 TH4560HWO3T24 55,000 - 65,000 lbs 3 1150 lbs 24 "
FastTrack Icon 250 TH4560HWO3T30 55,000 - 65,000 lbs 3 1150 lbs 30 "
FastTrack Icon 250 TH4560HWO4T24 55,000 - 65,000 lbs 4 1200 lbs 24 "
FastTrack Icon 250 TH4560HWO4T30 55,000 - 65,000 lbs 4 1200 lbs 30 "
FastTrack Icon 250 TH4560HWO4T35 55,000 - 65,000 lbs 4 1200 lbs 35 "
FastTrack Icon 250 TH4560HWO4T38 55,000 - 65,000 lbs 4 1200 lbs 38 "
FastTrack Icon 250 TH4560HWO5T38 55,000 - 65,000 lbs 5 1250 lbs 38 "
FastTrack Icon 250 TH4560HWO5T42 55,000 - 65,000 lbs 5 1250 lbs 42 "
FastTrack Icon 300 TH6080HWO2T22 65,000 - 90,000 lbs 2 970 lbs 21 "
FastTrack Icon 300 TH6080HWO2T26 65,000 - 90,000 lbs 2 970 lbs 26 "
FastTrack Icon 300 TH6080HWO2T32.5 65,000 - 90,000 lbs 2 970 lbs 32.5 "
FastTrack Icon 300 TH6080HWO2T36 65,000 - 90,000 lbs 2 970 lbs 36 "
FastTrack Icon 300 TH6080HWO2T40 65,000 - 90,000 lbs 2 970 lbs 39 "
FastTrack Icon 300 TH6080HWO3T22 65,000 - 90,000 lbs 2 1020 lbs 22 "
FastTrack Icon 300 TH6080HWO3T26 65,000 - 90,000 lbs 3 1020 lbs 26 "
FastTrack Icon 300 TH6080HWO3T32.5 65,000 - 90,000 lbs 3 1020 lbs 32 "
FastTrack Icon 300 TH6080HWO3T36 65,000 - 90,000 lbs 3 1020 lbs 36 "
FastTrack Icon 300 TH6080HWO4T26 65,000 - 90,000 lbs 4 1070 lbs 26 "
FastTrack Icon 300 TH6080HWO4T32.5 65,000 - 90,000 lbs 4 1070 lbs 32 "
FastTrack Icon 300 TH6080HWO4T36 65,000 - 90,000 lbs 4 1070 lbs 35 "
FastTrack Icon 300 TH6080HWO4T40 65,000 - 90,000 lbs 4 1070 lbs 40 "
FastTrack Icon 400 TH80100HWO2T24 90,000 - 115,000 lbs 2 WOR 24 "
FastTrack Icon 400 TH80100HWO2T26 90,000 - 115,000 lbs 2 WOR 25 "
FastTrack Icon 400 TH80100HWO2T33.5 90,000 - 115,000 lbs 2 WOR 33.5 "
FastTrack Icon 400 TH80100HWO2T40 90,000 - 115,000 lbs 2 -1 lbs 39 "
FastTrack Icon 400 TH80100HWO3T24 90,000 - 115,000 lbs 3 WOR 23 "
FastTrack Icon 400 TH80100HWO3T26 90,000 - 115,000 lbs 3 WOR 25 "
FastTrack Icon 400 TH80100HWO3T40 90,000 - 115,000 lbs 3 WOR 40 "
FastTrack Icon 400 TH80100HWO4T33.5 90,000 - 115,000 lbs 4 WOR 33.5 "
FastTrack Icon 400 TH80100HWO4T40 90,000 - 115,000 lbs 4 WOR 40 "
FastTrack Icon 400 TH80100HWO4T47 90,000 - 115,000 lbs 4 WOR 47 "

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
