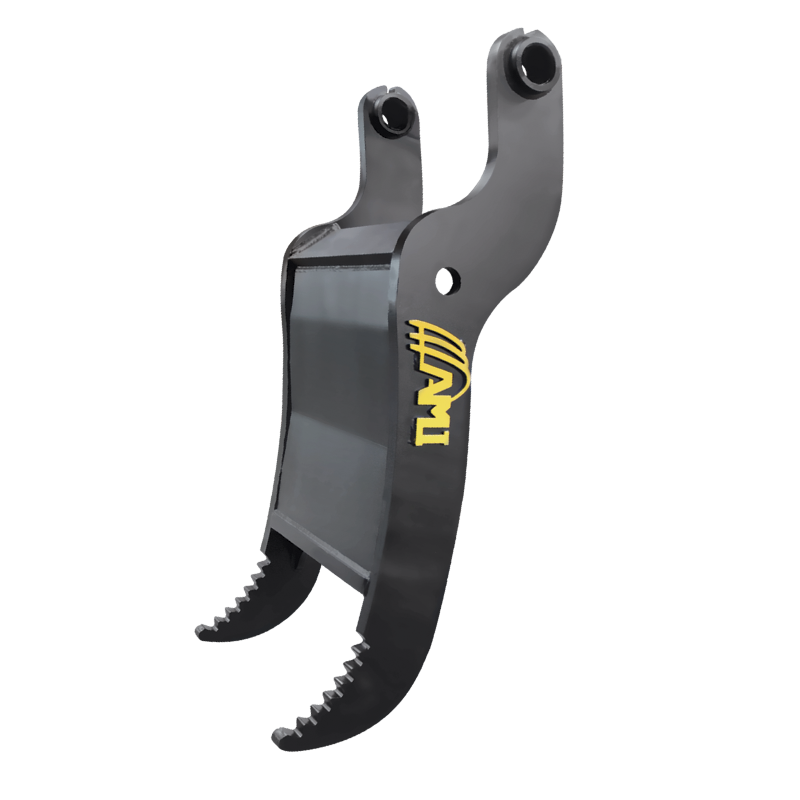

Stick Pivot Hydraulic Thumb
The AMI Hydraulic Stick Pivot Thumb provides great functionality to your excavator and backhoe. Stick Pivot means the thumb rotates on the same pivot point as the original bucket pin, not a secondary weld-on pivot point. The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating. Unlike thumbs that use a secondary weld-on pivot point, the AMI Stick Pivot eliminates scraping and slippage and reduces risk of release during rotation.

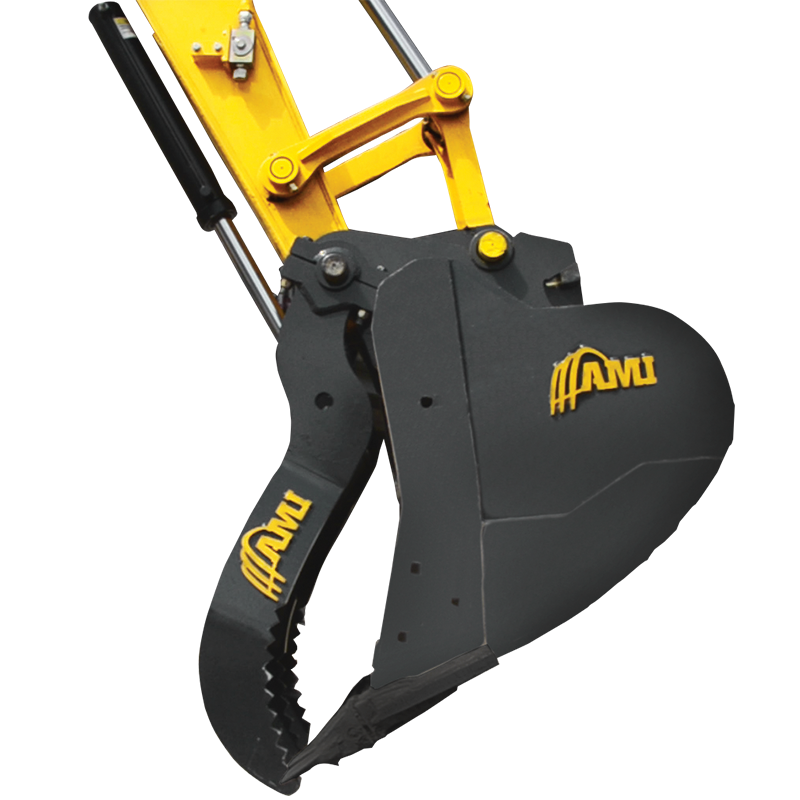

Bucket Pin Rotation Point
The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating.
Spherical Bushings
The hydraulic cylinder’s seals stay intact by allowing the thumb to naturally flex when handling awkward material without adding torsional stress to the seals.
Cushioning Cylinder
By restricting the flow of hydraulic oil at the end of the cylinder stroke, AMI thumbs retract smoothly without a hard stop. This reduces the wear and tear on the excavator and prevents machine shake, making it more comfortable for the operator.
SPECIFICATIONS - EXCAVATOR
| FastTrack | Category | Model | Machine Class | Tines | Weight | Width |
|---|---|---|---|---|---|---|
|
130 | TH2433HSP2T11 | 24,000 - 33,000 lbs | 2 | 580 lbs | 11 " |
|
|
130 | TH2433HSP2T15 | 24,000 - 33,000 lbs | 2 | 580 lbs | 15 " |
|
|
130 | TH2433HSP2T21.5 | 24,000 - 33,000 lbs | 2 | 580 lbs | 21.5 " |
|
|
130 | TH2433HSP2T26 | 24,000 - 33,000 lbs | 2 | 580 lbs | 26 " |
|
|
130 | TH2433HSP3T16 | 24,000 - 33,000 lbs | 3 | 600 lbs | 16 " |
|
|
130 | TH2433HSP3T21.5 | 24,000 - 33,000 lbs | 3 | 600 lbs | 21.5 " |
|
|
130 | TH2433HSP4T21.5 | 24,000 - 33,000 lbs | 4 | 620 lbs | 21.5 " |
|
|
130 | TH2433HSP4T26 | 24,000 - 33,000 lbs | 4 | 620 lbs | 26 " |
|
|
130 | TH2433HSP4T28 | 24,000 - 33,000 lbs | 4 | 620 lbs | 28 " |
|
|
130 | TH2433HSP4T32 | 24,000 - 33,000 lbs | 4 | 620 lbs | 32 " |
|
|
130 | TH2433HSP5T32 | 24,000 - 33,000 lbs | 5 | 650 lbs | 32 " |
|
|
130 | TH2433HSP5T38 | 24,000 - 33,000 lbs | 5 | 650 lbs | 38 " |
|
|
150 | TH3340HSP2T11 | 33,000 - 45,000 lbs | 2 | 800 lbs | 11 " |
|
|
150 | TH3340HSP2T16 | 33,000 - 45,000 lbs | 2 | 800 lbs | 16 " |
|
|
150 | TH3340HSP2T23.5 | 33,000 - 45,000 lbs | 2 | 800 lbs | 23.5 " |
|
|
150 | TH3340HSP2T26.5 | 33,000 - 45,000 lbs | 2 | 800 lbs | 26.5 " |
|
|
150 | TH3340HSP3T16 | 33,000 - 45,000 lbs | 3 | 800 lbs | 16 " |
|
|
150 | TH3340HSP3T23.5 | 33,000 - 45,000 lbs | 3 | 850 lbs | 23.5 " |
|
|
150 | TH3340HSP4T23.5 | 33,000 - 45,000 lbs | 4 | 900 lbs | 23.5 " |
|
|
150 | TH3340HSP4T26.5 | 33,000 - 45,000 lbs | 4 | 850 lbs | 26.5 " |
|
|
150 | TH3340HSP4T32 | 33,000 - 45,000 lbs | 4 | 850 lbs | 32 " |
|
|
150 | TH3340HSP5T32 | 33,000 - 45,000 lbs | 5 | 950 lbs | 32 " |
|
|
150 | TH3340HSP5T38 | 33,000 - 45,000 lbs | 5 | 950 lbs | 38 " |
|
|
200 | TH4045HSP2T11 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 11 " |
|
|
200 | TH4045HSP2T20 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 20 " |
|
|
200 | TH4045HSP2T24 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 24 " |
|
|
200 | TH4045HSP2T26.5 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 26.5 " |
|
|
200 | TH4045HSP2T28 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 28 " |
|
|
200 | TH4045HSP2T34 | 45,000 - 55,000 lbs | 2 | 1075 lbs | 34 " |
|
|
200 | TH4045HSP3T20 | 45,000 - 55,000 lbs | 3 | 1125 lbs | 20 " |
|
|
200 | TH4045HSP3T26.5 | 45,000 - 55,000 lbs | 3 | 1125 lbs | 26.5 " |
|
|
200 | TH4045HSP3T28 | 45,000 - 55,000 lbs | 3 | 1125 lbs | 28 " |
|
|
200 | TH4045HSP4T26.5 | 45,000 - 55,000 lbs | 4 | 1175 lbs | 26.5 " |
|
|
200 | TH4045HSP4T28 | 45,000 - 55,000 lbs | 4 | 1175 lbs | 28 " |
|
|
200 | TH4045HSP4T34 | 45,000 - 55,000 lbs | 4 | 1175 lbs | 34 " |
|
|
200 | TH4045HSP4T38 | 45,000 - 55,000 lbs | 4 | 1175 lbs | 38 " |
|
|
200 | TH4045HSP5T34 | 45,000 - 55,000 lbs | 5 | 1200 lbs | 34 " |
|
|
200 | TH4045HSP5T38 | 45,000 - 55,000 lbs | 5 | 1200 lbs | 38 " |
|
|
250 | TH4560HSP2T20 | 55,000 - 65,000 lbs | 2 | 1100 lbs | 20 " |
|
|
250 | TH4560HSP2T24 | 55,000 - 65,000 lbs | 2 | 1100 lbs | 24 " |
|
|
250 | TH4560HSP2T30 | 55,000 - 65,000 lbs | 2 | 1100 lbs | 30 " |
|
|
250 | TH4560HSP2T35 | 55,000 - 65,000 lbs | 2 | 1100 lbs | 35 " |
|
|
250 | TH4560HSP3T20 | 55,000 - 65,000 lbs | 3 | 1200 lbs | 20 " |
|
|
250 | TH4560HSP3T24 | 55,000 - 65,000 lbs | 3 | 1200 lbs | 24 " |
|
|
250 | TH4560HSP3T30 | 55,000 - 65,000 lbs | 3 | 1200 lbs | 30 " |
|
|
250 | TH4560HSP3T35 | 55,000 - 65,000 lbs | 3 | 1200 lbs | 35 " |
|
|
250 | TH4560HSP4T24 | 55,000 - 65,000 lbs | 4 | 1300 lbs | 24 " |
|
|
250 | TH4560HSP4T30 | 55,000 - 65,000 lbs | 4 | 1300 lbs | 30 " |
|
|
250 | TH4560HSP4T35 | 55,000 - 65,000 lbs | 4 | 1300 lbs | 35 " |
|
|
250 | TH4560HSP4T38 | 55,000 - 65,000 lbs | 4 | 1300 lbs | 38 " |
|
|
250 | TH4560HSP5T38 | 55,000 - 65,000 lbs | 5 | 1400 lbs | 38 " |
|
|
250 | TH4560HSP5T42 | 55,000 - 65,000 lbs | 5 | 1400 lbs | 42 " |
|
|
250 | TH4560HSP5T48 | 55,000 - 65,000 lbs | 5 | 1400 lbs | 48 " |
|
|
300 | TH6080HSP2T22 | 65,000 - 90,000 lbs | 2 | 1530 lbs | 22 " |
|
|
300 | TH6080HSP2T26 | 65,000 - 90,000 lbs | 2 | 1530 lbs | 25 " |
|
|
300 | TH6080HSP2T32.5 | 65,000 - 90,000 lbs | 2 | 1530 lbs | 32.5 " |
|
|
300 | TH6080HSP2T36 | 65,000 - 90,000 lbs | 2 | 1530 lbs | 36 " |
|
|
300 | TH6080HSP2T40 | 65,000 - 90,000 lbs | 2 | 1530 lbs | 40 " |
|
|
300 | TH6080HSP3T22 | 65,000 - 90,000 lbs | 3 | 1600 lbs | 22 " |
|
|
300 | TH6080HSP3T26 | 65,000 - 90,000 lbs | 3 | 1600 lbs | 26 " |
|
|
300 | TH6080HSP3T32.5 | 65,000 - 90,000 lbs | 3 | 1600 lbs | 32.5 " |
|
|
300 | TH6080HSP3T36 | 65,000 - 90,000 lbs | 3 | 1600 lbs | 36 " |
|
|
300 | TH6080HSP4T26 | 65,000 - 90,000 lbs | 4 | 1680 lbs | 26 " |
|
|
300 | TH6080HSP4T32.5 | 65,000 - 90,000 lbs | 4 | 1680 lbs | 32.5 " |
|
|
300 | TH6080HSP4T36 | 65,000 - 90,000 lbs | 4 | 1680 lbs | 36 " |
|
|
300 | TH6080HSP4T40 | 65,000 - 90,000 lbs | 4 | 1680 lbs | 40 " |
|
|
300 | TH6080HSP5T45 | 65,000 - 90,000 lbs | 5 | 1770 lbs | 44 " |
|
|
300 | TH6080HSP5T50 | 65,000 - 90,000 lbs | 5 | 1770 lbs | 50 " |
|
|
300 | TH6080HSP5T55 | 65,000 - 90,000 lbs | 5 | 1770 lbs | 55 " |
|
|
400 | TH80100HSP2T24 | 90,000 - 115,000 lbs | 2 | 2840 lbs | 23 " |
|
|
400 | TH80100HSP2T26 | 90,000 - 115,000 lbs | 2 | 2840 lbs | 26 " |
|
|
400 | TH80100HSP2T33.5 | 90,000 - 115,000 lbs | 2 | 2840 lbs | 33.5 " |
|
|
400 | TH80100HSP2T40 | 90,000 - 115,000 lbs | 2 | 2840 lbs | 40 " |
|
|
400 | TH80100HSP2T45 | 90,000 - 115,000 lbs | 2 | 2840 lbs | 45 " |
|
|
400 | TH80100HSP3T24 | 90,000 - 115,000 lbs | 4 | 2930 lbs | 24 " |
|
|
400 | TH80100HSP3T26 | 90,000 - 115,000 lbs | 3 | 2930 lbs | 26 " |
|
|
400 | TH80100HSP3T40 | 90,000 - 115,000 lbs | 3 | 2930 lbs | 40 " |
|
|
400 | TH80100HSP4T33.5 | 90,000 - 115,000 lbs | 4 | 2980 lbs | 33.5 " |
|
|
400 | TH80100HSP4T40 | 90,000 - 115,000 lbs | 4 | 2980 lbs | 40 " |
|
|
400 | TH80100HSP4T45 | 90,000 - 115,000 lbs | 4 | 2980 lbs | 40 " |
|
|
400 | TH80100HSP4T47 | 90,000 - 115,000 lbs | 4 | 2980 lbs | 47 " |
|
|
400 | TH80100HSP5T40 | 90,000 - 115,000 lbs | 5 | 3035 lbs | 39 " |
|
|
400 | TH80100HSP5T47 | 90,000 - 115,000 lbs | 4 | 3035 lbs | 47 " |
|
|
400 | TH80100HSP5T55 | 90,000 - 115,000 lbs | 5 | 3035 lbs | 54 " |
|
|
650 | TH120140HSP2T43 | 120,000 - 140,000 lbs. | 2 | 4250 lbs | 43 " |
|
|
650 | TH120140HSP3T43 | 120,000 - 140,000 lbs. | 3 | 4350 lbs | 43 " |
|
|
650 | TH120140HSP4T43 | 120,000 - 140,000 lbs. | 4 | 4450 lbs | 43 " |
|
|
650 | TH120140HSP5T43 | 120,000 - 140,000 lbs. | 5 | 4500 lbs | 43 " |
|
|
750 | TH140160HSP2T52 | 140,000 - 160,000 lbs. | 2 | WOR | 52 " |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
