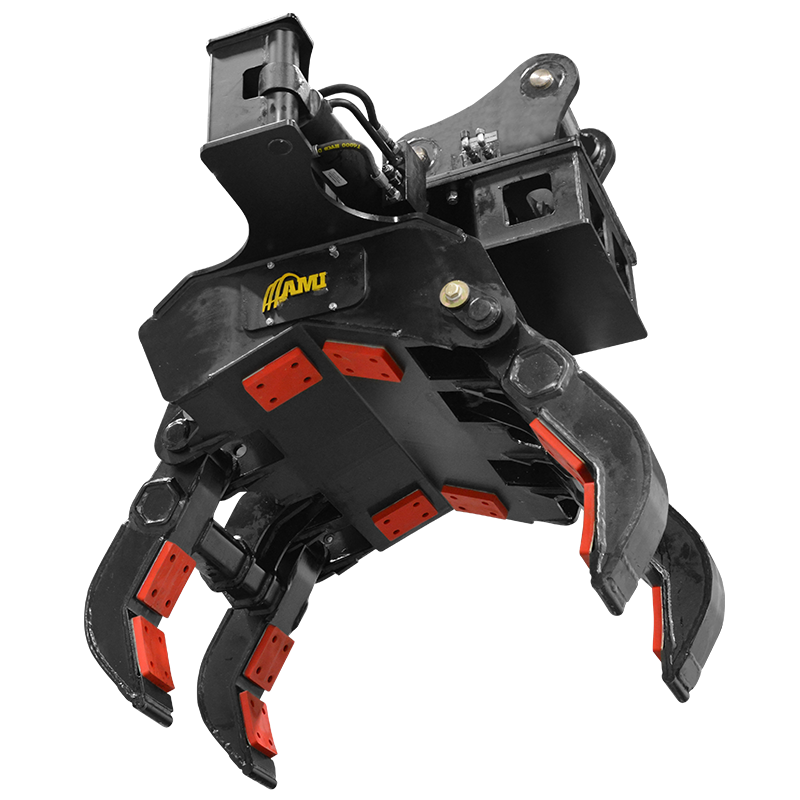

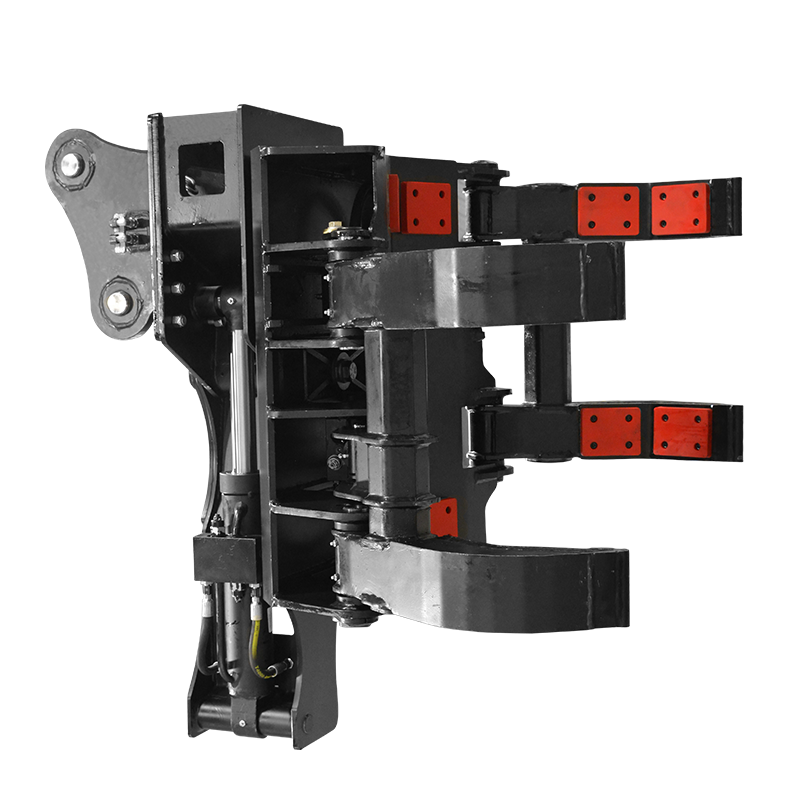

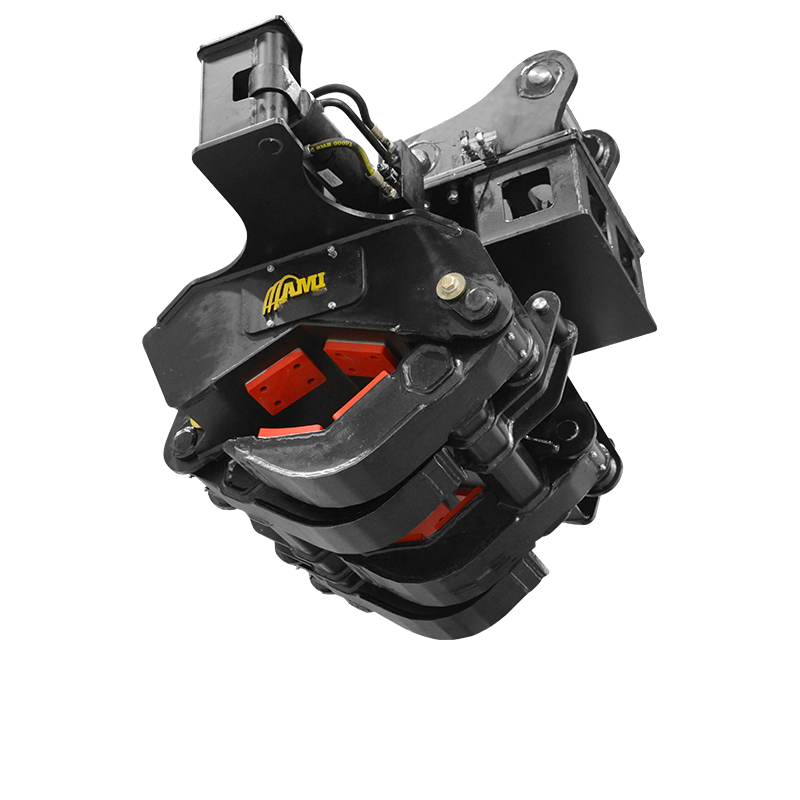

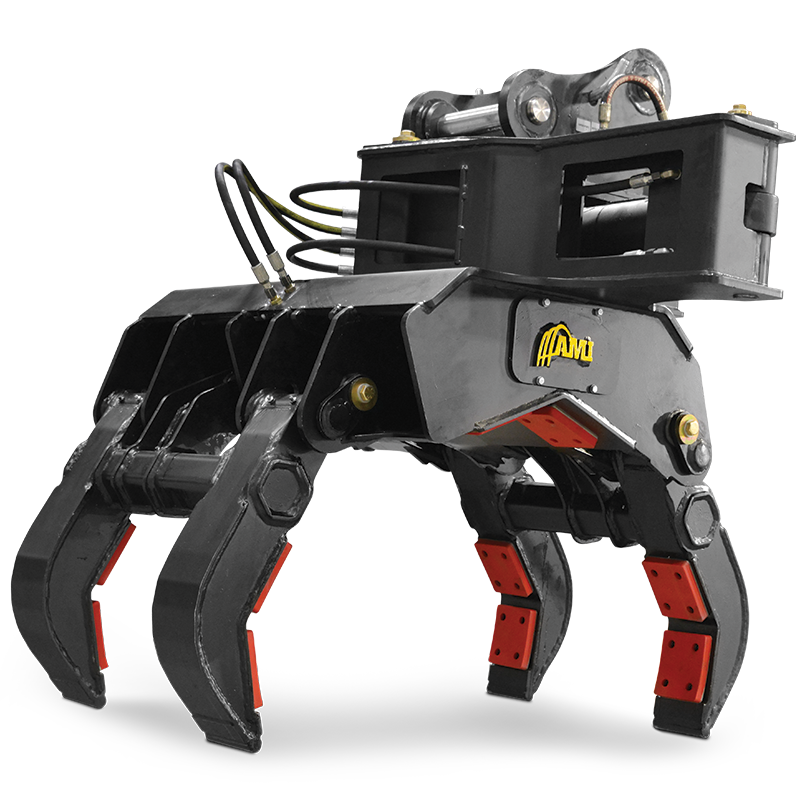

Pole Setter Grapple

Ideal for utility applications, the AMI Pole Setter Grapple is designed to clamp and pick up a variety of pole sizes horizontally on the ground, rotate them vertically, and position them easily and precisely into their holes. This excavator attachment features a rotating cylinder, 110 degrees of rotation, and incorporates wear pads on the arms to protect the poles from damage.

SPECIFICATIONS - EXCAVATOR

FastTrack Category Model Machine Class Weight Rotation
130 GR2433RPS110 24,000 - 33,000 lbs 1475 lbs 110
150 GR3340RPS180 33,000 - 45,000 lbs WOR 180
200 GR4045RPS180 45,000 - 55,000 lbs WOR 180
250 GR4560RPS180 55,000 - 65,000 lbs WOR 180
300 GR6080RPS180 65,000 - 90,000 lbs WOR 180

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
