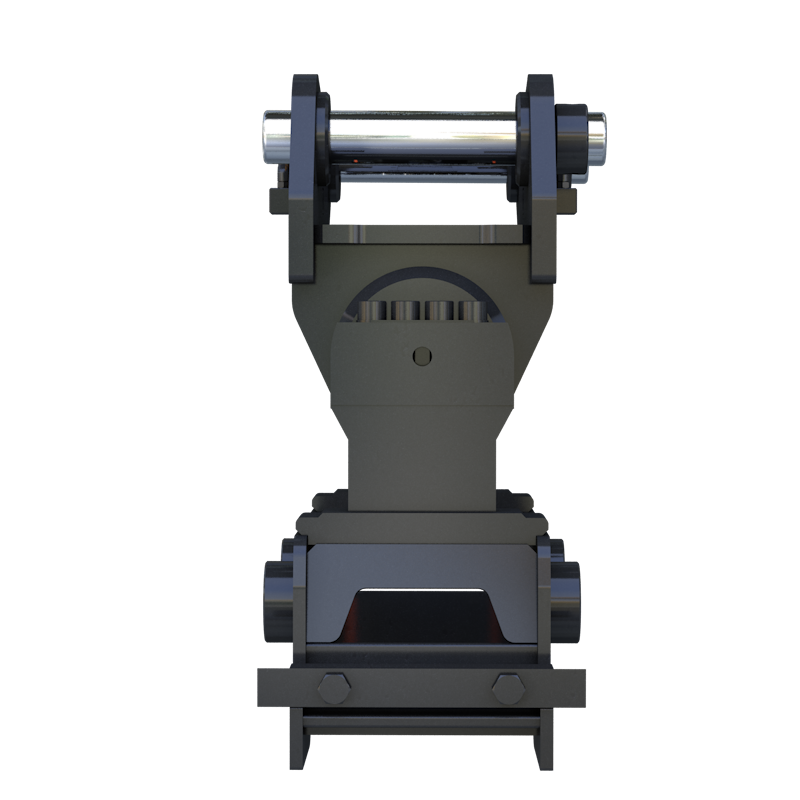

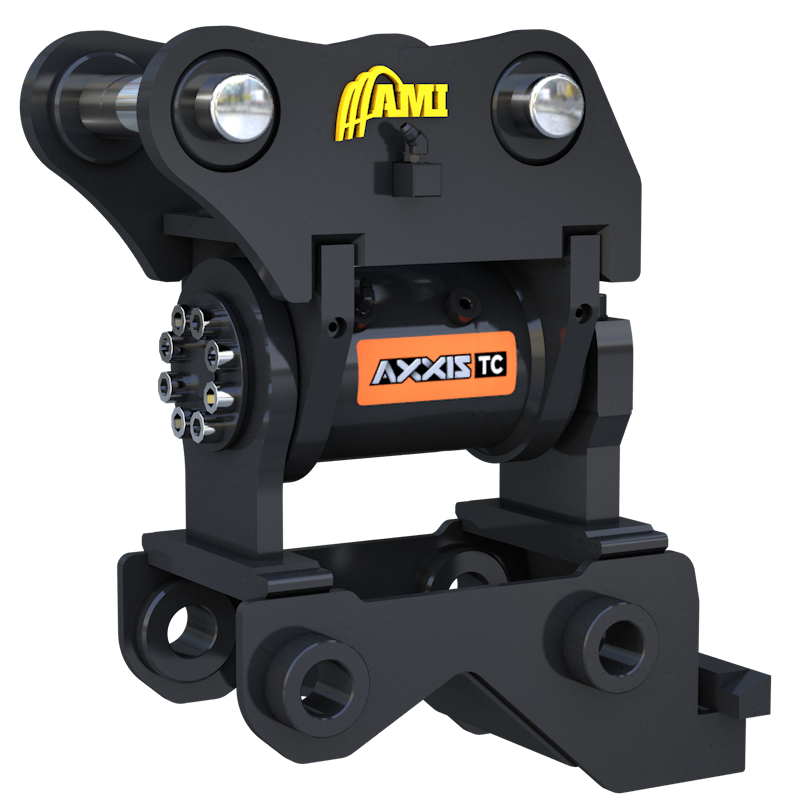

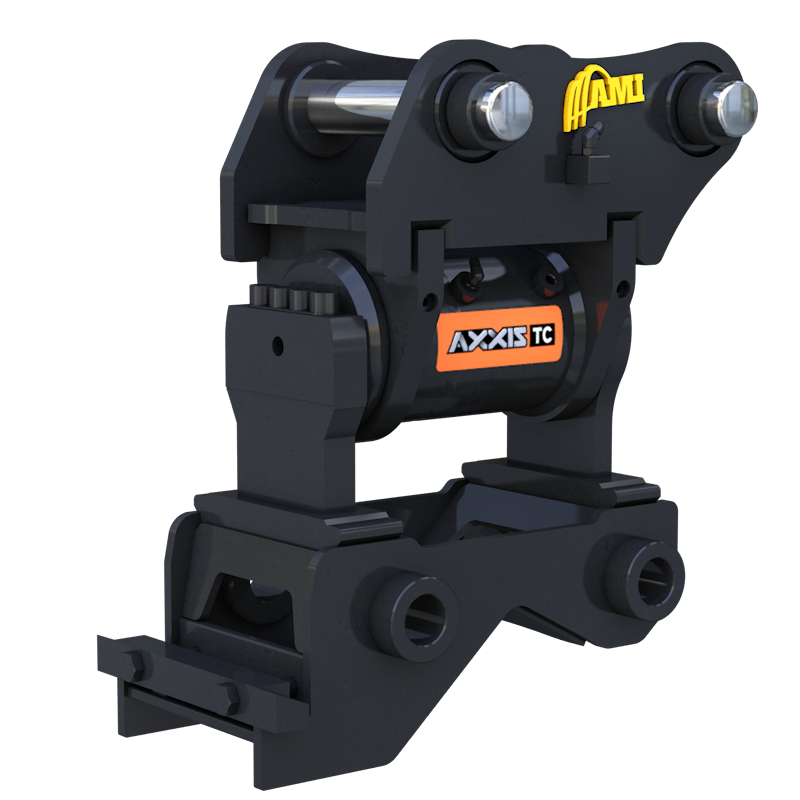

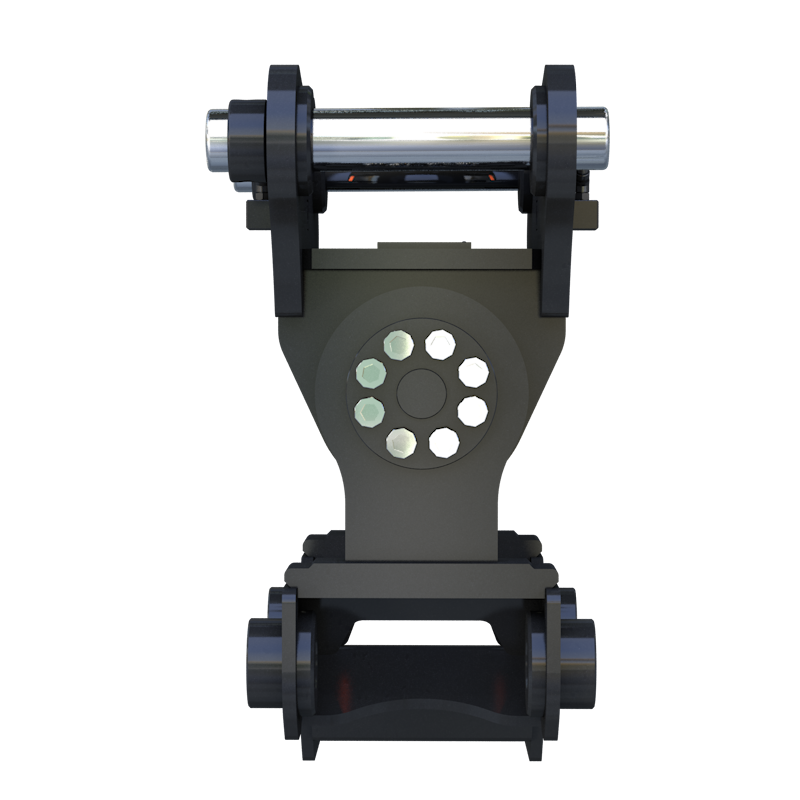

PowerTilt Mechanical Wedge Coupler
The AMI Axxis PowerTilt Mechanical Wedge Coupler provides greater versatility with 180 degrees of rotation on 25-70 series excavators, and 120-degrees on 130-400 series excavators. This coupler is an ideal performer for sloped trenching, excavating around foundations and sidewalks, as well as ditch cleaning. Offering the same features as a standard AMI coupler, the Axxis PowerTilt Mechanical Wedge Coupler requires one set of bi-directional auxiliary hydraulics to operate the tilt function.
PRODUCT FEATURES
Up to 180° Tilt Range
Instead of moving your entire machine, the PowerTilt allows bucket or attachment tilting up to 180°.
Simplified Coupler Hose Routing
Compact and minimal hydraulic flow design protect the few hoses required for both tilt and coupling functions. Steel lines and internal routing eliminate exposed external hoses.
HARDENED STEEL SEALS AND BEARING SURFACES
Thrust and radial bearing surfaces for the PowerTilt Coupler are hardened steel on hardened steel, eliminating the need for bearing replacement. This also leads to longer coupler life and reduced cost of ownership.
Featured Videos
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Description | Weight |
|---|---|---|---|---|---|
| 130 | PT2433W | 24,000 - 33,000 lbs | PowerTilt Mechanical Wedge Coupler | 650 lbs | |
| 150 | PT3340W | 33,000 - 45,000 lbs | PowerTilt Mechanical Wedge Coupler | 695 lbs | |
| 200 | PT4045W | 45,000 - 55,000 lbs | PowerTilt Mechanical Wedge Coupler | 1010 lbs | |
| 250 | PT4560W | 55,000 - 65,000 lbs | PowerTilt Mechanical Wedge Coupler | 1325 lbs | |
| 300 | PT6080W | 65,000 - 90,000 lbs | PowerTilt Mechanical Wedge Coupler | 1715 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
