Progressive Link Hydraulic Thumb

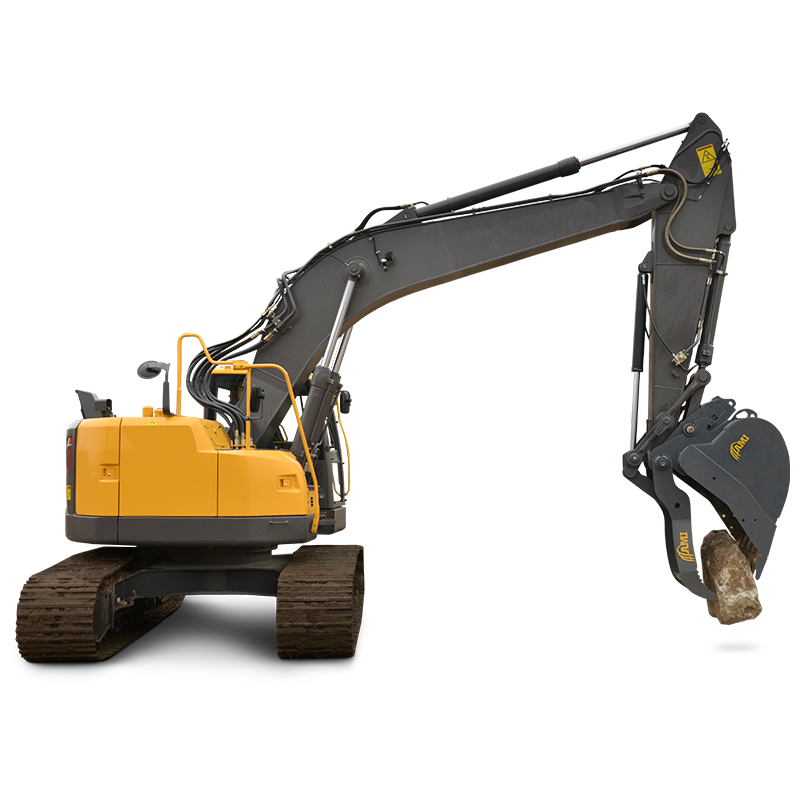

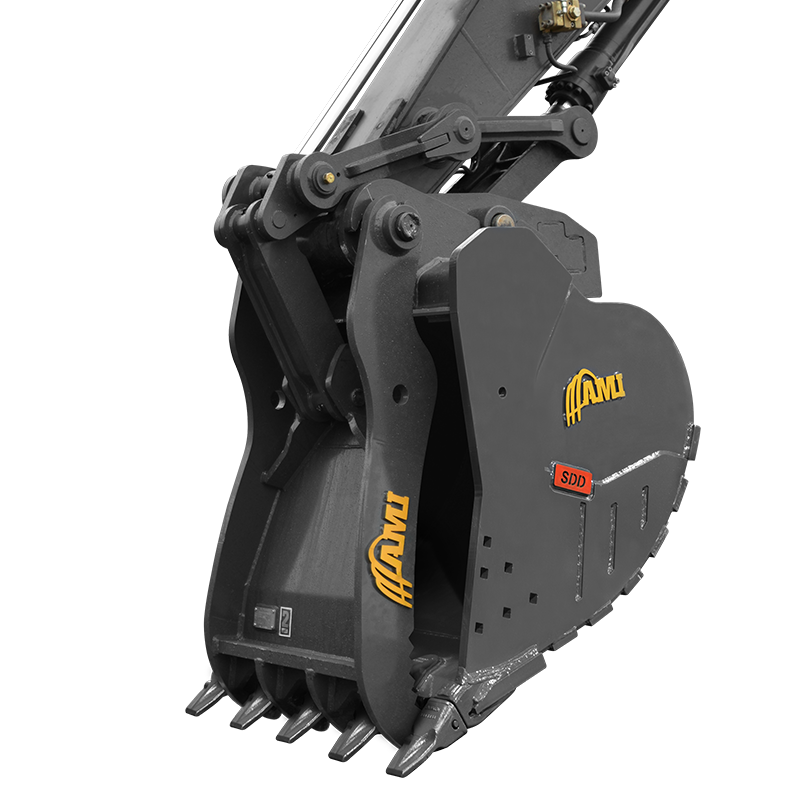

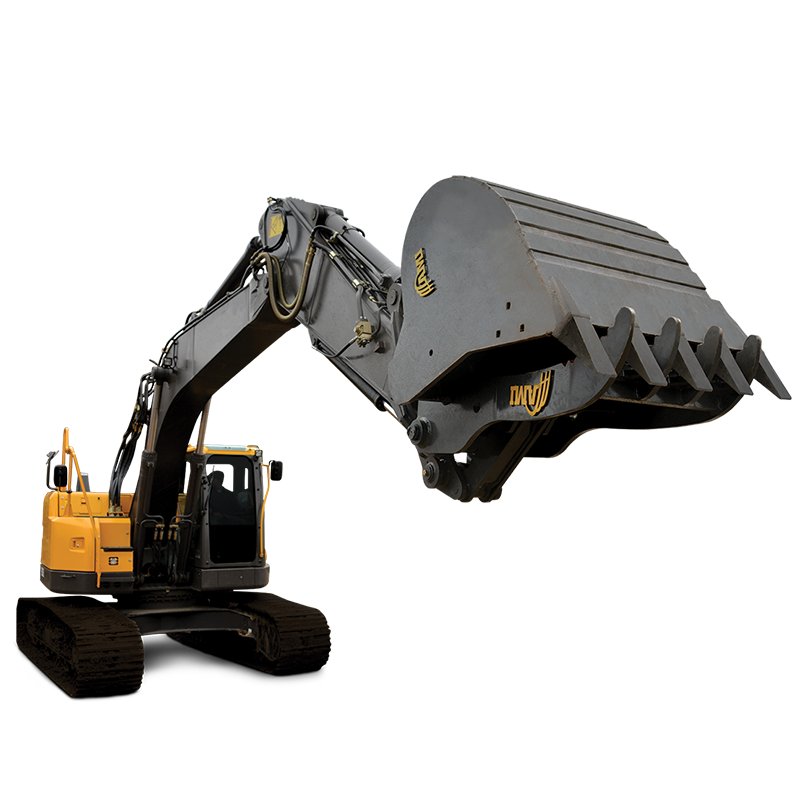

AMI’s Progressive Link Thumb provides more constant pressure throughout the entire cylinder range. The thumb achieves more than 180 degree rotation which makes it easy to reach and pick up objects that are close to your excavator. The extra linkage expands the thumb’s reach across the bucket’s entire rotation, including at full roll out. This provides superior material handling, which improves machine productivity.

Specifications - Excavator

FastTrack Category Model Machine Class Tines Weight Width
FastTrack Icon 130 TH2433PL2T16 24,000 - 33,000 lbs 2 860 lbs 16 "
FastTrack Icon 130 TH2433PL2T21.5 24,000 - 33,000 lbs 2 860 lbs 21.5 "
FastTrack Icon 130 TH2433PL2T26 24,000 - 33,000 lbs 2 980 lbs 26 "
FastTrack Icon 130 TH2433PL3T16 24,000 - 33,000 lbs 3 890 lbs 16 "
FastTrack Icon 130 TH2433PL3T21.5 24,000 - 33,000 lbs 3 890 lbs 21.5 "
FastTrack Icon 130 TH2433PL4T21.5 24,000 - 33,000 lbs 4 980 lbs 21.5 "
FastTrack Icon 130 TH2433PL4T26 24,000 - 33,000 lbs 4 980 lbs 26 "
FastTrack Icon 130 TH2433PL4T32 24,000 - 33,000 lbs 4 980 lbs 32 "
FastTrack Icon 130 TH2433PL5T32 24,000 - 33,000 lbs 5 970 lbs 32 "
FastTrack Icon 130 TH2433PL5T38 24,000 - 33,000 lbs 5 970 lbs 38 "
FastTrack Icon 150 TH3340PL2T16 33,000 - 45,000 lbs 2 1250 lbs 16 "
FastTrack Icon 150 TH3340PL2T23.5 33,000 - 45,000 lbs 2 1250 lbs 23.5 "
FastTrack Icon 150 TH3340PL2T26.5 33,000 - 45,000 lbs 2 1250 lbs 26.5 "
FastTrack Icon 150 TH3340PL2T32 33,000 - 45,000 lbs 2 1250 lbs 32 "
FastTrack Icon 150 TH3340PL3T16 33,000 - 45,000 lbs 3 1300 lbs 16 "
FastTrack Icon 150 TH3340PL3T23.5 33,000 - 45,000 lbs 3 1300 lbs 23.5 "
FastTrack Icon 150 TH3340PL3T26.5 33,000 - 45,000 lbs 3 1300 lbs 26.5 "
FastTrack Icon 150 TH3340PL4T23.5 33,000 - 45,000 lbs 4 1350 lbs 23.5 "
FastTrack Icon 150 TH3340PL4T26.5 33,000 - 45,000 lbs 4 1350 lbs 26.5 "
FastTrack Icon 150 TH3340PL4T32 33,000 - 45,000 lbs 4 1400 lbs 32 "
FastTrack Icon 150 TH3340PL5T32 33,000 - 45,000 lbs 5 1400 lbs 32 "
FastTrack Icon 150 TH3340PL5T38 33,000 - 45,000 lbs 5 1400 lbs 36 "
FastTrack Icon 200 TH4045PL2T20 45,000 - 55,000 lbs 2 1400 lbs 20 "
FastTrack Icon 200 TH4045PL2T24 45,000 - 55,000 lbs 2 1400 lbs 24 "
FastTrack Icon 200 TH4045PL2T26.5 45,000 - 55,000 lbs 2 1400 lbs 26.5 "
FastTrack Icon 200 TH4045PL2T30 45,000 - 55,000 lbs 2 1400 lbs 30 "
FastTrack Icon 200 TH4045PL2T34 45,000 - 55,000 lbs 2 1400 lbs 34 "
FastTrack Icon 200 TH4045PL3T20 45,000 - 55,000 lbs 3 1450 lbs 20 "
FastTrack Icon 200 TH4045PL3T26.5 45,000 - 55,000 lbs 3 1450 lbs 26.5 "
FastTrack Icon 200 TH4045PL3T30 45,000 - 55,000 lbs 3 1450 lbs 30 "
FastTrack Icon 200 TH4045PL4T26.5 45,000 - 55,000 lbs 4 1500 lbs 26.5 "
FastTrack Icon 200 TH4045PL4T30 45,000 - 55,000 lbs 4 1500 lbs 30 "
FastTrack Icon 200 TH4045PL4T38 45,000 - 55,000 lbs 4 1500 lbs 38 "
FastTrack Icon 200 TH4045PL5T34 45,000 - 55,000 lbs 5 1550 lbs 34 "
FastTrack Icon 200 TH4045PL5T38 45,000 - 55,000 lbs 5 1550 lbs 38 "
FastTrack Icon 250 TH4560PL2T20 55,000 - 65,000 lbs 2 1650 lbs 20 "
FastTrack Icon 250 TH4560PL2T24 55,000 - 65,000 lbs 2 1650 lbs 24 "
FastTrack Icon 250 TH4560PL2T30 55,000 - 65,000 lbs 2 1650 lbs 30 "
FastTrack Icon 250 TH4560PL2T35 55,000 - 65,000 lbs 2 1650 lbs 35 "
FastTrack Icon 250 TH4560PL3T20 55,000 - 65,000 lbs 3 1680 lbs 19 "
FastTrack Icon 250 TH4560PL3T24 55,000 - 65,000 lbs 3 1680 lbs 24 "
FastTrack Icon 250 TH4560PL3T30 55,000 - 65,000 lbs 3 1680 lbs 30 "
FastTrack Icon 250 TH4560PL4T24 55,000 - 65,000 lbs 4 1760 lbs 24 "
FastTrack Icon 250 TH4560PL4T30 55,000 - 65,000 lbs 4 1760 lbs 30 "
FastTrack Icon 250 TH4560PL4T35 55,000 - 65,000 lbs 4 1760 lbs 35 "
FastTrack Icon 250 TH4560PL5T38 55,000 - 65,000 lbs 5 1850 lbs 38 "
FastTrack Icon 250 TH4560PL5T42 55,000 - 65,000 lbs 5 1850 lbs 42 "
FastTrack Icon 250 TH4560PL5T48 55,000 - 65,000 lbs 5 1850 lbs 48 "
FastTrack Icon 300 TH6080PL2T22 65,000 - 90,000 lbs 2 2400 lbs 22 "
FastTrack Icon 300 TH6080PL2T26 65,000 - 90,000 lbs 2 2399 lbs 26 "
FastTrack Icon 300 TH6080PL2T32.5 65,000 - 90,000 lbs 2 2400 lbs 32.5 "
FastTrack Icon 300 TH6080PL2T36 65,000 - 90,000 lbs 2 2400 lbs 36 "
FastTrack Icon 300 TH6080PL2T40 65,000 - 90,000 lbs 2 2400 lbs 40 "
FastTrack Icon 300 TH6080PL3T26 65,000 - 90,000 lbs 3 2479 lbs 26 "
FastTrack Icon 300 TH6080PL3T32.5 65,000 - 90,000 lbs 3 2480 lbs 31 "
FastTrack Icon 300 TH6080PL3T36 65,000 - 90,000 lbs 3 2480 lbs 36 "
FastTrack Icon 300 TH6080PL4T26 65,000 - 90,000 lbs 4 2540 lbs 26 "
FastTrack Icon 300 TH6080PL4T32.5 65,000 - 90,000 lbs 4 2540 lbs 32.5 "
FastTrack Icon 300 TH6080PL4T36 65,000 - 90,000 lbs 4 2540 lbs 36 "
FastTrack Icon 300 TH6080PL4T40 65,000 - 90,000 lbs 4 2540 lbs 40 "
FastTrack Icon 300 TH6080PL5T45 65,000 - 90,000 lbs 5 2600 lbs 45 "
FastTrack Icon 300 TH6080PL5T50 65,000 - 90,000 lbs 5 2600 lbs 50 "
FastTrack Icon 300 TH6080PL5T55 65,000 - 90,000 lbs 5 2600 lbs 53 "
FastTrack Icon 400 TH80100PL2T24 90,000 - 115,000 lbs 2 3599 lbs 24 "
FastTrack Icon 400 TH80100PL2T26 90,000 - 115,000 lbs 2 3600 lbs 26 "
FastTrack Icon 400 TH80100PL2T33.5 90,000 - 115,000 lbs 2 3600 lbs 33.5 "
FastTrack Icon 400 TH80100PL2T40 90,000 - 115,000 lbs 2 3600 lbs 40 "
FastTrack Icon 400 TH80100PL3T24 90,000 - 115,000 lbs 3 3680 lbs 24 "
FastTrack Icon 400 TH80100PL3T26 90,000 - 115,000 lbs 3 3680 lbs 26 "
FastTrack Icon 400 TH80100PL3T33.5 90,000 - 115,000 lbs 3 3680 lbs 33.5 "
FastTrack Icon 400 TH80100PL3T40 90,000 - 115,000 lbs 3 3750 lbs 40 "
FastTrack Icon 400 TH80100PL4T33.5 90,000 - 115,000 lbs 4 3750 lbs 33.5 "
FastTrack Icon 400 TH80100PL4T40 90,000 - 115,000 lbs 4 3750 lbs 39 "
FastTrack Icon 400 TH80100PL4T47 90,000 - 115,000 lbs 4 3750 lbs 47 "
FastTrack Icon 400 TH80100PL5T40 90,000 - 115,000 lbs 5 3820 lbs 40 "
FastTrack Icon 400 TH80100PL5T47 90,000 - 115,000 lbs 5 3820 lbs 46 "
FastTrack Icon 400 TH80100PL5T55 90,000 - 115,000 lbs 5 3820 lbs 54 "

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
