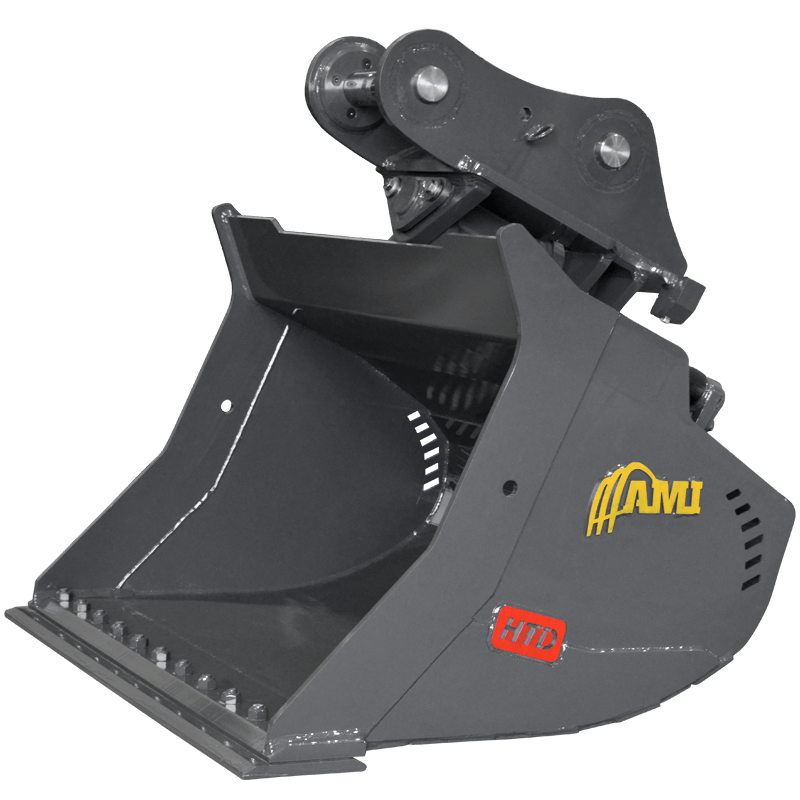

Hydraulic Tilt Ditch Cleaning Bucket

The new design of the Hydraulic Tilt Ditch Cleaning Bucket features a flatter profile, open heel and bigger radius for level grading on uneven terrain. With the versatility of a 45 degree tilt range on each side, you achieve smooth tilting action for an easy, clean finish. Designed specifically to reach those awkward spots with less repositioning of your excavator, the AMI Hydraulic Tilt Ditch Cleaning Bucket allows for level grading on uneven ground, provides a smooth tilting action and is designed to fit tightly when curled up. The bottom reversible cutting edge adds longevity and provides easy in-field maintenance.

Product Features


90 Degree Rotation


Crossover Plumbing


Tapered Design


Dual Radius Design


Serrated Edge Available

Specifications - Excavator

FastTrack Category Model Machine Class Width Capacity Weight
FastTrack Icon 130 HTD2433E54 24,000 - 33,000 lbs 54 " 0.542 yd³ 1410 lbs
FastTrack Icon 130 HTD2433E60 24,000 - 33,000 lbs 60 " 0.625 yd³ 1505 lbs
150 HTD3340E54 33,000 - 45,000 lbs 54 " 0.688 yd³ 1690 lbs
FastTrack Icon 150 HTD3340E60 33,000 - 45,000 lbs 60 " 0.750 yd³ 1790 lbs
FastTrack Icon 200 HTD4045E60 45,000 - 55,000 lbs 60 " 1.095 yd³ 2445 lbs
FastTrack Icon 200 HTD4045E66 45,000 - 55,000 lbs 66 " 1.220 yd³ 2570 lbs
FastTrack Icon 200 HTD4045E72 45,000 - 55,000 lbs 72 " 1.345 yd³ 2710 lbs
FastTrack Icon 250 HTD4560E66 55,000 - 65,000 lbs 66 " 1.575 yd³ 3090 lbs
FastTrack Icon 250 HTD4560E72 55,000 - 65,000 lbs 72 " 1.735 yd³ 3340 lbs
300 HTD6080E66 65,000 - 90,000 lbs 66 " 1.825 yd³ 4075 lbs
FastTrack Icon 300 HTD6080E72 65,000 - 90,000 lbs 72 " 2.015 yd³ 4430 lbs
300 HTD6080E84 65,000 - 90,000 lbs 84 " 2.390 yd³ 4880 lbs
400 HTD80100E72 90,000 - 115,000 lbs 72 " 2.445 yd³ 5700 lbs
400 HTD80100E78 90,000 - 115,000 lbs 78 " 2.660 yd³ 5935 lbs
400 HTD80100E84 90,000 - 115,000 lbs 84 " 2.880 yd³ 6170 lbs

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
