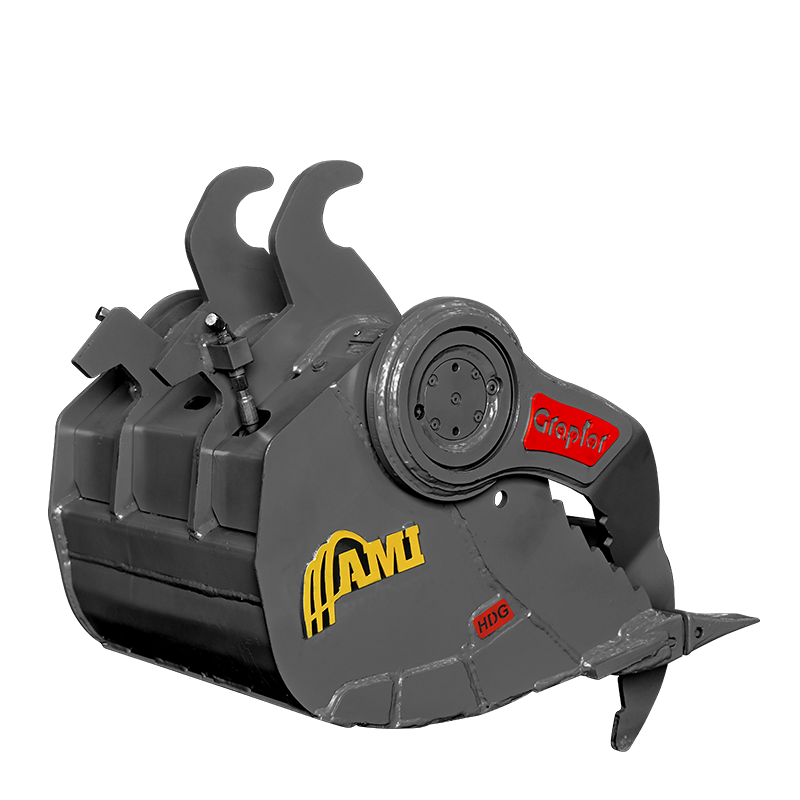

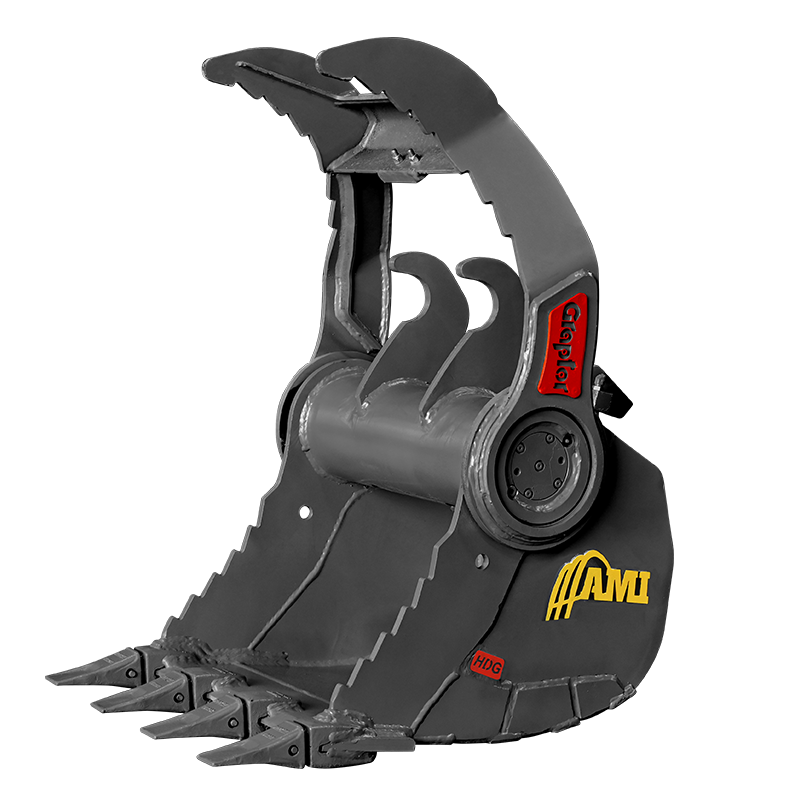

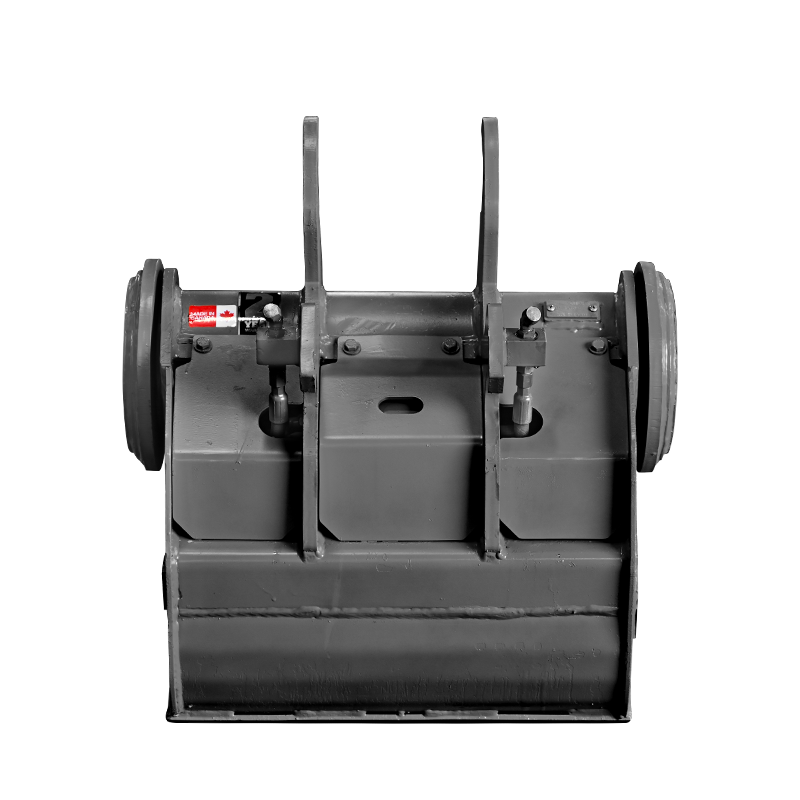

Graptor Bucket

When you need to pick up large, heavy objects, grab bucketfuls of debris or demolish a building, get a tighter grip on productivity with AMI’s Graptor Bucket. Powered by a helical actuator, the Graptor Bucket features incredible holding strength. The built-in rotary actuated thumb gives operators improved flexibility and precision by maintaining constant grip on the load throughout the bucket’s entire rotation. Neatly integrated into the top crossbar of the Graptor, the actuator produces up to 54,000 foot-pounds of holding strength at 3,000 psi – putting out the most torque in the most compact design - making the Graptor a powerful tool that keeps a tight handle on heavy, bulky loads.

Product Features


Helical Actuator


Constant Grip


Heavy Duty Construction


Enclosed Hydraulics

Specifications - Compact Excavator

FastTrack Category Model Machine Class Width Capacity (Cu. Ft.) Teeth Grapple Tines
35 GRHD0610E24 6,000 - 10,000 lbs. 24'' 3.500 5 4
50 GRHD1012E24 10,000 - 12,000 lbs 24'' 4.505 5 4
60 GRHD1214E24 12,000 - 14,000 lbs 24'' 8.000 5 4
75 GRHD1416E24 14,000 - 24,000 lbs 24'' 7.830 4 3
75 GRHD1416E30 14,000 - 24,000 lbs 30'' 10.476 5 4

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
