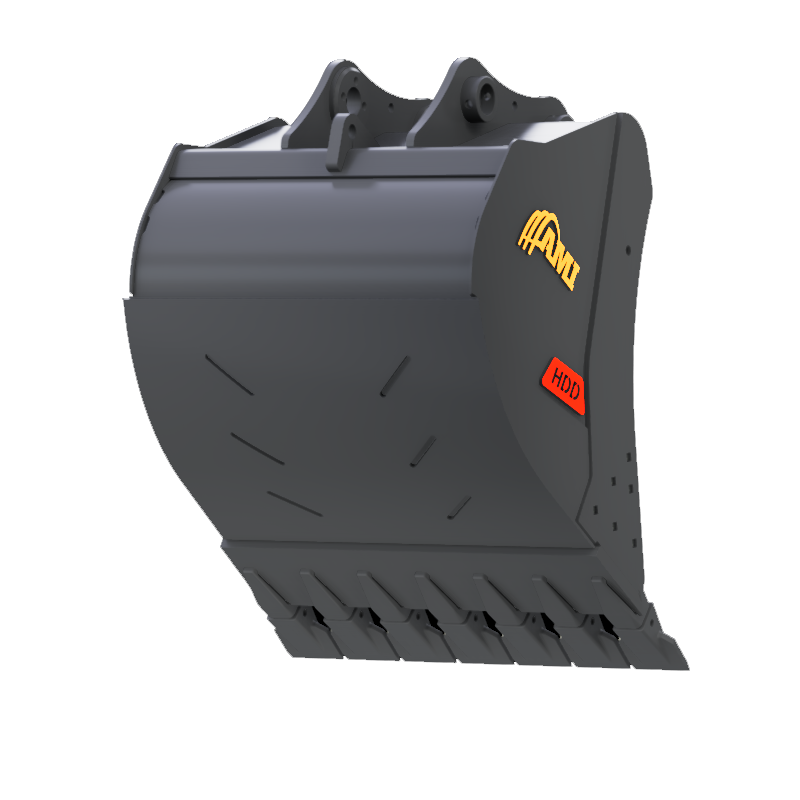

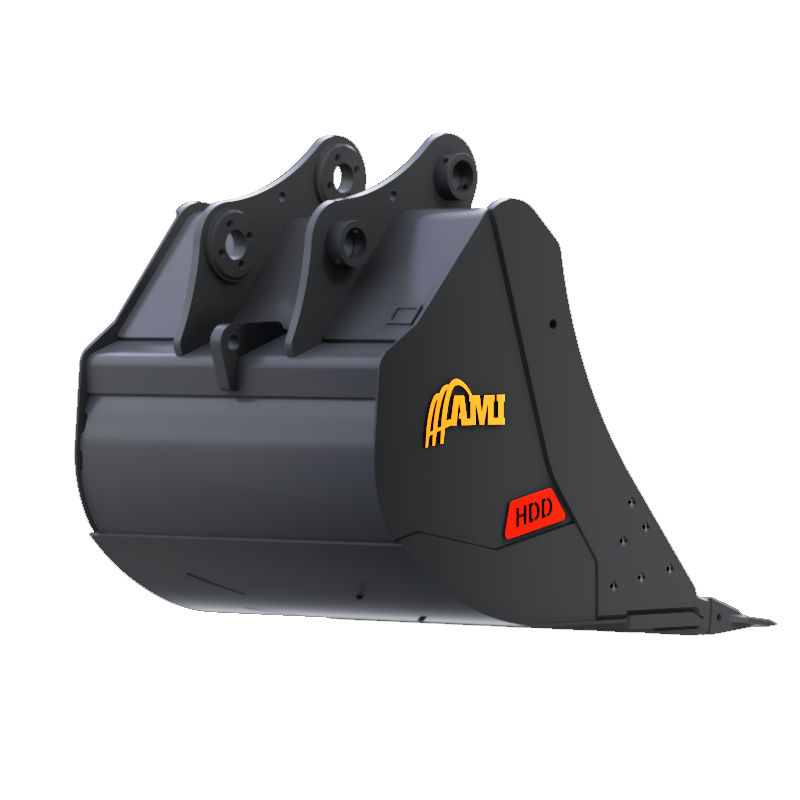

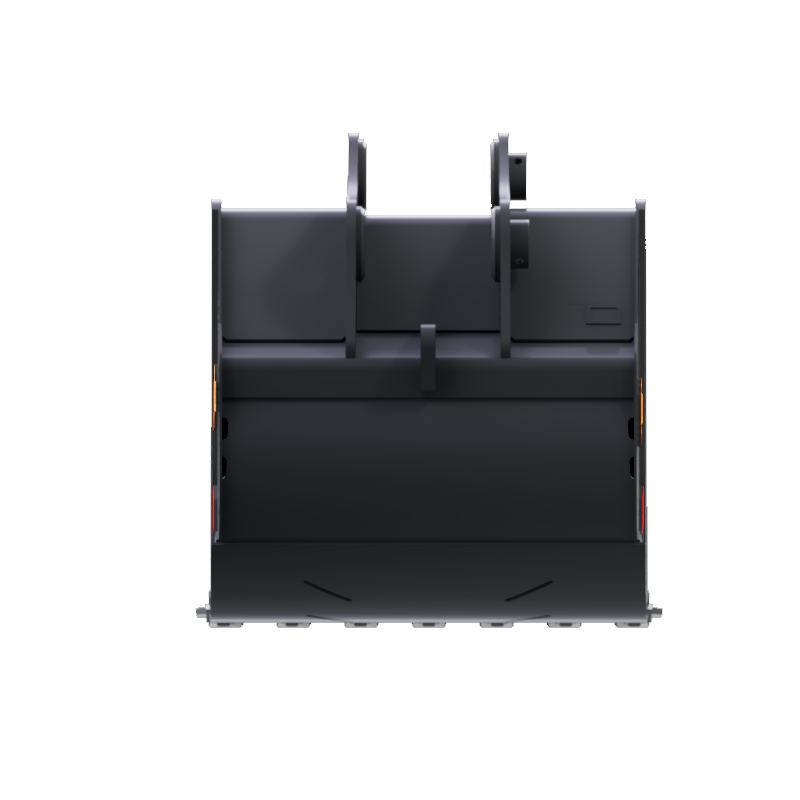

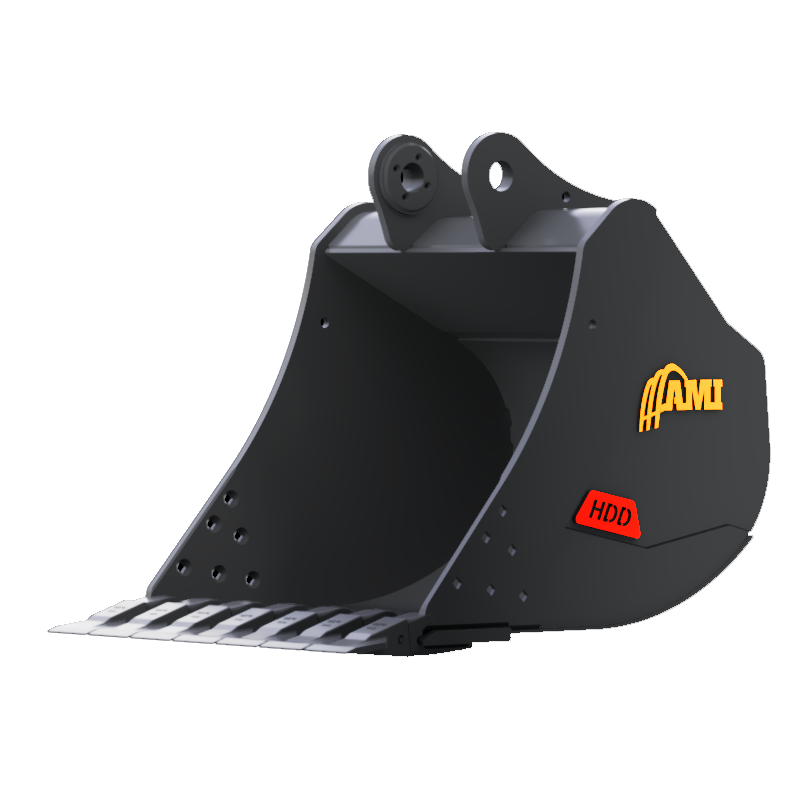

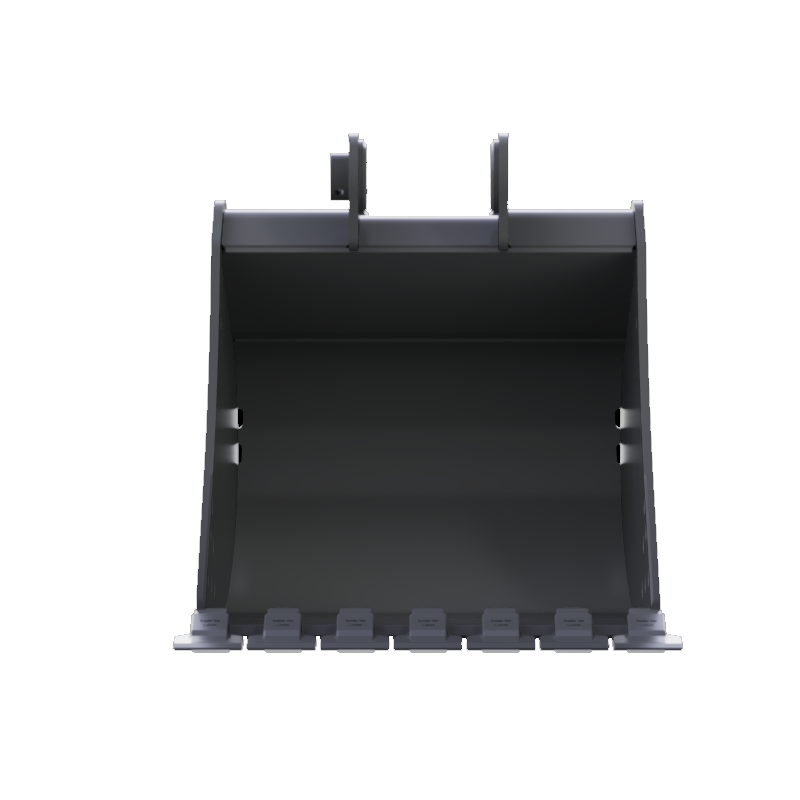

Heavy Duty Digging Bucket – Spade Tooth
Featuring a standard dual radius profile in floor and heel of bucket for maximum wear and performance, the AMI Heavy Duty Digging Bucket is built for heavy duty excavation and features the spade tooth design. Various ground engaging hardware available.
Specifications - Compact Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Teeth | Weight |
|---|---|---|---|---|---|---|---|
| 25 | HD0306E08ST | 3,000 - 6,000 lbs. | 8 " | 0.500 ft³ | 2 | 50 lbs | |
| 25 | HD0306E10ST | 3,000 - 6,000 lbs. | 10 " | 0.720 ft³ | 3 | 65 lbs | |
|
25 | HD0306E12ST | 3,000 - 6,000 lbs. | 12 " | 0.940 ft³ | 3 | 70 lbs |
|
|
25 | HD0306E16ST | 3,000 - 6,000 lbs. | 16 " | 1.165 ft³ | 4 | 80 lbs |
|
|
25 | HD0306E18ST | 3,000 - 6,000 lbs. | 18 " | 1.385 ft³ | 4 | 85 lbs |
|
|
25 | HD0306E20ST | 3,000 - 6,000 lbs. | 20 " | 1.605 ft³ | 4 | 90 lbs |
|
|
25 | HD0306E24ST | 3,000 - 6,000 lbs. | 24 " | 2.050 ft³ | 5 | 110 lbs |
|
|
25 | HD0306E30ST | 3,000 - 6,000 lbs. | 30 " | 2.715 ft³ | 7 | 130 lbs |
| 35 | HD0610E10ST | 6,000 - 10,000 lbs. | 10 " | 1.375 ft³ | 3 | 110 lbs | |
|
|
35 | HD0610E12ST | 6,000 - 10,000 lbs. | 12 " | 1.750 ft³ | 3 | 125 lbs |
|
|
35 | HD0610E16ST | 6,000 - 10,000 lbs. | 16 " | 2.000 ft³ | 4 | 150 lbs |
|
|
35 | HD0610E18ST | 6,000 - 10,000 lbs. | 18 " | 2.750 ft³ | 5 | 170 lbs |
|
|
35 | HD0610E20ST | 6,000 - 10,000 lbs. | 20 " | 3.125 ft³ | 5 | 180 lbs |
|
|
35 | HD0610E24ST | 6,000 - 10,000 lbs. | 24 " | 3.750 ft³ | 6 | 205 lbs |
|
|
35 | HD0610E30ST | 6,000 - 10,000 lbs. | 30 " | 4.875 ft³ | 8 | 235 lbs |
|
|
35 | HD0610E36ST | 6,000 - 10,000 lbs. | 36 " | 5.875 ft³ | 9 | 290 lbs |
|
|
50 | HD1012E12ST | 10,000 - 12,000 lbs | 12 " | 2.666 ft³ | 3 | 230 lbs |
|
|
50 | HD1012E16ST | 10,000 - 12,000 lbs | 16 " | 3.714 ft³ | 4 | 270 lbs |
|
|
50 | HD1012E18ST | 10,000 - 12,000 lbs | 18 " | 4.237 ft³ | 5 | 290 lbs |
|
|
50 | HD1012E20ST | 10,000 - 12,000 lbs | 20 " | 4.510 ft³ | 5 | 305 lbs |
|
|
50 | HD1012E24ST | 10,000 - 12,000 lbs | 24 " | 5.658 ft³ | 6 | 350 lbs |
|
|
50 | HD1012E30ST | 10,000 - 12,000 lbs | 30 " | 7.380 ft³ | 7 | 395 lbs |
| 50 | HD1012E36ST | 10,000 - 12,000 lbs | 36 " | 8.810 ft³ | 9 | 430 lbs | |
|
|
60 | HD1214E12ST | 12,000 - 14,000 lbs | 12 " | 2.500 ft³ | 3 | 355 lbs |
| 60 | HD1214E16ST | 12,000 - 14,000 lbs | 16 " | 4.000 ft³ | 4 | 400 lbs | |
|
|
60 | HD1214E18ST | 12,000 - 14,000 lbs | 18 " | 4.625 ft³ | 5 | 420 lbs |
|
|
60 | HD1214E20ST | 12,000 - 14,000 lbs | 20 " | 5.250 ft³ | 5 | 435 lbs |
|
|
60 | HD1214E24ST | 12,000 - 14,000 lbs | 24 " | 6.625 ft³ | 6 | 480 lbs |
|
|
60 | HD1214E30ST | 12,000 - 14,000 lbs | 30 " | 8.625 ft³ | 7 | 545 lbs |
|
|
60 | HD1214E36ST | 12,000 - 14,000 lbs | 36 " | 11.000 ft³ | 9 | 600 lbs |
|
|
75 | HD1416E12ST | 14,000 - 24,000 lbs | 12 " | 3.780 ft³ | 3 | 320 lbs |
|
|
75 | HD1416E16ST | 14,000 - 24,000 lbs | 16 " | 4.185 ft³ | 4 | 420 lbs |
|
|
75 | HD1416E18ST | 14,000 - 24,000 lbs | 18 " | 5.805 ft³ | 4 | 445 lbs |
| 75 | HD1416E20ST | 14,000 - 24,000 lbs | 20 " | 6.885 ft³ | 4 | 505 lbs | |
|
|
75 | HD1416E24ST | 14,000 - 24,000 lbs | 24 " | 8.35 ft³ | 6 | 535 lbs |
|
|
75 | HD1416E30ST | 14,000 - 24,000 lbs | 30 " | 11.070 ft³ | 7 | 605 lbs |
|
|
75 | HD1416E36ST | 14,000 - 24,000 lbs | 36 " | 13.770 ft³ | 8 | 685 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
