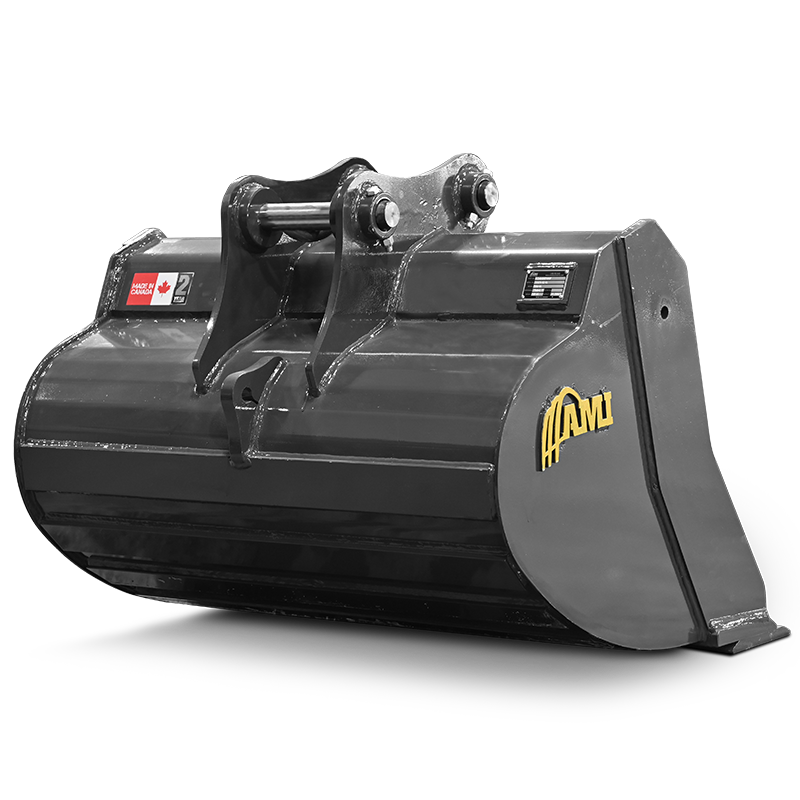

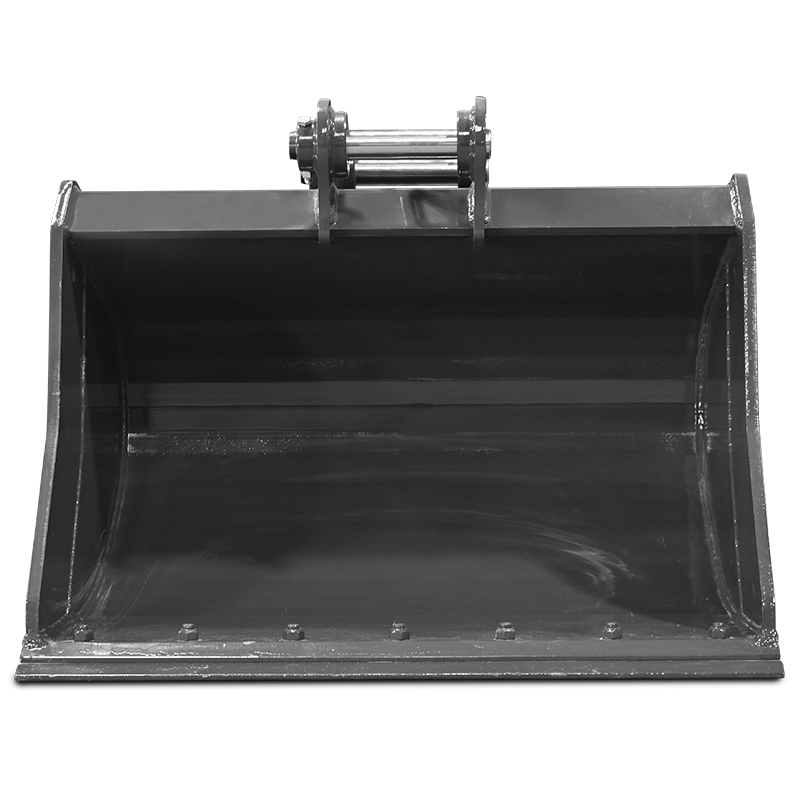

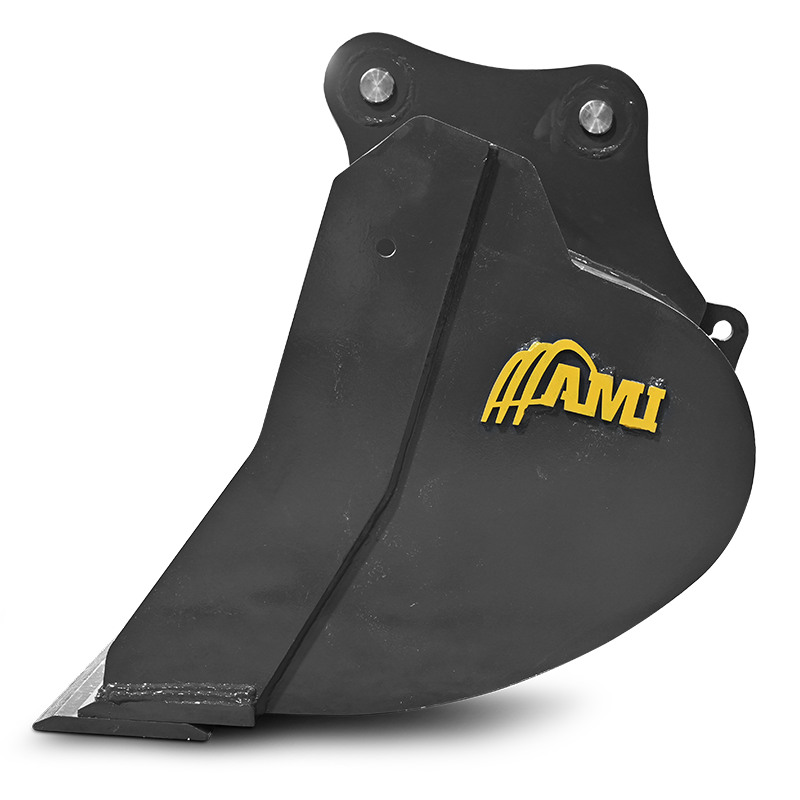

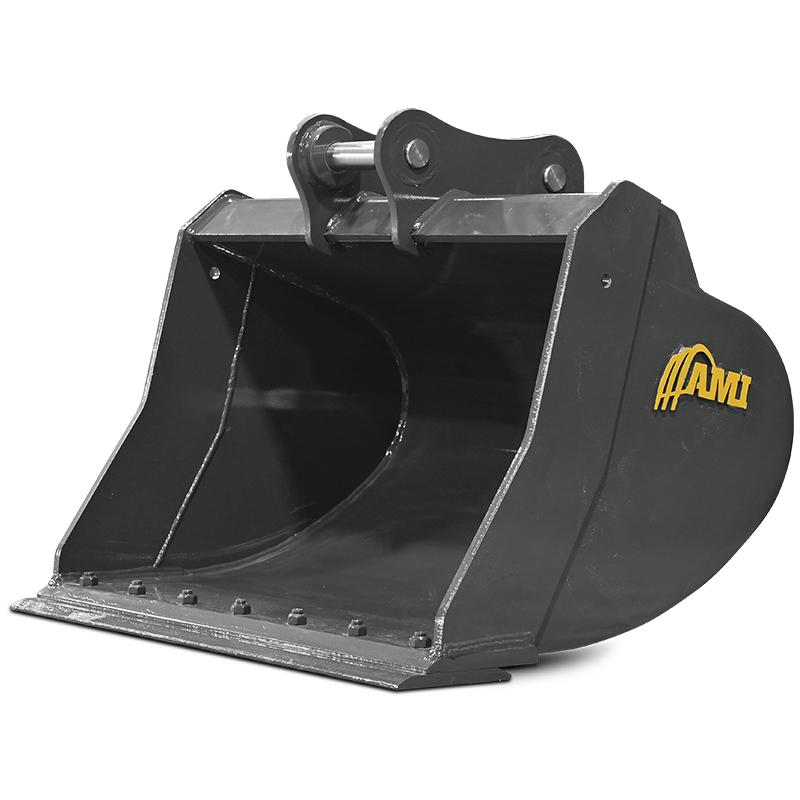

Ditch Cleaning Bucket
Make the grade with an AMI Ditch Cleaning Bucket for compact excavators. Detailed finishing work requires precision - exactly what AMI offers. The optional serrated edge gives operators a smooth edge while making it easier for penetrating when digging. Comes with reversible bolt-on edge.

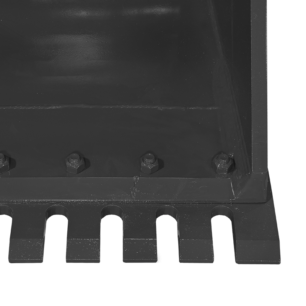

Serrated Edge Available
Specifications - Compact Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Description | Weight |
|---|---|---|---|---|---|---|---|
| 15 | D0103E20 | 1,000 - 3,000 lbs. | 20 " | 1.080 ft³ | Reversible BOE Optional | 55 lbs | |
| 15 | D0103E24 | 1,000 - 3,000 lbs. | 24 " | 1.290 ft³ | Reversible BOE Optional | 65 lbs | |
| 15 | D0103E30 | 1,000 - 3,000 lbs. | 30 " | 1.618 ft³ | Reversible BOE Optional | 80 lbs | |
| 15 | D0103E36 | 1,000 - 3,000 lbs. | 36 " | 1.940 ft³ | Reversible BOE Optional | 90 lbs | |
|
25 | D0306E20 | 3,000 - 6,000 lbs. | 20 " | 1.700 ft³ | Reversible BOE Optional | 75 lbs |
|
|
25 | D0306E24 | 3,000 - 6,000 lbs. | 24 " | 2.000 ft³ | Reversible BOE Optional | 85 lbs |
|
|
25 | D0306E30 | 3,000 - 6,000 lbs. | 30 " | 2.500 ft³ | Reversible Bolt On Edge Optional | 100 lbs |
|
|
25 | D0306E36 | 3,000 - 6,000 lbs. | 36 " | 3.280 ft³ | Reversible BOE Optional | 115 lbs |
|
|
35 | D0610E24 | 6,000 - 10,000 lbs. | 24 " | 3.750 ft³ | Comes with Reversible BOE | 175 lbs |
|
|
35 | D0610E30 | 6,000 - 10,000 lbs. | 30 " | 4.875 ft³ | Comes with Reversible BOE | 200 lbs |
|
|
35 | D0610E36 | 6,000 - 10,000 lbs. | 36 " | 5.875 ft³ | Comes with Reversible BOE | 230 lbs |
|
|
35 | D0610E40 | 6,000 - 10,000 lbs. | 40 " | 6.500 ft³ | Comes with Reversible BOE | 245 lbs |
|
|
50 | D1012E30 | 10,000 - 12,000 lbs | 30 " | 7.625 ft³ | Comes with Reversible BOE | 400 lbs |
|
|
50 | D1012E36 | 10,000 - 12,000 lbs | 36 " | 9.250 ft³ | Comes with Reversible BOE | 440 lbs |
|
|
50 | D1012E42 | 10,000 - 12,000 lbs | 42 " | 11.250 ft³ | Comes with Reversible BOE | 480 lbs |
|
|
50 | D1012E48 | 10,000 - 12,000 lbs | 48 " | 12.750 ft³ | Comes with Reversible BOE | 520 lbs |
|
|
60 | D1214E36 | 12,000 - 14,000 lbs | 36 " | 11.000 ft³ | Comes with Reversible BOE | 600 lbs |
|
|
60 | D1214E42 | 12,000 - 14,000 lbs | 42 " | 12.25 ft³ | Comes with Reversible BOE | 660 lbs |
|
|
60 | D1214E48 | 12,000 - 14,000 lbs | 48 " | 15.000 ft³ | Comes with Reversible BOE | 720 lbs |
|
|
60 | D1214E54 | 12,000 - 14,000 lbs | 54 " | 17.000 ft³ | Comes with Reversible BOE | 780 lbs |
| 60 | D1214E60 | 12,000 - 14,000 lbs | 60 " | 19.000 ft³ | Comes with Reversible BOE | 840 lbs | |
|
|
75 | D1416E36 | 14,000 - 24,000 lbs | 36 " | 11.000 ft³ | Comes with Reversible BOE | 600 lbs |
|
|
75 | D1416E42 | 14,000 - 24,000 lbs | 42 " | 12.875 ft³ | Comes with Reversible BOE | 660 lbs |
|
|
75 | D1416E48 | 14,000 - 24,000 lbs | 48 " | 15.000 ft³ | Comes with Reversible BOE | 720 lbs |
|
|
75 | D1416E54 | 14,000 - 24,000 lbs | 54 " | 17.000 ft³ | Comes with Reversible BOE | 780 lbs |
| 75 | D1416E60 | 14,000 - 24,000 lbs | 60 " | 19.000 ft³ | Comes with Reversible BOE | 840 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
