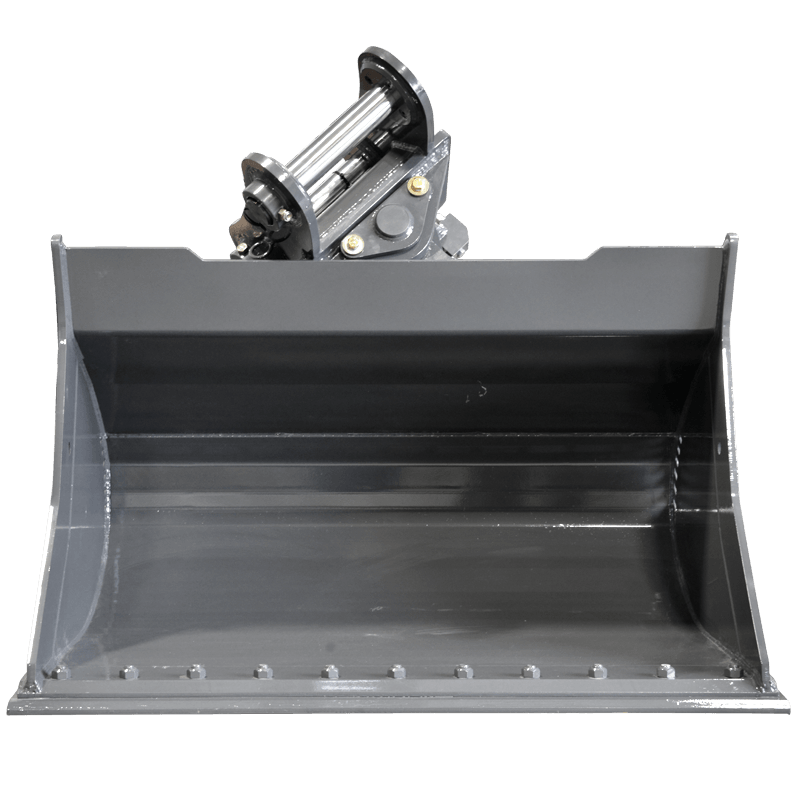

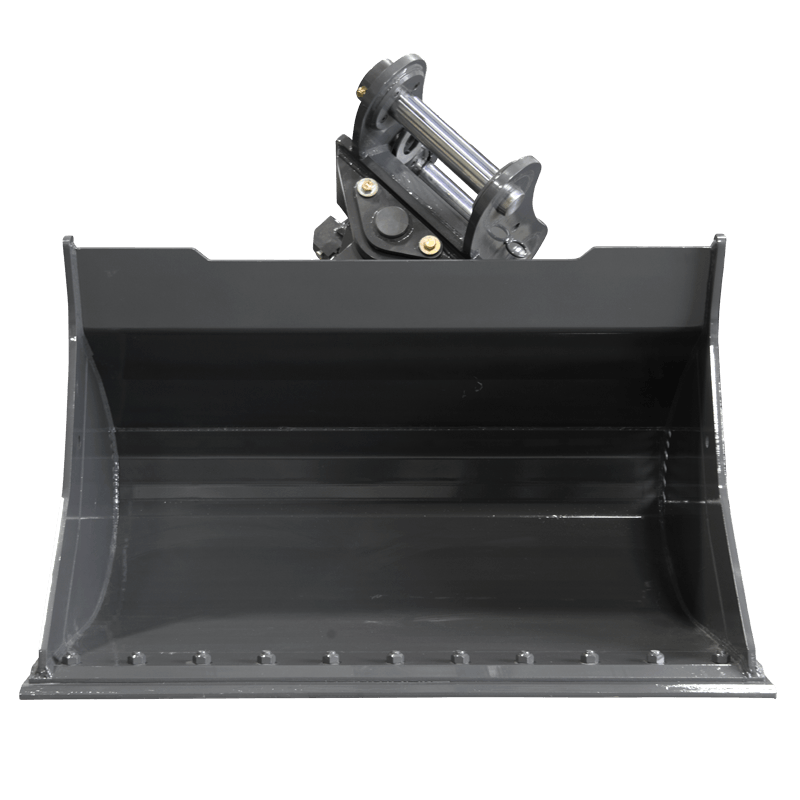

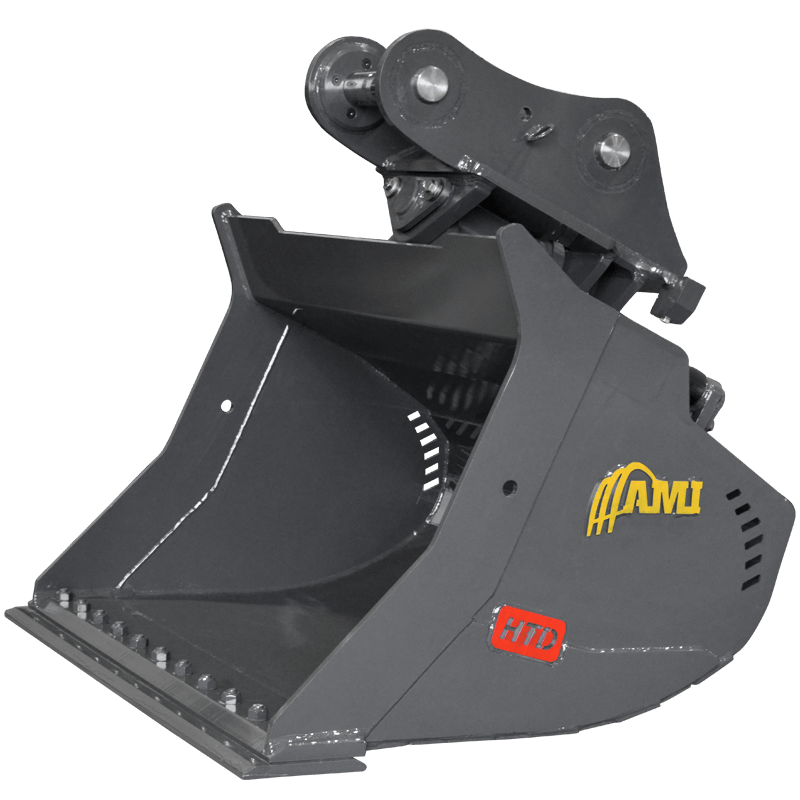

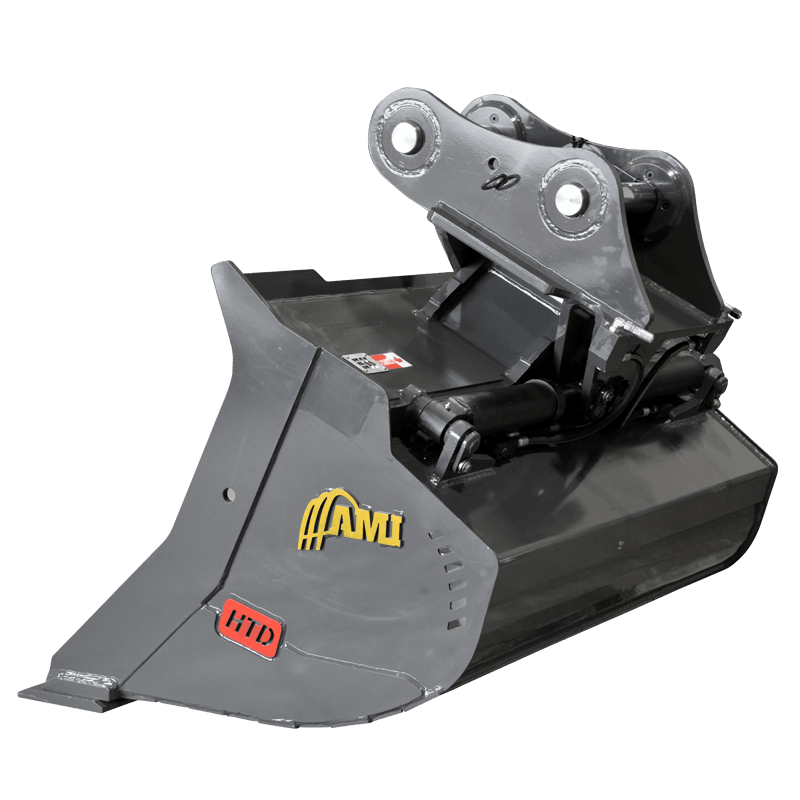

High Capacity Hydraulic Tilt Ditch Cleaning Bucket
The new design of the High Capacity Hydraulic Tilt Ditch Cleaning Bucket features a flatter profile, open heel and bigger radius for level grading on uneven terrain. With the versatility of a 45 degree tilt range on each side, you achieve smooth tilting action for an easy, clean finish. Designed specifically to reach those awkward spots with less repositioning of your excavator, the AMI Hydraulic Tilt Ditch Cleaning Bucket allows for level grading on uneven ground, provides a smooth tilting action and is designed to fit tightly when curled up. The bottom reversible cutting edge adds longevity and provides easy in-field maintenance.
90 degree rotation
Crossover Plumbing
Tapered Design
Dual Radius Design
Serrated Edge Available
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Width | Capacity | Weight |
|---|---|---|---|---|---|---|
| 130 | HTD2433E54HC | 24,000 - 33,000 lbs | 54 " | 0.765 yd³ | 1545 lbs | |
| 130 | HTD2433E60HC | 24,000 - 33,000 lbs | 60 " | 0.860 yd³ | 1645 lbs | |
| 150 | HTD3340E54HC | 33,000 - 45,000 lbs | 54 " | 0.885 yd³ | 1785 lbs | |
| 150 | HTD3340E60HC | 33,000 - 45,000 lbs | 60 " | 0.980 yd³ | 1885 lbs | |
|
200 | HTD4045E60HC | 45,000 - 55,000 lbs | 60 " | 1.395 yd³ | 2515 lbs |
|
|
200 | HTD4045E66HC | 45,000 - 55,000 lbs | 66 " | 1.555 yd³ | 2660 lbs |
|
|
200 | HTD4045E72HC | 45,000 - 55,000 lbs | 72 " | 1.715 yd³ | 2870 lbs |
|
|
250 | HTD4560E66HC | 55,000 - 65,000 lbs | 66 " | 1.655 yd³ | 3125 lbs |
|
|
250 | HTD4560E72HC | 55,000 - 65,000 lbs | 72 " | 1.830 yd³ | 3460 lbs |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
