Letsdig18 Progressive Link Hydraulic Thumb

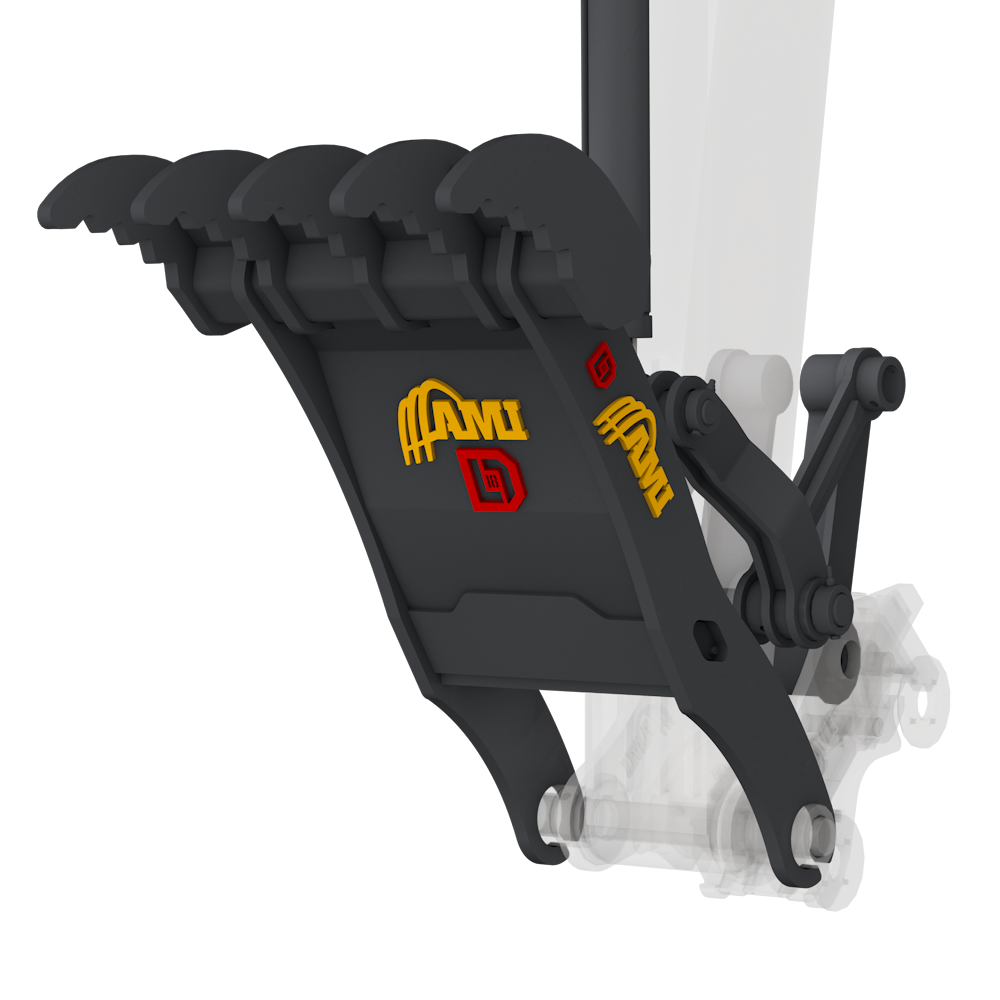

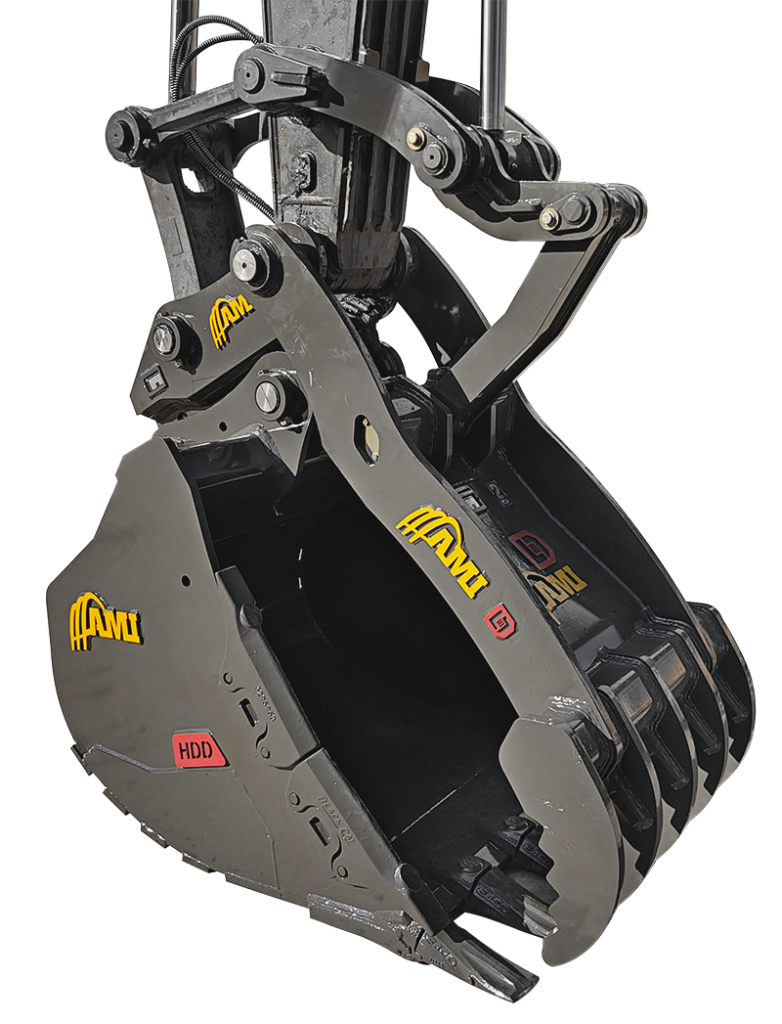

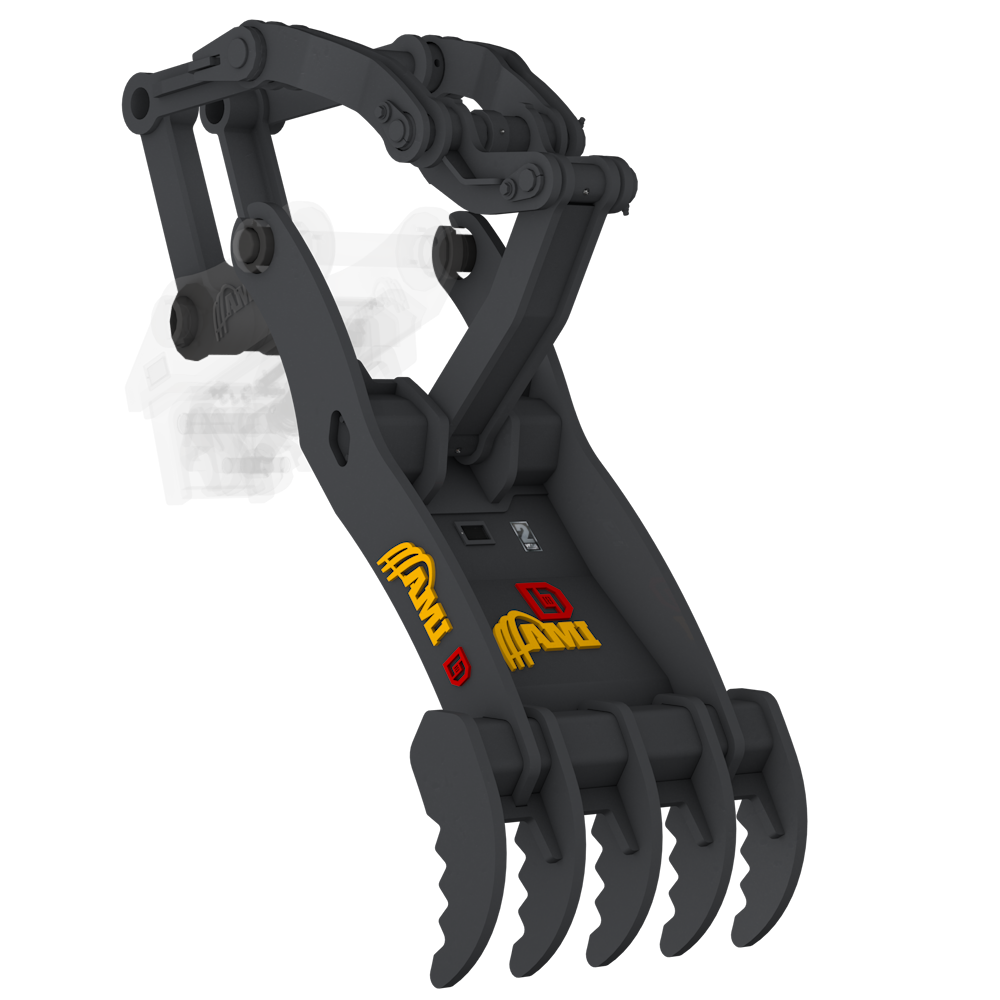

The Custom Edition LETSDIG18 - Progressive Link Hydraulic Thumb provides more constant pressure throughout the entire cylinder range. The thumb achieves more than 180 degree rotation which makes it easy to reach and pick up objects that are close to your excavator. The extra linkage expands the thumb’s reach across the bucket’s entire rotation, including at full roll out. This provides superior material handling, which improves machine productivity.

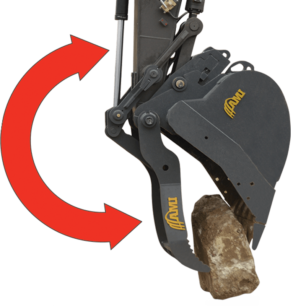

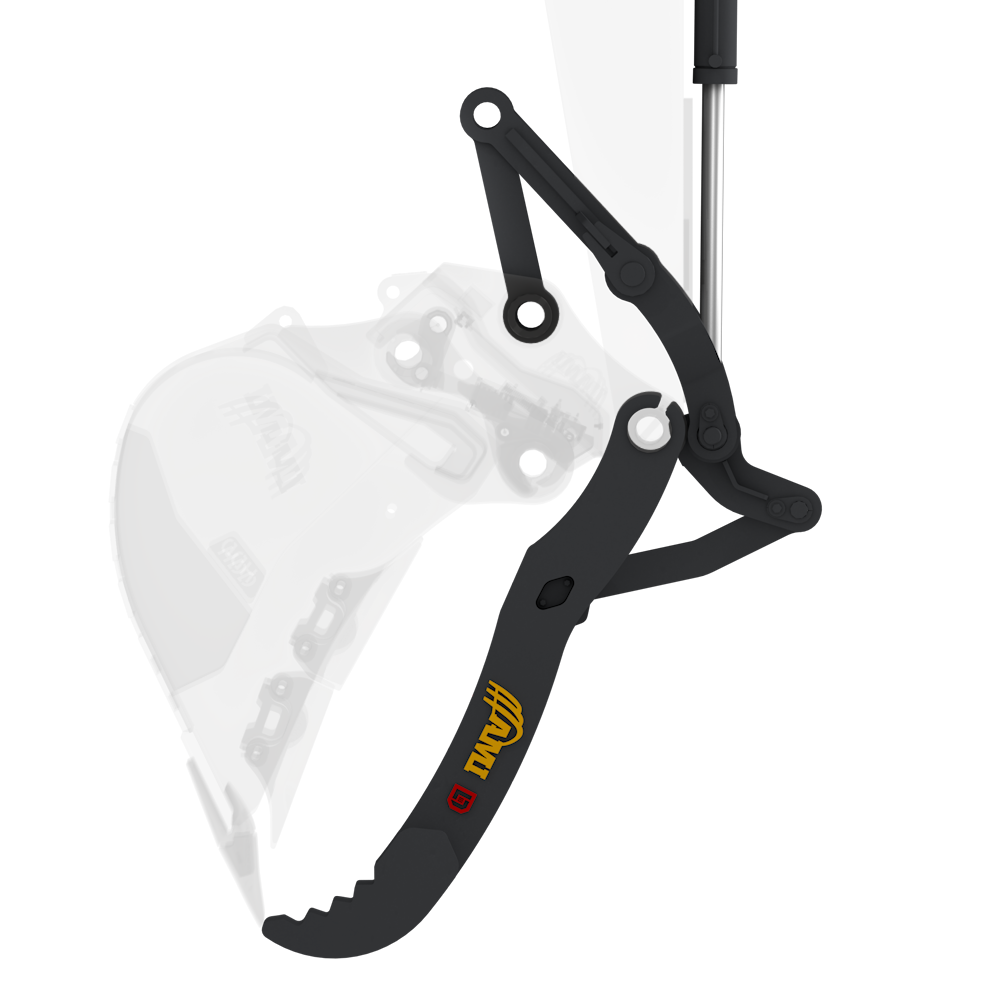

Full Bucket Rotation
When reaching up to grab branches, or debris, the thumb will grab at full rotation. The extra linkage gives the thumb greater than 180-degrees which allows you to touch the ground with the thumb closer to the machine compared to a stick-pivot thumb.

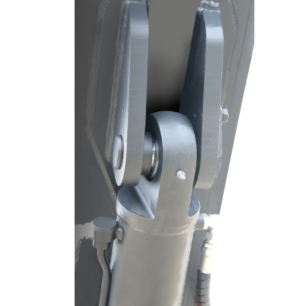

Spherical Bushings
The rotating eye in the cylinder's connection points allows the cylinder to pivot and always extend in a straight line regardless of uneven torsion/stress. This prevents the cylinder seals from breaking.

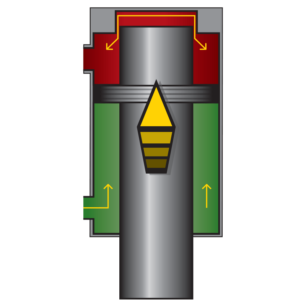

Cushioning Cylinder
At each end of the cylinder's stroke, the ram automatically slows down to prevent jolting action which improves operator comfort and prevents premature wear and tear on the machine.

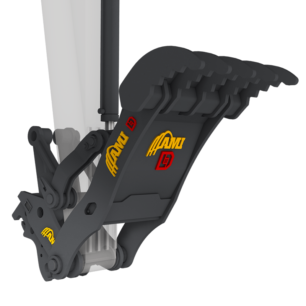

Load Hold Valve
When the thumb is not in use and tucked up against the stick, the load-holding valve locks in pressure which prevents the thumb from creeping down.

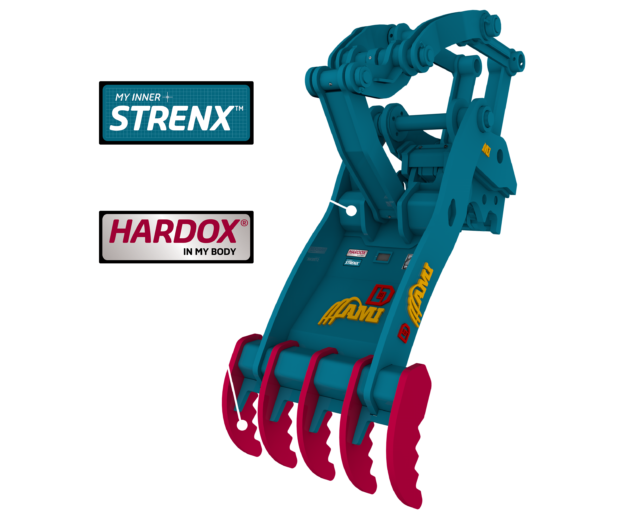

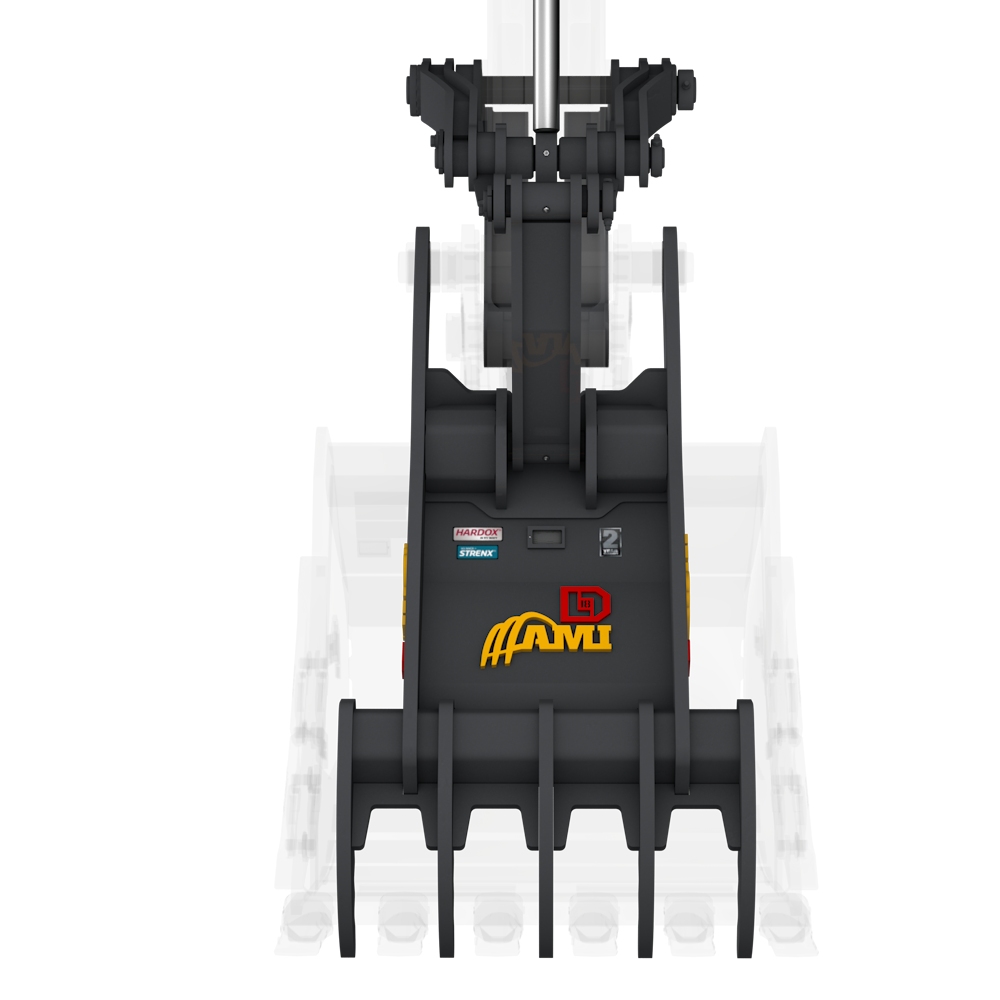

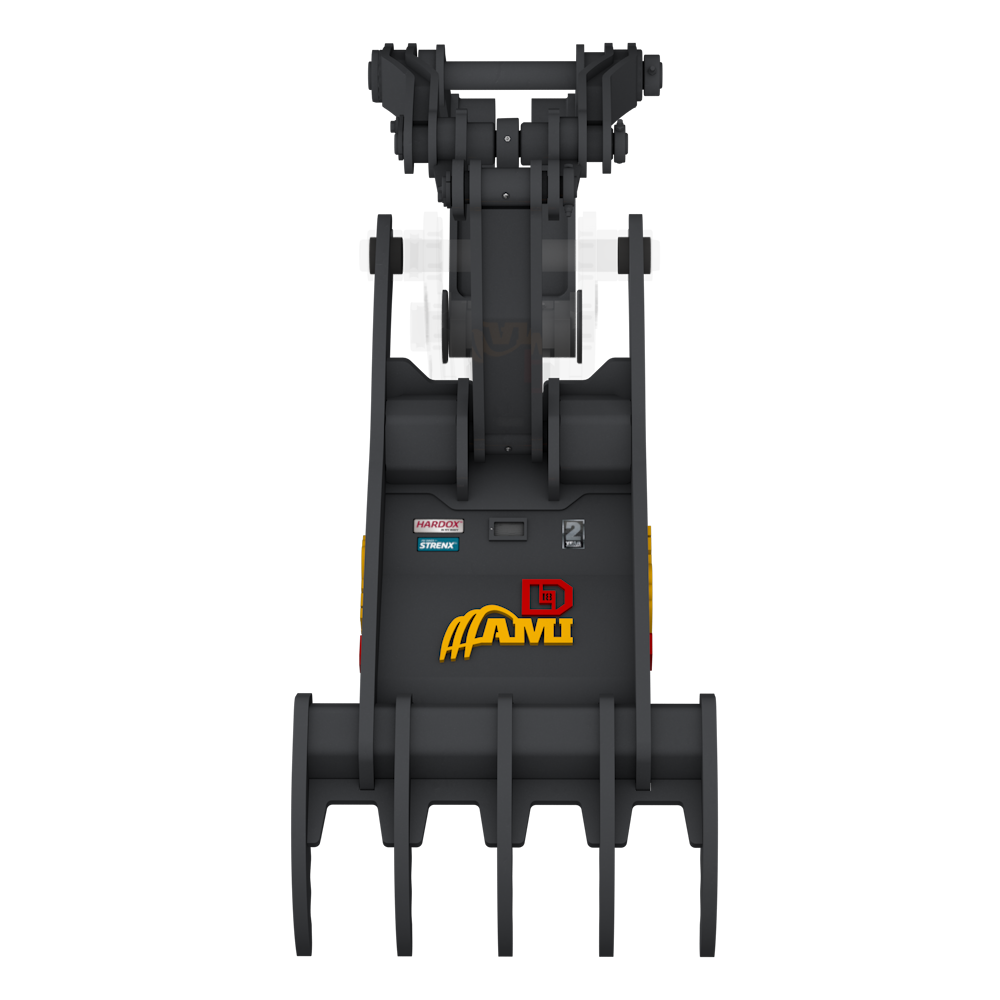

The tines are made from Hardox® 450 Wear Plate. This is a special steel that is significantly harder than simple AR400. Hardox® wears evenly over time compared to AR400 which is only heat treated on the outside. In the middle, the steel is still soft and will wear down faster and inconsistently. Made for strength without extra weight, Strenx® is a structural steel which reduces the weight.
Chris Guins with his new Custom made LD18 Pro-Link Thumb
Specifications - Excavator
| FastTrack | Category | Model | Machine Class | Tines | Weight | Width |
|---|---|---|---|---|---|---|
|
130 | TH2433LD18PL2T11 | 24,000 - 33,000 lbs | 2 | 965 | 11 " |
|
|
130 | TH2433LD18PL2T16 | 24,000 - 33,000 lbs | 2 | 965 | 15 " |
|
|
130 | TH2433LD18PL2T21.5 | 24,000 - 33,000 lbs | 2 | 965 | 21 " |
|
|
130 | TH2433LD18PL2T26 | 24,000 - 33,000 lbs | 2 | 965 | 25 " |
|
|
130 | TH2433LD18PL3T16 | 24,000 - 33,000 lbs | 3 | 990 | 16 " |
|
|
130 | TH2433LD18PL3T21.5 | 24,000 - 33,000 lbs | 3 | 990 | 21.5 " |
|
|
130 | TH2433LD18PL4T21.5 | 24,000 - 33,000 lbs | 4 | 1020 | 21.5 " |
|
|
130 | TH2433LD18PL4T26 | 24,000 - 33,000 lbs | 4 | 1020 | 26 " |
|
|
130 | TH2433LD18PL4T32 | 24,000 - 33,000 lbs | 4 | 1020 | 31 " |
|
|
130 | TH2433LD18PL5T32 | 24,000 - 33,000 lbs | 5 | 1080 | 32 " |
|
|
130 | TH2433LD18PL5T38 | 24,000 - 33,000 lbs | 5 | 1080 | 37 " |
|
|
150 | TH3340LD18PL2T16 | 33,000 - 45,000 lbs | 2 | 1400 | 16 " |
|
|
150 | TH3340LD18PL2T23.5 | 33,000 - 45,000 lbs | 2 | 1400 | 23.5 " |
|
|
150 | TH3340LD18PL2T27 | 33,000 - 45,000 lbs | 2 | 1400 | 27 " |
|
|
150 | TH3340LD18PL3T16 | 33,000 - 45,000 lbs | 3 | 1440 | 16 " |
|
|
150 | TH3340LD18PL3T23.5 | 33,000 - 45,000 lbs | 3 | 1440 | 23.5 " |
|
|
150 | TH3340LD18PL3T27 | 33,000 - 45,000 lbs | 3 | 1440 | 27 " |
|
|
150 | TH3340LD18PL4T23.5 | 33,000 - 45,000 lbs | 4 | 1485 | 1485 " |
|
|
150 | TH3340LD18PL4T27 | 33,000 - 45,000 lbs | 4 | 1485 | 27 " |
|
|
150 | TH3340LD18PL4T32 | 33,000 - 45,000 lbs | 4 | 1520 | 32 " |
|
|
150 | TH3340LD18PL5T38 | 33,000 - 45,000 lbs | 5 | 1520 | 38 " |
|
|
200 | TH4045LD18PL2T20 | 45,000 - 55,000 lbs | 2 | 1450 | 20 " |
|
|
200 | TH4045LD18PL2T24 | 45,000 - 55,000 lbs | 2 | 1450 | 24 " |
|
|
200 | TH4045LD18PL2T26.5 | 45,000 - 55,000 lbs | 2 | 1450 | 26.5 " |
|
|
200 | TH4045LD18PL2T30 | 45,000 - 55,000 lbs | 2 | 1450 | 30 " |
|
|
200 | TH4045LD18PL2T34 | 45,000 - 55,000 lbs | 2 | 1450 | 34 " |
|
|
200 | TH4045LD18PL3T20 | 45,000 - 55,000 lbs | 3 | 1530 | 20 " |
|
|
200 | TH4045LD18PL3T24 | 45,000 - 55,000 lbs | 3 | 1530 | 24 " |
|
|
200 | TH4045LD18PL3T26.5 | 45,000 - 55,000 lbs | 3 | 1530 | 29 " |
|
|
200 | TH4045LD18PL4T30 | 45,000 - 55,000 lbs | 4 | 1580 | 30 " |
|
|
200 | TH4045LD18PL4T37 | 45,000 - 55,000 lbs | 4 | 1580 | 37 " |
|
|
200 | TH4045LD18PL5T34 | 45,000 - 55,000 lbs | 5 | 1650 | 34 " |
|
|
200 | TH4045LD18PL5T37 | 45,000 - 55,000 lbs | 5 | 1650 | 37 " |
|
|
250 | TH4560LD18PL2T20 | 55,000 - 65,000 lbs | 2 | 1850 | 20 " |
|
|
250 | TH4560LD18PL2T24 | 55,000 - 65,000 lbs | 2 | 1850 | 24 " |
|
|
250 | TH4560LD18PL2T30 | 55,000 - 65,000 lbs | 2 | 1850 | 29 " |
|
|
250 | TH4560LD18PL3T20 | 55,000 - 65,000 lbs | 3 | 1890 | 19 " |
|
|
250 | TH4560LD18PL3T24 | 55,000 - 65,000 lbs | 3 | 1890 | 24 " |
|
|
250 | TH4560LD18PL3T30 | 55,000 - 65,000 lbs | 3 | 1890 | 30 " |
|
|
250 | TH4560LD18PL4T24 | 55,000 - 65,000 lbs | 4 | 1940 | 23 " |
|
|
250 | TH4560LD18PL4T30 | 55,000 - 65,000 lbs | 4 | 1940 | 30 " |
|
|
250 | TH4560LD18PL4T35 | 55,000 - 65,000 lbs | 4 | 1940 | 35 " |
|
|
250 | TH4560LD18PL4T38 | 55,000 - 65,000 lbs | 4 | 1940 | 38 " |
|
|
250 | TH4560LD18PL5T38 | 55,000 - 65,000 lbs | 5 | 1980 | 38 " |
|
|
250 | TH4560LD18PL5T42 | 55,000 - 65,000 lbs | 5 | 1980 | 41 " |
|
|
250 | TH4560LD18PL5T48 | 55,000 - 65,000 lbs | 5 | 1980 | 47 " |
|
|
300 | TH6080LD18PL2T22 | 65,000 - 90,000 lbs | 2 | 2680 | 22 " |
|
|
300 | TH6080LD18PL2T26 | 65,000 - 90,000 lbs | 2 | 2680 | 26 " |
|
|
300 | TH6080LD18PL2T32.5 | 65,000 - 90,000 lbs | 2 | 2680 | 32 " |
|
|
300 | TH6080LD18PL2T36 | 65,000 - 90,000 lbs | 2 | 2680 | 36 " |
|
|
300 | TH6080LD18PL2T40 | 65,000 - 90,000 lbs | 2 | 2680 | 40 " |
|
|
300 | TH6080LD18PL3T22 | 65,000 - 90,000 lbs | 3 | 2750 | 22 " |
|
|
300 | TH6080LD18PL3T26 | 65,000 - 90,000 lbs | 3 | 2750 | 26 " |
|
|
300 | TH6080LD18PL3T32.5 | 65,000 - 90,000 lbs | 3 | 2750 | 32 " |
|
|
300 | TH6080LD18PL3T36 | 65,000 - 90,000 lbs | 3 | 2750 | 36 " |
|
|
300 | TH6080LD18PL4T26 | 65,000 - 90,000 lbs | 4 | 2800 | 26 " |
|
|
300 | TH6080LD18PL4T32.5 | 65,000 - 90,000 lbs | 4 | 2800 | 32.5 " |
|
|
300 | TH6080LD18PL4T36 | 65,000 - 90,000 lbs | 4 | 2800 | 36 " |
|
|
300 | TH6080LD18PL4T40 | 65,000 - 90,000 lbs | 4 | 2800 | 39 " |
|
|
300 | TH6080LD18PL5T45 | 65,000 - 90,000 lbs | 5 | 2850 | 45 " |
|
|
300 | TH6080LD18PL5T50 | 65,000 - 90,000 lbs | 5 | 2850 | 50 " |
|
|
300 | TH6080LD18PL5T55 | 65,000 - 90,000 lbs | 5 | 2850 | 55 " |
|
|
400 | TH80100LD18PL2T24 | 90,000 - 115,000 lbs | 2 | 4000 | 24 " |
|
|
400 | TH80100LD18PL2T26 | 90,000 - 115,000 lbs | 26 | 4000 | 26 " |
|
|
400 | TH80100LD18PL2T33.5 | 90,000 - 115,000 lbs | 33.5 | 4000 | 33.5 " |
|
|
400 | TH80100LD18PL2T40 | 90,000 - 115,000 lbs | 2 | 4000 | 40 " |
|
|
400 | TH80100LD18PL3T24 | 90,000 - 115,000 lbs | 3 | 4080 | 24 " |
|
|
400 | TH80100LD18PL3T26 | 90,000 - 115,000 lbs | 3 | 4080 | 26 " |
|
|
400 | TH80100LD18PL3T33.5 | 90,000 - 115,000 lbs | 33.5 | 4080 | 33.5 " |
|
|
400 | TH80100LD18PL3T40 | 90,000 - 115,000 lbs | 3 | 4080 | 40 " |
|
|
400 | TH80100LD18PL4T33.5 | 90,000 - 115,000 lbs | 4 | 4125 | 32 " |
|
|
400 | TH80100LD18PL4T40 | 90,000 - 115,000 lbs | 4 | 4125 | 39 " |
|
|
400 | TH80100LD18PL4T47 | 90,000 - 115,000 lbs | 4 | 4125 | 47 " |
|
|
400 | TH80100LD18PL5T40 | 90,000 - 115,000 lbs | 5 | 4165 | 38 " |
|
|
400 | TH80100LD18PL5T47 | 90,000 - 115,000 lbs | 5 | 4165 | 46 " |
|
|
400 | TH80100LD18PL5T55 | 90,000 - 115,000 lbs | 5 | 4165 | 53 " |
AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
