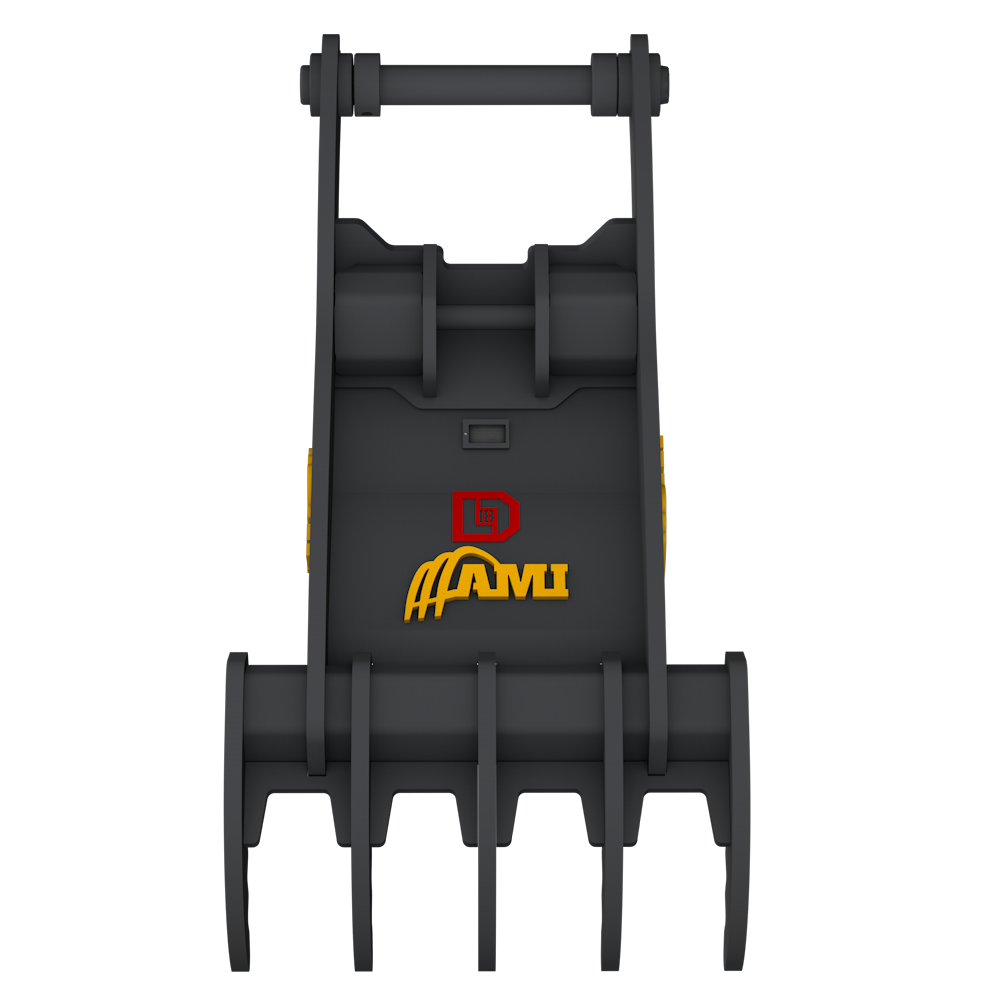

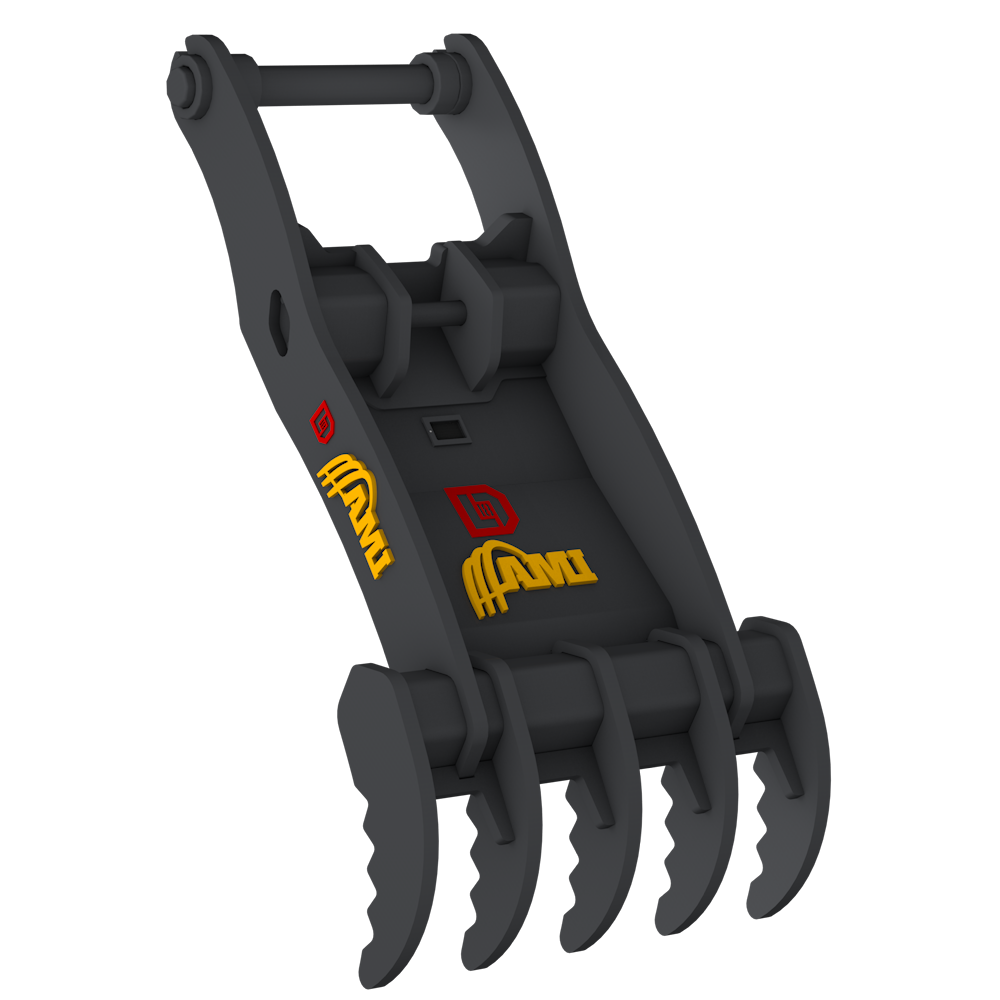

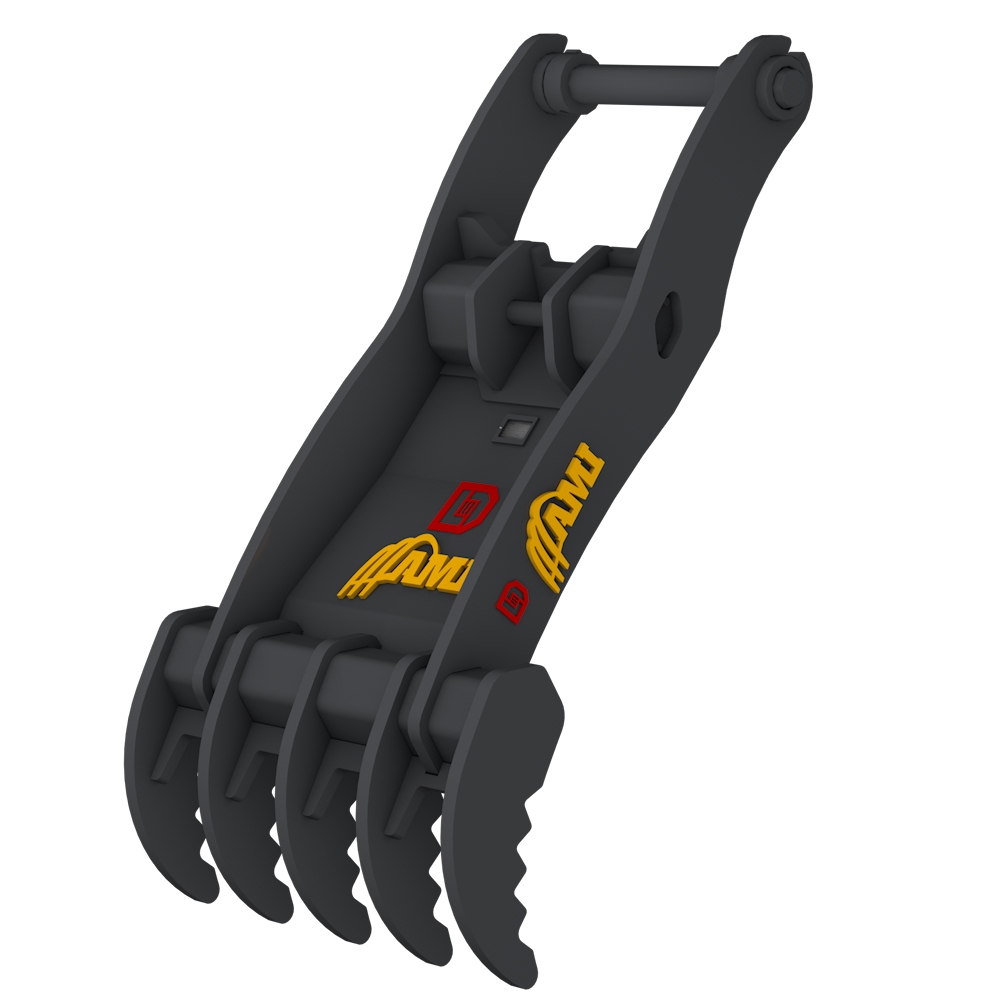

Letsdig18 Stick Pivot Hydraulic Thumb

The Custom Edition LETSDIG18 - Hydraulic Stick Pivot Thumb provides great functionality to your excavator and backhoe. Stick Pivot means the thumb rotates on the same pivot point as the original bucket pin, not a secondary weld-on pivot point. The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating. Unlike thumbs that use a secondary weld-on pivot point, the LETSDIG18 Custom Edition Stick Pivot eliminates scraping and slippage and reduces risk of release during rotation. The LETSDIG18 Hydraulic Stick Pivot Thumb also exclusively features Hardox® tines positioned between each tooth.

Product Features

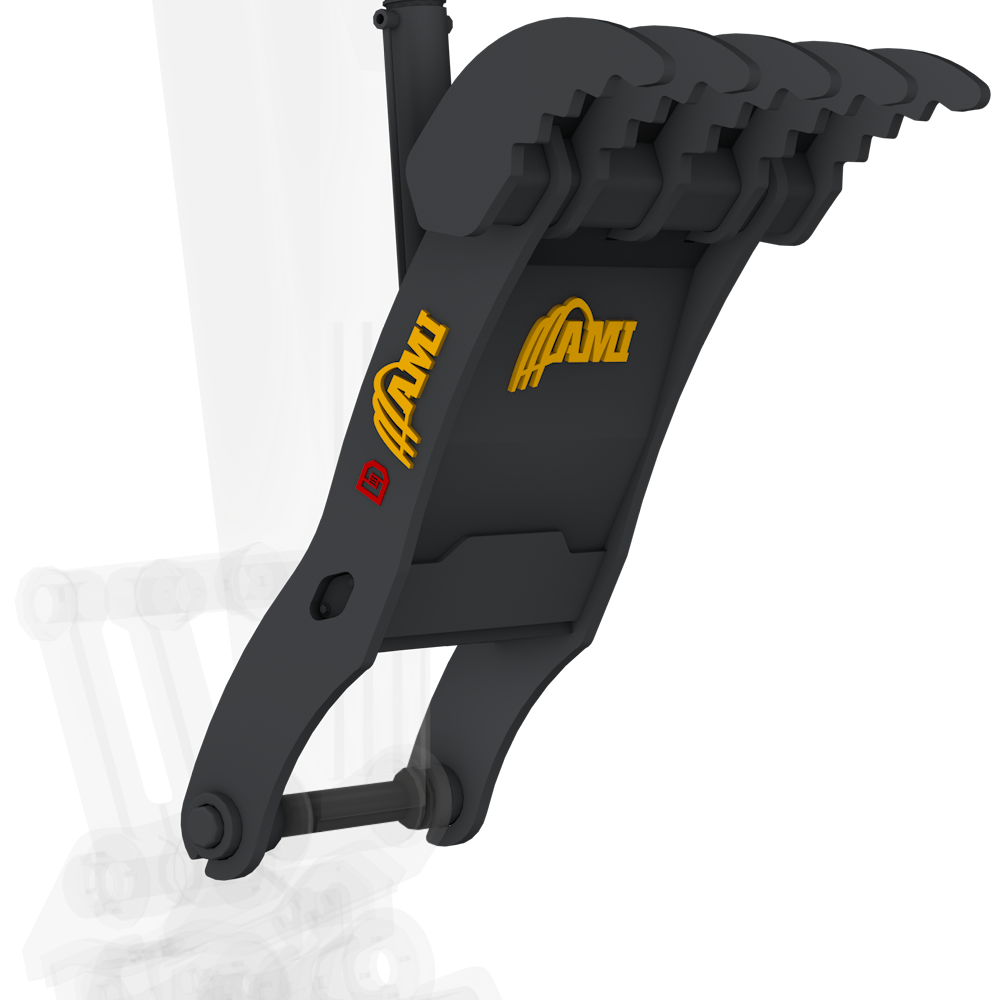

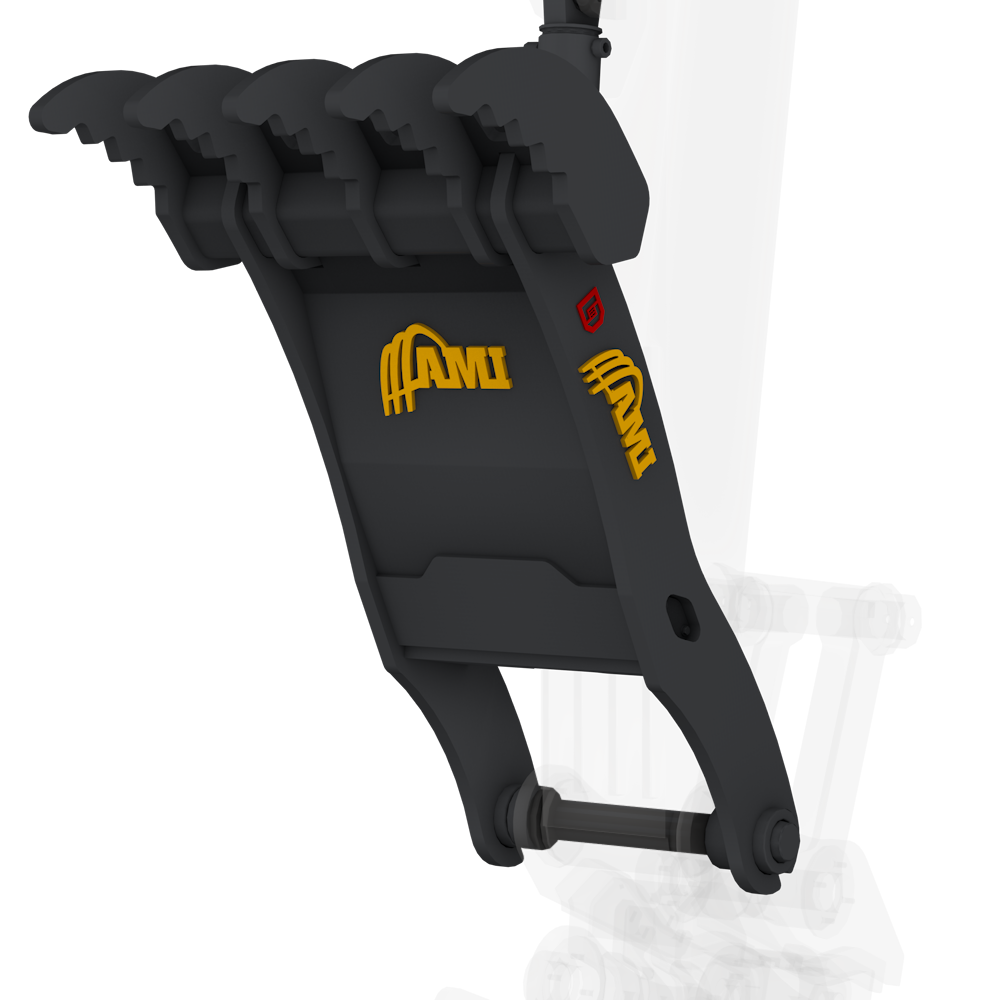

Bucket Pin Rotation Point

The hydraulic cylinder is also directly connected to the thumb, covering 65-75% bucket rotation. Since both the thumb and the bucket rotate on the same axis, the thumb tip and bucket teeth maintain constant grip on the load when rotating.


Spherical Bushings

The hydraulic cylinder’s seals stay intact by allowing the thumb to naturally flex when handling awkward material without adding torsional stress to the seals.


Cushioning Cylinder

By restricting the flow of hydraulic oil at the end of the cylinder stroke, AMI thumbs retract smoothly without a hard stop. This reduces the wear and tear on the excavator and prevents machine shake, making it more comfortable for the operator.

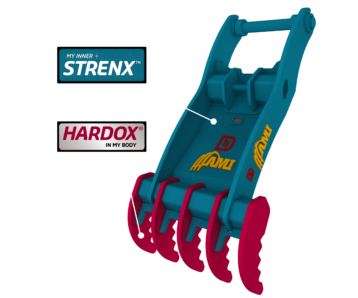

Hardox® - Strenx™

The tines are made from Hardox® 450 Wear Plate. This is a special steel that is significantly harder than simple AR400. Hardox® wears evenly over time compared to AR400 which is only heat treated on the outside. In the middle, the steel is still soft and will wear down faster and inconsistently. Made for strength without extra weight, Strenx® is a structural steel which reduces the weight.

SPECIFICATIONS - EXCAVATOR

FastTrack Category Model Machine Class Tines Weight
130 TH2433HSP2TLD18 24,000 - 33,000 lbs 2 580 lbs
130 TH2433HSP3TLD18 24,000 - 33,000 lbs 3 600 lbs
130 TH2433HSP4TLD18 24,000 - 33,000 lbs 4 620 lbs
130 TH2433HSP5TLD18 24,000 - 33,000 lbs 5 WOR
150 TH3340HSP2TLD18 33,000 - 45,000 lbs 2 770 lbs
150 TH3340HSP3TLD18 33,000 - 45,000 lbs 3 800 lbs
150 TH3340HSP4TLD18 33,000 - 45,000 lbs 4 1030 lbs
150 TH3340HSP5TLD18 33,000 - 45,000 lbs 5 WOR
200 TH4045HSP2TLD18 45,000 - 55,000 lbs 2 930 lbs
200 TH4045HSP3TLD18 45,000 - 55,000 lbs 3 970 lbs
200 TH4045HSP4TLD18 45,000 - 55,000 lbs 4 1010 lbs
200 TH4045HSP5TLD18 45,000 - 55,000 lbs 5 WOR
250 TH4560HSP2TLD18 55,000 - 65,000 lbs 2 1100 lbs
250 TH4560HSP3TLD18 55,000 - 65,000 lbs 3 1200 lbs
250 TH4560HSP4TLD18 55,000 - 65,000 lbs 4 1280 lbs
250 TH4560HSP5TLD18 55,000 - 65,000 lbs 5 WOR
300 TH6080HSP2TLD18 65,000 - 90,000 lbs 2 1530 lbs
300 TH6080HSP3TLD18 65,000 - 90,000 lbs 3 1600 lbs
300 TH6080HSP4TLD18 65,000 - 90,000 lbs 4 1680 lbs
300 TH6080HSP5TLD18 65,000 - 90,000 lbs 5 WOR
400 TH80100HSP2TLD18 90,000 - 115,000 lbs 2 2840 lbs
400 TH80100HSP3TLD18 90,000 - 115,000 lbs 3 2930 lbs
400 TH80100HSP4TLD18 90,000 - 115,000 lbs 4 2980 lbs
400 TH80100HSP5TLD18 90,000 - 115,000 lbs 5 WOR

FastTrack Logo AMI’s Fast Track Program features a wide selection of high-volume products that can be manufactured and shipped in a shorter time period with no compromise in quality and at no extra charge.
